CreatBotD1000 HS Temperature SensorGenuine CreatBot Replacement Part
D1000 HS Temperature Sensor for D600 Pro2 HS and D1000 HS

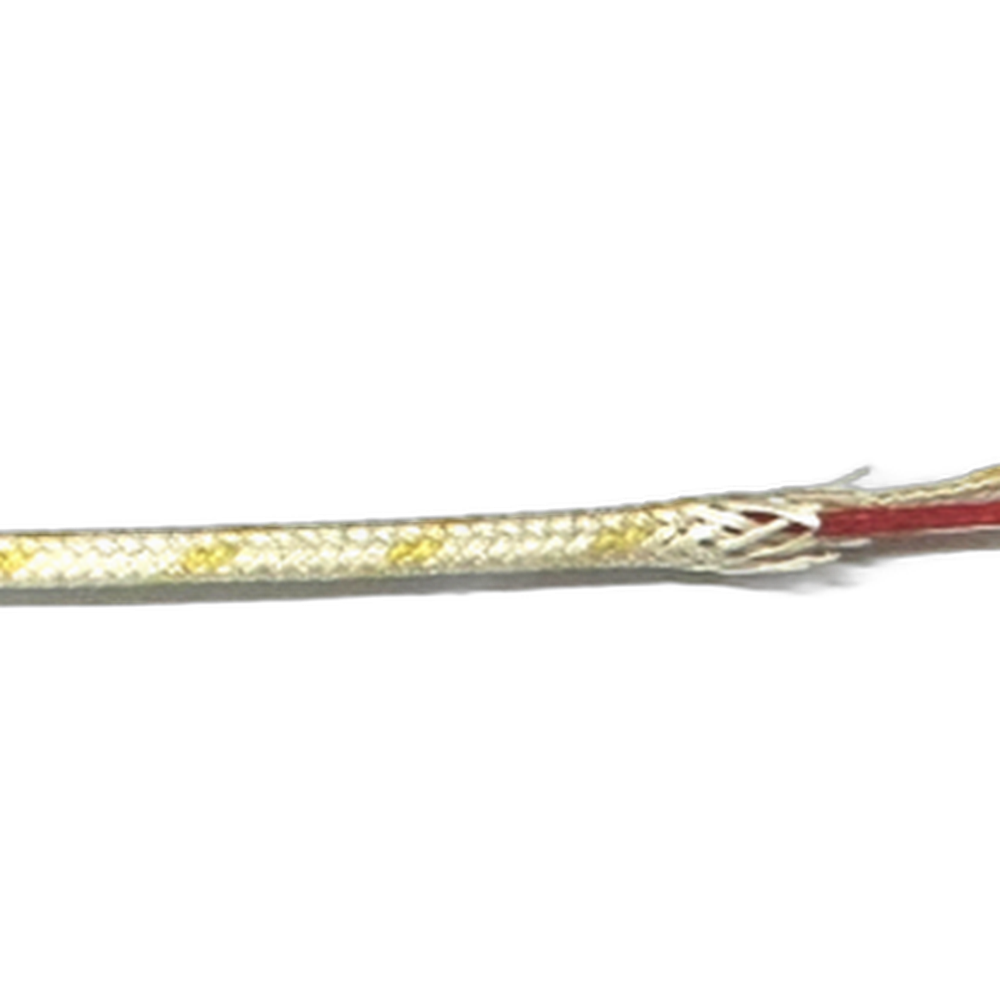

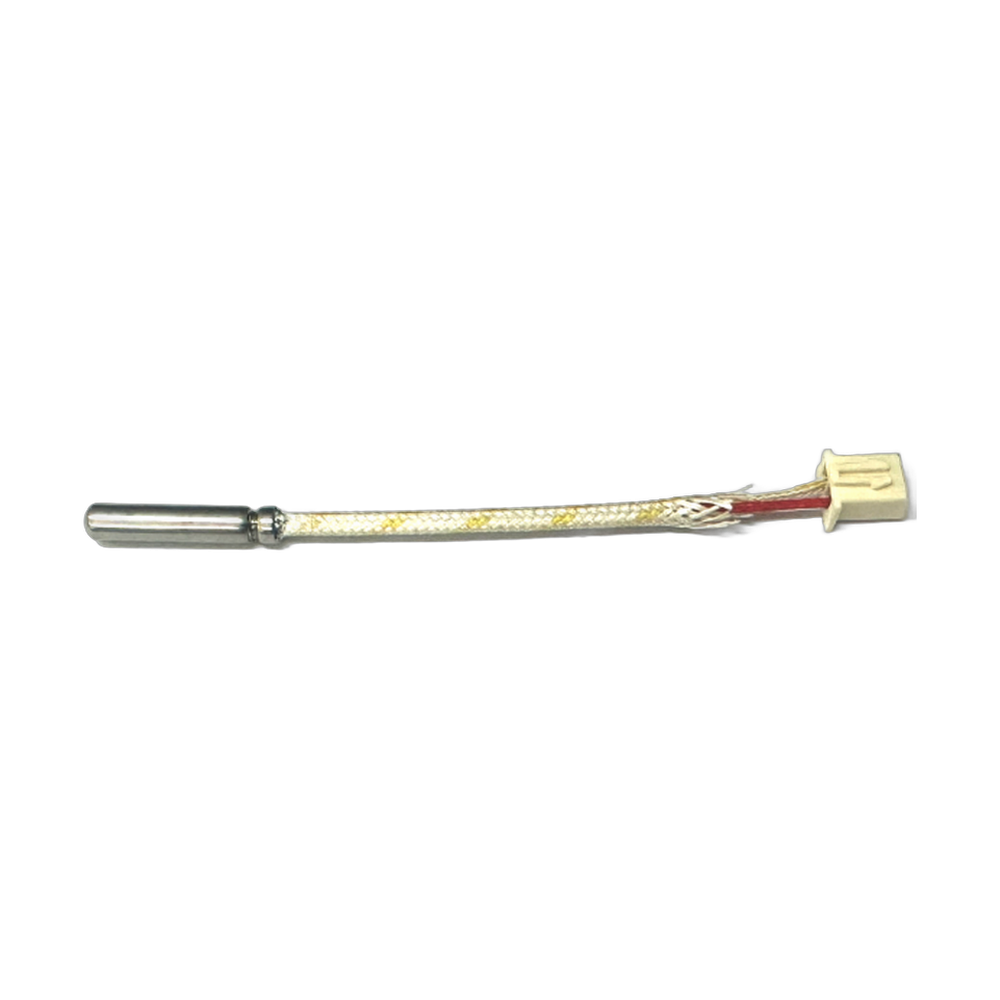

The CreatBot D1000 HS temperature sensor (part 106002) is an OEM replacement sensor for the CreatBot D1000 HS and D600 Pro2 HS 3D printers. A temperature sensor reports the actual temperature of the component it monitors back to the control board, which uses that reading to switch the heater on and off. If the reading is wrong or missing, the printer cannot hold a stable temperature, and it will often stop with an error to protect itself. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your temperature sensor needs replacing
The printer shows a temperature error or an obviously wrong reading, for example room temperature on a component that is clearly hot.
The displayed temperature jumps around or drops out during a print.
Heating stops partway through a job and the printer reports a fault.
The sensor lead is pinched, frayed or damaged near the connector.
A loose connector or a damaged extension cable can cause the same symptoms. Check the wiring first, or contact Rev1 support and we will help you narrow it down.
Compatible CreatBot 3D printers
The D600 Pro2 HS temperature sensor (part 106001) is also listed for these two printers. If you are not sure which one your machine uses, send Rev1 your serial number before ordering. The standard D1000 and D600 Pro2 (non HS) use part 106011 or 106012, and the D1000 Pro HS, D600 Pro3 HS, D400 HS and Ultra Series printers use the Pro-HS heating sensor, part 106015.
Installation tips
Power the printer off, unplug it and let all heated parts cool fully before you touch the sensor. Photograph the routing of the sensor lead and its connector before removing the old one, so the new sensor follows the same path away from moving parts and hot surfaces. Seat the connector firmly, then power up and confirm the reading looks correct at room temperature before you heat anything. Run a short heat-up and watch for a steady reading, then recalibrate and run a test print.
CreatBot D1000 HS Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Temperature Sensor — Questions
Is this a genuine CreatBot sensor?
Yes. It is CreatBot part 106002, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D1000 Pro HS?
No. The D1000 Pro HS uses the Pro-HS heating sensor, part 106015.
Should I replace the sensor if my printer shows a temperature error?
Not always. Check the connector and cable first, since a loose plug can trigger the same error. If the wiring is sound and the reading is still wrong, the sensor is the likely cause.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
