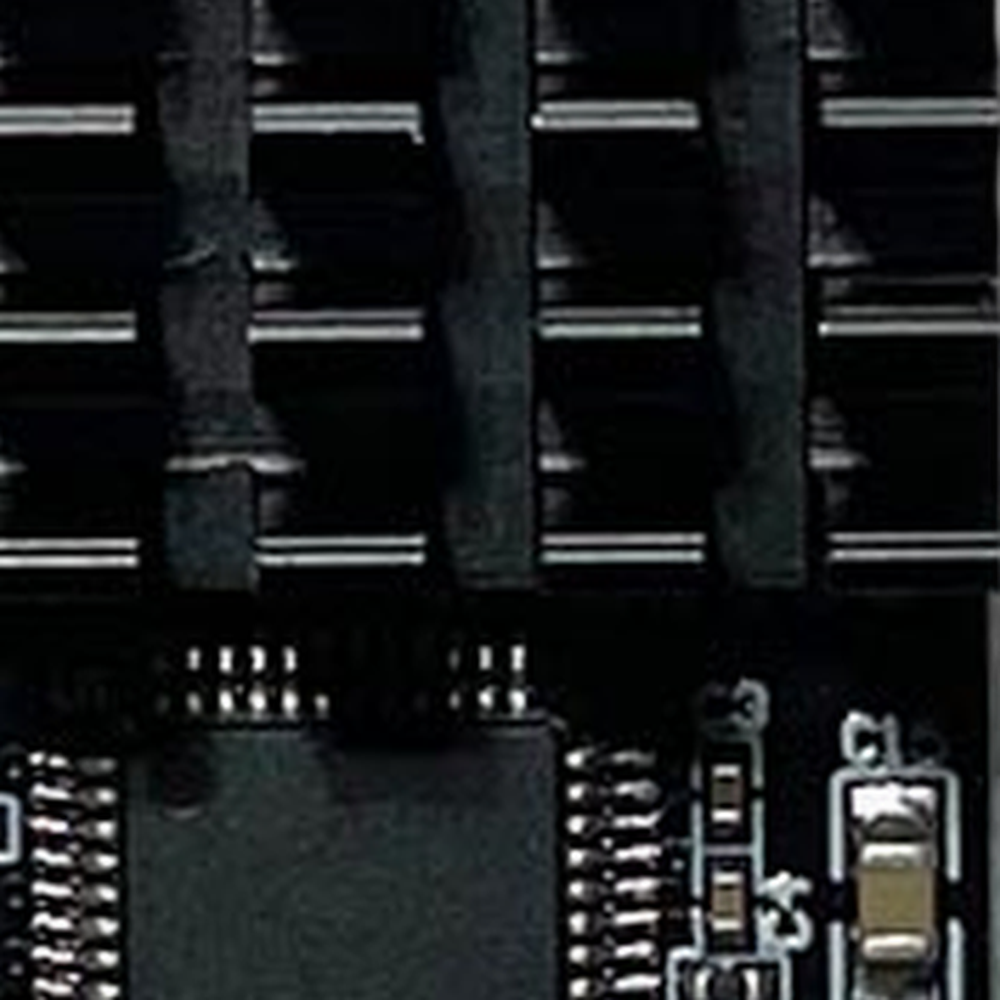

CreatBotD1000 HS E DriveGenuine CreatBot Replacement Part

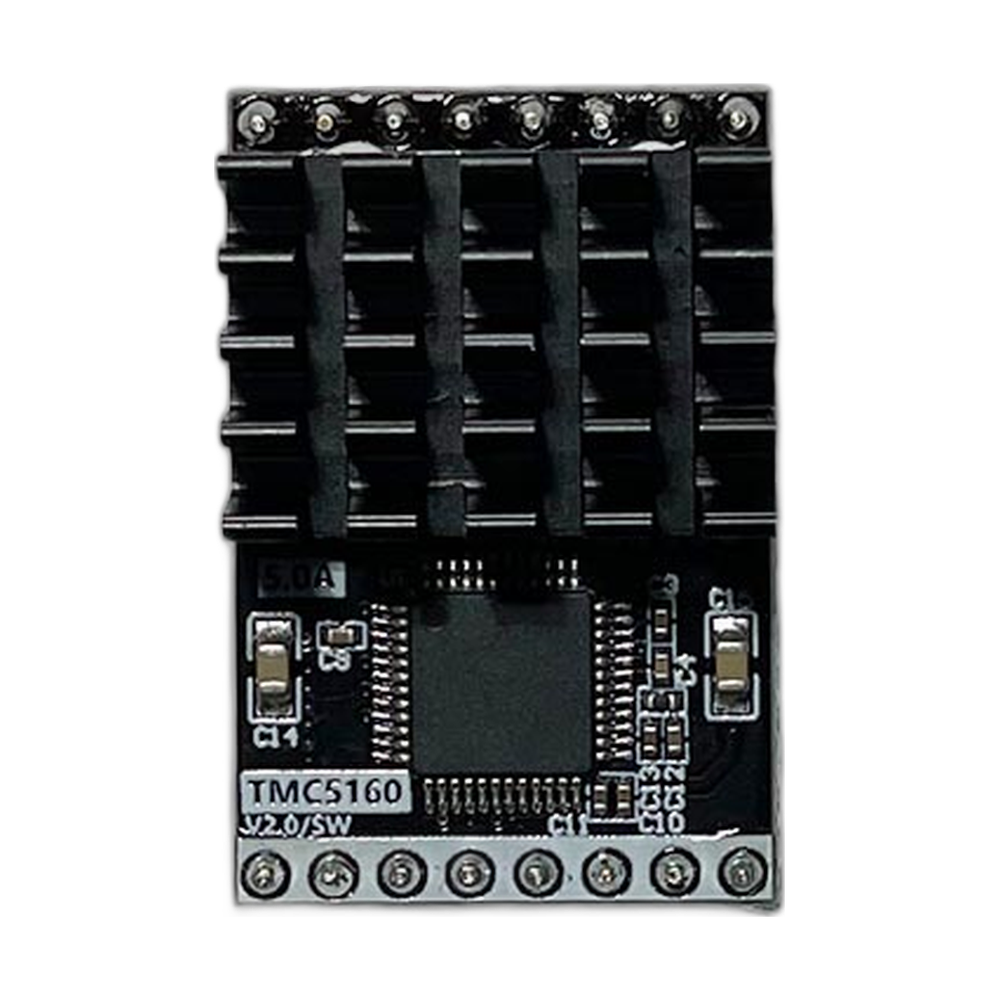

D1000 HS E Drive (Extruder Stepper Driver)
The CreatBot D1000 HS E drive (part 115006) is the OEM extruder motor driver for the CreatBot D1000 HS large format 3D printer. In CreatBot naming, "E" is the extruder axis. The driver takes step commands from the main control board and turns them into the current that moves the extruder motor, which pushes filament into the hotend. If the E drive is weak or failing, the printer can still move perfectly in X, Y and Z while laying down too little plastic, or none at all. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS E Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the E drive may need replacing
The extruder motor does not turn, stutters or only buzzes, while the other axes move normally.
Under-extrusion or gaps that persist after the nozzle, hotend and filament path have been checked.
The extruder works when the motor is plugged into a known good driver channel, but not on its own.
An extruder or driver error on the printer that clears and returns.
A partial clog, a worn drive gear or a damaged motor cable can look the same. Rev1 support can help you isolate the cause.
Compatible CreatBot 3D printer
CreatBot also lists the D600 Pro2 HS E drive (part 115002) for the D1000 HS. If you are not sure which E drive your printer has, send Rev1 a photo of the fitted module before ordering. The D1000 HS X, Y and Z drives are parts 115003, 115004 and 115005.
Installation tips
Power the printer off and unplug it before opening the electronics bay, and give any capacitors a moment to discharge. Note the orientation of the existing driver before you remove it, because a driver fitted the wrong way round can be damaged on power-up. Seat the new module fully, reconnect the motor cable, then test extrusion with a short manual feed before you start a print.
CreatBot D1000 HS E Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS E Drive — Questions
What does the E in E drive mean?
E is the extruder axis. This driver runs the motor that feeds filament.
Can I use the D1000 HS X drive in the E position?
Use the part listed for each axis. The X drive is part 115003 and the E drive is part 115006.
Is this a genuine CreatBot part?
Yes, CreatBot part 115006, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
