CreatBotD1000 E2 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot D1000

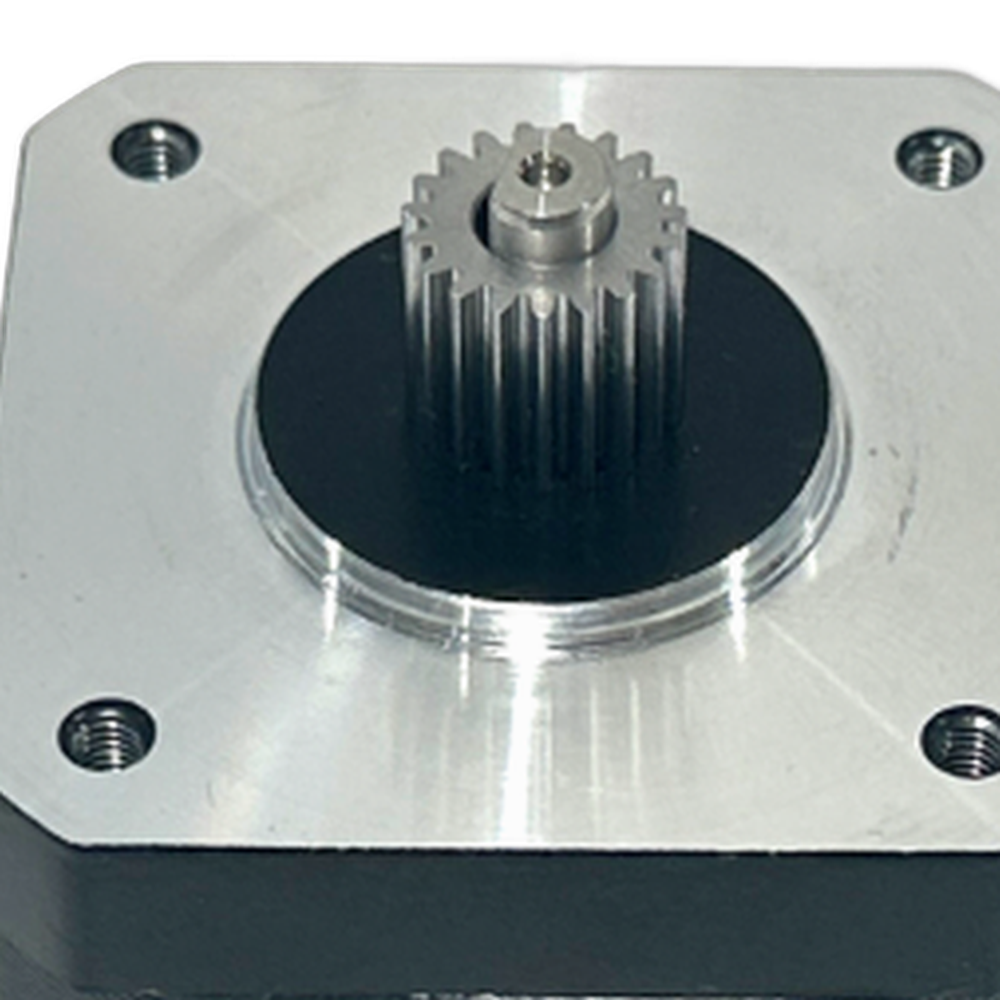

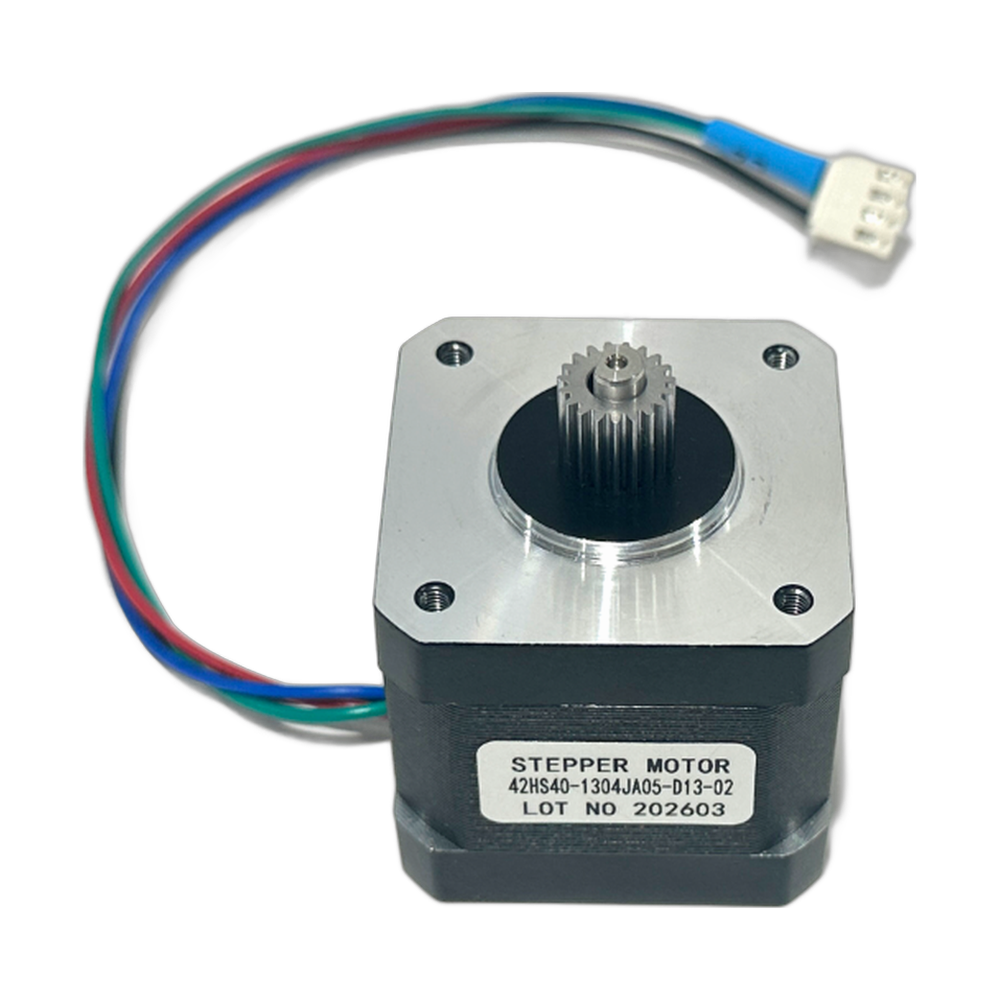

The CreatBot D1000 E2 motor (part 131028) is the OEM extruder motor for the second extruder, E2, on the CreatBot D1000. On a dual extruder printer the second extruder often carries support material or a second color or material, so when E2 stops feeding, dual material jobs stop with it. This motor drives the E2 filament feed and restores the extruder to factory performance. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 E2 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace the E2 motor with the genuine part
Same mounting and connection as the motor the D1000 shipped with.
A genuine motor works with the printer's existing extruder settings.
Support and multi-material jobs depend on both extruders feeding reliably.
Signs the E2 motor may have failed
E2 does not extrude, or extrudes weakly, while E1 works.
The motor stutters, buzzes or runs hot.
Visible damage to the motor or its connector.
Before you order, rule out a blocked E2 nozzle, a worn drive gear or a loose cable. Swapping the E1 and E2 motor cables at the motors is a simple way to see whether the fault follows the motor.
Compatible CreatBot 3D printer
The D1000 E1 motor is part 131027 and the D1000 Z motor is part 131029.
Installation tips
Switch the printer off, let the E2 hotend cool and unload its filament. Photograph the extruder before you take it apart. Move the drive gear to the new motor if needed, aligned with the filament path, then reassemble and reconnect. Extrude a test length on E2 and run a short dual extruder print to confirm.
CreatBot D1000 E2 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 E2 Extruder Motor — Questions
Are the E1 and E2 motors interchangeable?
CreatBot lists them as separate parts, 131027 for E1 and 131028 for E2. Order the one for the extruder that failed.
Will this motor fit a D600 Pro2?
No. The D600 Pro2 uses its own E2 motor, part 131025.
Is this a genuine CreatBot motor?
Yes. It is CreatBot part 131028, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
