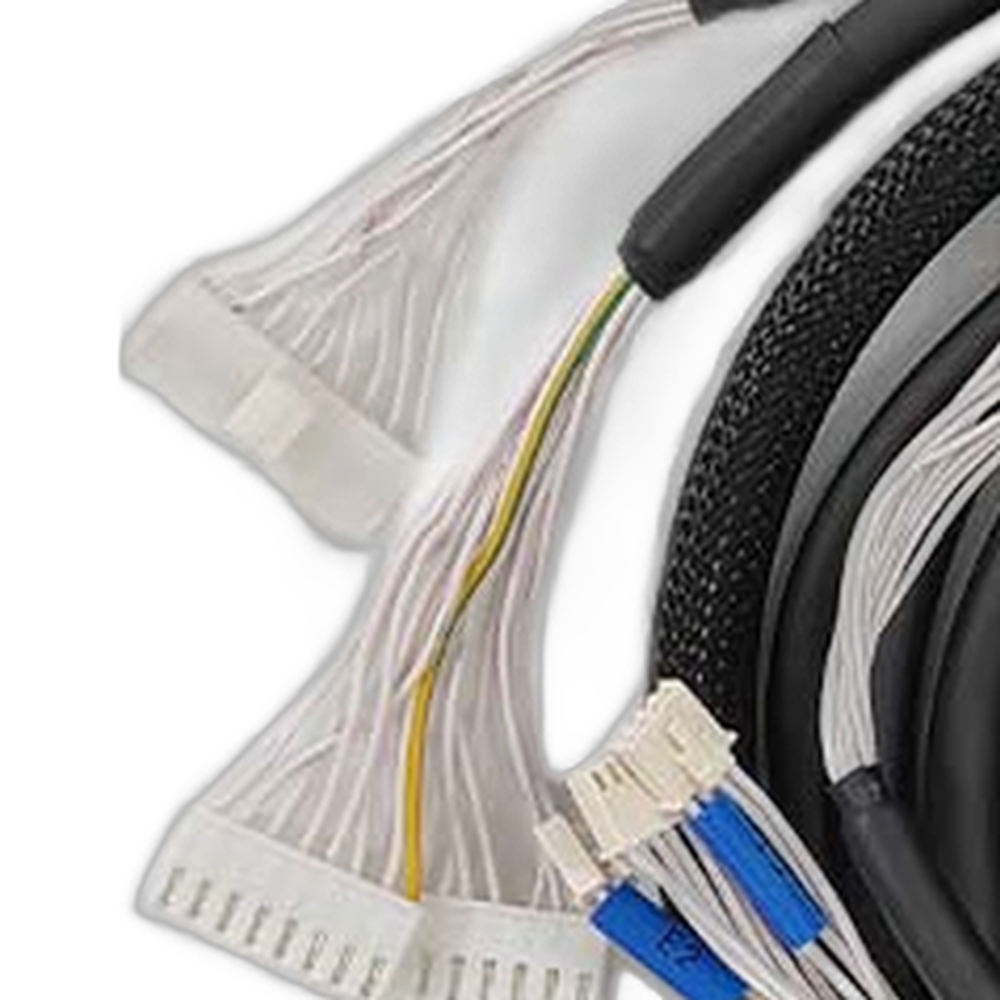

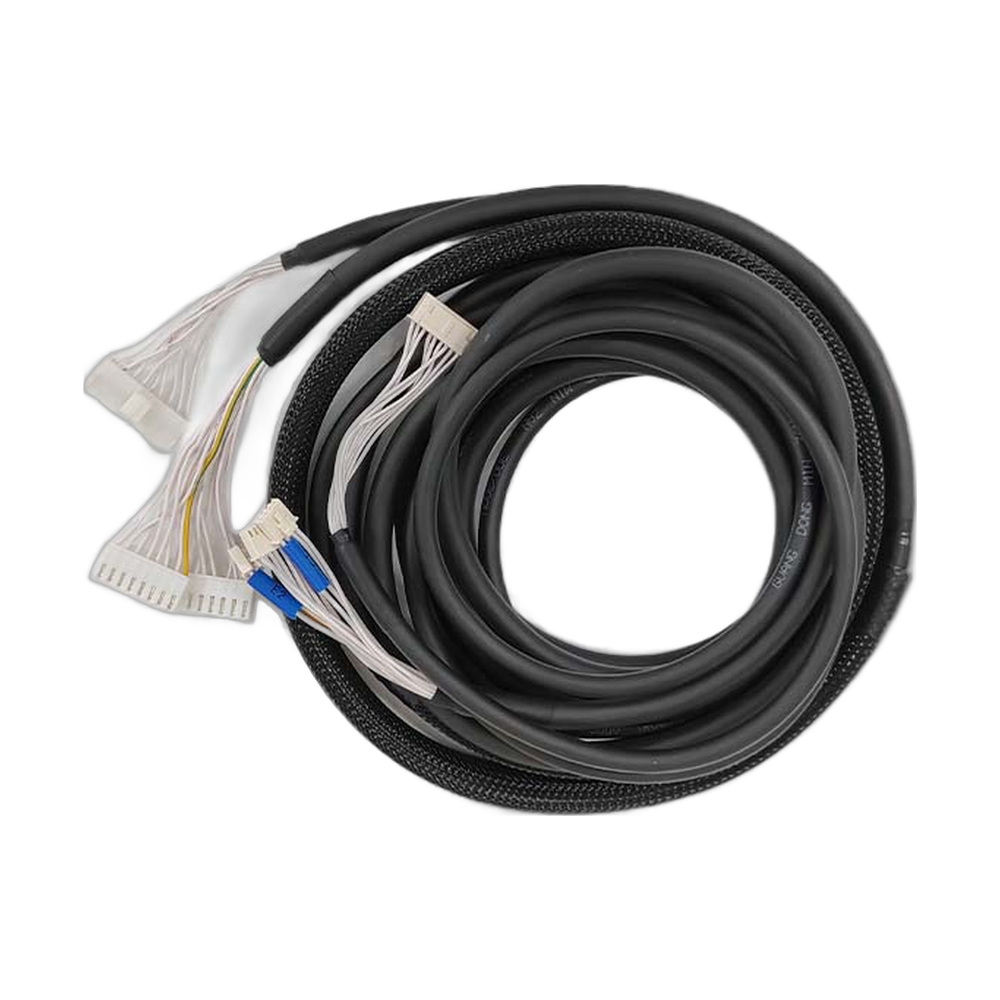

CreatBotD1000 Drag Chain CableGenuine CreatBot Replacement Part
For the CreatBot D1000
The CreatBot D1000 drag chain cable (part 160015) is the OEM cable that runs through the drag chain on the CreatBot D1000. A drag chain, or cable carrier, guides the wiring that feeds a moving assembly so it bends along a controlled path instead of rubbing or tangling. The cable inside carries power and signals to the moving parts of the printer, such as heaters, fans, sensors and motors. On a machine with travel as long as the D1000, that cable flexes thousands of times a day. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Drag Chain Cable, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the drag chain cable needs replacing
Temperature reading errors or heater faults that appear only at certain positions of travel.
Fans or sensors on the moving assembly that cut in and out during a print.
Faults that come and go when you move the axis by hand with the printer idle.
Cracked insulation, kinks or exposed conductors at the chain ends.
Intermittent faults that follow the position of the axis are the classic sign of wire fatigue inside a flexing cable. Swapping the whole cable is the reliable fix, since spliced wires inside a drag chain usually fail again.
Compatible CreatBot 3D printer
The D1000 HS uses a different drag chain cable, part 160016. Other models also have their own: the D600 Pro (160009, 160010), D600 Pro2 (160013), D600 Pro2 HS (160014) and F1000 (160012).
Installation tips
Power the printer off and unplug it. Photograph and label every connector at both ends before you disconnect anything. Open the drag chain links, lay the new cable in the same position as the old one without twisting it, and close the links. Move the axis through its full travel by hand to check the cable flexes freely, then power up and confirm every heater, fan and sensor reads normally.
CreatBot D1000 Drag Chain Cable Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Drag Chain Cable — Questions
Will this fit my D1000 HS?
No. The D1000 HS uses part 160016.
Can I repair a broken wire instead?
A splice may work for a short time, but repeated flexing in the drag chain tends to break it again. A new cable is the lasting repair.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 160015, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
