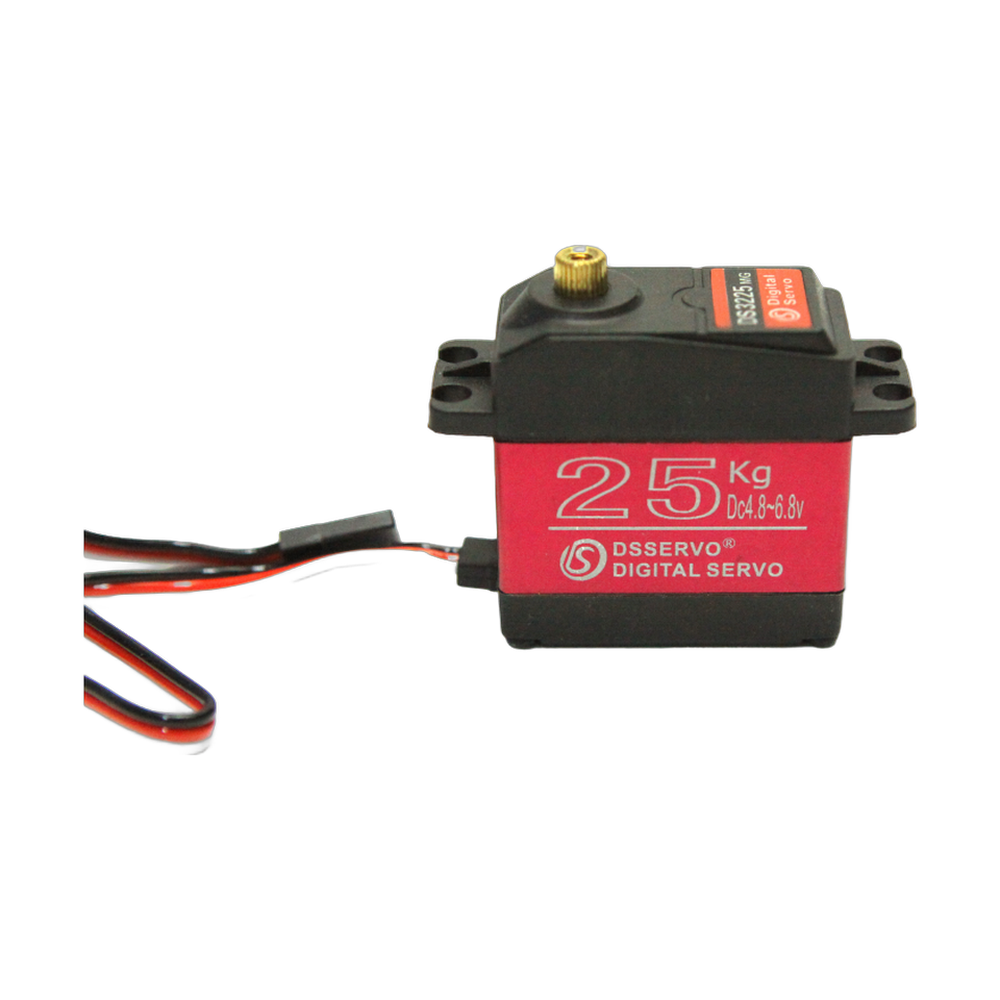

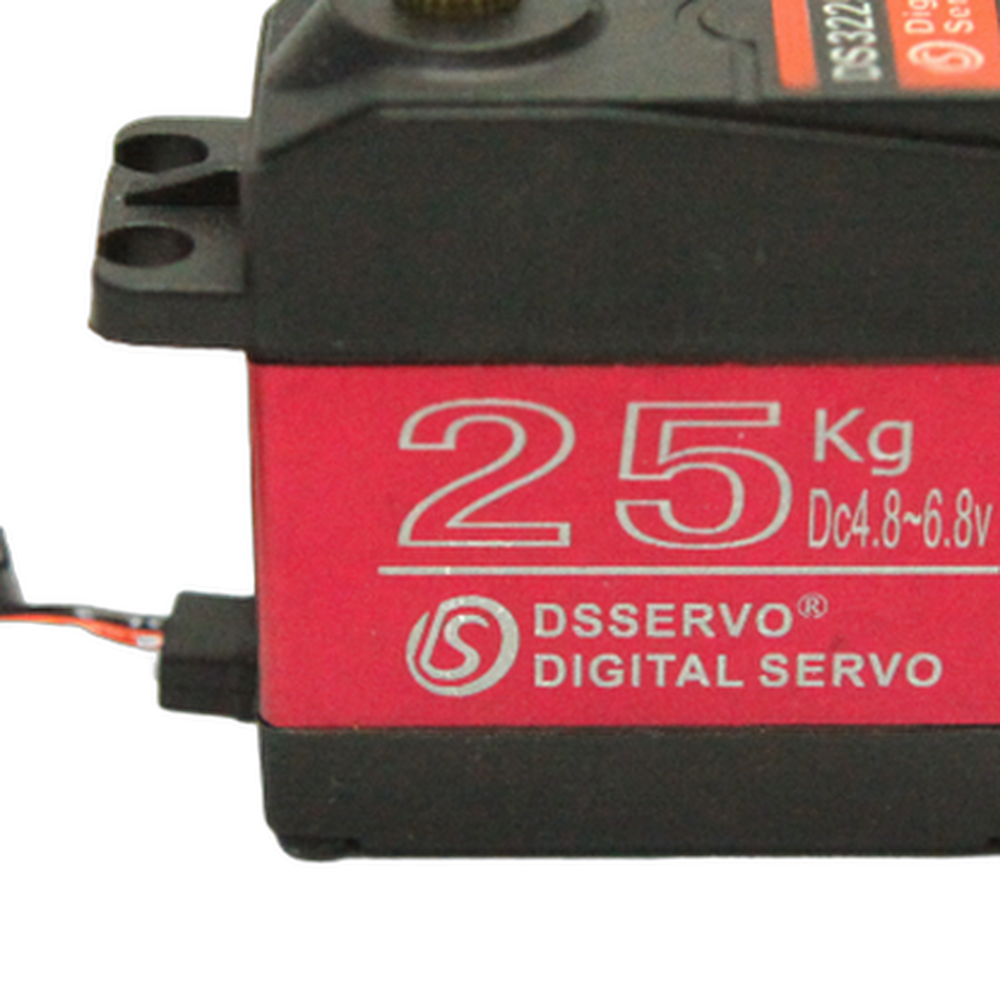

CreatBotD1000 Auto-Rising ServoGenuine CreatBot Replacement Part
For the CreatBot D1000
The CreatBot D1000 servo for auto-rising (part 133011) is the OEM servo for the nozzle auto-rising system on the CreatBot D1000. When the D1000 prints with one nozzle, the auto-rising system raises the other one so it does not rub on the part. This matters most in dual material work, such as printing a model with soluble or breakaway support, where the idle nozzle would otherwise drag through the layers it just passed over. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Auto-Rising Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why keep the auto-rising system working
A lifted idle nozzle cannot smear ooze or scrape tracks across the part.
On tall D1000 parts, a dragging nozzle can catch an edge and knock the print loose.
The active nozzle sits at a consistent height each time it lowers.
Signs the servo needs replacing
The idle nozzle stays down or lifts unevenly.
The servo chatters, buzzes or does not respond at all.
Scraping marks and blobs appear only on dual extrusion prints.
Compatible CreatBot 3D printer
CreatBot also lists auto-rising servo 133003 for the D1000 and the D1000 HS. If you are not sure which servo your printer uses, send Rev1 a photo of the old part. The D1000 bed leveling servo is a separate part, 133007.
Installation tips
Switch the printer off and let the print head cool. Photograph how the servo is mounted and how the linkage sits, then disconnect and remove it. Fit the new servo in the same position, reconnect the cable and keep it clear of the heater block and belts. Power up, check that the idle nozzle rises fully, and confirm both nozzles print at the correct height with a short dual extrusion test.
CreatBot D1000 Auto-Rising Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Auto-Rising Servo — Questions
Which servo do I need, 133011 or 133003?
Both are listed for the D1000. Send Rev1 your serial number or a photo of the fitted servo and we will confirm the match.
Does this servo affect bed leveling?
No. Bed leveling on the D1000 uses its own servo, part 133007.
Is this a genuine CreatBot part?
Yes, part 133011, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
