CreatBotBrass NozzleGenuine CreatBot Replacement Part
Brass Nozzle for D Series, D Series HS, Ultra, F Series and PEEK-300 3D Printers

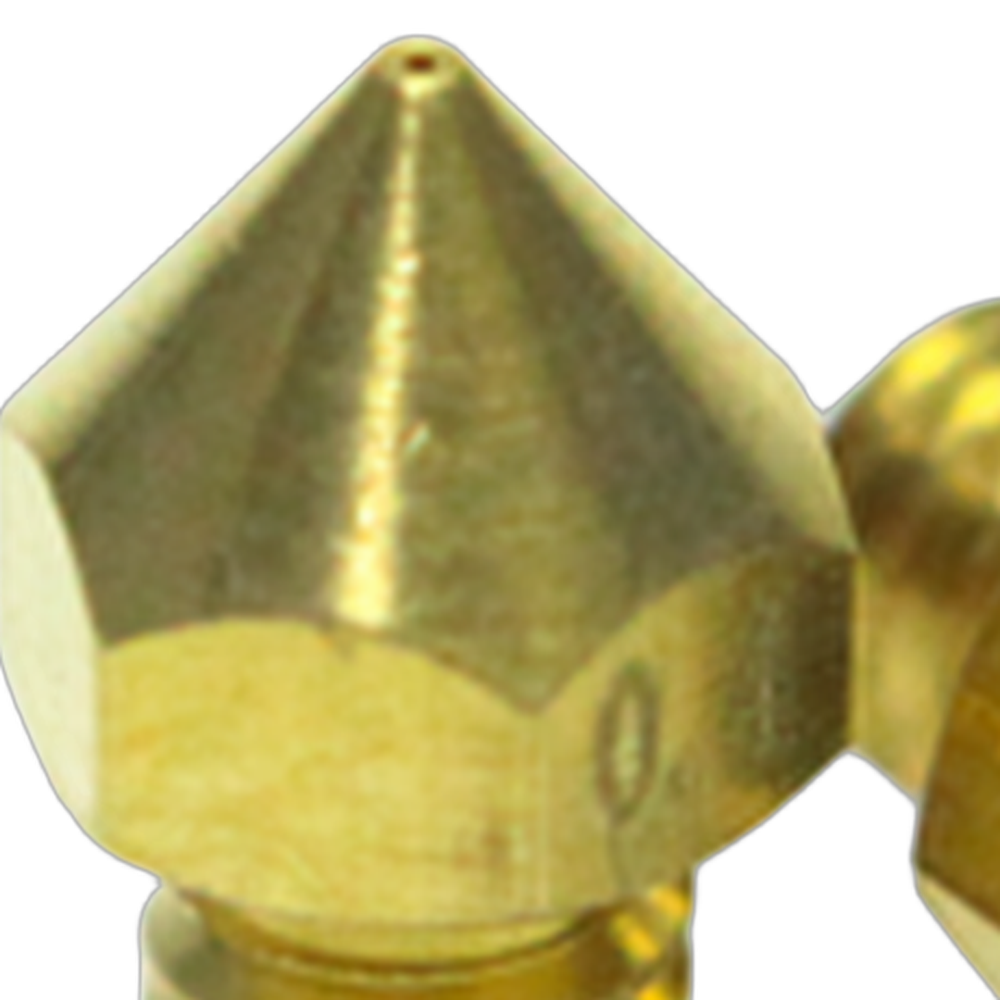

The CreatBot brass nozzle is the standard replacement nozzle for CreatBot D Series, D Series HS, Ultra Series, F Series and PEEK-300 3D printers. Brass conducts heat well, so filament melts evenly and flows smoothly through the bore. It comes in seven sizes from 0.2 mm to 1.0 mm (parts 101007 to 101013), so you can match the nozzle to the detail and speed each job needs. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Brass Nozzle, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose a brass nozzle
Brass moves heat from the heating block into the filament quickly, which supports steady extrusion.
PLA, PETG, ABS, ASA, TPU and other materials without abrasive fillers.
Stock a few sizes and change the nozzle to suit the part.
The same thread and geometry as the nozzle your printer shipped with.
Choose your size
| Size | Part number | Fits |
|---|---|---|
| 0.2 mm | 101007 | All 14 printers listed below |
| 0.3 mm | 101008 | All 14 printers listed below |
| 0.4 mm | 101009 | All 14 printers listed below |
| 0.5 mm | 101010 | All 14 printers listed below |
| 0.6 mm | 101011 | All 14 printers listed below |
| 0.8 mm | 101012 | All 14 printers listed below |
| 1.0 mm | 101013 | All 14 printers listed below |
Compatible CreatBot 3D printers
Every size fits the same 14 printers, so one set of brass nozzles covers a mixed CreatBot fleet.
Which size is right for the job
0.4 mm is the general purpose size and a sensible default. 0.2 and 0.3 mm give finer detail, sharper text and thinner walls, with longer print times. 0.5 and 0.6 mm print faster and lay down wider, stronger lines. 0.8 and 1.0 mm suit big parts on large format machines such as the D1000 or D1200 Ultra, where speed matters more than fine surface detail. Update the nozzle diameter in your slicer profile after every change.
For carbon fiber or glass fiber filled filaments, use a CreatBot hardened steel nozzle instead (parts 101001 to 101006). Abrasive fillers wear a brass bore quickly.
Installation tips
Heat the hotend to printing temperature before removing the old nozzle, and hold the heating block steady with a wrench while you turn. Thread the new nozzle in and tighten it gently while hot, then re-check your Z offset and run a first layer test. A worn nozzle often shows up as stringing, under-extrusion or a tip that is no longer round.
CreatBot Brass Nozzle Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Brass Nozzle — Questions
Which nozzle size do I need?
Start with 0.4 mm for general printing. Go smaller for detail, or larger for speed and big parts.
Can I print carbon fiber filament with a brass nozzle?
It is not recommended. Use a hardened steel nozzle (parts 101001 to 101006) for abrasive materials.
Is this a genuine CreatBot nozzle?
Yes. All seven sizes are genuine CreatBot parts supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
