CreatBotBLTouch Bed Leveling SensorGenuine CreatBot Replacement Part
BLTouch Auto Bed Leveling Sensor for D600 Pro, F430, F1000 and PEEK-300

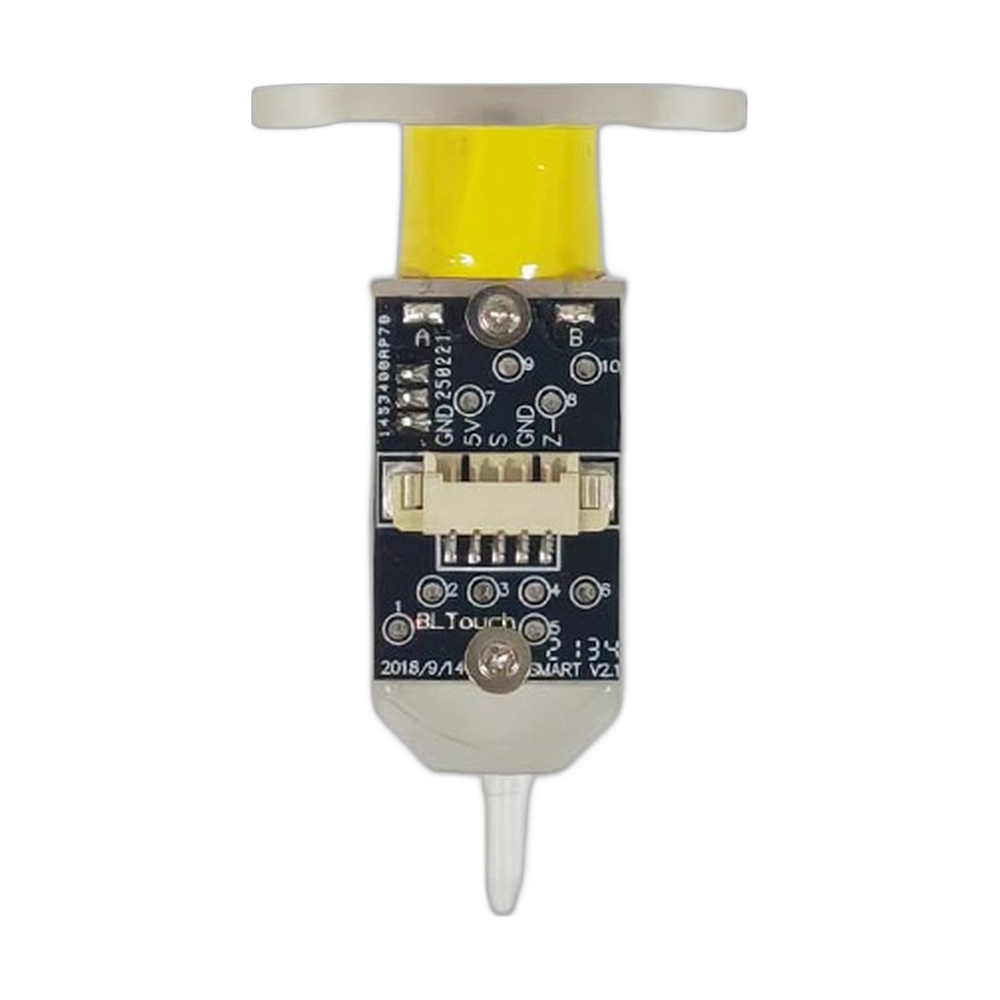

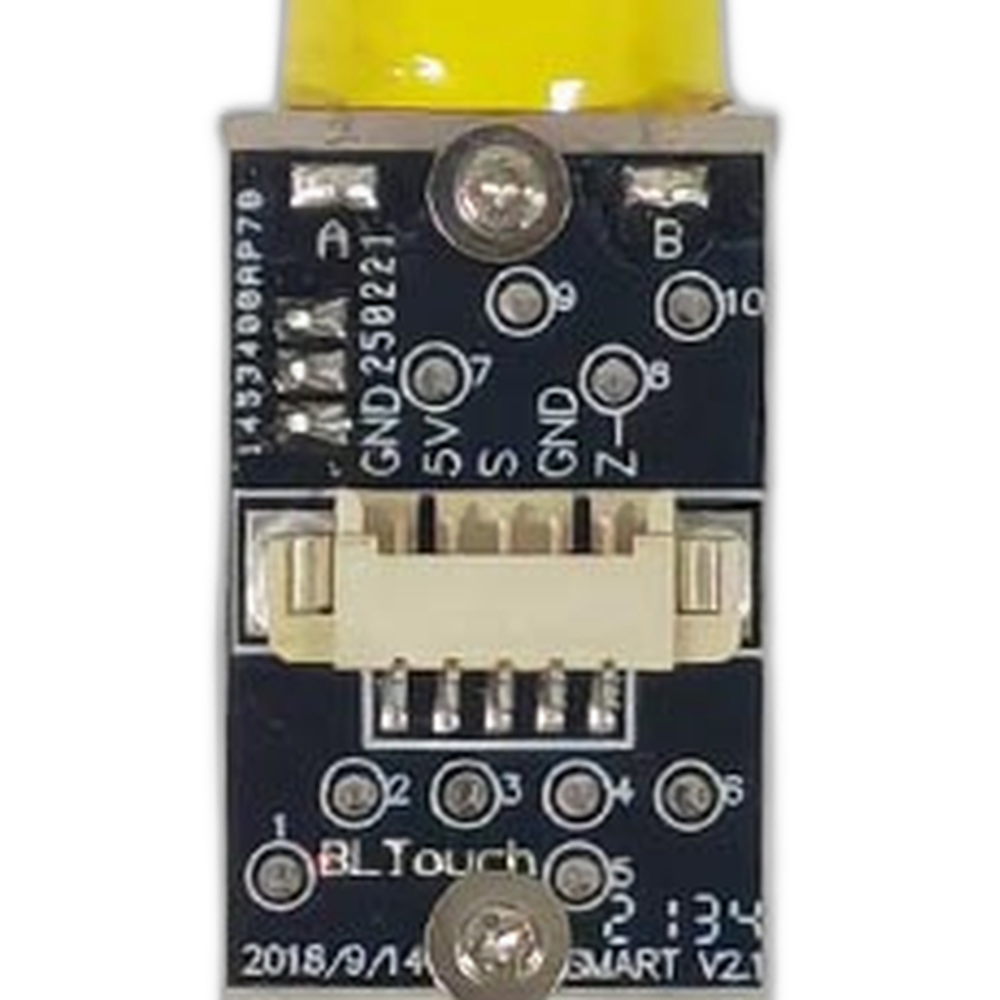

The CreatBot BLTouch (part 108001) is the auto bed leveling sensor used on the CreatBot D600 Pro, F430, F1000 and PEEK-300. A BLTouch is a touch probe: a small pin drops down, taps the bed at a series of points, and retracts. The printer uses those readings to measure the bed and compensate for small differences in height, so the first layer goes down evenly across the plate. When the sensor fails, leveling stops working and first layers suffer straight away. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot BLTouch Bed Leveling Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your BLTouch needs replacing
Or it sticks partway.
Or the printer reports a probing failure at the start of leveling.
Repeated leveling runs give different results, and first layers vary from print to print.
A bent pin, cracked housing or damaged cable, often after a nozzle crash.
Compatible CreatBot 3D printers
Why a touch probe
Because the BLTouch physically touches the bed, it works the same way on glass, PEI, BuildTak style and carbon fiber surfaces. It does not depend on the bed being metal, which suits printers that run several different build surfaces. A healthy probe with a correctly set Z offset is what lets the printer lay a consistent first layer without manual adjustment before every job.
Installation tips
Power the printer off and unplug it. Photograph the sensor mounting and the cable route and connector before removing the old probe. Mount the new BLTouch in the same position and orientation, reconnect it, and route the cable away from moving parts and the hotend. After installation, set the Z offset, run the automatic leveling routine and print a first layer test. If anything behaves unexpectedly, contact Rev1 support.
CreatBot BLTouch Bed Leveling Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot BLTouch Bed Leveling Sensor — Questions
Is this a genuine CreatBot part?
Yes. It is CreatBot part 108001, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Will it fit my D600 Pro?
Yes. The D600 Pro is on the compatibility list, along with the F430, F1000 and PEEK-300.
Do I need to recalibrate after replacing it?
Yes. Set the Z offset and run a full leveling routine, because a new probe will not trigger at exactly the same height as the old one.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
