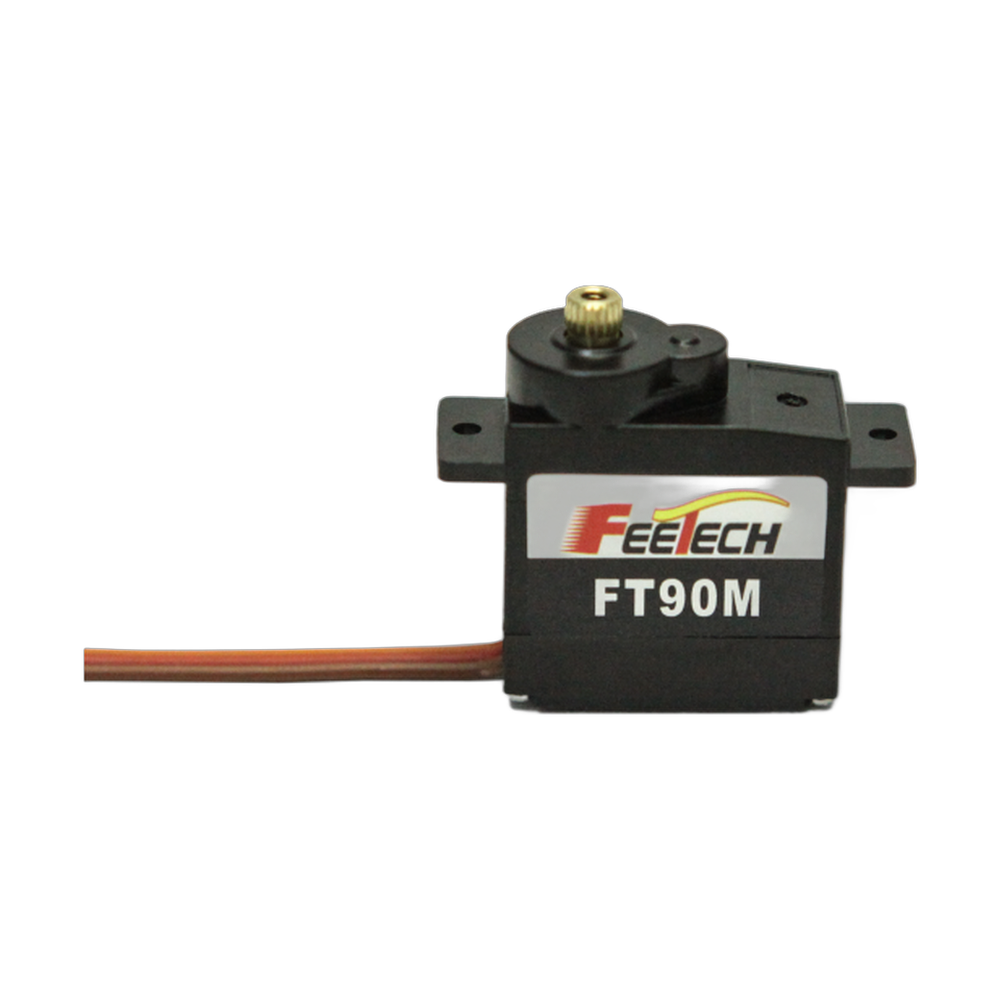

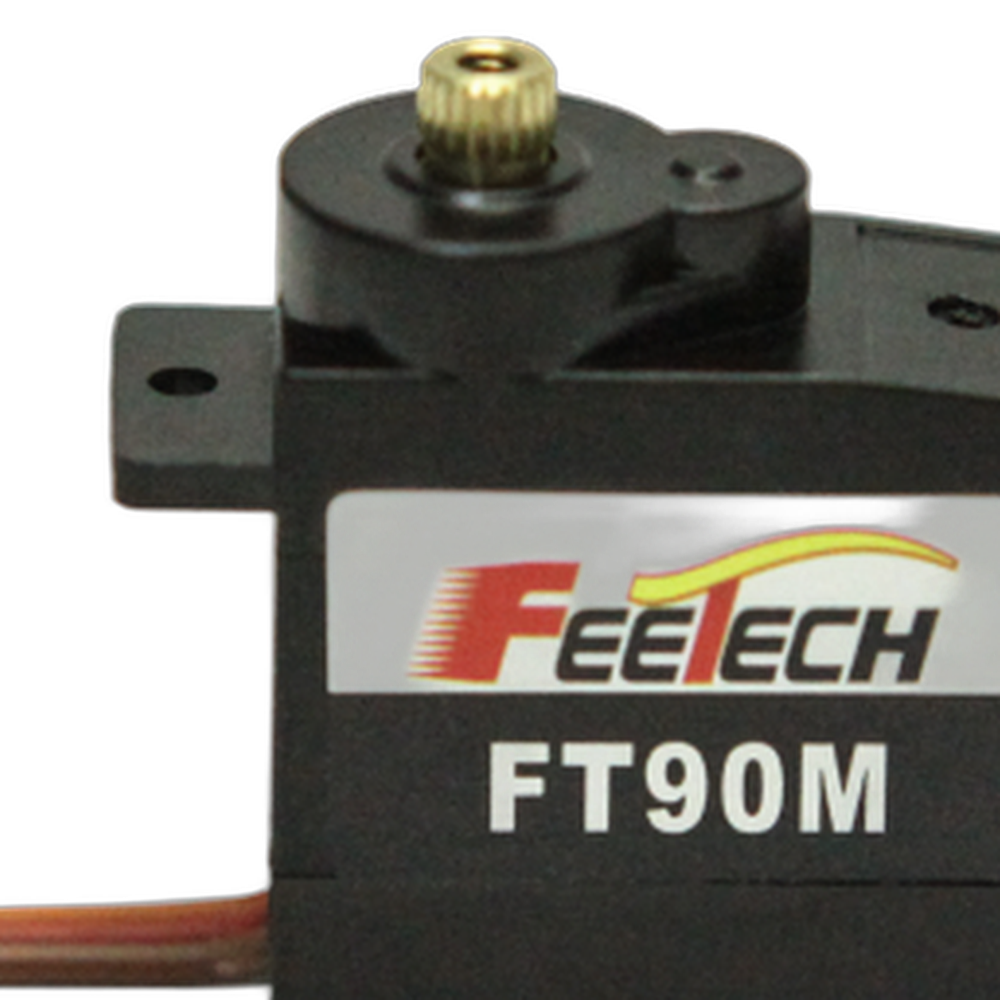

CreatBotBed Leveling ServoGenuine CreatBot Replacement Part
Bed Leveling Servo for D Series, D Series HS and F430 NX 3D Printers
The CreatBot bed leveling servo is the OEM servo used by the automatic bed leveling system on several CreatBot large format printers. It moves the leveling probe into position for the leveling routine and back out of the way for printing. Accurate leveling is what gives a large build plate a consistent first layer, so a worn or failed servo shows up quickly as leveling errors and poor first layers. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Bed Leveling Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the leveling servo needs replacing
Automatic bed leveling stops partway or reports an error.
The servo does not move, moves erratically or makes grinding noises.
First layers are uneven across the plate even after re-leveling.
Choose your printer
| Printer option | Part number | Fits |
|---|---|---|
| D600 Pro2 HS | 133002 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
| D1000 HS | 133004 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
| F430 NX | 133005 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
| D600 Pro2 | 133006 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
| D1000 | 133007 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
| D600 Pro | 133008 | D600 Pro, D600 Pro2, D1000, D600 Pro2 HS, D1000 HS, F430 NX |
Compatible CreatBot 3D printers
Fit is the same for every option. The PEEK-300 bed leveling servo is listed separately as part 133009 and is not part of this product.
Which part number should I choose?
Pick the number that names your printer so it lines up with your manual and service history. The part is identical either way. Do not confuse it with the auto-rising servo: several of these printers also use a separate servo for the auto-rising function (parts 133001, 133003, 133010, 133011, 133012 and 133013). That is a different part. If you are not sure which servo has failed, run the leveling routine and watch which one does not move, or contact Rev1 support.
Installation tips
Power the printer off before you disconnect the servo. Note the cable routing and connector before removal, fit the new servo in the same orientation, and make sure the probe arm moves freely through its full travel by hand. Then run the automatic leveling routine and a first layer test print.
CreatBot Bed Leveling Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Bed Leveling Servo — Questions
Which printer option do I need?
Choose the option that names your printer. All six part numbers are the same servo, so any of them fits every model listed above.
Is this the same as the auto-rising servo?
No. The auto-rising servo is a different part. On the D600 Pro2 HS, for example, it is part 133001.
Will it fit my PEEK-300?
The PEEK-300 is not on this product. CreatBot lists its bed leveling servo as part 133009.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
