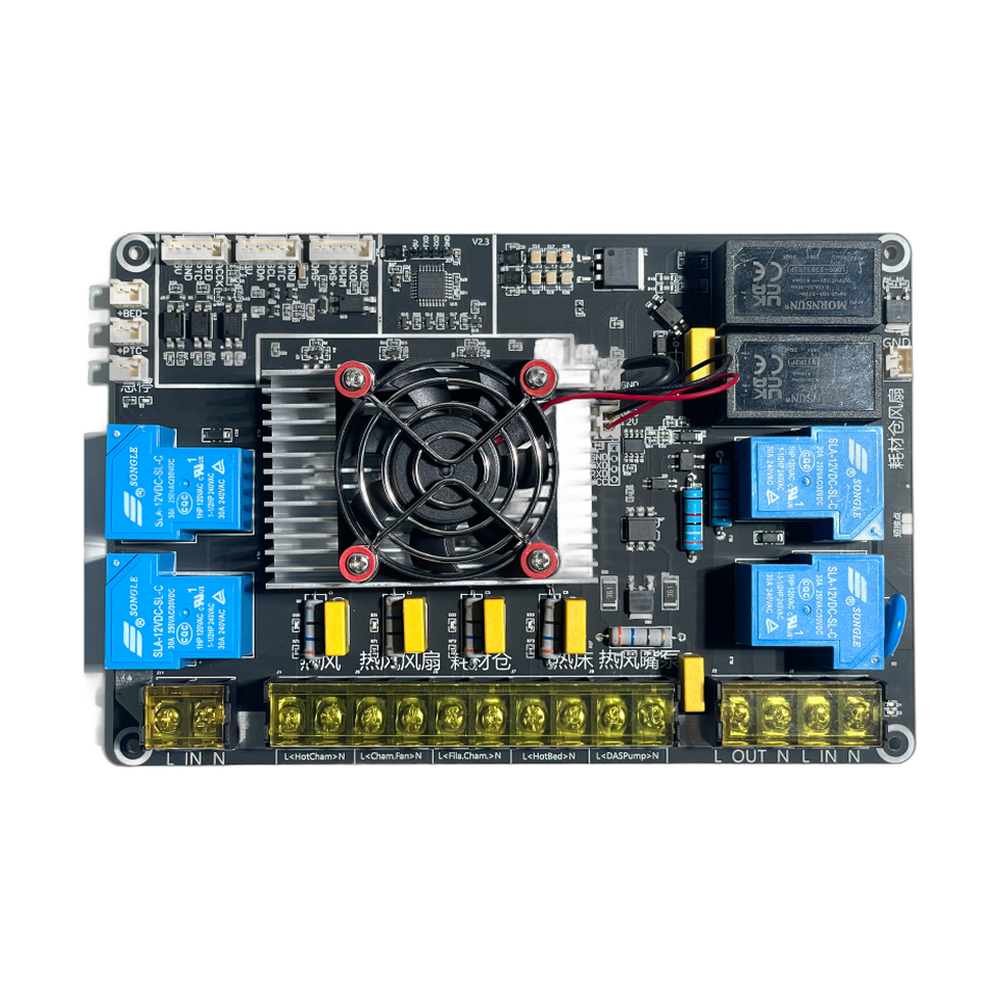

CreatBotAC Power Control Board (D600 Pro2 / PEEK-300)Genuine CreatBot Replacement Part
AC Power Control Board for D600 Pro, D600 Pro2, D600 Pro2 HS and PEEK-300 3D Printers
The CreatBot AC power control board handles the mains side of the printer's power system. It switches AC power to the high-power heated components on command from the motherboard, which keeps heavy current away from the low voltage control electronics. When this board fails, heaters that depend on it stop working or cannot be switched off, and the printer cannot run a job. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot AC Power Control Board (D600 Pro2 / PEEK-300), from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the AC power control board may need replacing
A heated component no longer heats, or keeps heating when it should be off, while its own wiring tests good.
Heating errors that point to the AC side rather than the heater itself.
Visible damage on the board, such as burnt components, a melted connector or a discolored terminal.
A failed heater, fuse, power supply or cable can look the same. Contact Rev1 support before you order and we will help you confirm the board is the cause.
Choose your printer
| Printer option | Part number | Fits |
|---|---|---|
| D600 Pro2 HS | 113001 | D600 Pro, D600 Pro2, D600 Pro2 HS, PEEK-300 |
| D600 Pro2 | 113006 | D600 Pro, D600 Pro2, D600 Pro2 HS, PEEK-300 |
| PEEK-300 | 113008 | D600 Pro, D600 Pro2, D600 Pro2 HS, PEEK-300 |
Compatible CreatBot 3D printers
Fit is the same for every option. The D1000 and D1000 HS use board 113002 or 113007, and the F430 uses 113005 or 113003 (113003 also fits the F430 NX).
Which part number should I choose?
Pick the number that names your printer so the order matches your manual. For a D600 Pro, choose the D600 Pro2 option (113006), the closest match, or any of the others. The board is identical under all three numbers.
Installation
This board carries mains voltage. Switch the printer off, unplug the power cord and wait a few minutes before you open the electronics bay. Photograph every connector and terminal before you disconnect anything, transfer the wires one at a time, and check that every terminal screw is tight before you close the bay. If you are not comfortable working on mains wiring, Rev1 can do the replacement as your certified CreatBot service provider.
CreatBot AC Power Control Board (D600 Pro2 / PEEK-300) Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot AC Power Control Board (D600 Pro2 / PEEK-300) — Questions
Which printer option do I need?
Choose the option that names your printer. All three part numbers are the same board, and any of them also fits the D600 Pro.
Will it fit my D1000?
No. The D1000 uses AC power control board 113002 or 113007.
Can Rev1 install it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
