Pricing
Contact Rev1 for Quote
Full package · 1,090 kg resin · Voxeldance · dehumidifier · UV box · container · UPS · DDP shipping & on-site install
1450×800×650 mm
355 nm · ≥300 mW
±0.15 mm Accuracy
Full Marble Frame
2,550 kg
Authorized Kings 3D Partner · Rev1 Technologies · Auburn Hills · (248) 707-2950
Why the 1450 Pro

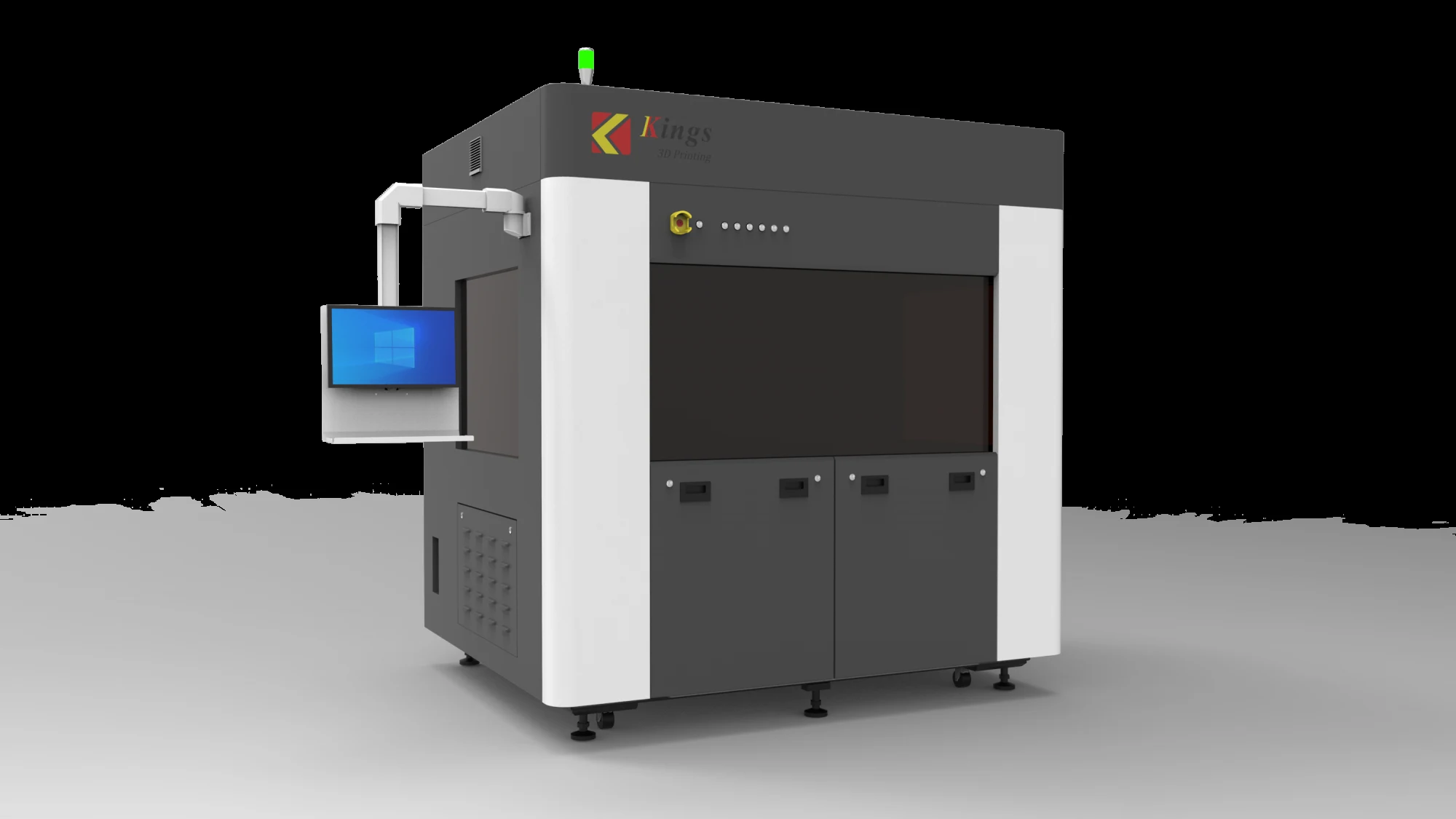

The Precision Mid-Size SLA — For Prototypes, Optical Parts & Finished-Quality Output

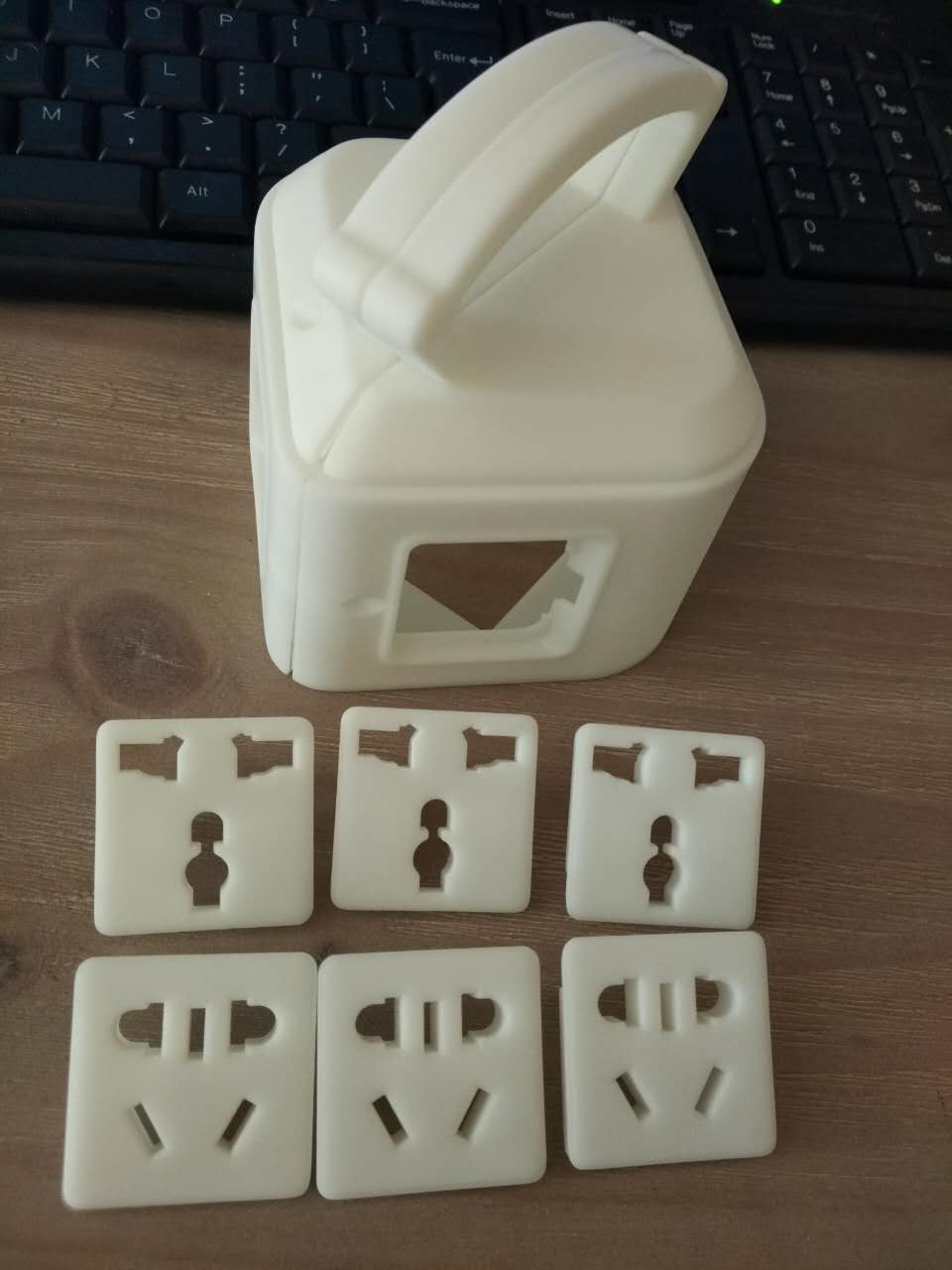

At 1,450 mm the 1450 Pro covers the vast majority of large-format prototype applications — full-width automotive interior sections, large consumer product housings, and architectural models — without the weight and facility requirements of the 1700 or 2700 Pro. Most parts that need "large SLA" land comfortably inside this envelope.
The 355 nm laser and 0.08 mm minimum beam produce smooth surface finishes directly off the plate — no secondary sanding required for prototype presentation. KS608 high-clarity resin delivers 88%+ light transmittance for lens covers, display panels, and light guide prototypes that must read as production-quality to clients and reviewers.
Marble recoater frame, elevator, and scan base provide the same thermal stability as the larger 1700 and 2700 Pro series — in a smaller footprint. For prototyping studios running multiple build cycles per day, the marble frame ensures the last part of the day measures the same as the first, even in non-climate-controlled shops.
The 1450 Pro's combination of fine beam, closed-loop galvo, and vacuum recoating produces parts that accept primer and paint without extensive surface prep. Prototype studios use it for client-facing CMF models where the SLA part goes directly to paint, bypassing the hand-finishing cycle that adds days to FDM-based prototype workflows.
Every 1450 Pro package includes 1,090 kg of KS408A production resin — enough for weeks of continuous batch production without a reorder. The intelligent vacuum recoating system distributes resin evenly across the full 1,450×800 mm surface automatically, maintaining consistent layer depth from the first build to the hundredth.
Sanitaryware manufacturers use the 1450 Pro for full-size toilet, sink, and faucet body molds in a single print — eliminating the joinery and seam-filling that adds 3–5 days to split-mold workflows. At 1,450×800 mm, even large-format washbasin and bathtub section masters fit within a single build, preserving surface continuity for downstream ceramic casting.
Surface Quality & Precision
Optical-Grade Output — From Clear Lenses to Paint-Ready Prototypes
0.08
mm Min Beam
Variable 0.08–0.8 mm · fine detail where required, fast fill elsewhere
±0.01
mm Repeat Accuracy
Closed-loop all axes · 0.0005 mm vertical resolution
15.0
m/s Scan Speed
Nd:YVO₄ 355 nm · ≥300 mW surface power · galvo closed-loop
Optical Clarity
88%+ Light Transmittance — Lenses, Covers & Light Guides Off the Plate
KS608 high-clarity resin on the 1450 Pro delivers light transmittance comparable to production-grade optical plastics — directly from the SLA build platform. Lens covers for automotive lighting, display panel covers for consumer electronics, and light guide prototypes for fixtures print at the 1450 Pro's 0.08 mm minimum beam with surface smoothness that doesn't require secondary polishing before optical measurement. Show-quality clear parts in 24 hours from CAD.
KS608 Clear Resin88%+ TransmittanceNo Secondary Polish
Paint-Ready Surface
Direct to Primer — No Sanding Cycle Between Print and Paint
The combination of 355 nm laser, 0.08 mm minimum beam, and vacuum recoating produces a surface roughness that accepts automotive primer directly from the plate. Prototype studios running CMF approval cycles use the 1450 Pro for bumpers, body panels, and interior trim that go straight to the paint booth — no overnight sanding, no filler primer cycling that delays client presentations by 2–4 days per iteration.
Production Output
What 1450×800 mm Enables — Prototyping, Optical Parts & Industrial Masters

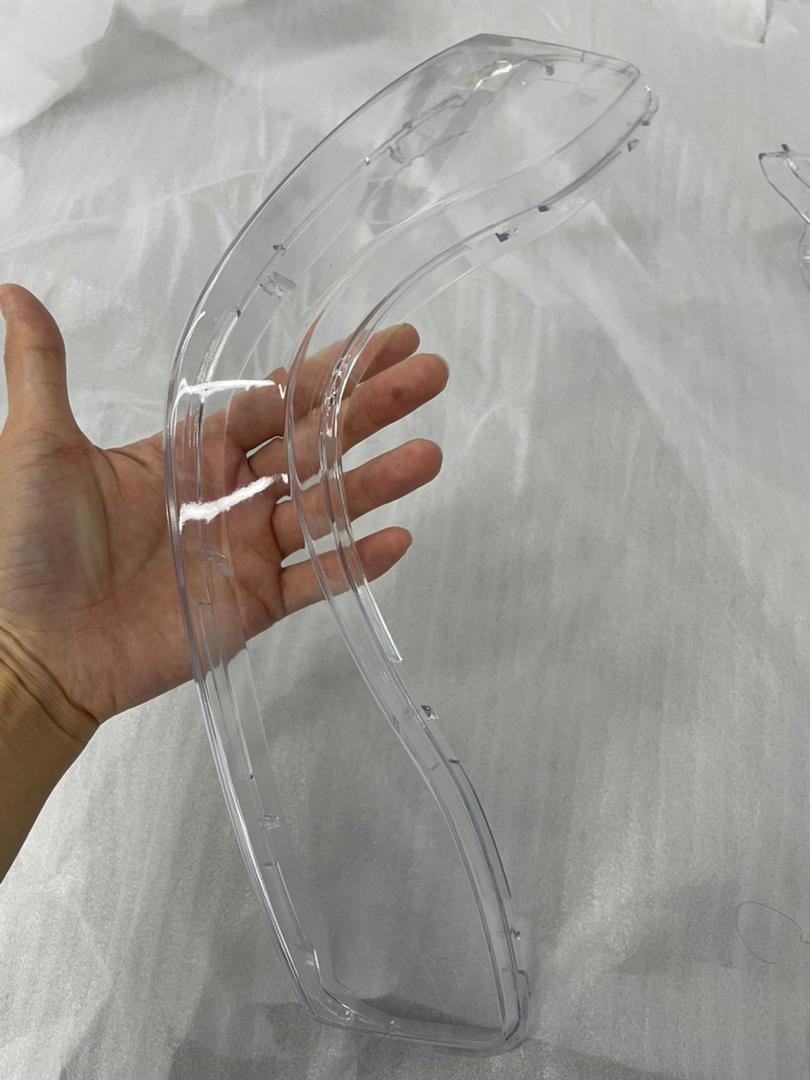

Optical & Lighting
Tail Lights, Lens Covers & Automotive Optics — Full Assembly Scale
Automotive tail light assemblies, headlight lens covers, and turn signal lenses require both optical clarity and precise geometry to align with adjacent body panels. The 1450 Pro prints them in KS608 clear resin at full assembly scale — including the lens geometry, mounting boss features, and seal channels — in a single build. Optical teams eliminate the multi-part assembly prototype that previously required a mold shop lead time to evaluate real-world optical performance.
Tail Light LensesHeadlight CoversLight Guides

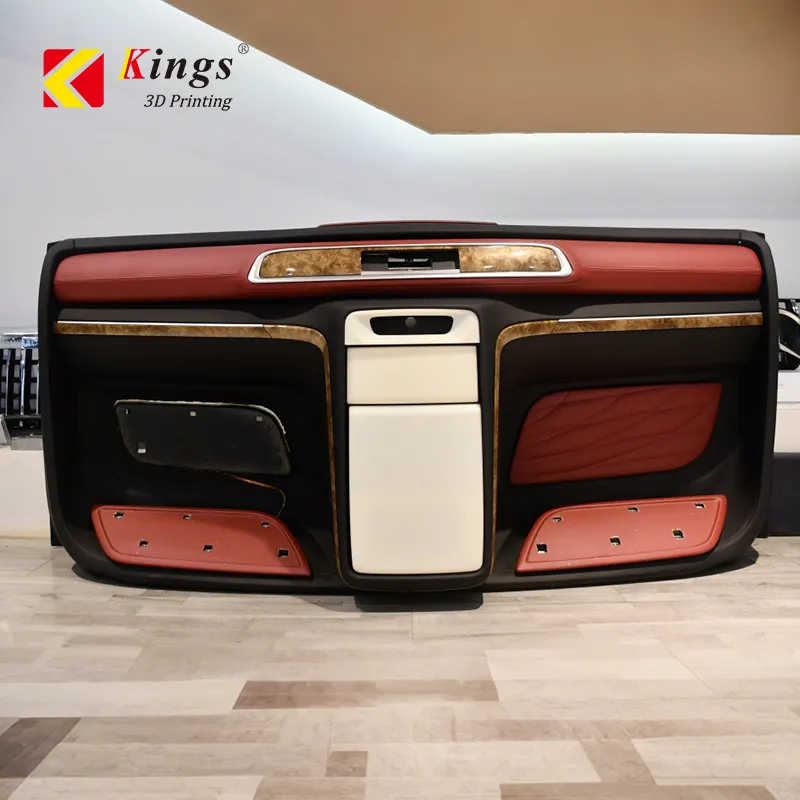

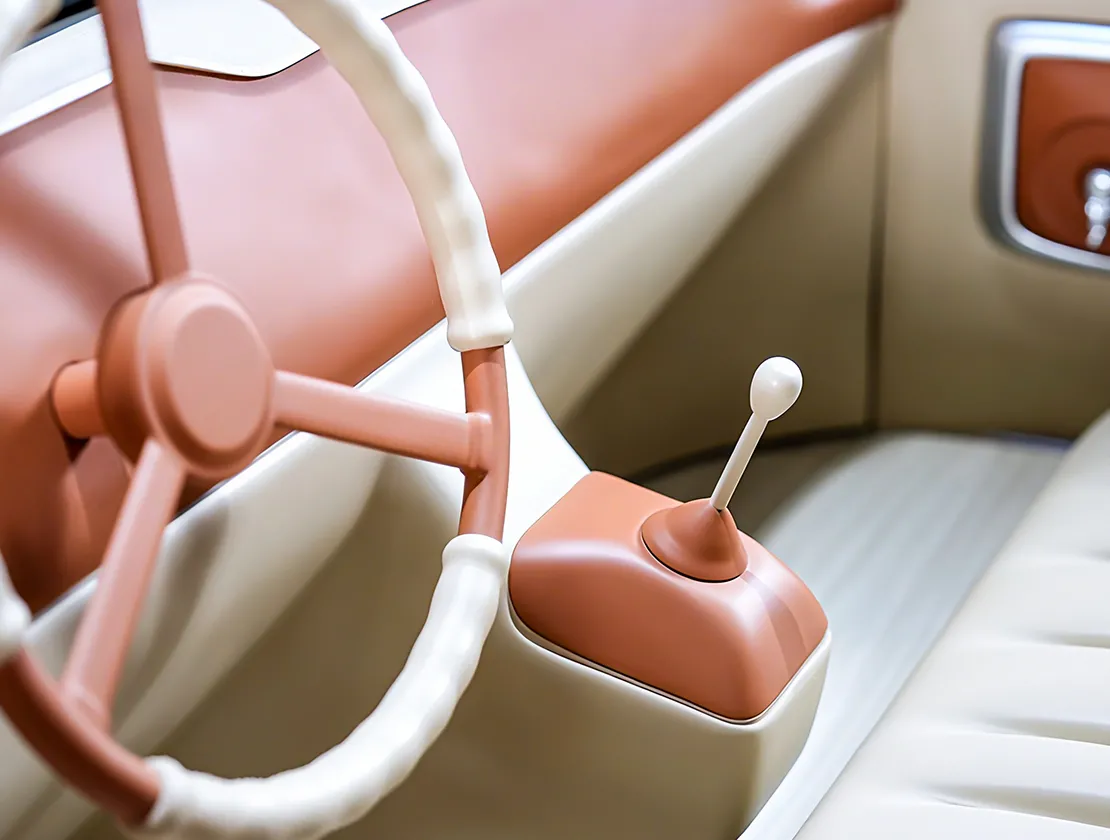

Automotive Interior Prototyping
Dashboard Clusters & Complex Interior Assemblies — Presentation-Ready
Dashboard instrument cluster housings, center console inserts, and complex interior assembly mock-ups sit within the 1450 Pro's 1,450×800 mm build envelope. Interior design teams use the 1450 Pro to produce full-scale presentation models that go directly from the printer to the studio — where designers and clients evaluate ergonomics, CMF choices, and fit against adjacent interior surfaces with physical parts rather than renders.
Sanitaryware & Ceramics
Full-Scale Sink, Toilet & Faucet Masters — No Split Lines
Sanitaryware manufacturers rely on the 1450 Pro for full-size toilet seat assemblies, washbasin mold masters, and faucet body prototypes at production scale. The 800 mm Y-axis accommodates the widest standard sink dimensions in a single build. Ceramic designers use these SLA masters directly for slip casting and press molding — eliminating the seam line that appears when parts are assembled from split-mold sections.
Sink & Basin MastersFaucet BodiesCasting Patterns
Complex Clear Geometry
Internal Channels, Ribs & Structural Features — In Clear Resin
Consumer electronics and medical device teams use the 1450 Pro for complex clear parts where internal geometry must be visible — fluid path prototypes, optical assembly housings, and diagnostic device components where the design team needs to see how internal structures interact before committing to tooling. The 355 nm laser resolves rib details, snap-fit geometry, and port features in clear resin at dimensions down to 0.08 mm.
Technical Specifications
Kings SLA 1450 Pro — Complete Specification Sheet
Max Build Volume
1450 × 800 × 650 mm
Machine Size
222 × 177 × 230 cm (W×D×H)
Machine Weight
2,550 kg
Rated Power
2.2 KVA
Electrical
200–240 VAC · 50/60 Hz · Single-phase · 10 A
Laser Type
Solid-state frequency-tripled Nd:YVO₄
Wavelength
355 nm
Laser Power
≥300 mW at resin surface
Beam Size
0.08–0.8 mm variable (diameter @1/e²)
Max Scan Speed
15.0 m/s
Variable Beam System
Galvo / Closed-loop
First Tank Resin
1,090 kg KS408A included
Accuracy
±0.15 mm (L≤100 mm) · ±0.15%×L (L>100 mm)
Repeat Positioning
±0.01 mm
Vertical Resolution
0.0005 mm (0.5 µm)
Layer Thickness
0.05–0.2 mm
Main Structure
Marble recoater frame · marble elevator · marble scan base
Coating Mode
Intelligent position vacuum recoating
Motion Control
Closed-loop all axes
Software
Kings 3D Control Software + Voxeldance (included)
File Formats
STL · SLC
Operating System
Windows 10
Network
Ethernet · TCP/IP
Warranty
2 years including laser
Application Industries
Where the Kings SLA 1450 Pro Fits in the Production Workflow
Automotive Lighting
Lenses, Covers & Optical Assemblies
Tail light lenses, headlight inner structures, and turn signal covers require both optical accuracy and precise fit against the body panel. The 1450 Pro prints them at full assembly scale in KS608 clear resin — enabling optical measurement and fit verification against real body panels before tooling commitment.
Automotive Interior
Dashboard & Interior Cluster Prototypes
Full-scale dashboard instrument clusters, center console housings, and HVAC panel assemblies print within the 1450 Pro's build envelope. Interior teams evaluate ergonomics and CMF with physical parts — not renders — compressing the approval cycle from weeks to days.
Sanitaryware & Ceramics
Full-Scale Mold Masters & Casting Patterns
Toilet, sink, and faucet mold masters at full production scale print as single-piece SLA parts — eliminating the seam lines and alignment steps of split-mold patterns. Used directly for slip casting, press molding, and vacuum forming in ceramics and plumbing fixture manufacturing.

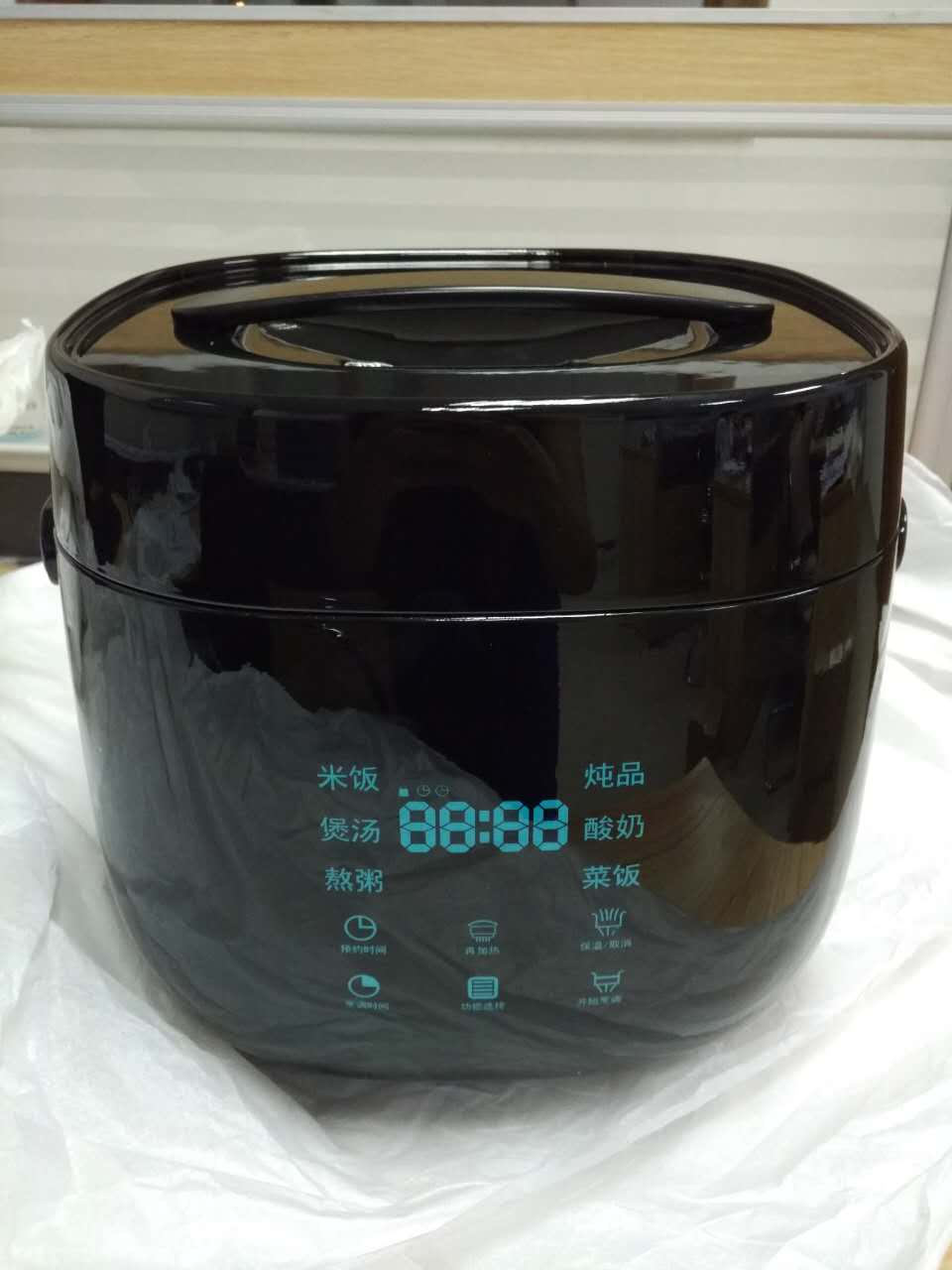

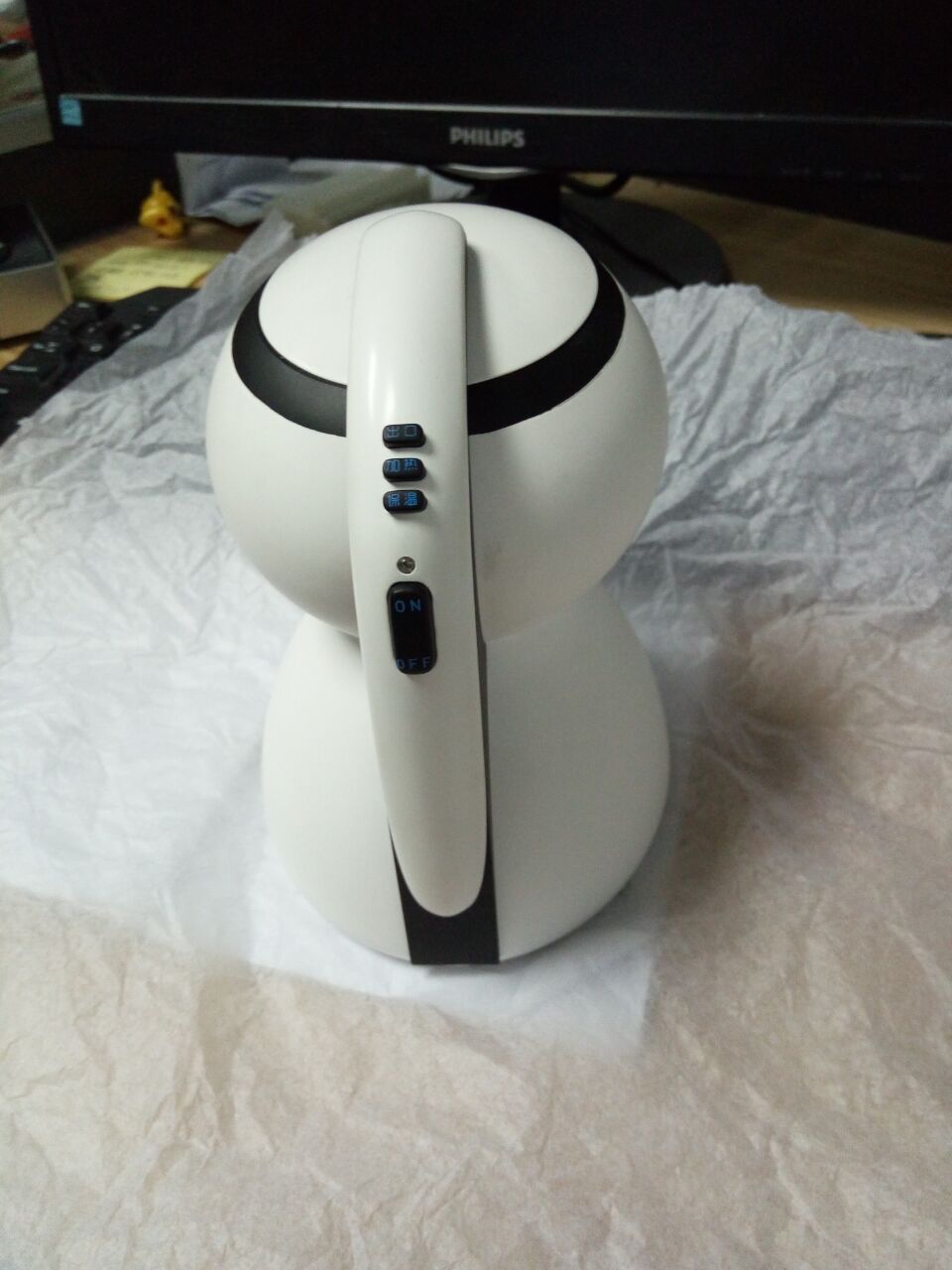

Product Design Studios
Paint-Ready CMF Models — Same Day
Design studios use the 1450 Pro for CMF (color, material, finish) approval models that go directly from the printer to the paint booth. The SLA surface accepts primer without sanding — removing the overnight prep cycle that delays client presentations and compresses designer iteration budgets.
Medical & Consumer Electronics
Complex Clear Housings & Device Prototypes
Medical device teams and consumer electronics engineers use the 1450 Pro for complex clear housings where internal geometry must be visible and measurable before production. Fluid path prototypes, diagnostic device shells, and optical assembly housings print at 0.08 mm beam with dimensional accuracy that supports design verification testing.

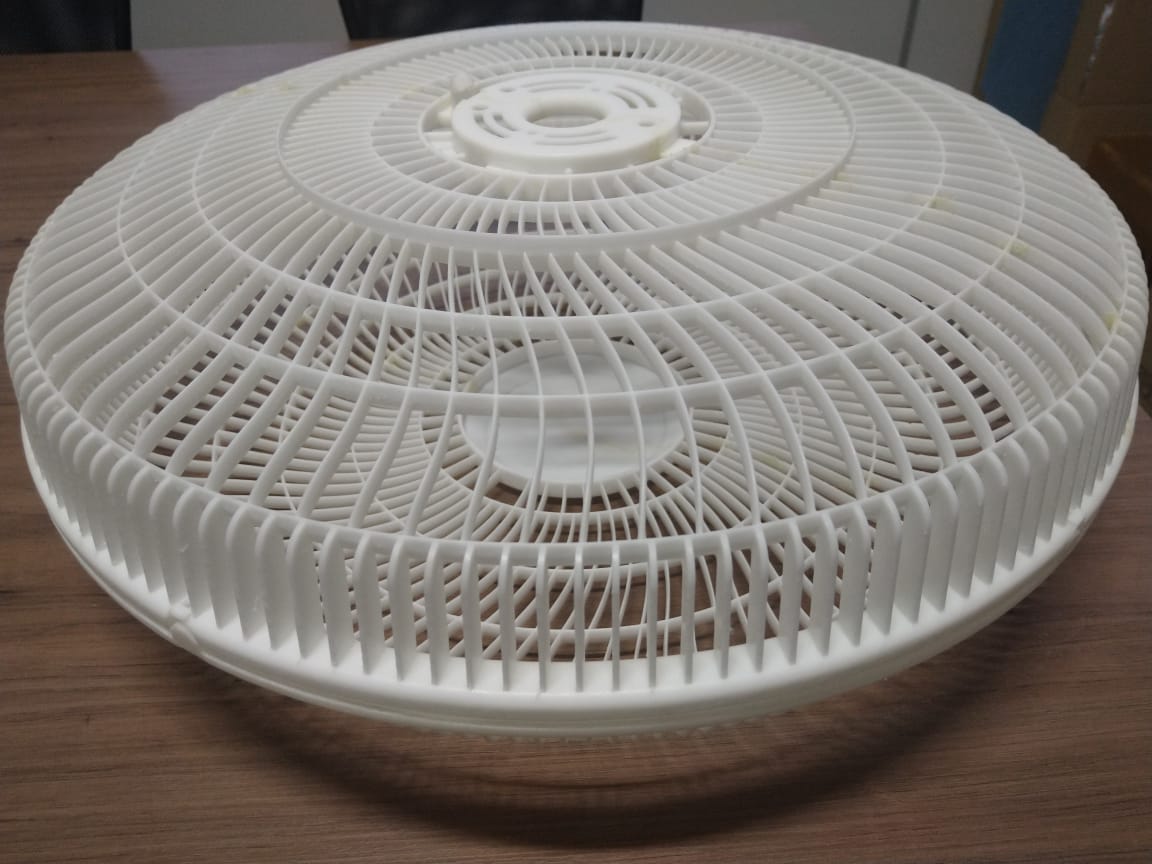

Industrial & Custom Manufacturing
Jigs, Fixtures & One-Off Production Parts
Manufacturers use the 1450 Pro for production jigs, assembly fixtures, and custom tooling components that would require weeks of machining time. SLA resin parts in KS158T tough engineering material hold tolerance for repeated mechanical use — at a cost and lead time that makes small-batch tooling economically viable for the first time.
Resin Library
Kings UV Resin — Three Core Materials for the 1450 Pro's Application Range
KS408A — Standard Production Resin
General-purpose SLA resin included as the first tank (1,090 kg) with every 1450 Pro. High print success rate, reliable surface finish, and broad application compatibility — automotive prototypes, sanitaryware masters, architectural models, and functional housings. The default resin for most applications.
1,090 kg First TankGeneral PurposeBroad Compatibility
KS608 — High-Clarity Resin
Translucent resin for optical applications — automotive lenses, display covers, light guides, consumer electronics housings, and medical device prototypes. Achieves 88%+ light transmittance with dimensional accuracy at the 1450 Pro's 0.08 mm minimum beam. Parts come off the plate optically clear without secondary polishing.
88%+ TransmittanceOptical GradeLenses & Covers
KS158T — Tough Engineering Resin
ABS-like engineering resin for parts subject to mechanical loading — production jigs, assembly fixtures, snap-fit components, and functional prototypes that will be handled, tested, or assembled. Maintains dimensional stability under repeated loading cycles. Used where standard SLA resins fracture under functional testing conditions.
ABS-LikeImpact ResistantJigs & Fixtures
Your Authorized Partner
Why Buy the Kings SLA 1450 Pro Through Rev1 Technologies
Sold & Supported By
Authorized Partner
01
Authorized Kings 3D Partner
Rev1 is an authorized Kings 3D reseller in the U.S. Every machine includes full manufacturer warranty support — including laser — and access to Kings 3D engineering for technical escalations beyond Rev1's in-house capability.
02
DDP — One Price, No Surprises
The full package price is DDP — Delivered Duty Paid. Rev1 coordinates freight, customs clearance, insurance, and delivery to your facility. No cascade of post-sale invoices from brokers and carriers. One price, delivered.
03
Application Engineering Pre-Sale
Rev1 reviews your application — part size, tolerances, resin requirements, post-processing workflow — and confirms the 1450 Pro is the right platform before the purchase. We don't sell a machine that's wrong for your use case.
04
On-Site Install & Operator Training
Rev1 handles machine delivery, leveling, laser calibration, Voxeldance installation, and network integration on-site. Hands-on operator training follows — your team prints on day one, not after a week of self-guided setup.
05
Ongoing Support & Resin Supply
Direct technical support and KS-series resin supply for the machines Rev1 sells. (248) 707-2950 — a person picks up. When a production machine needs attention, you don't wait in a queue.
06
Business Financing Available
Rev1 works with multiple lenders for capital equipment financing on qualified purchases. Structured financing lets you bring industrial SLA in-house without a single large outlay — preserving cash for materials and operations. Contact us for current terms.

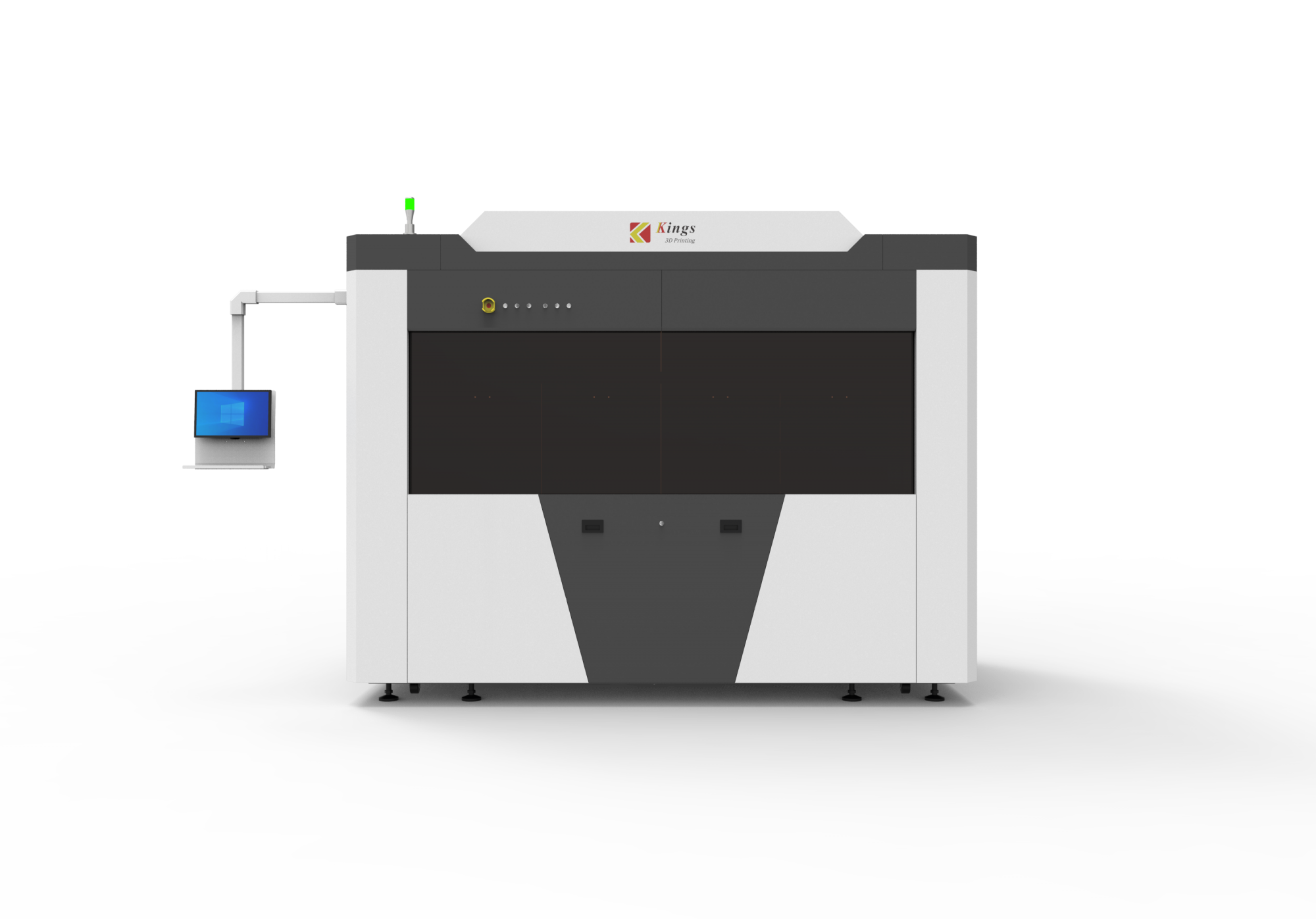

Kings SLA Lineup
Other Kings SLA Industrial Printers — Available Through Rev1
Common Questions
Frequently Asked — Kings SLA 1450 Pro
How does the 1450 Pro differ from the 1700 Pro?
The 1450 Pro and 1700 Pro share the same core — marble frame, Nd:YVO₄ 355 nm laser, closed-loop motion, vacuum recoating, and Voxeldance software. The key difference is build volume: 1450×800×650 mm vs 1700×800×650 mm. The 1450 Pro weighs 2,550 kg vs the 1700's 2,780 kg and includes a slightly smaller first tank (1,090 kg vs 1,300 kg). For applications where parts fit within 1,450 mm — the majority of large-format SLA work in prototyping, optical, sanitaryware, and industrial tooling — the 1450 Pro delivers the same marble-frame precision at lower machine cost and footprint.
Is KS608 clear resin suitable for optical measurement?
Yes. KS608 on the Kings SLA 1450 Pro achieves 88%+ light transmittance in parts off the build platform. Automotive lighting teams use it for tail light lens prototypes that go directly to optical measurement — lux distribution, beam pattern analysis, and regulatory compliance checking — before committing to injection mold tooling. The surface finish from the 0.08 mm minimum beam is smooth enough for optical measurement without secondary polishing in most applications.
What sanitaryware applications work best on the 1450 Pro?
The 1450 Pro handles full-size toilet seat assemblies, washbasin masters up to 1,450×800 mm, standard faucet body patterns, and shower tray sections. Ceramic manufacturers use SLA masters directly for slip casting and press molding — the SLA surface texture matches the smoothness required for ceramic casting without additional surface treatment. For very large bathtub or countertop basin forms that exceed 1,450 mm, the 1700 or 2700 Pro provides the additional length.
What facility requirements does the 1450 Pro need?
Floor footprint: 222×177 cm plus service clearance. Floor load capacity must support 2,550 kg concentrated load. Electrical: 200–240 VAC, 50/60 Hz, single-phase, 10 A. Ambient environment: 20–26°C (72–79°F), below 40% relative humidity, non-condensing. The 1450 Pro's requirements are identical to the 1200 Pro — slightly smaller footprint than the 1700 Pro — and fit in standard industrial or studio spaces with climate control.
What is included in the full package?
The full package includes: Kings SLA 1450 Pro printer, 1,090 kg KS408A resin (first tank), Voxeldance slicing software license, dehumidifier, UV post-cure box, steel shipping container, UPS power backup, tool kit, DDP shipping with freight insurance and import duty handling, and Rev1 on-site installation, commissioning, and operator training anywhere in the continental U.S. Contact Rev1 for current pricing.
Is financing available?
Yes. Rev1 works with multiple lenders for business financing on qualified purchases. Capital equipment financing at this scale allows studios and manufacturers to bring industrial-grade SLA in-house without a single large capital outlay. Contact Rev1 at (248) 707-2950 or (248) 707-2950 for current rates and qualification process.
