Rev1 ABS-GF Glass-Fiber Stiffness Meets ABS Heat Resistance
Glass-Fiber Stiffness Meets ABS Heat Resistance
ABS-GF is glass-fiber-reinforced ABS: it keeps the heat resistance and toughness of ABS but adds chopped glass fiber for higher stiffness, better dimensional stability, and far less warping than plain ABS — a big rigidity upgrade at a lower cost than carbon-fiber ABS-CF. Built for functional, load-bearing, higher-temp structural parts. It requires a hardened-steel nozzle — in 3 colors, on 1 kg and 3 kg spools. Full specifications →
In stock — ships from Rev1. Need a specific color, a 3 kg spool, or case pricing? Call (248) 707-2950.
Dimension-locked, vacuum-sealed, supported by humans.

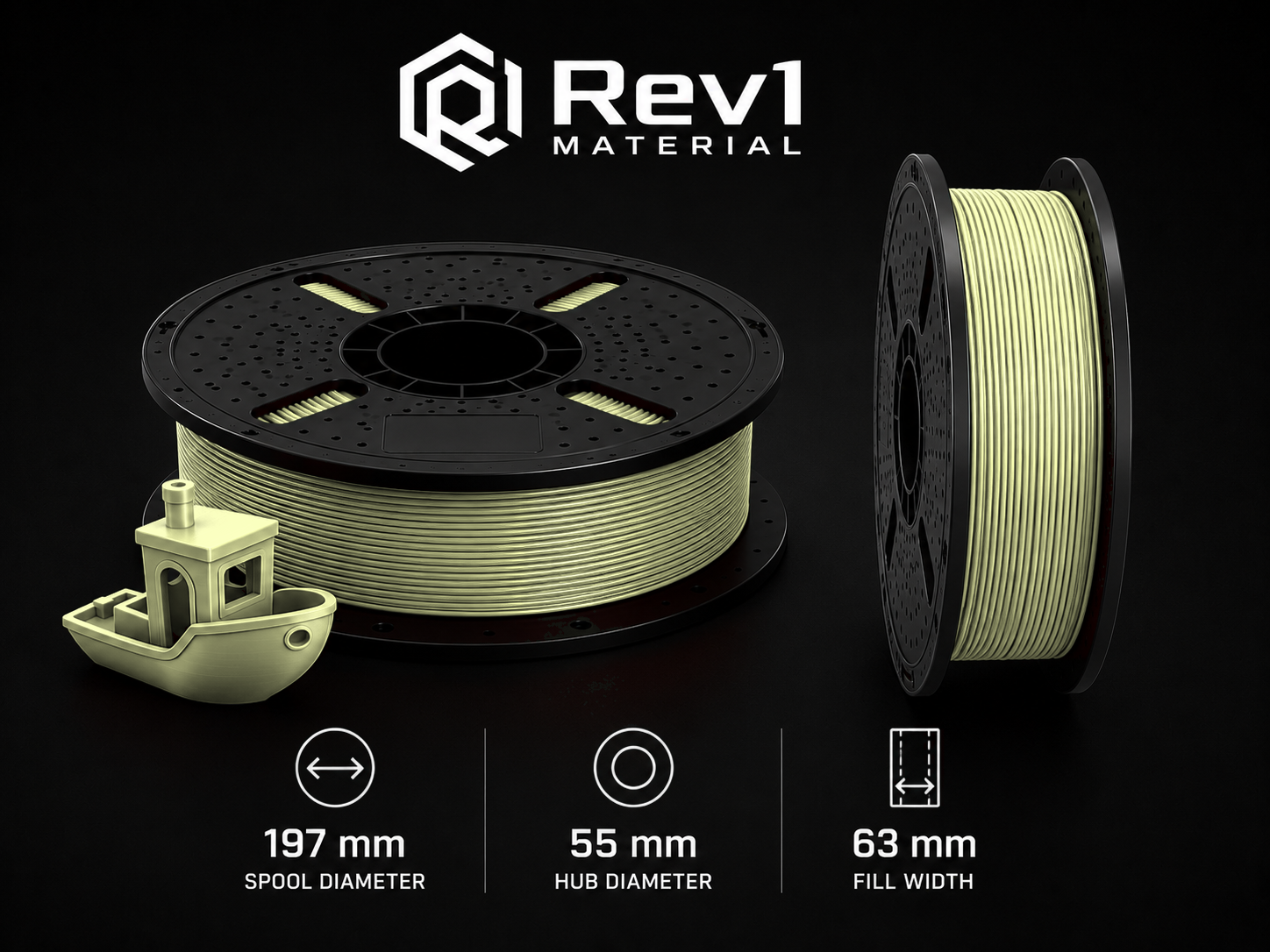

Rev1 ABS-GF is precision-extruded 1.75 mm glass-fiber filament, wound evenly and vacuum-sealed with desiccant, then stocked and supported from Auburn Hills, Michigan.
When plain ABS isn't stiff enough.
Plain ABS is tough and heat-resistant but flexes and warps on big flat parts. ABS-GF blends in chopped glass fiber to raise stiffness and heat-deflection and to hold tight dimensions with far less warping — a real rigidity upgrade over plain ABS, and more affordable than carbon-fiber ABS-CF. The trade-offs are an abrasive fiber that needs a hardened-steel nozzle and an enclosed, draft-free printer — give it that and Rev1 ABS-GF makes stiff, dimensionally-stable structural parts in 3 colors.
Even diameter and a clean wind for reliable, warp-free runs.
Round, consistent 1.75 mm glass-filled filament feeds smoothly so long enclosed prints don’t fail.
Every Rev1 ABS-GF spool is wound evenly and held to a tight diameter, so it feeds without under-extrusion across a full 1 kg or 3 kg run. Vacuum-sealed with desiccant to arrive dry — critical for glass-filled ABS, which prints best straight out of the bag. Run a hardened-steel nozzle: glass fiber is abrasive.
Holds its shape in hot cars, enclosures, and near motors — far past where PLA and PETG soften.
Glass fiber adds real stiffness over plain ABS — the pick for load-bearing structural parts.
Better dimensional stability and much less warping than plain ABS on big flat parts.
Black, Natural (grey-tan glass-filled), and White — the core structural palette.
Print settings for clean, crack-free ABS-GF.
ABS-GF prints much like ABS — it rewards a stable, draft-free environment. An enclosure, a hot bed, and minimal part cooling keep corners down and layers bonded. The one hard requirement: the glass fiber is abrasive, so run a hardened-steel nozzle.
Run hot for strong layer adhesion — and use a 0.4 mm+ hardened-steel nozzle, since glass fiber wears brass fast.
A hot bed plus glue or an adhesive sheet prevents the corners from lifting.
Glass fiber cuts warping, but an enclosure still holds chamber heat and blocks drafts — the top fix for cracking.
ABS-GF emits styrene odor while printing; run it in a ventilated space or with filtration.
Recommended slicer settings
A solid starting profile for Rev1 ABS-GF on an enclosed FDM printer with a hardened-steel nozzle. Tune cooling and chamber temperature for your machine.
| Setting | Recommended | Notes |
|---|---|---|
| Nozzle temperature | 240–260 °C | Run hot for strong layer bonding and to reduce cracking. |
| Bed temperature | 90–110 °C | Glue stick or ABS slurry on glass/PEI for a strong first layer. |
| Chamber / enclosure | Warm, draft-free | Glass fiber lowers warp, but a warm chamber still gives the cleanest results. |
| Print speed | 30–60 mm/s | Moderate speeds help interlayer strength. |
| Part cooling fan | 0–20 % | Keep cooling low — too much fan cracks layers. |
| Retraction | 1–5 mm | Direct drive: ~1–2 mm. Tune to control stringing. |
| Nozzle type & size | 0.4 mm + hardened steel | Required — glass fiber is abrasive and wears brass nozzles fast. |
| Drying | 65–80 °C · 4–6 h | Only if exposed to humidity; keep glass-filled ABS dry for best strength. |
| Post-processing | Sand / prime | Glass fill limits acetone smoothing; sand and prime for a finished surface. |
Stiff, stable parts that have to take heat and load.
The stiff, stable choice for structural, real-world parts.
ABS-GF adds glass-fiber stiffness and dimensional stability to ABS's heat resistance and toughness — real engineering performance for load-bearing, higher-temp parts, at a lower cost than carbon-fiber ABS-CF. Stocked in 3 colors, 1 kg and 3 kg spools. Print it with a hardened-steel nozzle.

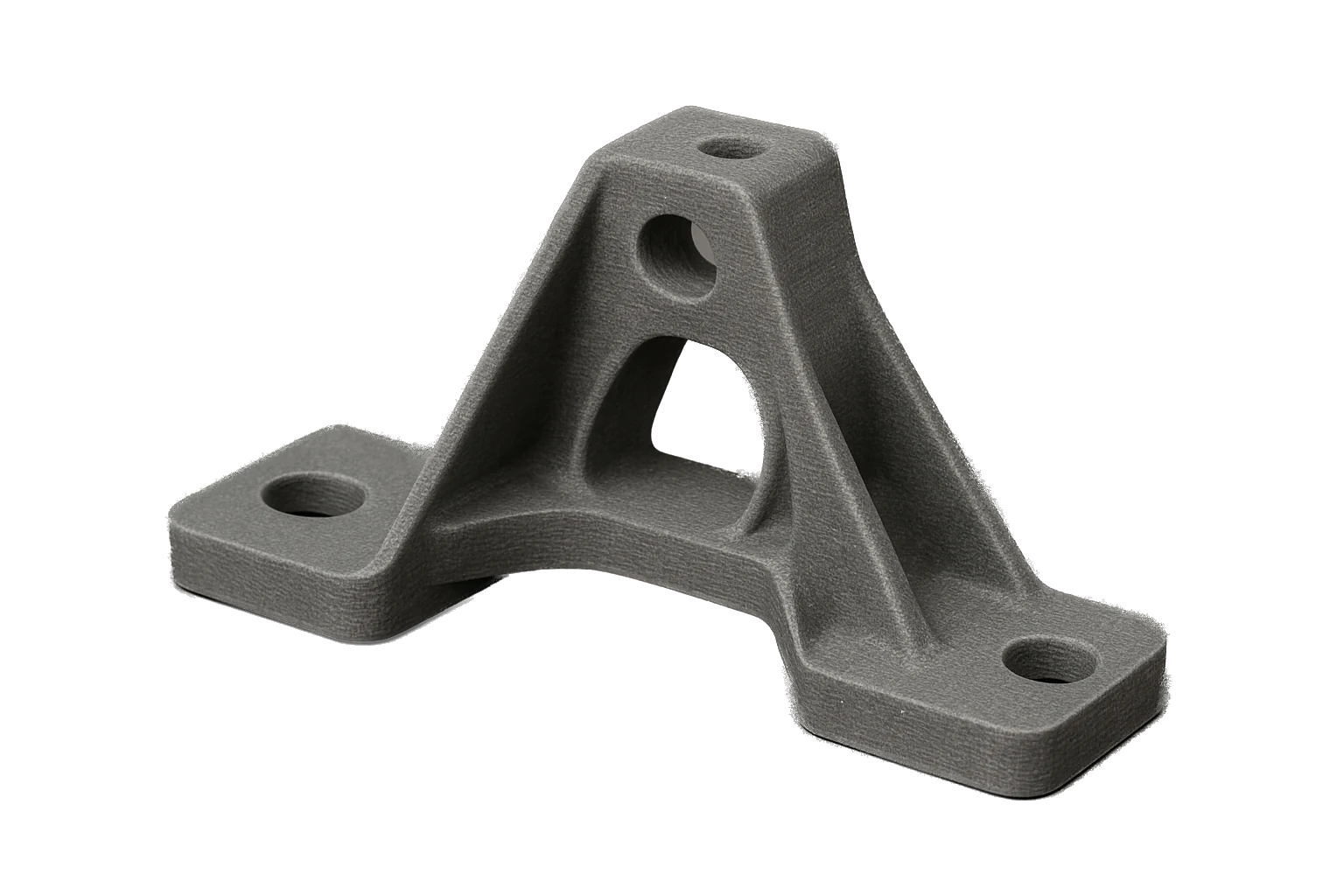

Under-hood brackets that stay stiff in the heat.
Glass-fiber stiffness plus high heat-deflection for structural mounts near the engine.
Mounting brackets, supports, and housings that live under the hood or in the cabin — ABS-GF resists warping and holds its shape and rigidity where plain ABS would flex and PLA would soften.

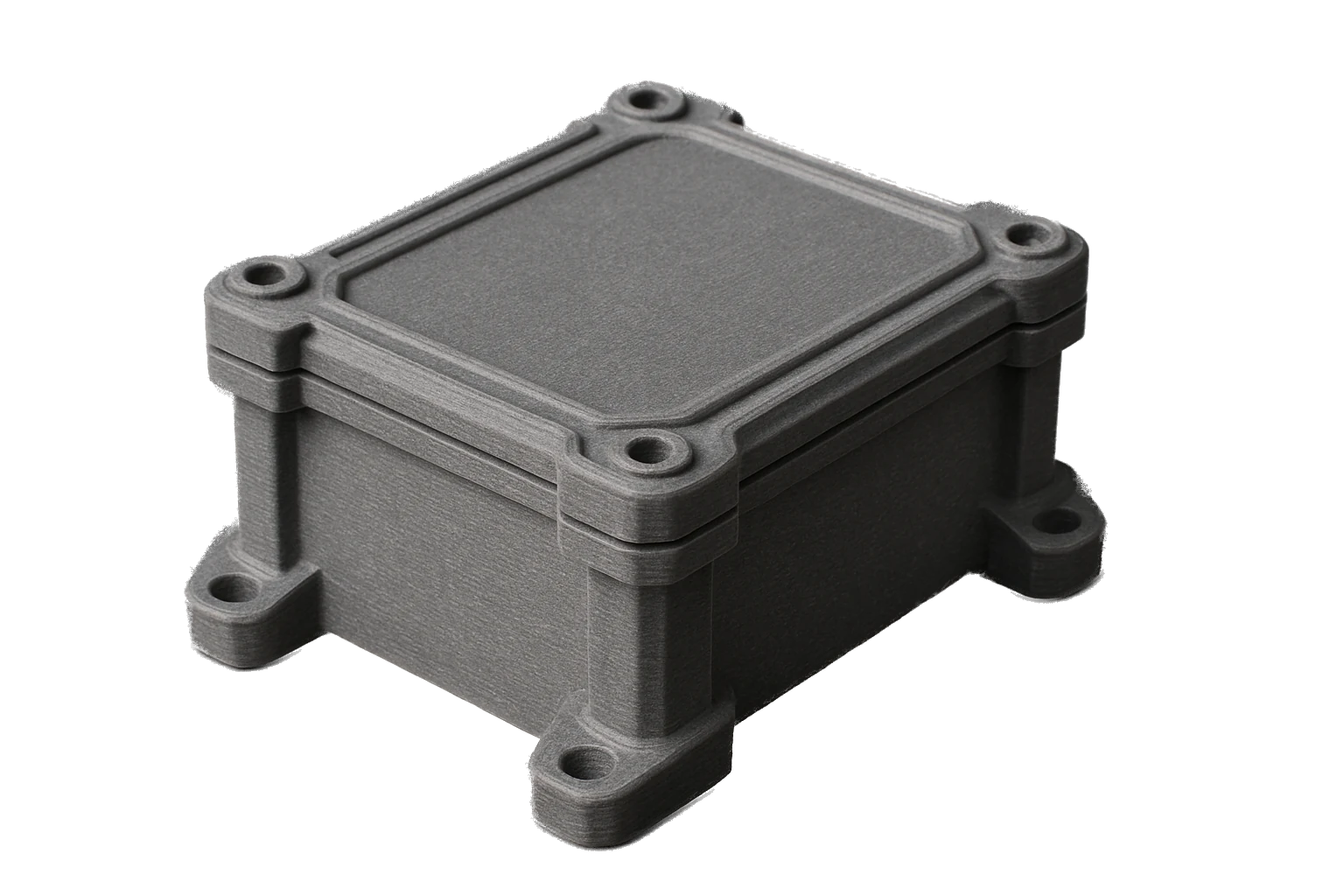

Sealed housings that stay rigid and true.
Stiff, dimensionally-stable boxes and cases for electronics and equipment.
ABS-GF makes a stiffer, lower-warp enclosure than plain ABS — flat walls, clean-mating seams, and enough toughness and heat tolerance to survive drops, daily handling, and warm environments.

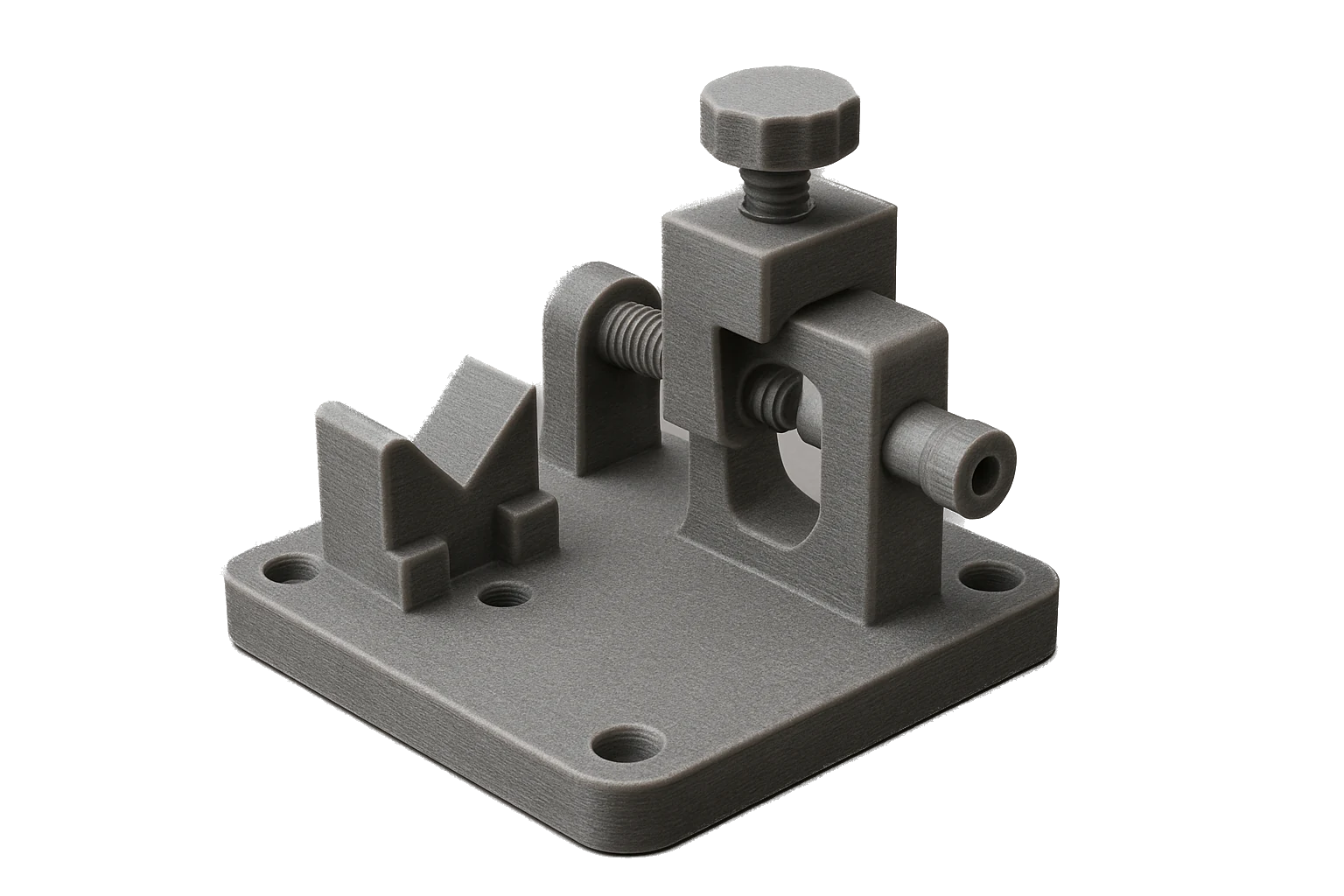

Precision jigs and fixtures that hold tolerance.
Glass-fiber dimensional stability for tooling that stays accurate through repeated use.
Print the fixtures, jigs, and assembly aids your line needs — ABS-GF resists warping and creep, so parts keep their dimensions through heat, clamping, and repeated cycles better than plain ABS.

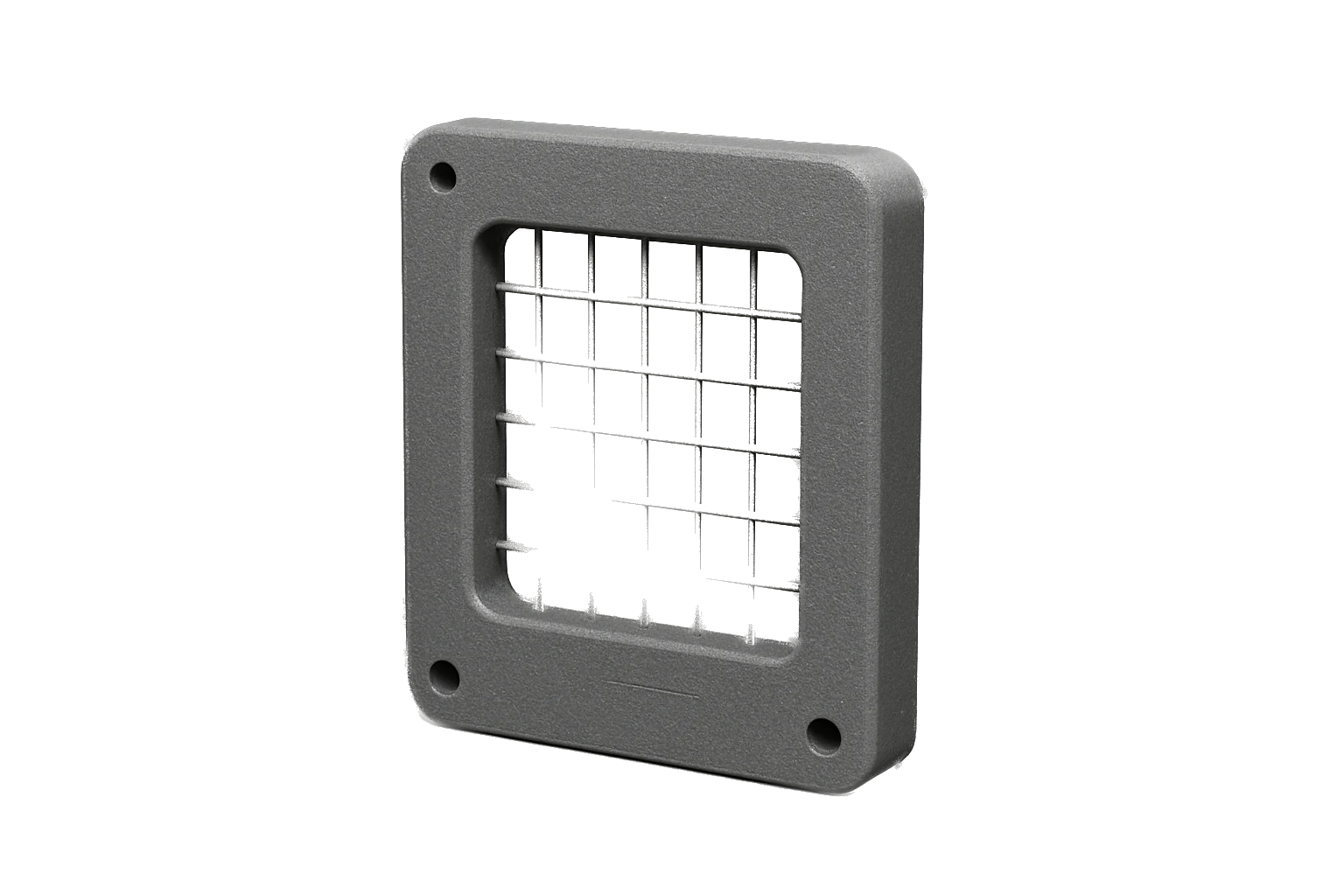

Flat guard panels that stay true across the span.
Glass fiber holds large flat parts dimensionally stable with minimal warp.
Machine guards, covers, and panels are exactly where plain ABS warps and lifts at the corners. ABS-GF's glass fiber keeps big flat parts stiff and true, so guards fit and mount cleanly on the equipment.

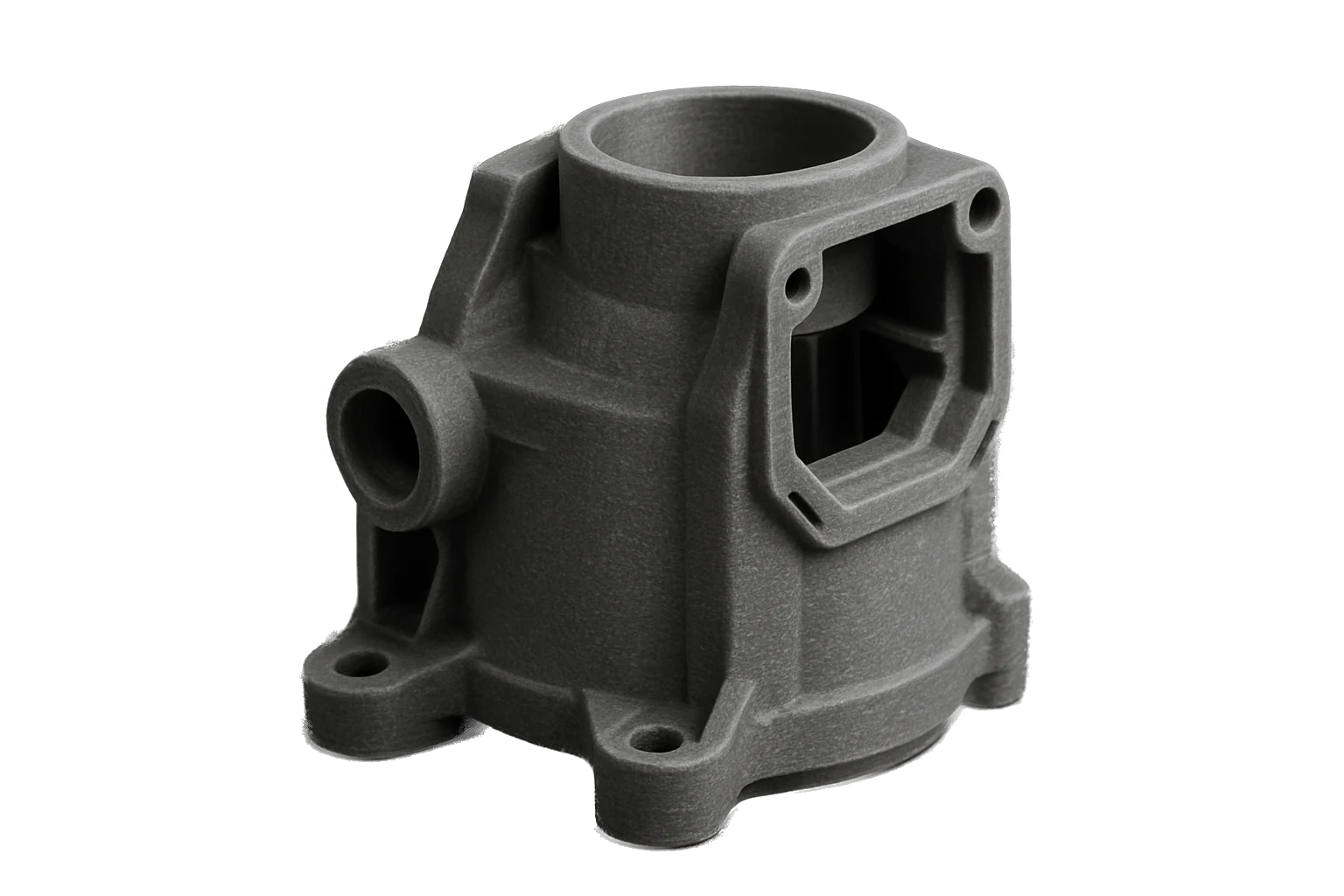

Tool and motor housings that take the heat.
Stiff, heat-tolerant shells for power tools, motors, and equipment.
Motors and power tools run hot and vibrate. ABS-GF gives housings the added stiffness and heat-deflection to stay rigid and dimensionally stable in service, where plain ABS would soften or flex.

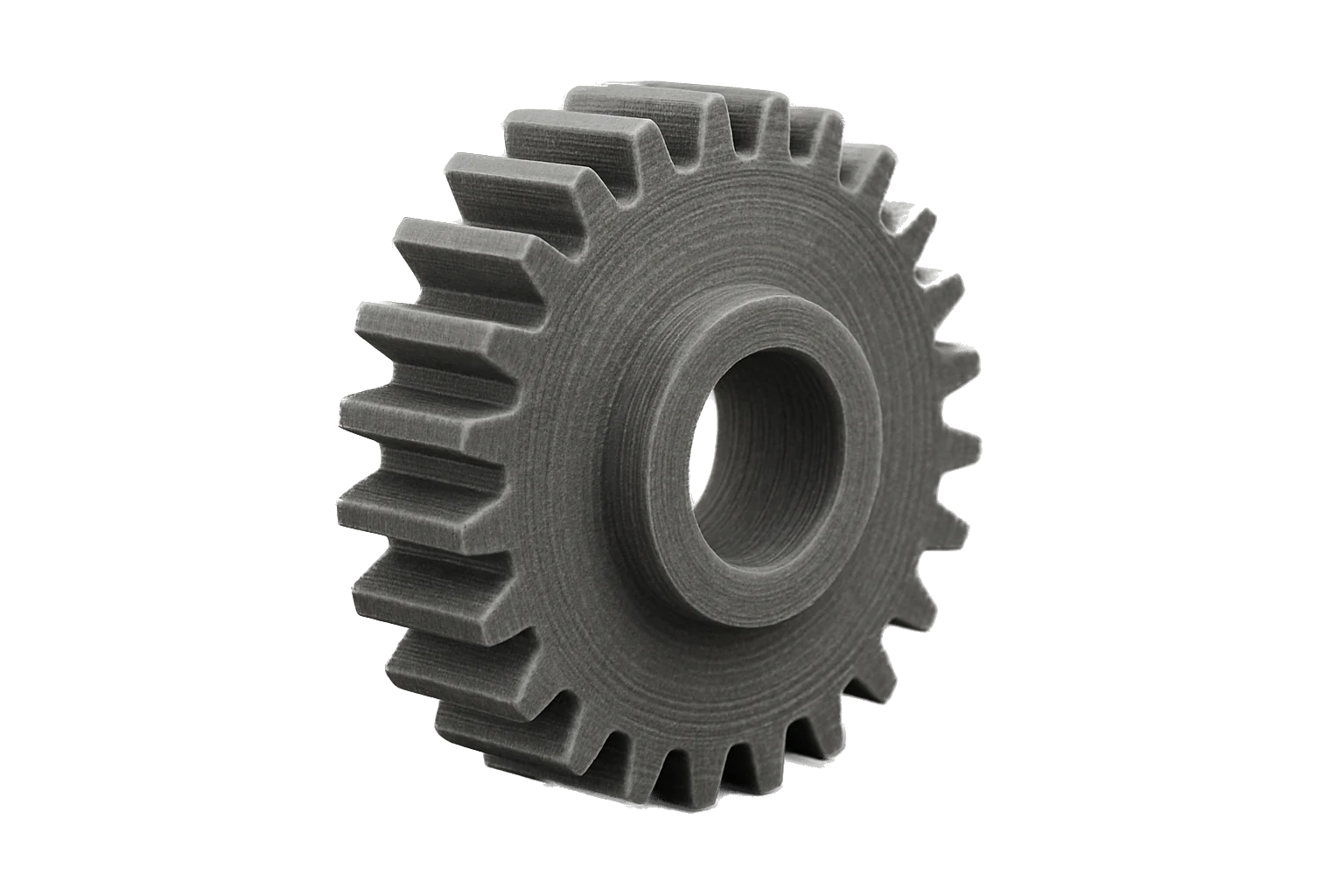

Structural gears and parts that ship.
Stiff, low-creep components for real-world, end-use loads.
Spur gears, arms, and load-bearing components — ABS-GF's glass-fiber stiffness and dimensional stability let functional parts hold their teeth and geometry under load, bridging prototyping and production. Ask us about 3 kg spools and case pricing.
ABS-GF vs. plain ABS vs. ABS-CF.
Pick by how much stiffness the part needs. ABS-GF adds glass-fiber rigidity and dimensional stability over plain ABS while staying affordable; ABS-CF is stiffer still but costs more. All keep ABS-level heat resistance.
| Rev1 ABS-GF | Plain ABS | ABS-CF | |
|---|---|---|---|
| Stiffness | High (glass-fiber) | Moderate | Highest (carbon-fiber) |
| Dimensional stability | High, low warp | Moderate, warps | Highest |
| Heat resistance | High (~95–100 °C) | High (~100 °C) | High (~100 °C) |
| Nozzle | Hardened required | Brass OK | Hardened required |
| Relative cost | Mid | Lowest | Highest |
| Best for | Stiff structural / heat | General functional | Max stiffness parts |
General material guidance; exact performance depends on part geometry, print settings, and grade. For maximum stiffness step up to ABS-CF or PC+-CF; for UV/outdoor use, consider ASA or ASA-GF.
Rev1 ABS-GF Technical Data
Mechanical & thermal properties
Typical values for engineering reference. Printed-part performance varies with wall count, infill, layer height, and orientation — treat these as material-level guidance, not a part spec.
| Property | Typical Value | Method |
|---|---|---|
| Tensile strength | ~50 MPa | ISO 527 |
| Elongation at break | ~5 % | ISO 527 |
| Flexural strength | ~90 MPa | ISO 178 |
| Flexural modulus | ~4,500 MPa | ISO 178 |
| Izod impact (notched) | ~8 kJ/m² | ISO 180 |
| Glass transition (Tg) | ~105 °C | DSC |
| Heat deflection (HDT, 0.45 MPa) | ~100 °C | ISO 75 |
| Shelf life (sealed, dry) | 12 months | — |
Specs, profiles, and a human to call.
Your trusted materials partner.
Every spool is checked for tight diameter tolerance and reliable, repeatable printing.
Call (248) 707-2950 and reach people who actually print and support these materials.
Case quantities and standing orders across the full color range.
FAQ
Rev1 ABS-GF — Common Questions
Do I need a hardened nozzle and an enclosure to print ABS-GF?
A hardened-steel nozzle is required — the glass fiber is abrasive and quickly wears brass. An enclosure is still recommended: glass fiber reduces warping versus plain ABS, but a warm, draft-free chamber and a 90–110 °C heated bed give the cleanest, crack-free results.
ABS-GF vs plain ABS vs ABS-CF — which should I use?
Choose ABS-GF when you need more stiffness and dimensional stability than plain ABS but don’t want to pay for carbon fiber. Plain ABS is cheaper and easier (brass nozzle) for general functional parts; ABS-CF is stiffer still but costs more. All three share ABS-level heat resistance.
What colors and sizes are available?
Three colors — Black, Natural (a grey-tan glass-filled shade), and White — on 1 kg and 3 kg spools. Pick your color and spool size in the buy-box, or ask us about case quantities.
How do I stop ABS-GF from warping and cracking?
Glass fiber already cuts warping versus plain ABS. Enclose the printer, run a 90–110 °C bed with glue or ABS slurry, keep part cooling low or off, and avoid drafts and AC vents. Brims and a warm chamber help large flat parts stay stuck.
Is ABS-GF safe to print indoors?
ABS-GF gives off a styrene odor while printing, so use it in a ventilated space or with an enclosure and filtration. Many users vent the enclosure outdoors or run a carbon/HEPA filter.
Can I smooth ABS-GF to a glossy finish?
Not really — the glass fiber limits acetone vapor smoothing, and parts keep a matte, technical surface. Sand and prime for a finished look. If a glossy acetone-smoothed finish is the goal, use plain ABS instead.
How heat-resistant is ABS-GF?
ABS-GF holds its shape to roughly 95–100 °C (HDT ~100 °C), on par with ABS and well past PLA and PETG — good for hot car interiors, enclosures, and near-motor parts. For UV and outdoor exposure, step to ASA or ASA-GF; for higher sustained heat, consider PC or PA (nylon).
Is the 3 kg spool better value?
Yes — the 3 kg spool lowers cost per kilogram and means fewer spool changes on long or production runs. It’s the go-to for shops and print farms.
Can Rev1 quote bulk or a specific color?
Yes. Tell us the color and quantity and we confirm stock and quote case pricing with standing-order scheduling, usually within one business day. Call (248) 707-2950.
