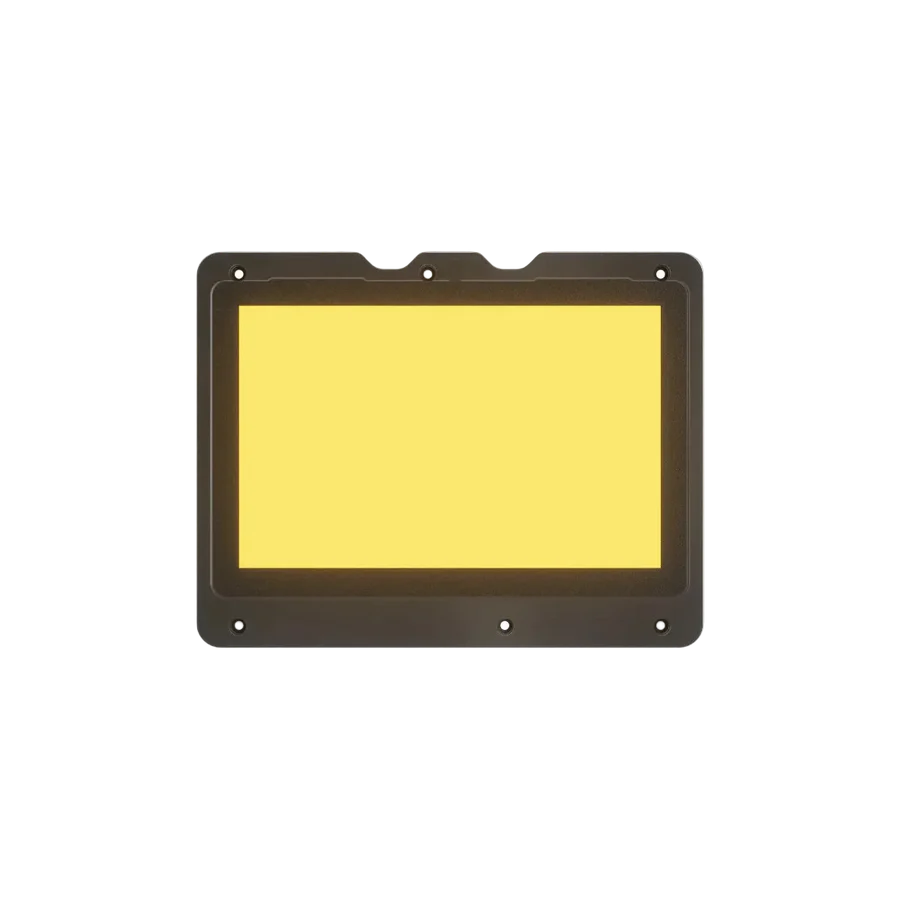

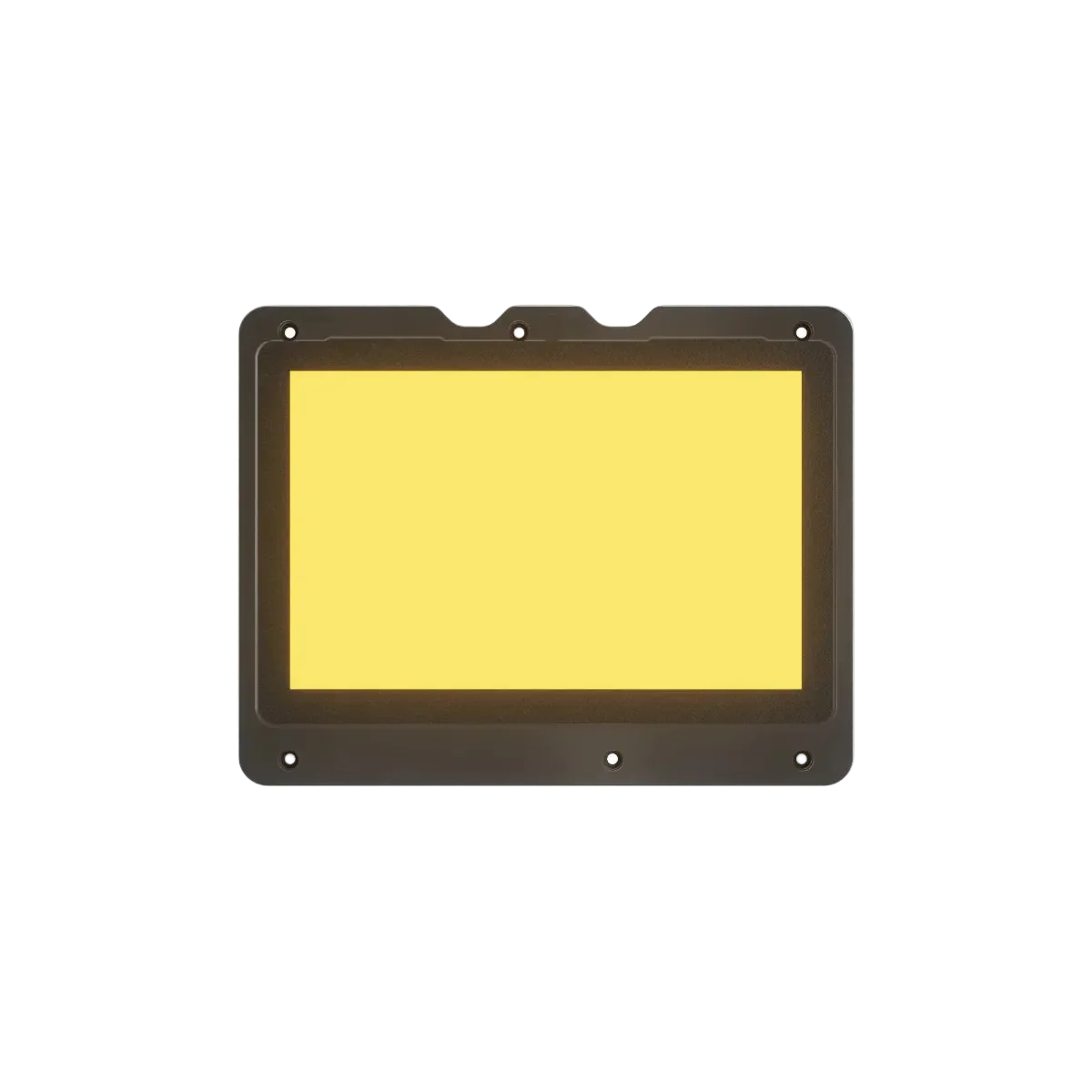

HeyGearsReflex 2 LCD Screen 10.7" with Anti-Scratch FilmOEM Light Engine Replacement
Genuine OEM 10.7-Inch LCD Replacement Set for the Reflex 2 / Reflex 2 Pro Light Engine — Tolerance-Matched, Anti-Scratch Film Included
The replacement LCD that ships in HeyGears’ Reflex 2 / Reflex 2 Pro at the factory. 10.7-inch monochrome LCD calibrated to the Reflex 2’s UV light engine, with the anti-scratch protective film pre-applied. The right pick when an LCD wears out, when post-warranty resin damage hits the panel, or when you’re scaling production and want a tested-spare on the shelf. Full specifications →
Genuine HeyGears OEM replacement. Stocked in our US warehouse. HeyGears Material #23010300090.
Talk to a HeyGears specialist
Three Signs Your LCD Has Reached End-of-Life
The same blemish, gap, or rough patch on every part — in the same XY position regardless of geometry — means the LCD has burnt or dim pixels in that area. The light engine can’t cure resin where the panel won’t modulate light. Replacement is the only fix.
Resin leaking past the anti-scratch film and onto the LCD surface causes irreversible damage — UV-cured residue welds to the panel and resists every solvent. Past a certain point, the panel needs swapping. The new set ships with fresh anti-scratch film already applied.
The LCD is a wear part on every resin printer. Production shops keep at least one spare per active machine to avoid multi-day downtime when an LCD goes mid-job. $323 sitting on the shelf vs. weeks of waiting on backorder — an easy call for revenue-generating prints.
LCD Swap Is a Service-Level Procedure
The set ships with the LCD panel and a fresh sheet of anti-scratch film. The film mounts to the frame above the LCD — if resin gets past it during a future tank failure, the film takes the hit instead of the panel. Apply the film clean and bubble-free; lay the panel into its mount and seat the connectors per the HeyGears service guide.
If you’re not comfortable opening the printer, send us a service request — Rev1 can ship you a pre-assembled LCD module or arrange in-shop replacement at our Auburn Hills, MI lab.
Reflex 2 Series Only — Other Printers Have Different LCDs
| HeyGears Printer | Compatibility | Correct LCD |
|---|---|---|
| UltraCraft Reflex 2 | ✓ Compatible | This product |
| UltraCraft Reflex 2 Pro | ✓ Compatible | This product |
| UltraCraft Reflex (original) | ✗ Different size | Use original Reflex LCD Screen ($227) |
| UltraCraft Reflex RS / RS Turbo | ✗ Different size | Use RS LCD Screen ($227) (or the RS Turbo Amber Screen $239 for Turbo models) |
Reflex 2 LCD 10.7" + Anti-Scratch Film — Spec Sheet
| Vendor SKU | 23010300090 (HeyGears Material Number) |
| Brand | HeyGears |
| Product Family | UltraCraft Reflex 2 Series |
| Component Type | LCD panel replacement set + anti-scratch film |
| Display Size | 10.7-inch monochrome LCD |
| Compatible Printers | UltraCraft Reflex 2, UltraCraft Reflex 2 Pro |
| Light Source Match | Tolerance-matched to Reflex 2 UV light engine (385 nm + visible) |
| Anti-Scratch Film | Included — pre-applied or supplied for self-application |
| Installation | Service-level procedure (printer disassembly required) |
| Country of Origin | China (HeyGears, Guangdong) |
| Warranty | 12 months parts (HeyGears OEM) |
| Rev1 Price | $323 USD |
Authorized HeyGears Reseller
with Engineering Support
Sold and supported by Rev1 Technologies. Manufactured by HeyGears.
Rev1 is an authorized HeyGears reseller based in Auburn Hills, Michigan. We carry the full Reflex 2 / Reflex 2 Pro replacement-parts and consumable lineup, stock it locally, and answer real questions about LCD wear patterns, install procedures, and production-spare strategies.
Verified factory-fresh stock from HeyGears, with the full Reflex 2 / 2 Pro / RS replacement-parts tree available through one channel.
If you’d rather not open the printer yourself, ship it to our Auburn Hills lab — we’ll swap the LCD, validate calibration, and ship it back ready to print.
Stocked in Auburn Hills, Michigan. The part you order ships from our floor.
Pay over time with 4 interest-free Klarna payments at checkout, even on replacement-parts orders.
Replacement Parts & Reflex 2 Tanks
Frequently Asked — Reflex 2 LCD Screen
Is the anti-scratch film already on the LCD?
The kit includes both the LCD panel and the anti-scratch film. Some shipments arrive with the film pre-applied to the panel; others ship with the film as a separate sheet for installer-applied mounting. Either way, both pieces are in the box and the order quantity is one of each.
Does it fit the original Reflex or Reflex RS?
No. The 10.7-inch panel is dimensioned for the Reflex 2 generation chamber. Original Reflex uses a different-size LCD — LCD Screen ($227). Reflex RS / RS Turbo use a different LCD as well — RS LCD Screen ($227), or the RS Turbo Amber Screen ($239) for Turbo models.
What are the most common signs my LCD needs replacement?
Repeating dim, blurred, or missing-cure spots in the same XY position on every part — classic burnt-pixel pattern. Visible discoloration when the printer is idle (with the panel lit). Surface damage from a resin spill that bypassed the anti-scratch film. Any of these = end-of-life for the panel.
Can I install this myself?
Yes, if you’re comfortable opening the printer, disconnecting ribbon cables, and following HeyGears’ service procedure. If you’d rather not, ship the printer to Rev1’s Auburn Hills lab and we’ll do the swap and recalibration in-house.
Is Klarna EasyPay available for this purchase?
Yes — the LCD set at $323 qualifies for Klarna Pay-in-4: four interest-free payments of $80.75 every 2 weeks, no fees, no credit impact. Available at checkout.
