HeyGearsReflex 2 Pulsing Release FilmPulsing Release Consumable

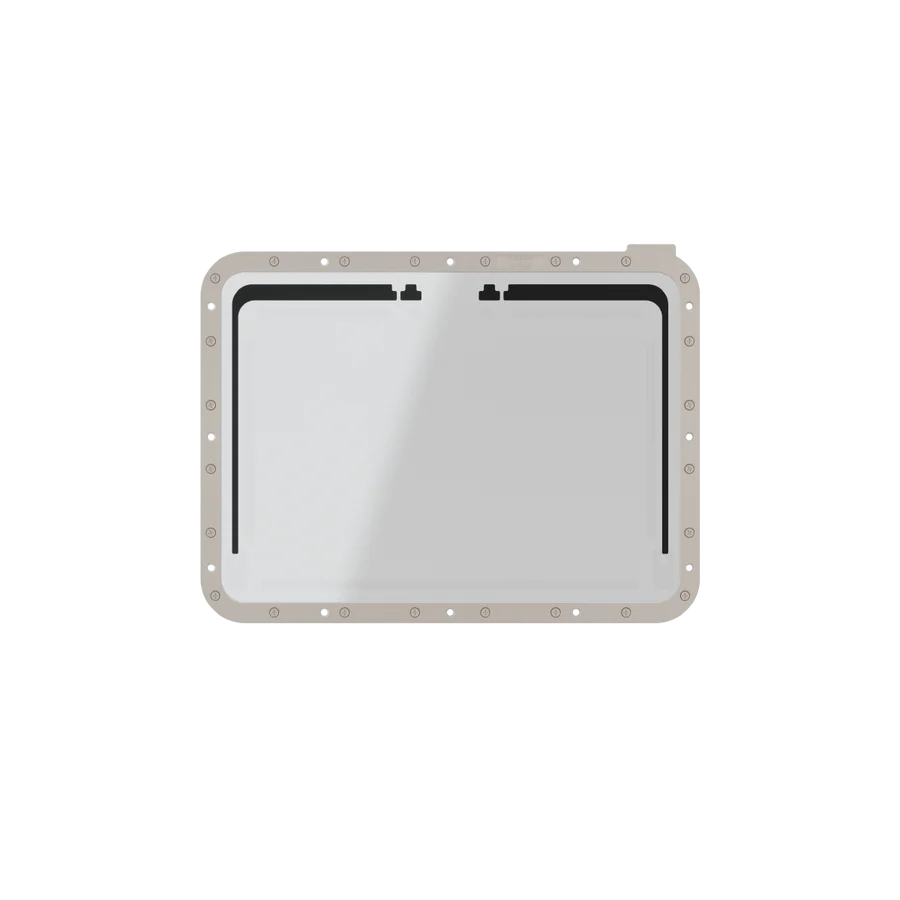

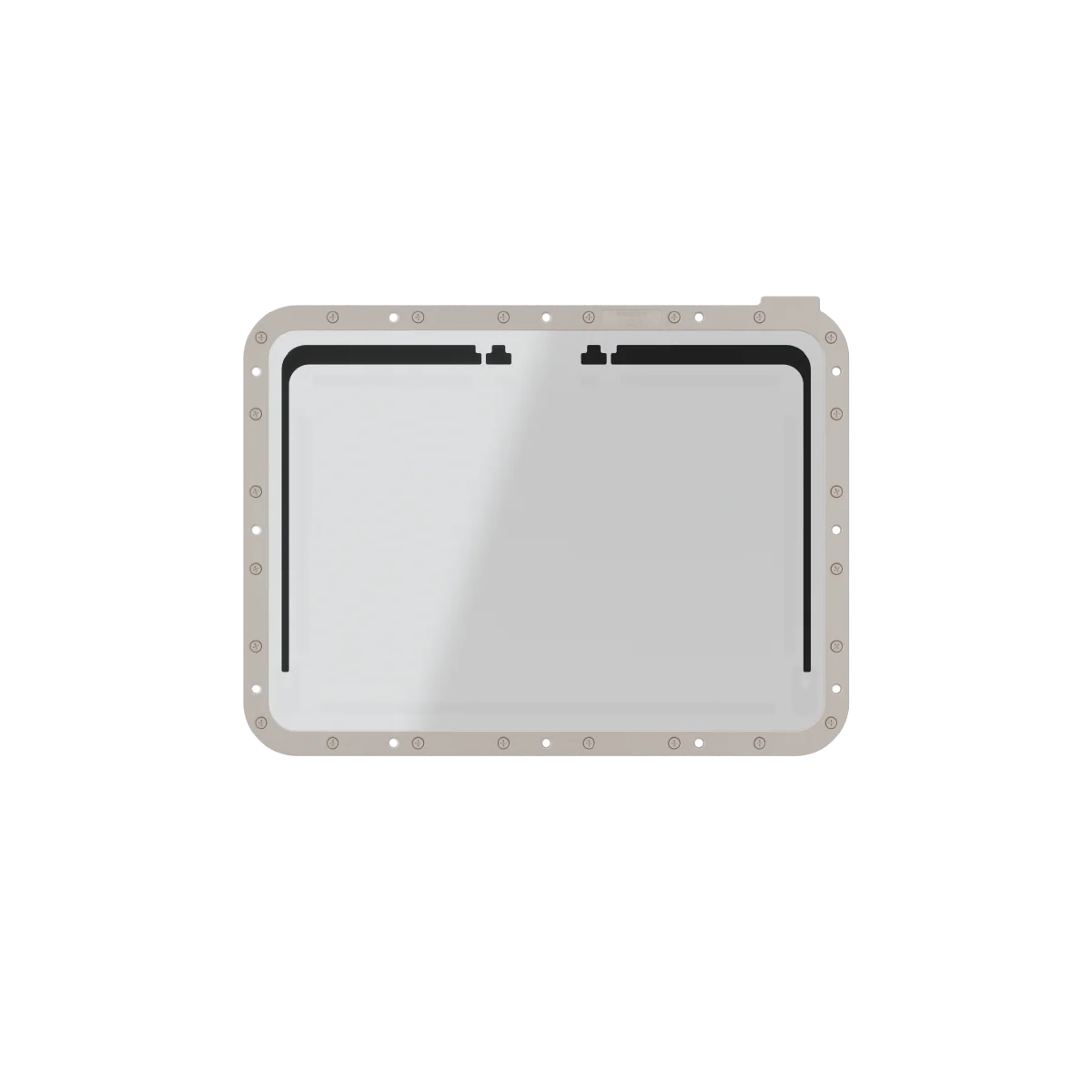

Replacement Film 2-Pack for the Pulsing Release Resin Tank — Reflex 2 / Reflex 2 Pro
The pulsing-release-rated film that mounts inside the Pulsing Release Resin Tank. Each pack contains 2 films — the standard wear consumable for shops running the UltraCraft Pulsing Release Module 2 setup. Tensioned to OEM spec, optical tolerance matched to the Reflex 2 light engine. Full specifications →
Genuine HeyGears OEM consumable. Stocked in our US warehouse. HeyGears Material #23010300096.
Talk to a HeyGears specialist
Three Signals It’s Film-Swap Time
Cloudy patches or repeat marks at the same XY position across multiple parts almost always trace back to film fatigue. The film stops releasing cleanly in the worn area, and that texture transfers into the cured layer. New film resolves it within one print.
Held to light, a fatigued film shows haze, micro-pitting, or a faint shadow where high-frequency pulses have worked the surface hardest. If you can see the pattern, the film’s past its useful life — replace before the artifacts show on parts.
HeyGears rates pulsing-release film for tens of thousands of layers under normal conditions. Production shops running engineering resins (PAH270, PAU20) burn through film faster than shops running standard modeling resin. Stock 2–3 packs per active printer if you’re running production volumes.
Tool-Free Film Swap
in About 5 Minutes
Drain the resin out of the Pulsing Release Resin Tank back into its bottle (use the standard drain procedure from the printer’s touchscreen). Lift the worn film out of its mount — no tools, just hand pressure. Lay the new film into the mount, smooth out any wrinkles toward the edges, and re-seat the gas-line seal. Refill resin and resume printing — no firmware reset, no recalibration, no test print needed.
If the film mounting itself looks worn or warped (not just the film surface), the whole tank needs replacing — Reflex 2 Pulsing Release Resin Tank ($239).
Reflex 2 Series + PRM 2 Setup Only
This film is sized and tensioned for the Reflex 2 generation Pulsing Release Resin Tank. It will not fit the standard (non-pulsing) Reflex 2 Regular Resin Tank, and it will not fit the original Reflex or Reflex RS pulsing tanks — those use different film geometries.
| HeyGears Setup | Compatibility | Notes |
|---|---|---|
| Reflex 2 / Reflex 2 Pro + PRM 2 Kit + Pulsing Release Resin Tank | ✓ Compatible | This product |
| Reflex 2 / Reflex 2 Pro + Regular Resin Tank (no PRM 2) | ✗ Wrong tank type | Use standard Reflex 2 Release Film ($95) for the regular tank |
| Original UltraCraft Reflex + Pulsing Release Module | ✗ Different geometry | Use Pulsing Release Module Release Film ($119) |
| UltraCraft Reflex RS / RS Turbo + RS Pulsing Release Module | ✗ Different geometry | Use RS Pulsing Release Film ($119) |
Reflex 2 Pulsing Release Film — Spec Sheet
| Vendor SKU | 23010300096 (HeyGears Material Number) |
| Brand | HeyGears |
| Product Family | UltraCraft Reflex 2 Series |
| Component Type | Pulsing-release film replacement consumable |
| Quantity Per Pack | 2 films |
| Compatible Tank | Reflex 2 Pulsing Release Resin Tank only |
| Compatible Printers | UltraCraft Reflex 2, UltraCraft Reflex 2 Pro |
| Required Module | UltraCraft Pulsing Release Module 2 (PRM 2) |
| Tensioning | OEM-spec, factory-set |
| Optical Window | Tolerance-matched to Reflex 2 light engine (385 nm + visible) |
| Installation Time | ~5 minutes, tool-free |
| Country of Origin | China (HeyGears, Guangdong) |
| Rev1 Price | $143 USD (2-pack) |
Authorized HeyGears Reseller
with Engineering Support
Sold and supported by Rev1 Technologies. Manufactured by HeyGears.
Rev1 is an authorized HeyGears reseller based in Auburn Hills, Michigan. We carry the full Reflex 2 / Reflex 2 Pro accessory and consumable lineup, stock it locally, and answer real questions about which parts are required for your resin chemistry, your print volume, and your production environment. We run HeyGears printers in our own additive lab.
Verified factory-fresh stock from HeyGears, with the full Reflex 2 / 2 Pro / RS accessory tree available through one channel.
Production shops running multiple printers can lock in case-pricing on films, tanks, and other consumables — ask for a worksheet.
Stocked in Auburn Hills, Michigan. No vendor-direct lead times — the part you order ships from our floor.
Pay over time with 4 interest-free Klarna payments at checkout, even on consumables and accessory bundles.
Pulsing Release Tank, Module Kit &
Engineering Resins
Frequently Asked — Pulsing Release Film
How many films come per pack?
Two (2) pulsing-release-rated films per pack at $143 total. That’s the OEM SKU as HeyGears packages it — no single-film option exists.
How often will I need to replace?
Highly dependent on resin chemistry and print volume. Standard modeling resins (PAS10, PARP10) extend film life; engineering resins (PAH270, PAU20, PAC10) wear it faster. Production shops running daily typically replace every 3–6 months; hobby use is annual.
Can I use this with my regular (non-pulsing) tank?
No. The pulsing-release film is dimensioned and tensioned for the Pulsing Release Resin Tank. The standard Reflex 2 Regular Resin Tank ($119) uses a different film — Reflex 2 Release Film ($95 for 2-pack).
Will it fit my original Reflex or Reflex RS pulsing tank?
No. Each Reflex generation has its own pulsing-release film geometry. Original Reflex uses Pulsing Release Module Release Film ($119). Reflex RS / RS Turbo uses RS Pulsing Release Film ($119).
Is Klarna EasyPay available for this purchase?
Yes — the 2-pack at $143 qualifies for Klarna Pay-in-4: four interest-free payments of $35.75 every 2 weeks, no fees, no credit impact. Available at checkout.
