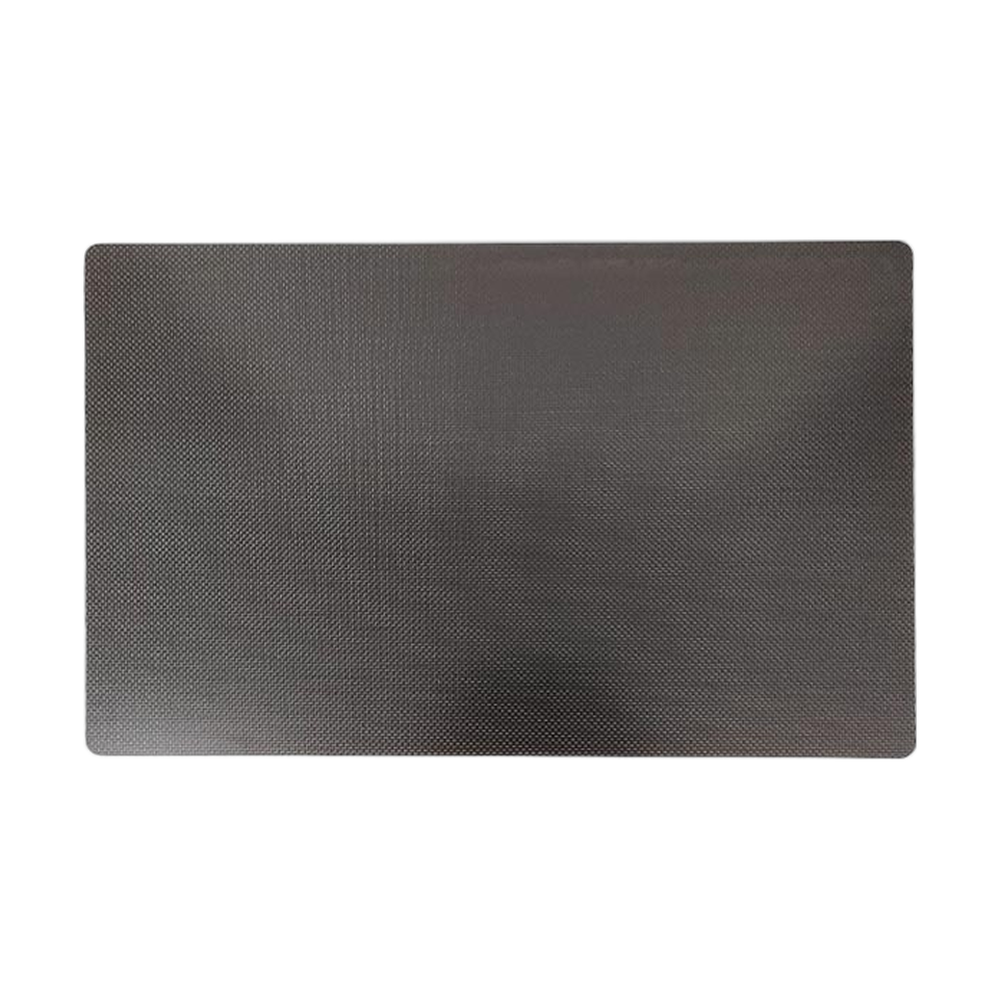

CreatBotF430 Carbon Fiber PlateGenuine CreatBot Replacement Part
F430 Carbon Fiber Build Plate
The CreatBot F430 carbon fiber plate (part 107009) is the OEM carbon fiber build plate for the CreatBot F430 3D printer. Carbon fiber composite is stiff, light and dimensionally stable as temperatures change, so the plate holds its shape from the first layer to the last. A flat, stable plate is the base for accurate engineering parts, where a warped bed shows up as uneven first layers and parts that are out of tolerance. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Carbon Fiber Plate, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the plate needs replacing
Cracks, chips or delamination, often after a hard part removal or a dropped plate.
Bed leveling that no longer produces an even first layer across the plate.
A damaged or worn print area where adhesion has fallen off.
Marks from nozzle crashes that print into the bottom of every part.
Compatible CreatBot 3D printer
This plate is for the F430. The D600 Pro uses carbon fiber plate 107013 and the PEEK-300 uses carbon fiber plate 107016.
Plate or surface?
Before replacing the plate, decide whether the plate itself is the problem. If the plate is sound but the print surface is worn, a new surface may be all you need. CreatBot offers the F430 PEI film (107007), BuildTak (107008) and a removable magnetic sheet (107010). If the plate is cracked, chipped or no longer flat, replace it with this genuine CreatBot part so the bed geometry matches what the printer expects. Rev1 can help you work out which part is at fault.
Installation tips
Power the printer off and let the bed cool fully. Remove the old plate according to how it is fixed on your F430, taking care with any bed wiring. Clean the bed carrier so the new plate sits flat, fit and secure it evenly, then run the leveling routine, set the Z offset and print a first layer test across the plate.
CreatBot F430 Carbon Fiber Plate Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Carbon Fiber Plate — Questions
Does this plate fit the PEEK-300?
No. The PEEK-300 uses carbon fiber plate part 107016.
Will it fit the F430 NX?
It is listed for the F430. Contact Rev1 to confirm parts for the F430 NX.
Is this a genuine CreatBot part?
Yes, CreatBot part 107009, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
