CreatBotD1000 HS Quick-Remove HotendGenuine CreatBot Replacement Part
Quick-Remove Hotend for D1000 HS 3D Printer

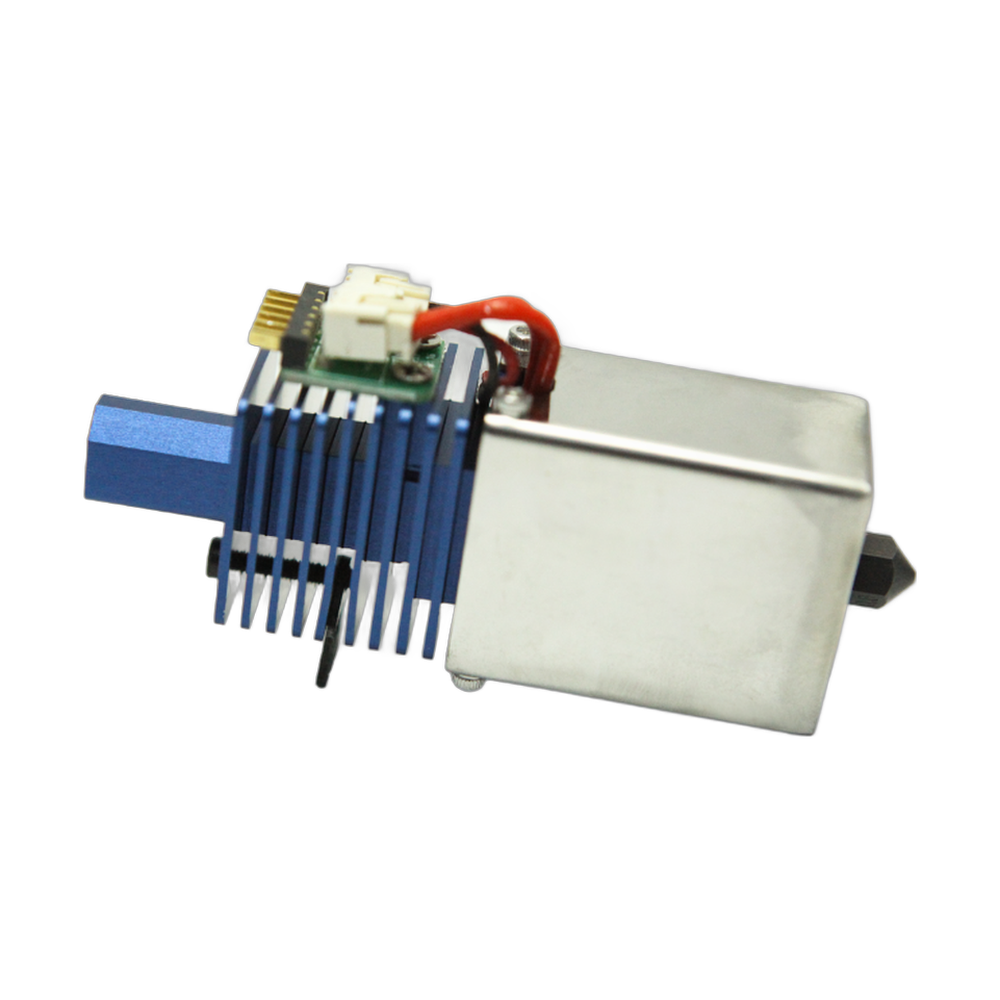

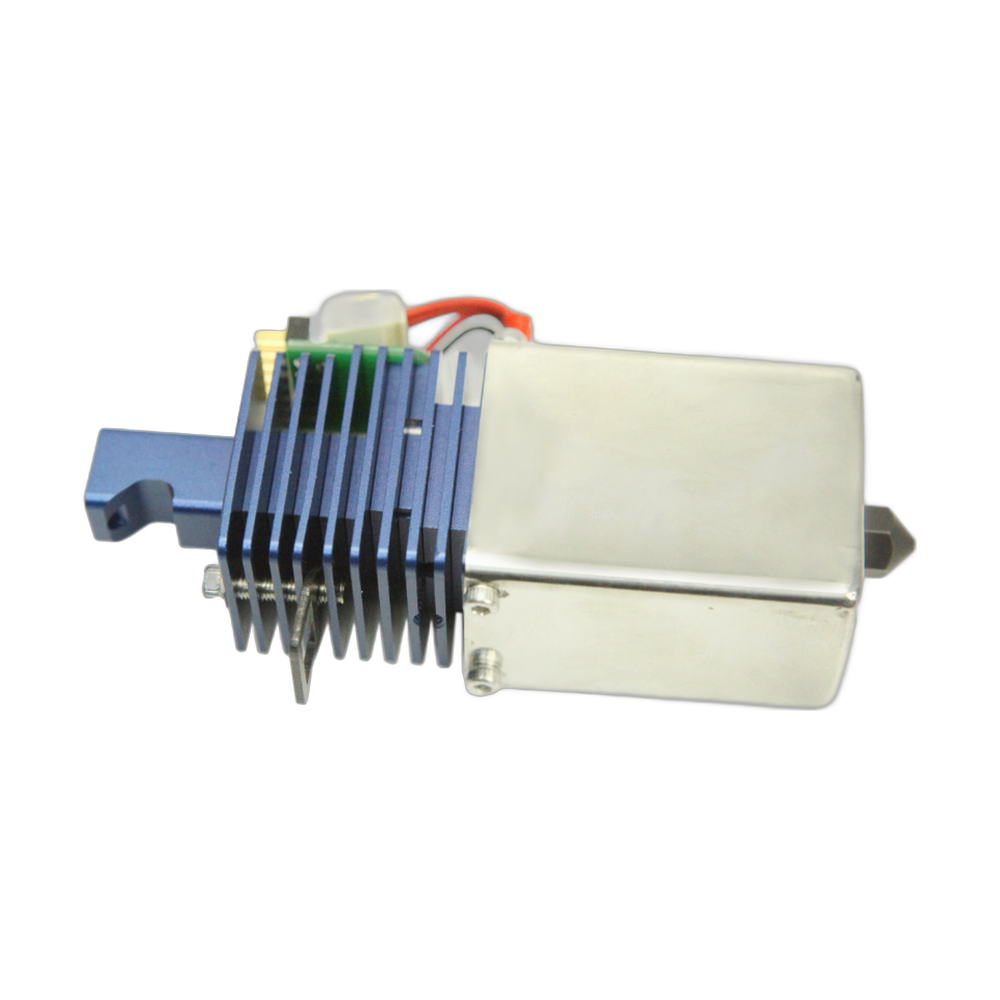

The CreatBot D1000 HS quick-remove hotend is a complete OEM hotend for the CreatBot D1000 HS large format 3D printer, built so it can be taken off and refitted quickly. Instead of stripping a jammed or worn hotend on the machine, you swap in a ready unit and get back to printing, then service the old one on the bench. Both versions come with a 0.8 mm nozzle: V1 (part 104004) and V2 (part 104007). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Quick-Remove Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why keep a quick-remove hotend on hand
On a printer the size of the D1000 HS, a long print lost to a hotend fault wastes hours of machine time and a lot of filament. A spare hotend gets the machine running again fast.
Clear clogs and replace worn parts at a workbench rather than reaching into the printer.
Keep one hotend for standard filaments and another for abrasive or specialty work.
Matched to the D1000 HS mount and wiring.
Choose your version
| Version | Size | Part number | Fits |
|---|---|---|---|
| V1 | 0.8 mm | 104004 | D1000 HS |
| V2 | 0.8 mm | 104007 | D1000 HS |
Compatible CreatBot 3D printer
Both versions fit the D1000 HS. The D600 Pro2 HS has its own quick-remove hotend, V1 (104003) or V2 (104006), with a 0.6 mm nozzle. The D1000 Pro HS uses the quick-remove hotends 104025 to 104029.
V1 or V2: how to choose
The two versions are both for the D1000 HS but are different revisions of the hotend. Order the version that matches the hotend currently on your printer so the mount and connections line up. If your D1000 HS has the standard fixed hotend (104002) and you are not sure which quick-remove version it accepts, contact Rev1 with the printer serial number before ordering. We will confirm the correct part.
Installation tips
Power the printer off and let the hotend cool before you disconnect it. Note how the cable and any filament tube are routed, release the old hotend, and fit the new one in the same orientation. Reconnect, heat up, load filament, then check nozzle height and run a first layer test. Set 0.8 mm as the nozzle diameter in your slicer.
CreatBot D1000 HS Quick-Remove Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Quick-Remove Hotend — Questions
Which version do I need?
The one that matches the hotend revision on your D1000 HS. Rev1 can confirm it from your serial number.
Will it fit the D1000 Pro HS?
No. The D1000 Pro HS uses the quick-remove hotends 104025 to 104029.
Is this a genuine CreatBot hotend?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
