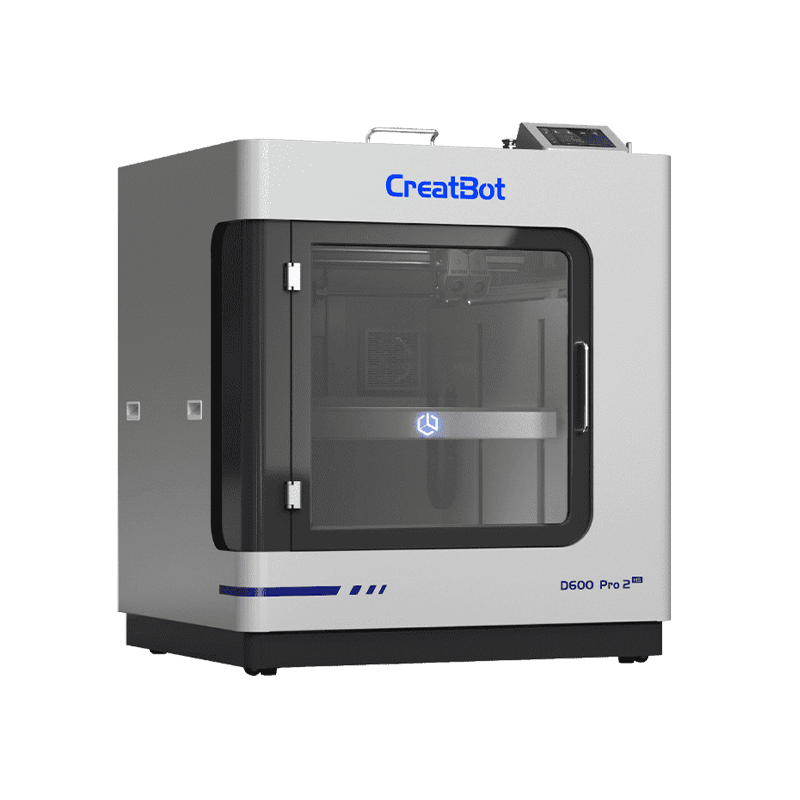

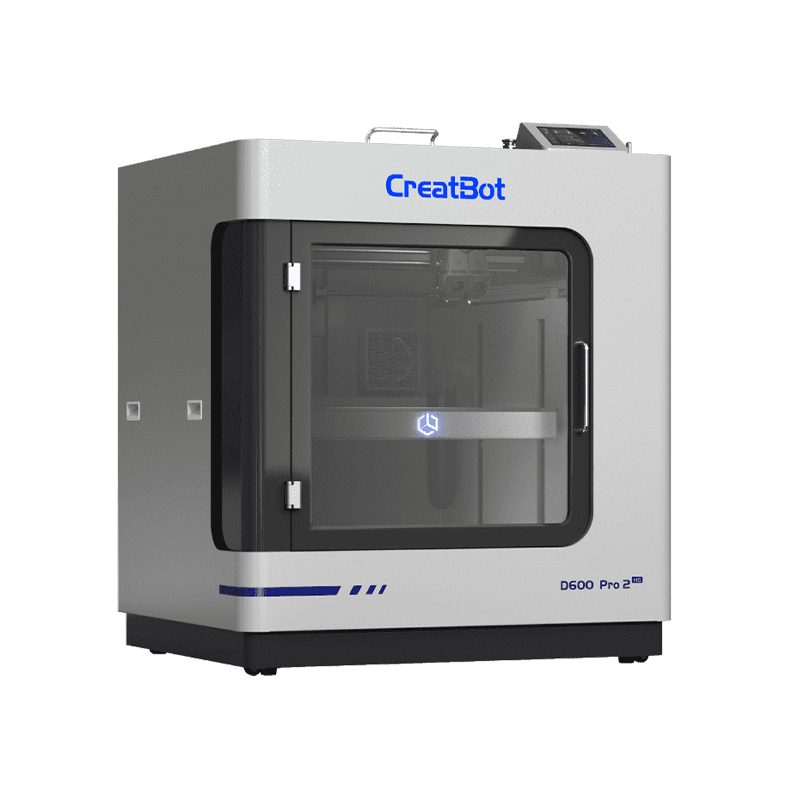

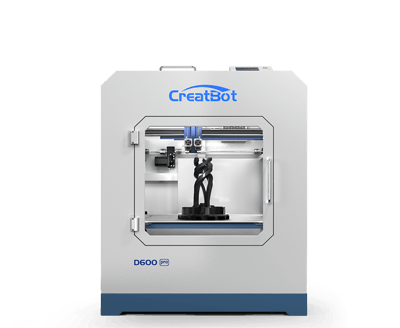

CreatBotD600 Pro2 HSThe world’s #1 selling professional large-format 3D printer — now five times faster.

The D600 Pro2 HS is a full-speed upgrade built on a deeply optimized Klipper firmware. The hotend has been redesigned with a 90mm³/s flow rate and is rated to 420°C — versus the standard Pro's 300°C. Stable print speeds hit 300mm/s, five times the original D600 Pro. The calibration system has been upgraded to include eddy current bed leveling and HD camera XY offset. If you're printing engineering materials at volume, the Pro2 HS is the correct machine.

Yes — the 420°C hotend combined with the 70°C active heated chamber makes the D600 Pro2 HS compatible with PPS-CF, PC-CF, UltraPA-CF, and PET-CF, in addition to standard engineering materials like ABS, ASA, and PETG. The filament dry room (0–70°C) handles hygroscopic materials like nylon and PA-CF continuously during printing. Rev1 can advise on nozzle selection and print profiles for high-performance materials based on your specific application.

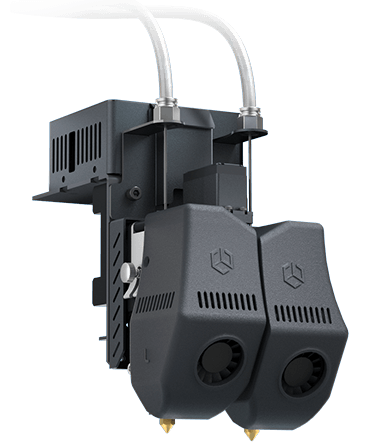

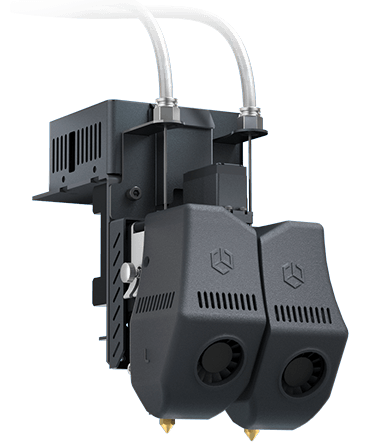

The Dual Nozzle Shutter is a mechanical shutter that physically seals the idle nozzle the moment it lifts away from the print. When the right extruder is active, the left nozzle is physically closed — preventing ooze from contaminating the part. When extruders switch, the shutter opens the new active nozzle and closes the retiring one simultaneously. The result is clean dual-material prints without wipe towers or purge sequences, which wastes material and adds print time on large parts.

Rev1 provides delivery coordination anywhere in the U.S., on-site machine setup and Klipper configuration, full operator training for your team, material print profile setup for your specific applications, and ongoing technical support. We also offer a free sample print before purchase — send us your STL, we'll print it in the material of your choice and ship it to you. Contact Rev1 at (248) 707-2950 or (248) 707-2950. Complete proposals within 1 business day.

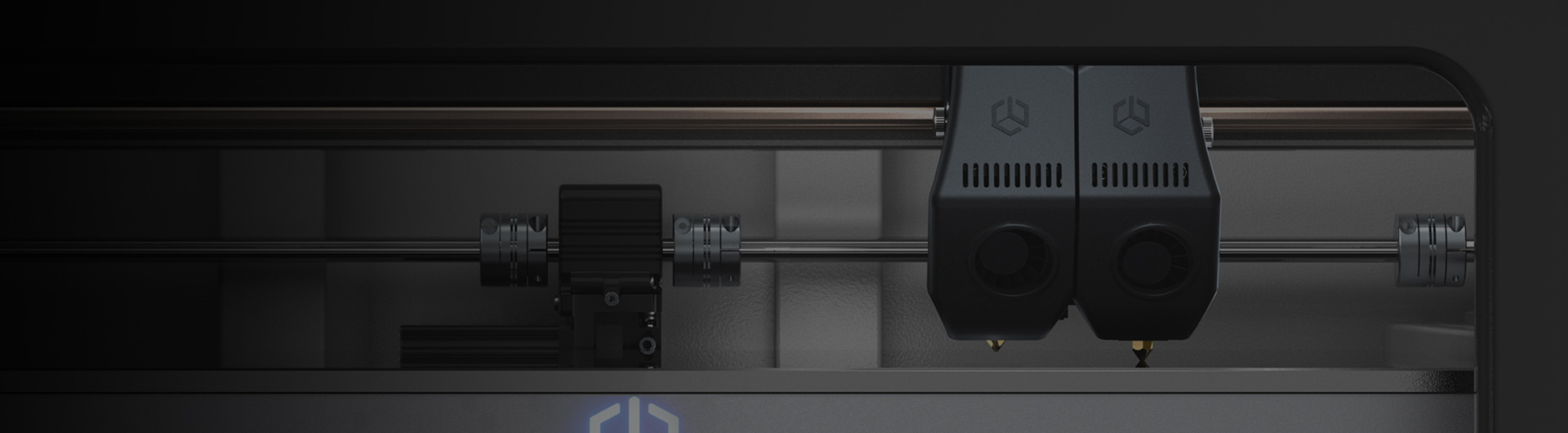

As a heated chamber reaches operating temperature, the machine frame undergoes thermal expansion — the Z axis can drift by fractions of a millimeter over a full chamber heat cycle. On a 600mm tall print this accumulates into visible surface degradation. The Z Magic Box continuously monitors the actual Z position against the expected theoretical position and applies real-time compensation. The surface texture at 600mm height should be identical to the surface texture at 10mm height. This is why CreatBot specifies 8+ years of R&D on chamber temperature management — it is not a feature that can be retrofitted.

Rev1 works with multiple industrial lending partners offering equipment loans and operating leases. Typical terms run 72 months at competitive rates — putting the D600 Pro2 HS at approximately $299/month OAC. Rev1 will connect you with financing options that fit your capital structure. Contact Rev1 or click "View Finance Options" on this page for a financing consultation.

The Stratasys F770 has a larger build volume — 1000×610×610mm versus the D600 Pro2 HS's 600×600×600mm — but costs approximately $100,000, six times more. On every performance metric, the D600 Pro2 HS leads significantly. The F770 prints at approximately 60mm/s typical speed; the D600 Pro2 HS delivers a stable 300mm/s — five times faster. The F770 is limited to ABS-M30 and ASA; the D600 Pro2 HS handles PA-CF, PET-CF, PPS-CF, UltraPA-CF, PC-CF, and the full engineering material spectrum. The F770 has a heated print platen but no active heated build chamber; the D600 Pro2 HS has a fully active 70°C chamber with patented deformation compensation. For manufacturers who need 600mm build volume and engineering-grade materials, the D600 Pro2 HS delivers more capability at a fraction of the F770's cost.

The BigRep Studio G2 has a 1000×500×500mm build volume and costs approximately $80,000–$90,000. The D600 Pro2 HS costs $16,999. The Studio G2 maxes out at 100mm/s print speed and a 280°C nozzle temperature — which limits it to ASA, PETG, and entry-level engineering materials. The D600 Pro2 HS prints at 300mm/s with a 420°C nozzle capable of running PPS-CF, PA-CF, PET-CF, and UltraPA-CF. The Studio G2's slicer is BLADE — a proprietary closed ecosystem. The D600 Pro2 HS runs Klipper High-Speed firmware with CreatWare, OrcaSlicer, and Cura support, giving your team full control over print parameters. For manufacturers comparing these two platforms, the D600 Pro2 HS offers faster throughput, broader material compatibility, and full open-source slicer support at less than 20% of the BigRep's price.

The D600 Pro2 HS weighs 200kg and measures 1080×920×1245mm. You need a level floor rated for the load, a 240V / 50–60Hz circuit at 5,500W capacity, and enough clearance to open the front door fully for part removal. The machine is fully enclosed with a HEPA + activated carbon dual-stage filtration system, so a dedicated ventilated print room is not required — though Rev1 recommends it for continuous production environments. The machine ships freight on a pallet and Rev1 coordinates delivery and positioning. Rev1 will assess your facility requirements before shipment if needed — contact (248) 707-2950 to discuss site preparation for your floor plan.
