SHINING 3D EinScan H2 Hybrid LED & Infrared Light Source · Full-Color Handheld · Face & Body Capture
The previous-generation EinScan H2 hybrid-light-source handheld 3D scanner — white LED for fast, high-quality data and infrared VCSEL for dark surfaces, the human body, and bright-lit rooms. Its people-and-body capture role is now served by the wireless, all-in-one EinScan Medixa, purpose-built for orthotics & prosthetics.

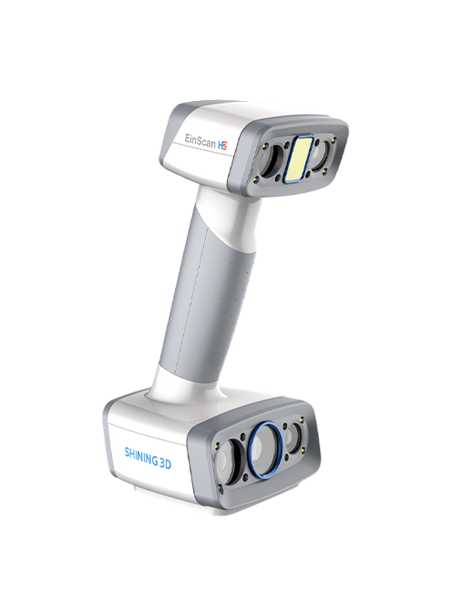

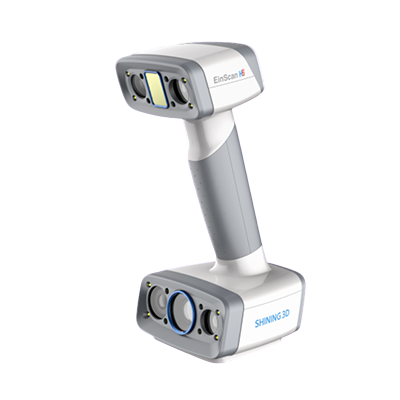

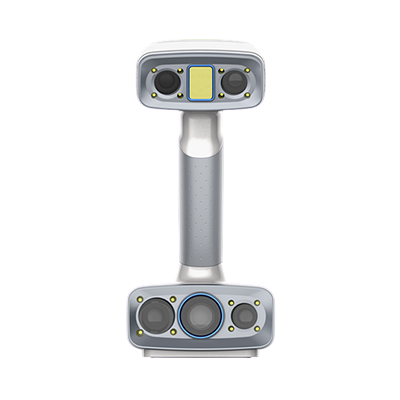

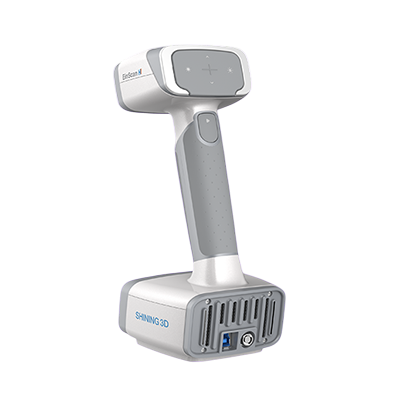

The EinScan H2 pairs a white-LED engine with an invisible infrared VCSEL source and three VCSEL projectors, a 5 MP color texture camera, and an ultra-wide field of view up to 780 × 900 mm — built for photorealistic full-color capture of faces, bodies, sculpture, and large objects. For body and clinical work its role has since been taken up by the wireless, all-in-one EinScan Medixa — a handheld purpose-built for O&P. Full specifications →
The EinScan H2 is a previous-generation model. For body and O&P capture, the current replacement is the wireless, all-in-one EinScan Medixa — Rev1 will confirm availability of remaining H2 stock or map you to the current model. Questions? Call (248) 707-2950.
An Authorized EinScan Reseller and Factory-Trained Support Partner.
Rev1 Technologies is an Authorized EinScan Reseller and a factory-trained SHINING 3D support partner. Application review, software-stack guidance, on-site or remote calibration assistance, and engineering consultation are delivered from Auburn Hills, Michigan — not routed through grey-market importers.
The EinScan H2 Is Previous-Generation. For Body & O&P Work, the Current Model Is the EinScan Medixa.

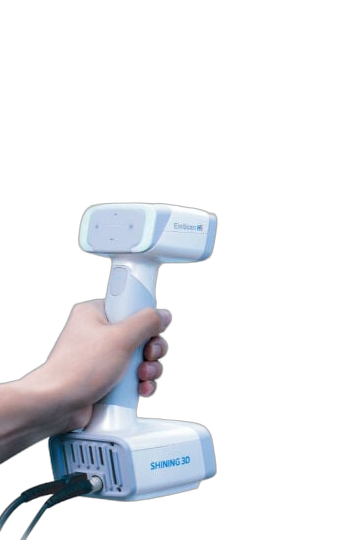

A Full-Color Hybrid-Light Handheld for People and Objects
The EinScan H2 combines a white-LED light source with an invisible infrared VCSEL engine and three VCSEL projectors in a single handheld. LED mode delivers fast, accurate, high-quality data on objects; infrared mode is ideal for capturing dark surfaces, the human body, and subjects in brightly lit environments — all with a 5 MP color camera for photorealistic texture in one pass.
White LED for Detail. Infrared VCSEL for Skin, Dark Surfaces, and Bright Rooms.

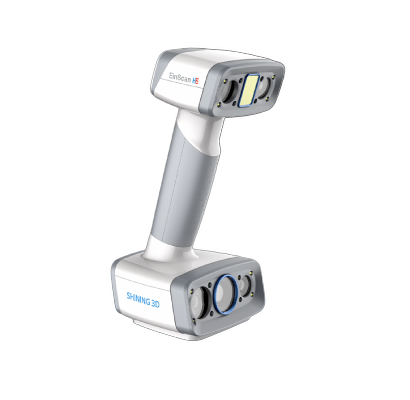

Two Light Engines, One Handheld
The H2 carries a white-LED light source and an invisible infrared VCSEL source driven by three VCSEL projectors. LED mode enables fast 3D scanning with accurate, high-quality data on objects and machined parts. Infrared mode is ideal for capturing dark surfaces, the human body, and subjects in bright-lit environments — cases where structured white light alone struggles. Switch source to suit the subject without changing scanners.
Photorealistic Texture, Captured With the Geometry
The H2’s 5 MP color camera records high-resolution texture and combines it with precise 3D geometry to produce photorealistic 3D models in a single pass. Rich, faithful color makes the difference for face and body capture, art restoration, virtual displays, and digital archiving where appearance matters as much as shape — no separate texture rig, no offline mapping step.

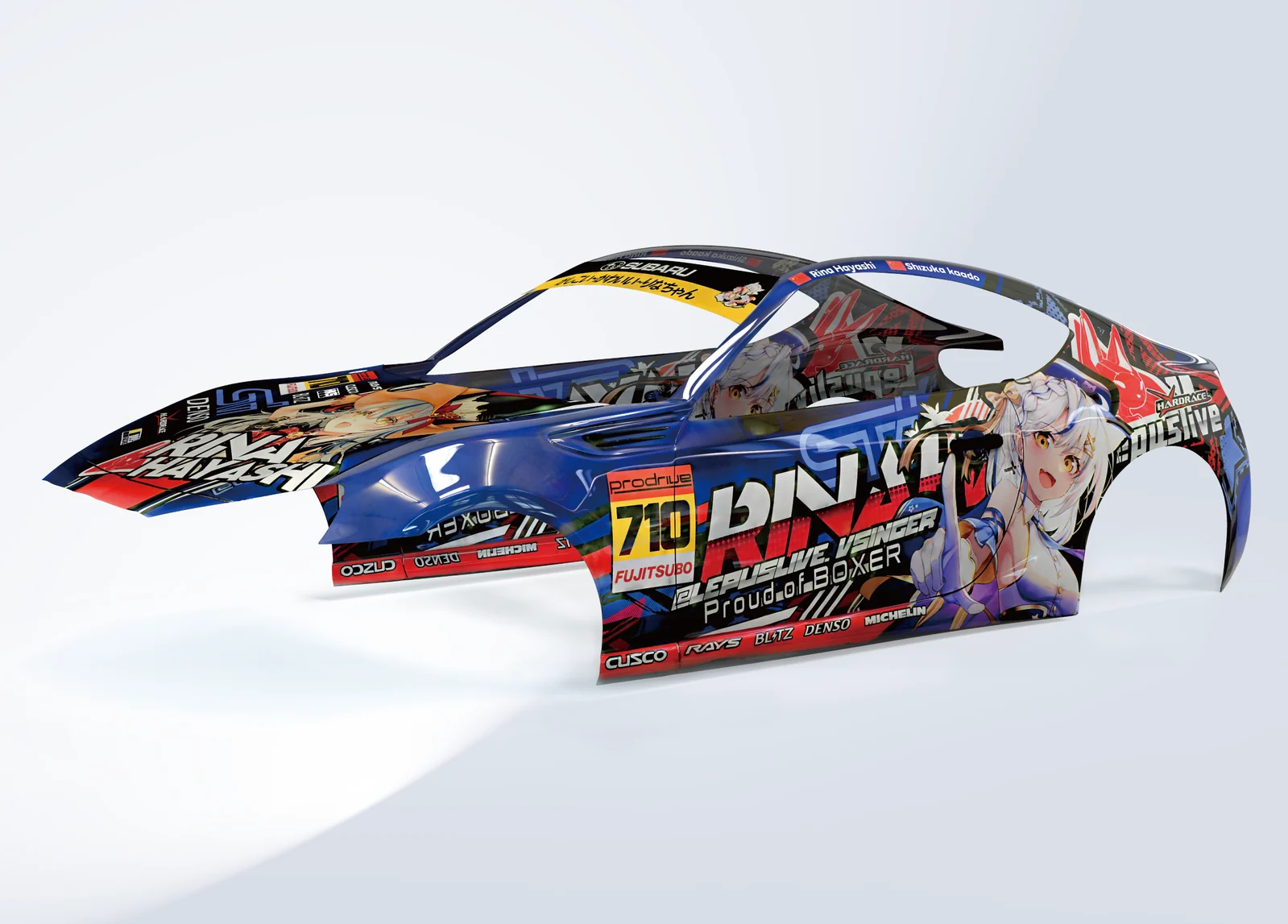

Up to 780 × 900 mm Per Pass. Rich Geometry Means No Markers.
Cover Big Subjects in Fewer Passes
An ultra-wide field of view up to 780 × 900 mm in infrared mode digitizes large areas quickly, with a working distance that adjusts from 200 mm right out to 1500 mm. Full torsos, furniture, vehicle panels, and sizeable props capture in fewer sweeps — the marker-free workflow uses rich geometric features for tracking, so most subjects need no dot stickers at all.
Built Around Human Capture — Skin, Movement, and Comfort.

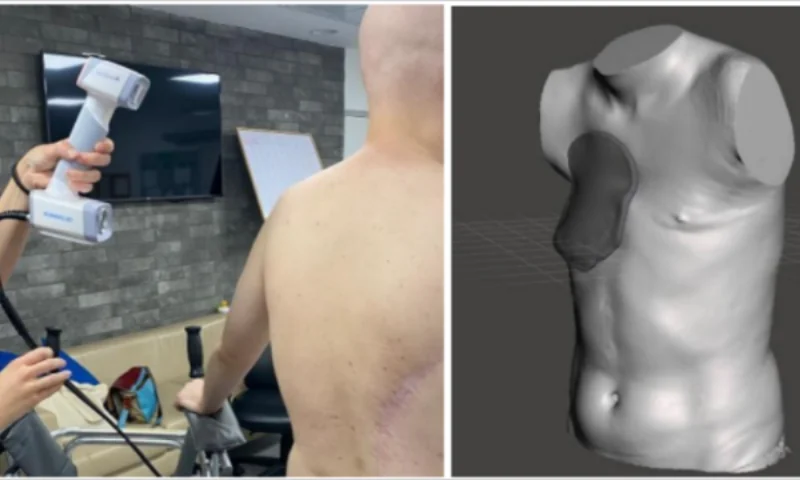

Infrared Light Made for Scanning People
The invisible infrared VCSEL source is comfortable for human subjects — no bright projected pattern in the eyes — and captures skin, hair, and tone where structured white light struggles. Combined with the ultra-wide field of view, the H2 digitizes a full torso or limb quickly enough to stay ahead of natural movement, then bakes in full color for a true-to-life result.
Orthopedics, Prosthetics, and O&P Fabrication

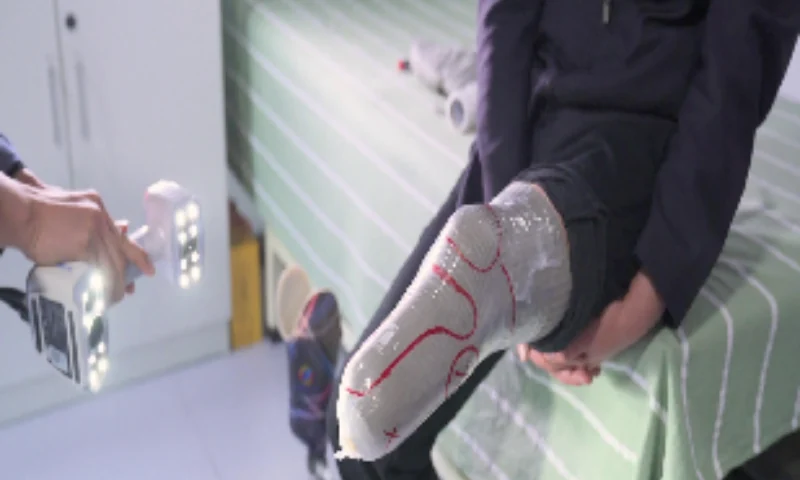

For orthotics and prosthetics, the H2 captures limbs, sockets, and torsos directly from the patient and feeds the data into O&P design software. The dedicated EXScan O&P workflow and BlueStar mapping turn a comfortable, marker-free scan into a fit-ready surface — a faster, cleaner alternative to plaster casting for custom-fit devices.
From the Clinic Bench to a Custom-Fit Device.

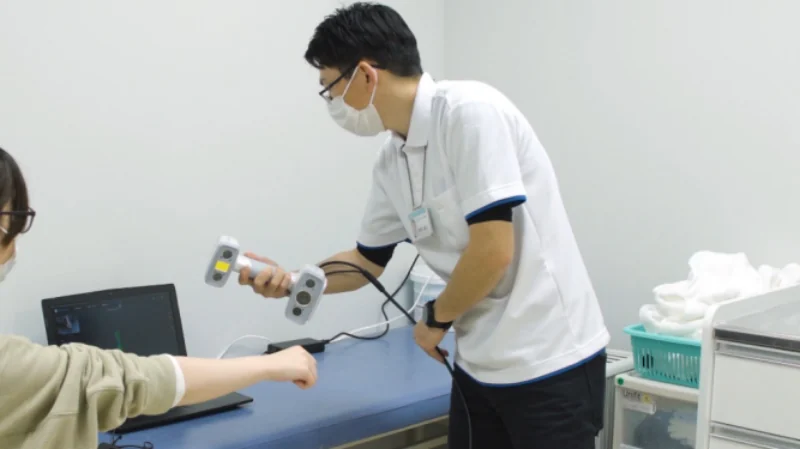

Comfortable, Marker-Free Patient Capture
The H2’s infrared source and wide field of view make chair-side capture practical: scan a limb or torso directly, in full color, without bright pattern projection or plaster. Data flows into EXScan O&P and downstream design tools so the clinic can move from scan to fabricated device faster and more comfortably for the patient.

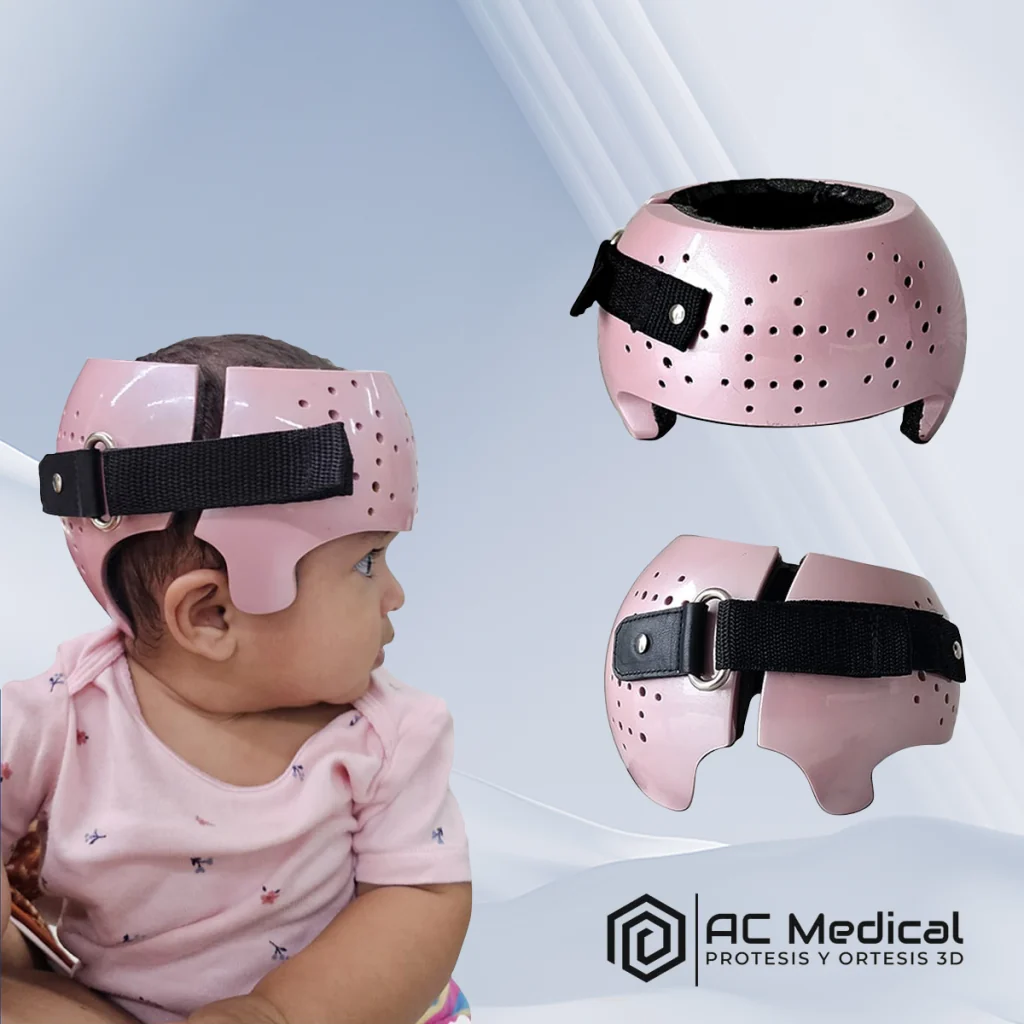

Cranial Remodeling and Custom Orthoses
Full-color, marker-free head and body capture supports cranial remodeling helmets and other custom orthoses. A comfortable infrared scan of an infant’s head — no bright light, no contact — produces the surface data that drives a precise, custom-fit device, with color texture aiding documentation and patient communication.

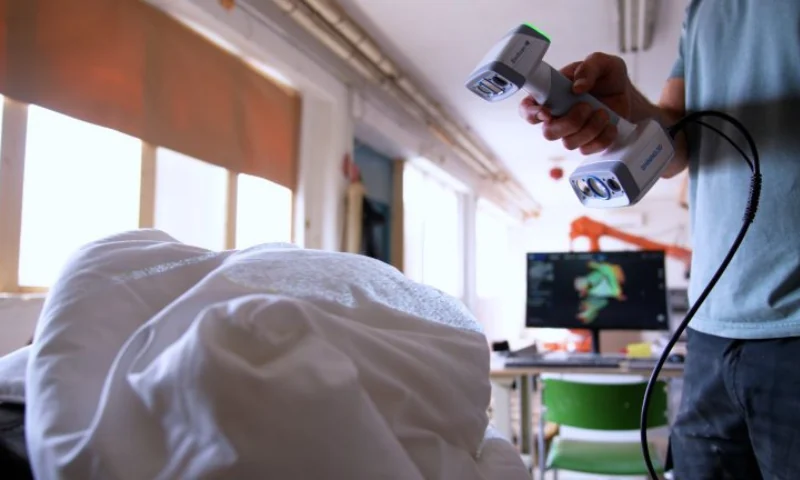

Soft Goods, Textiles, and Wearables
Beyond the body itself, the H2 handles draped textiles, soft goods, and wearables — folds, fabric, and irregular forms that rigid-surface scanners find difficult. Marker-free tracking and full color make it a practical tool for fashion, costume, and protective-gear design where both shape and appearance carry into the deliverable.
EXScan H for Capture. Open Exports for Your CAD Stack.
The H2 ships with EXScan H software and works with the O&P workflow. Export into EXModel, Geomagic Design X, or PolyWorks Inspector — no proprietary lock-in.

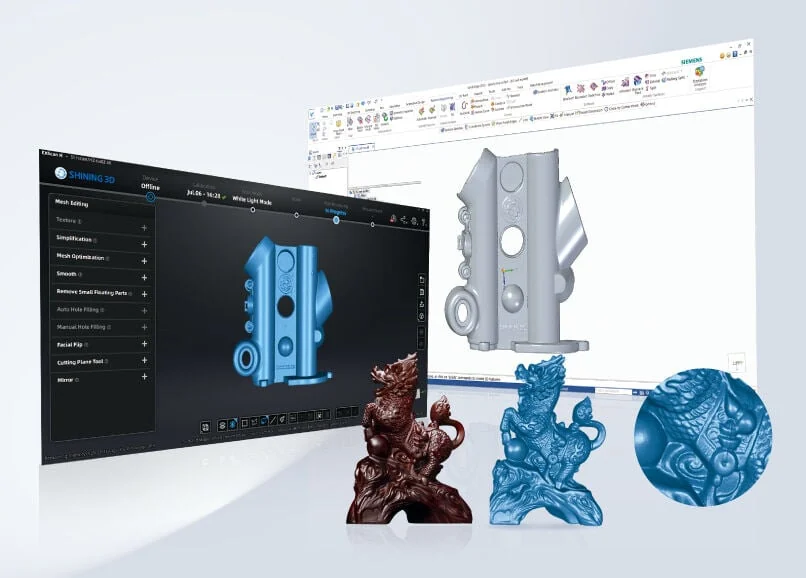

Capture, Clean, and Mesh in EXScan H
EXScan H handles capture, alignment, and mesh editing — texturing, simplification, mesh optimization, smoothing, removal of small floating parts, auto and manual hole filling, a facial-fill tool, a cutting-plane tool, and mirror. The result is a clean, watertight, full-color mesh ready for art reproduction, heritage archiving, or downstream design without bouncing between applications.

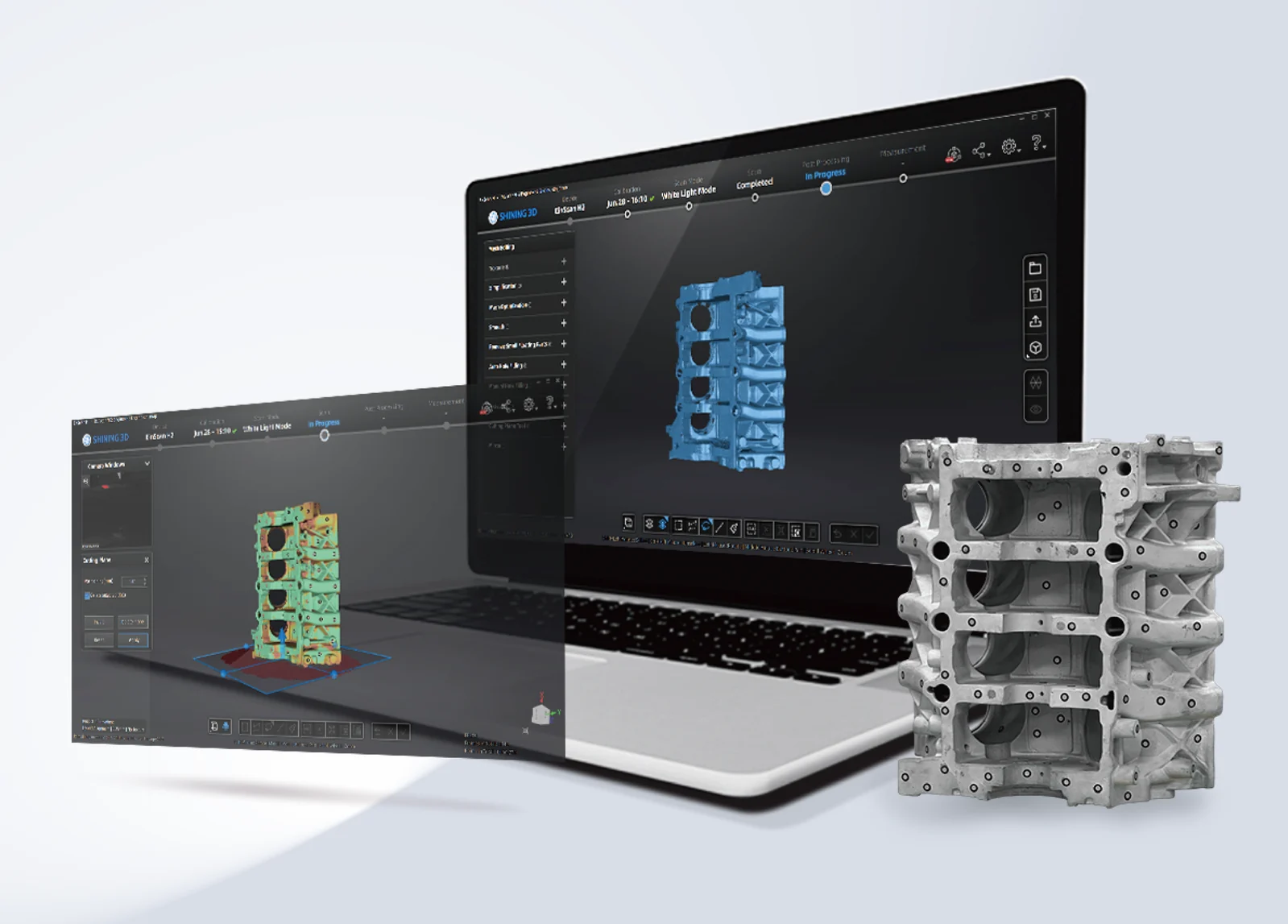

High-Quality Data for Reverse Engineering
In LED mode the H2 captures accurate, high-quality data on objects and machined parts — the foundation for reverse engineering and dimensional comparison. Exports flow as STL, OBJ, PLY, and ASC straight into Geomagic Design X, EXModel, and PolyWorks Inspector so a scan becomes a parametric model or an inspection report without re-capture.

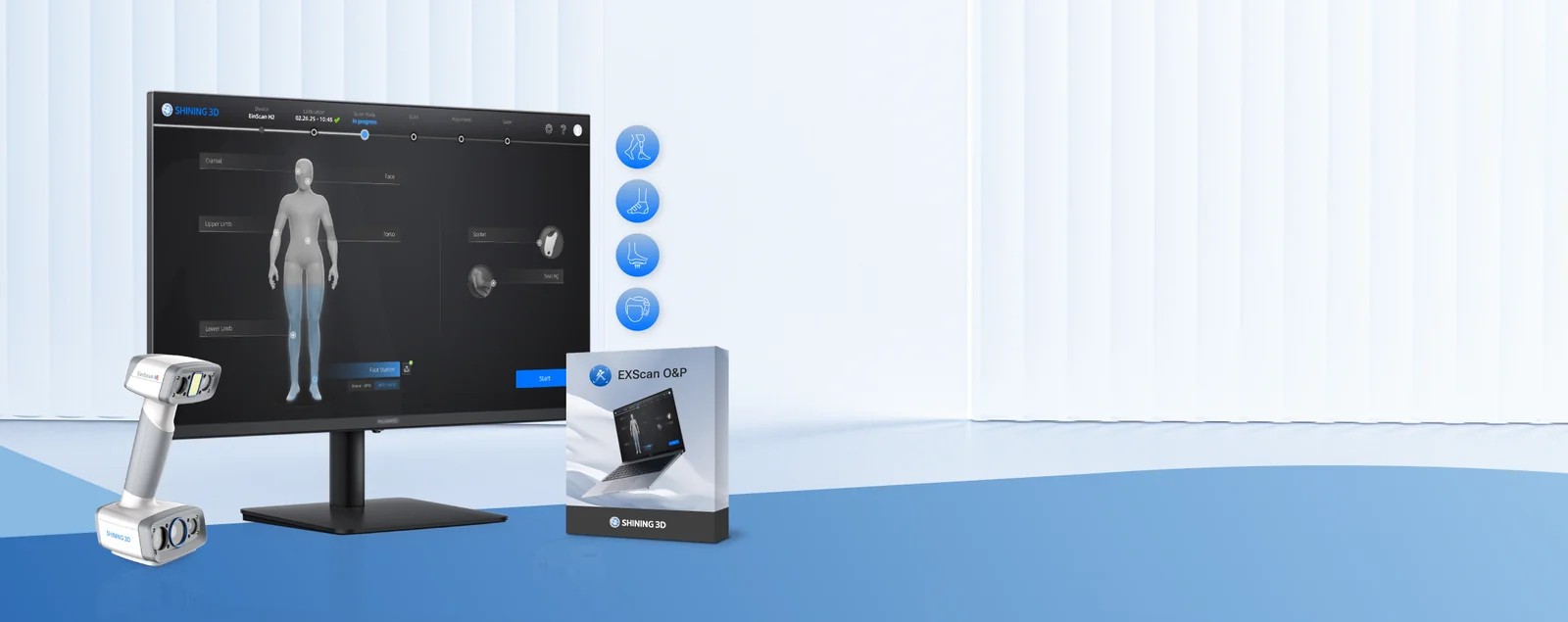

Dedicated O&P Software and BlueStar Mapping
For clinical users the H2 pairs with EXScan O&P, a workflow built specifically for orthotics and prosthetics, and BlueStar texture mapping for faithful color. Together they take a comfortable, marker-free patient scan and prepare it as a fit-ready surface — a complete capture-to-design path for custom-fit medical devices.
Face & Body. Reverse Engineering. Heritage. Art & Archiving.
One hybrid-light handheld covers full-color human capture, scan-to-CAD with reverse-engineering software, cultural-heritage preservation, and digital archiving. For a current-generation handheld built around body and O&P capture — wireless, all-in-one, with on-board processing — see the EinScan Medixa.
EinScan H2 vs. the Current EinScan Medixa
The H2 is a previous-generation hybrid-light handheld strong at people and body capture. For that body and O&P role its successor in the Rev1 line-up is the current-generation EinScan Medixa — here is how they line up on the capabilities that decide a new purchase.
| Capability | EinScan H2 (previous gen) | EinScan Medixa (current) |
|---|---|---|
| Status | Phased out — legacy | Current model |
| Built for | Face, body & objects | Orthotics & prosthetics — purpose-built |
| Form factor | Tethered handheld + PC | Wireless, all-in-one handheld |
| Onboard computing | None — PC software | On-board processing |
| Built-in screen | None | Yes — integrated display |
| Body capture | IR VCSEL — comfortable | Fast, comfortable patient & body scanning |
| Color texture | 5 MP color camera | Full color |
| Best for | Face & body, full color | Residual limbs, casting & positive-mould capture |
Figures are from publicly available SHINING 3D manufacturer information and vary by configuration; provided by Rev1 Technologies for general orientation. The H2 remains a capable full-color hybrid-light handheld for face, body, and heritage work; buyers seeking a current-generation handheld purpose-built for orthotics & prosthetics — wireless, all-in-one, with on-board processing and a built-in screen — should consider the EinScan Medixa. Rev1 walks the cross-shop during application review.
SHINING 3D EinScan H2 Technical Data
RESOURCES
Downloads & Technical Support
Documentation, software, and Rev1 support resources for the EinScan H2. Explore all Rev1 3D software, or book a live scan demo.
WHY REV1 TECH
Authorized EinScan Reseller. US Application Support.
Rev1 Technologies is an authorized SHINING 3D EinScan partner headquartered in Auburn Hills, MI, with direct expertise in 3D scanning, reverse engineering, and dimensional inspection workflows.
Rev1 serves manufacturers, fabricators, clinics, studios, and research programs across the USA. We don’t just ship boxes — we validate the application, recommend the right current model, set up the software stack, train operators, and support the scanner for its working life.
