Enhancing Stamping Die Production: The Shift from Photogrammetry to High-Precision 3D Scanning

In the world of advanced manufacturing, precision and efficiency are key factors for success. With the rise of technologies like high-precision 3D scanning, industries are transforming how they approach quality control, design, and production. Stamping die manufacturers, particularly in the automotive industry, are at the forefront of this shift. Let’s explore how 3D scanning is revolutionizing the stamping die production process.

The Challenge with Traditional Photogrammetry

Stamping die production is a complex process involving both manufacturing and machining stages. Historically, methods like photogrammetry—using single-lens reflex cameras to calculate 3D point coordinates—were utilized for dimensional inspection. However, this approach had significant limitations:

Limited Data Points: Photogrammetry could only capture specific points on a surface, leaving gaps in data when inspecting large or complex profiles.
Surface-Level Inaccuracy: For industries like automotive manufacturing, ensuring that the entire surface profile meets strict dimensional tolerances is critical. Point-based inspection simply doesn’t provide the required precision.
Time-Intensive Process: Traditional photogrammetry involved lengthy setups and post-processing, delaying production timelines.
While photogrammetry served as a good starting point, it became clear that capturing entire surface profiles, rather than isolated points, was essential for improving quality and reducing production challenges.

Upgrading to High-Precision 3D Scanning: Why It’s a Game-Changer

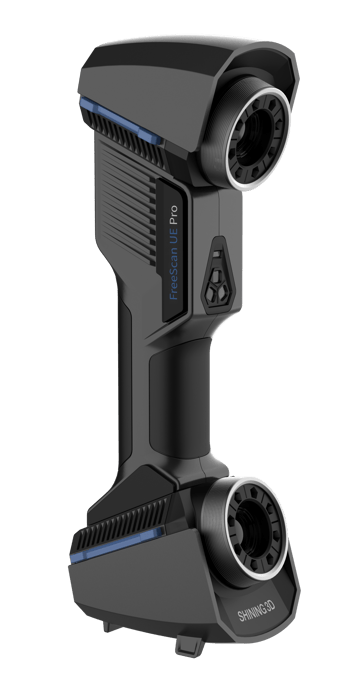

Forward-thinking manufacturers, like Tianjin RAINBOW HILLS, opted to modernize their workflow by adopting state-of-the-art 3D laser scanning technologies. The decision to switch to tools like the SHINING 3D FreeScan UE Pro brought transformative benefits to their processes.

Key Advantages of 3D Scanning in Stamping Die Production:

Comprehensive Surface Data: Unlike photogrammetry, which focuses on specific points, 3D scanning creates a complete digital replica of the object. This ensures full profiling and enhanced accuracy for complex designs.
Improved Communication: Detailed chromatograms generated from scanning data allow manufacturers and machining partners to analyze machining allowances collaboratively, reducing errors.
Reduced Production Bottlenecks: By streamlining inspection workflows, manufacturers can quickly identify and correct dimension discrepancies during production.
Versatility: Modern scanners like the FreeScan UE Pro can handle reflective surfaces, eliminating the need for pre-treatment such as powder spraying.
Investing in these high-precision tools enabled RAINBOW HILLS to produce better data sets, generate detailed inspection reports, and enhance communication with downstream suppliers.

Applications of 3D Scanning in Stamping Dies

The adoption of 3D scanning technologies has reshaped the manufacturing landscape across various industries. In the stamping die production process, these technologies now support:

Precision Manufacturing: Automotive stamping dies for parts like door panels, fenders, and side walls require flawless accuracy. Laser 3D scanners deliver the required precision to meet these demanding standards.
Streamlined Machining Processes: With advanced scans and comprehensive dimensional data, machining partners can reduce the trial-and-error phase in production.
Problem Resolution: By clarifying design and machining requirements, manufacturers can resolve cutting and machining issues faster, improving delivery times.
Explore SHINING 3D’s metrology solutions here.

Why Choose the FreeScan UE Pro for 3D Scanning?

If you’re considering high-precision 3D scanning technology, the FreeScan UE Pro series stands out for several reasons:

Metrology-Grade Accuracy: Achieving accuracies up to 0.02mm, this scanner is ideal for demanding inspection needs in aerospace, automotive, and industrial manufacturing.
Ease of Use: Its handheld design is lightweight and plug-and-play, allowing engineers to scan surfaces directly in the production environment.
Built-in Photogrammetry: Unlike traditional methods, the scanner features photogrammetry integration for capturing global markers and ensuring data precision during stitching.
ISO 17025 Certified: The scanner meets global metrology standards, ensuring its reliability for professional applications.
Learn more about the FreeScan UE Pro series.

The Future of Stamping Die Production

By upgrading from point-based inspection to surface-level 3D scanning, stamping die manufacturers gain access to unmatched efficiency and data quality. As technologies like high-precision laser scanning continue to evolve, they’re becoming standard in industries reliant on accuracy, such as automotive manufacturing.

Investing in advanced solutions like the SHINING 3D FreeScan UE Pro not only ensures smoother workflows but also promotes innovation and higher-quality end products.

Ready to Upgrade Your Workflow?
Integrating 3D scanning into your production line can unlock greater potential for your business. Explore SHINING 3D’s comprehensive metrology offerings today and transform your processes with cutting-edge tools.
