EinScan Trak Wireless Marker-Free Tracking System
Trak in, markers out.
The EinScan Trak is a wireless, marker-free 3D tracking system that combines an external tracker and a detachable handheld laser scanner in one kit — scan medium-to-large objects fast in Tracking Mode, then detach the scanner for confined spaces and small parts. No markers on the object, even across large, low-feature surfaces. Full specifications →
Rev1 validates application fit, target accuracy, and software pipeline before purchase. Authorized EinScan / SHINING 3D reseller and support partner in the USA.
An Authorized EinScan Reseller & Support Partner in the USA.
Rev1 Technologies is an authorized EinScan reseller backed by SHINING 3D. Application engineering, reverse-engineering workflow setup, training, and software guidance are delivered from Auburn Hills, Michigan. Reserve an EinScan Trak with Rev1 and get early pricing, launch-day priority, and US-based onboarding.

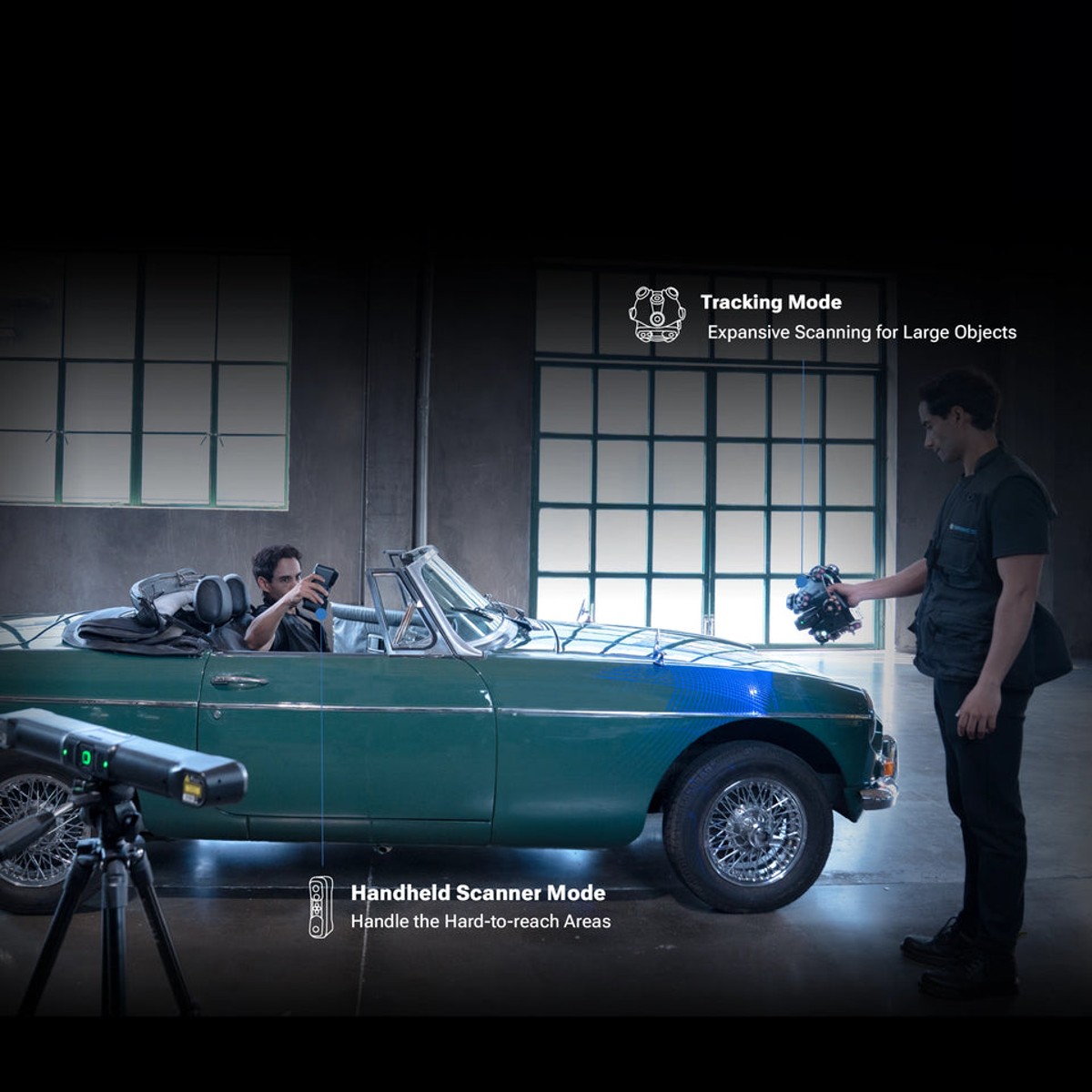

One System, Two Work Modes

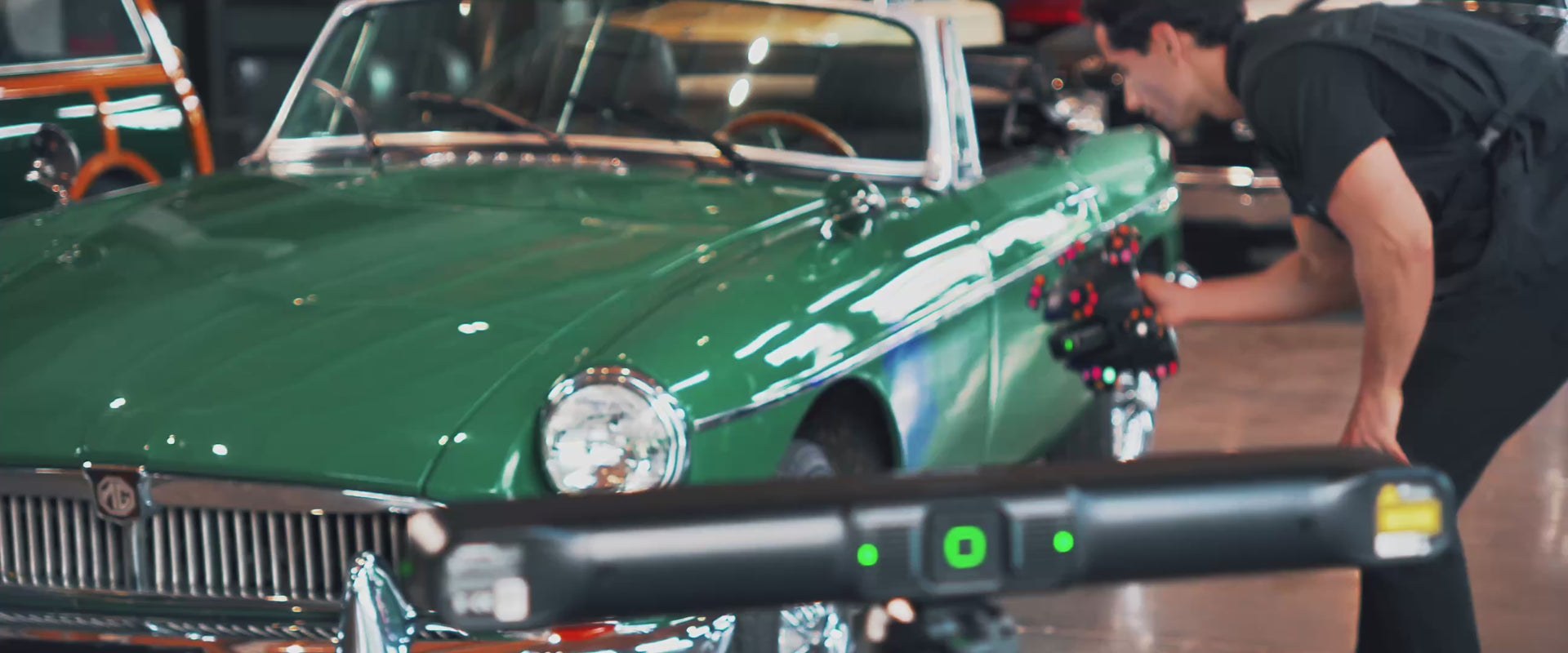

The EinScan Trak is really two scanners in one kit. In Tracking Mode, an external tracker follows the scanner in real time — move freely around medium-to-large objects for fast, expansive coverage with no markers on the part and no rig to reposition. When a job needs to reach into a tight space or capture a small component, detach the handheld scanner and switch to a lighter, more flexible workflow. One purchase covers the full size range, from a car body to a bracket.

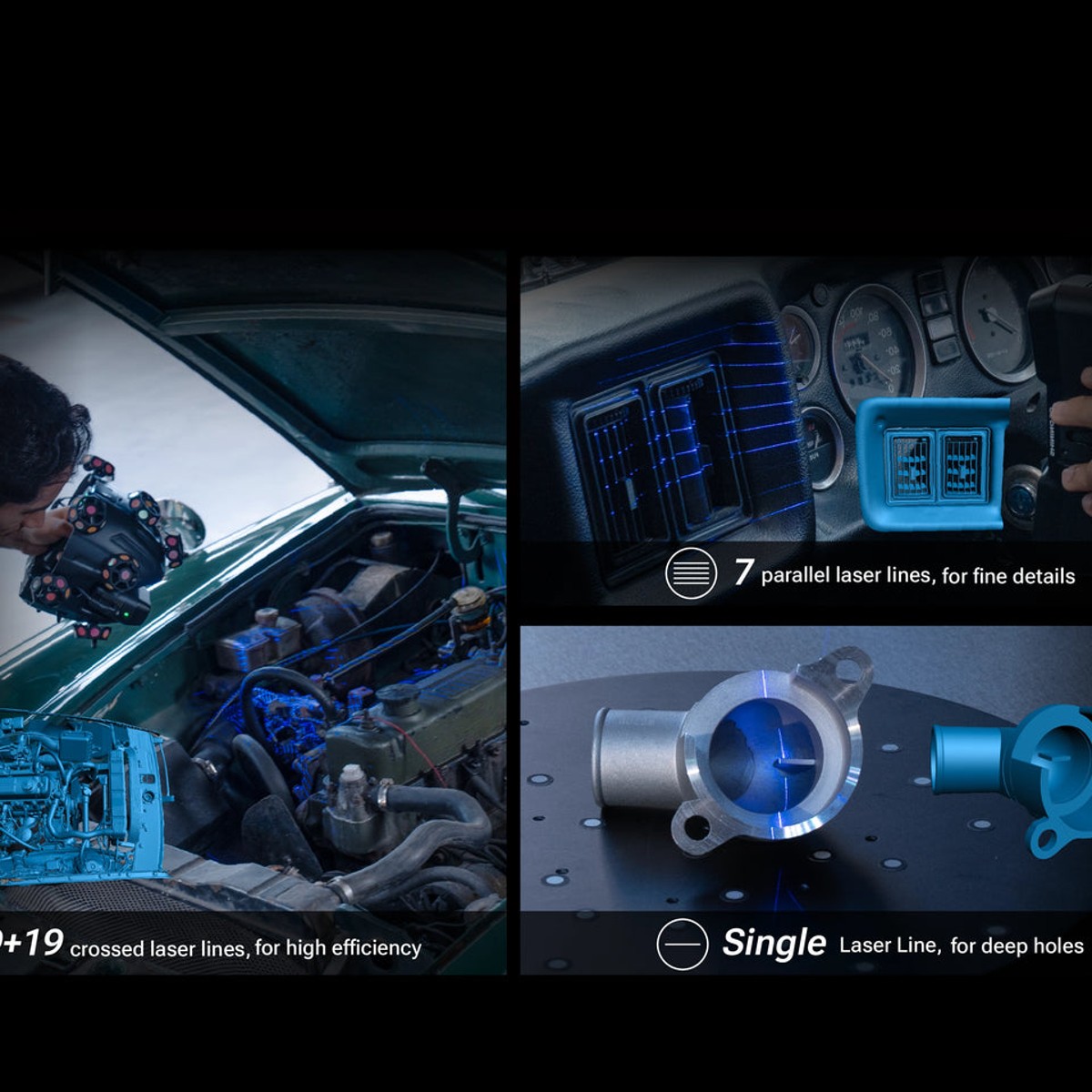

Three Laser Modes for Every Geometry
Match the light source to the part instead of forcing one beam pattern to do everything. The EinScan Trak carries three distinct laser modes and switches between them as the geometry changes across a single scan.

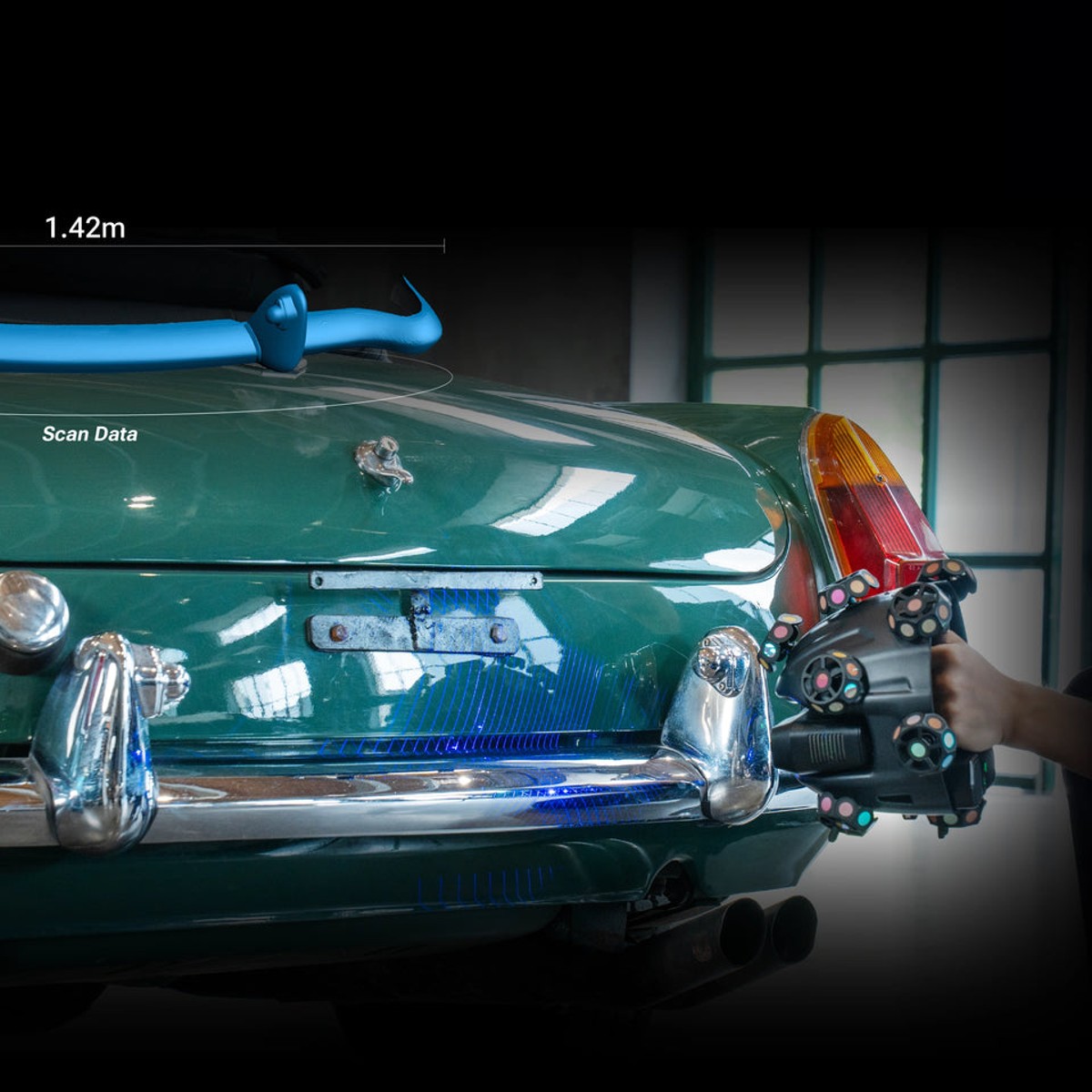

Marker-Free Tracking — Even on Low-Feature Surfaces
The retroreflective markers live on the scanner module itself, not on your part. A spherical array of built-in markers lets the external tracker follow the scanner's position in real time, so you get stable laser scanning across large, smooth, low-feature surfaces without dotting them with stickers first. Leapfrog scanning is supported, so coverage extends as you move the tracker — ideal for vehicles, panels, and large tooling where placing and cleaning up markers used to eat the schedule.

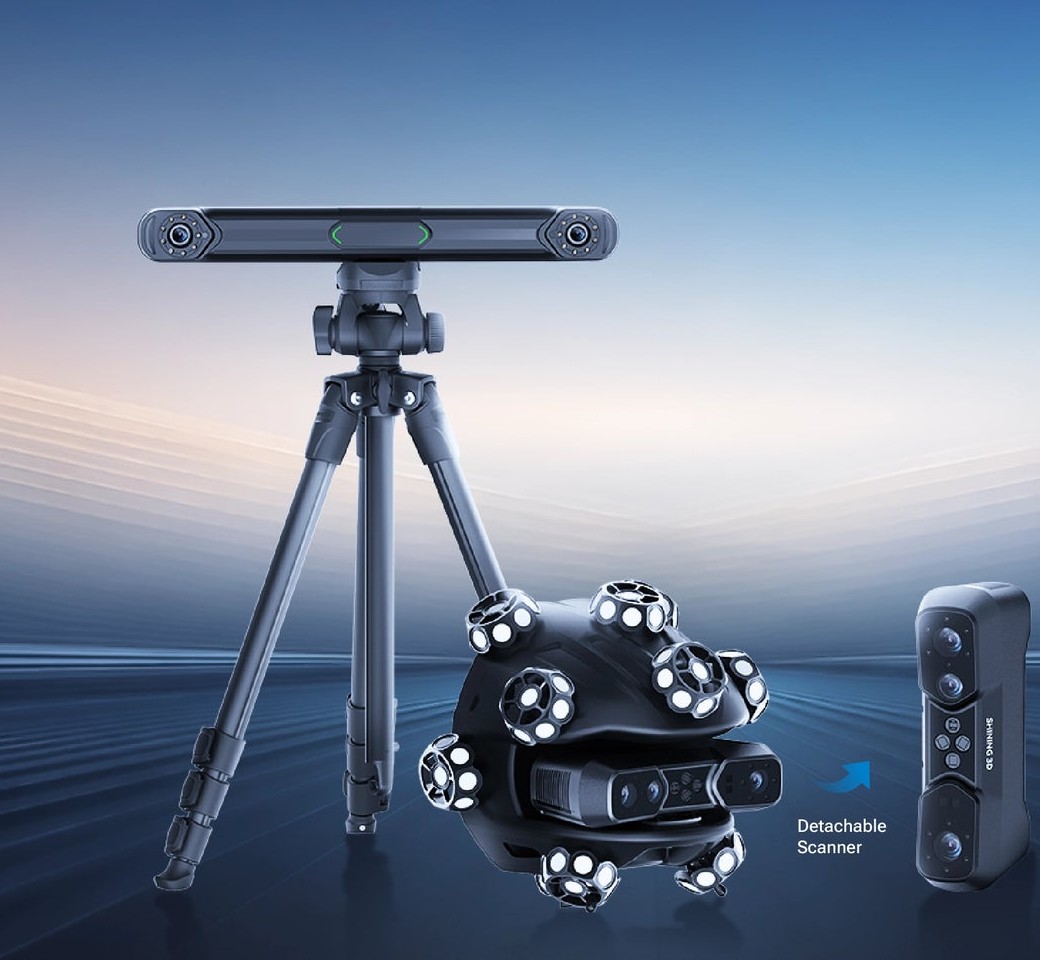

A Complete Wireless Tracking Kit
Tracker, spherical marker-scanner module, and a detachable handheld unit — one wireless system that moves from tracking large assets to handheld capture of the details, with no cables tethering you to a cart.

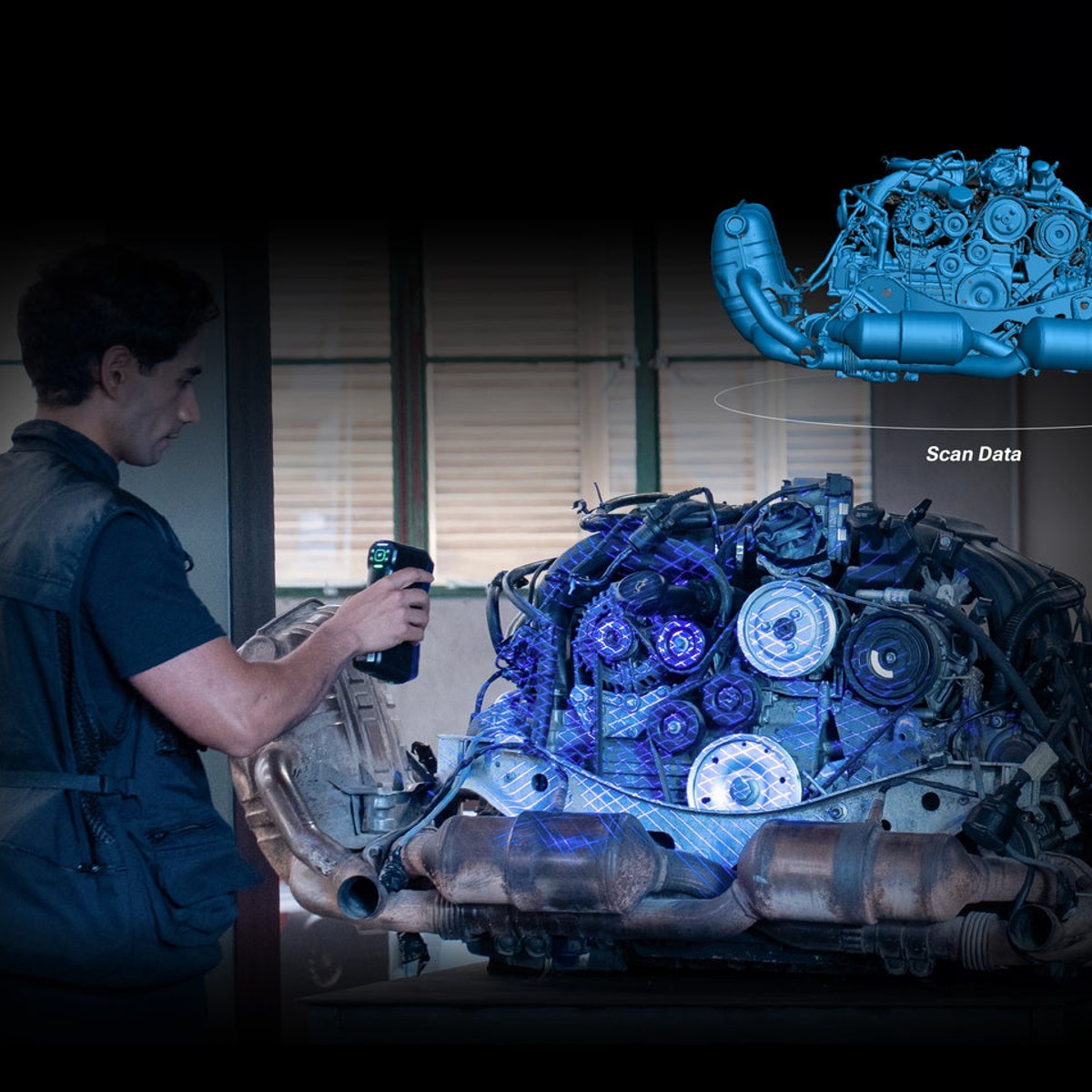

Marker-Free Handheld Scanner Mode
Detach the scanner and, on feature-rich surfaces, the EinScan Trak delivers a smooth, marker-free laser 3D scanning experience — no preparation stickers, no cleanup. That saves real time and cost on parts with plenty of geometry to track against, like castings, engines, and machined assemblies. For the highest-accuracy inspection work, global markers are still recommended; the Trak lets you choose the right approach per job instead of forcing one workflow.

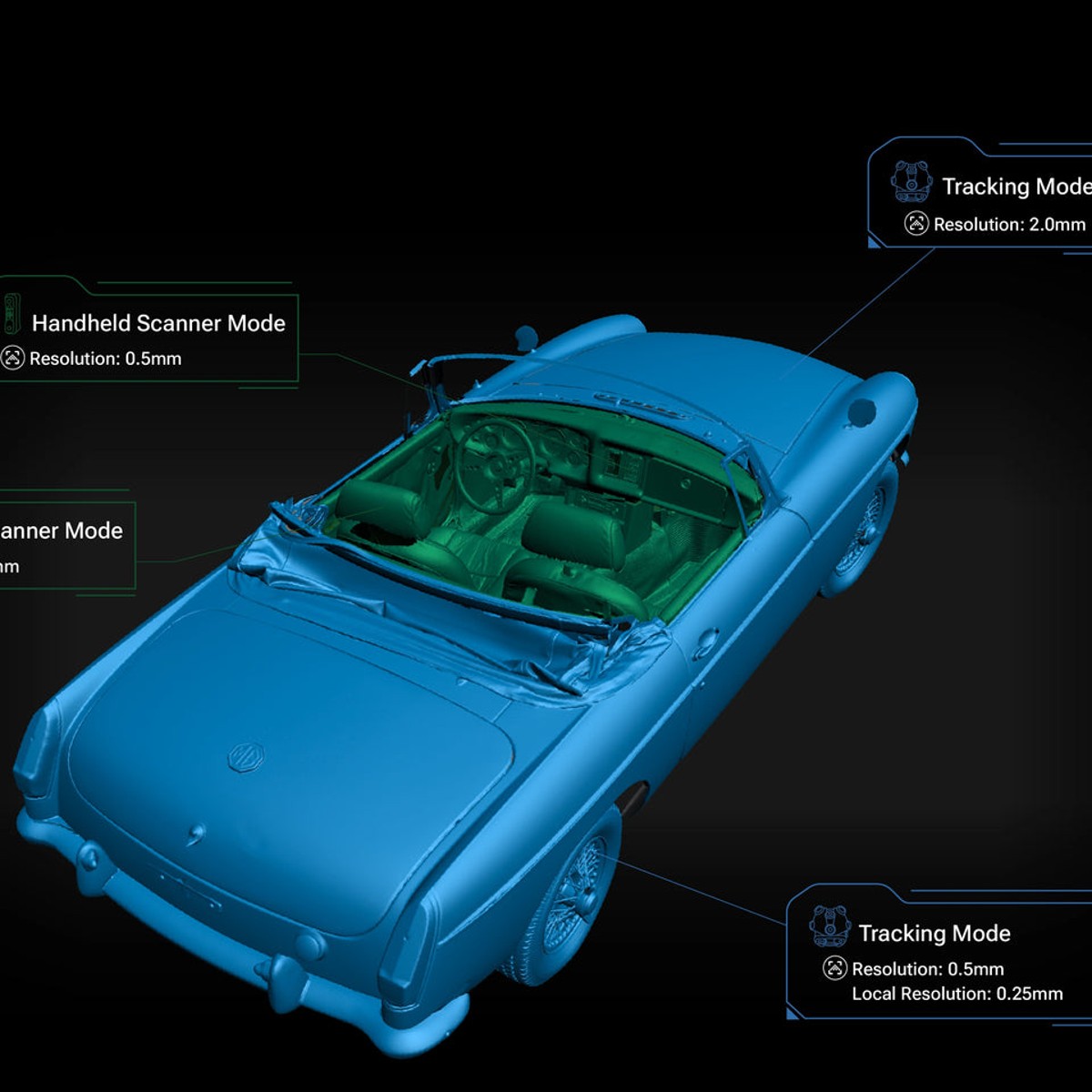

Flexible Scan, Smart Merge
Adjust in real time as you scan. With up to 4 meters of scanning distance and 0.05 mm resolution, the EinScan Trak supports ultra-fine capture and lets you switch between resolutions within a single scan — use the Local Resolution function to add detail exactly where a part needs it, without oversampling everything. Data from Tracking Mode and Handheld Mode aligns together, across multiple point distances and laser-line modes, so you capture less redundant data and finish more efficiently.

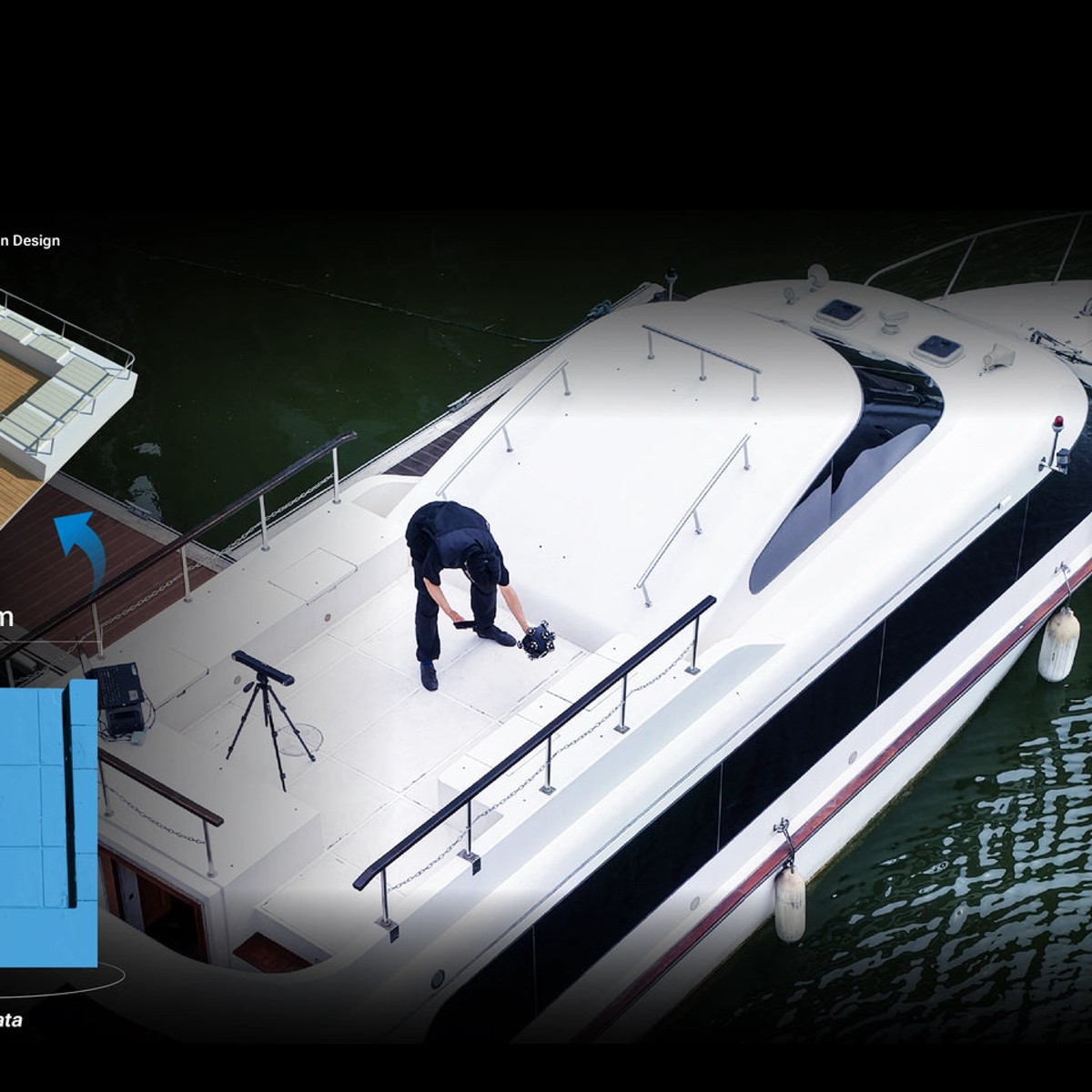

Highly Adaptable, Flexible Wireless Workflow
The EinScan Trak is built to handle the materials and conditions that stop other scanners. Capture black and reflective surfaces effortlessly, with no data loss, so dark plastics, glossy paint, and machined metal come through clean. And because it's engineered for both indoor and outdoor use — reliable even under strong outdoor light up to 110,000 lux — you can take it out to the boat yard, the aircraft, or the job site instead of bringing the asset to a lab.

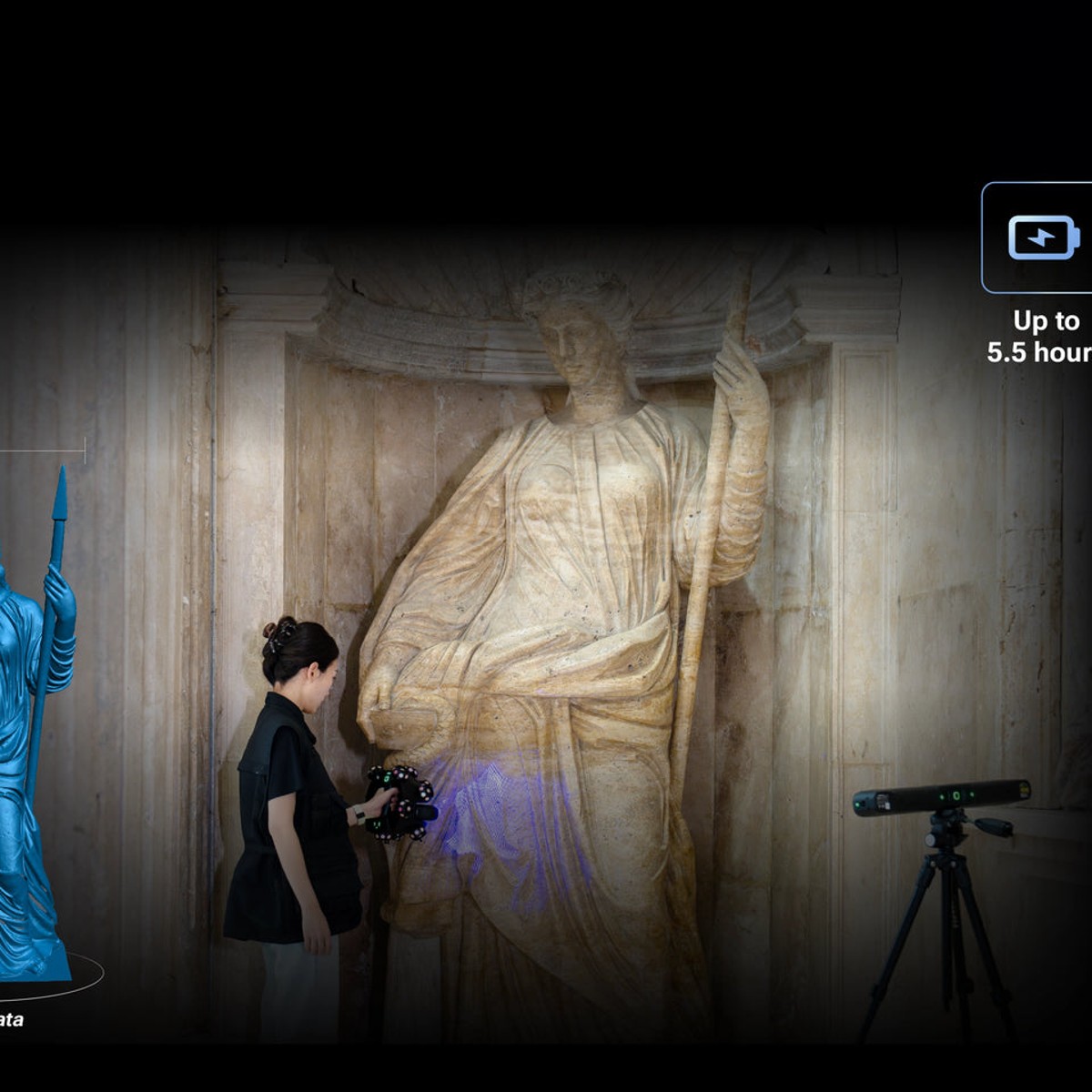

Long Battery Life, Built to Travel
No battery anxiety in the field. Tracker mode runs up to 5.5 hours and scanner mode up to 3.5 hours, with hot-swappable batteries so a fresh cell keeps you scanning without shutting down. The full system calibrates in 5–10 minutes and holds reliable performance from -10°C to 40°C, so it adapts to changing environments with fewer recalibrations. A high-strength CFFIM carbon-fiber body is built for shock resistance and worry-free transport — it travels in a case, not a crate.

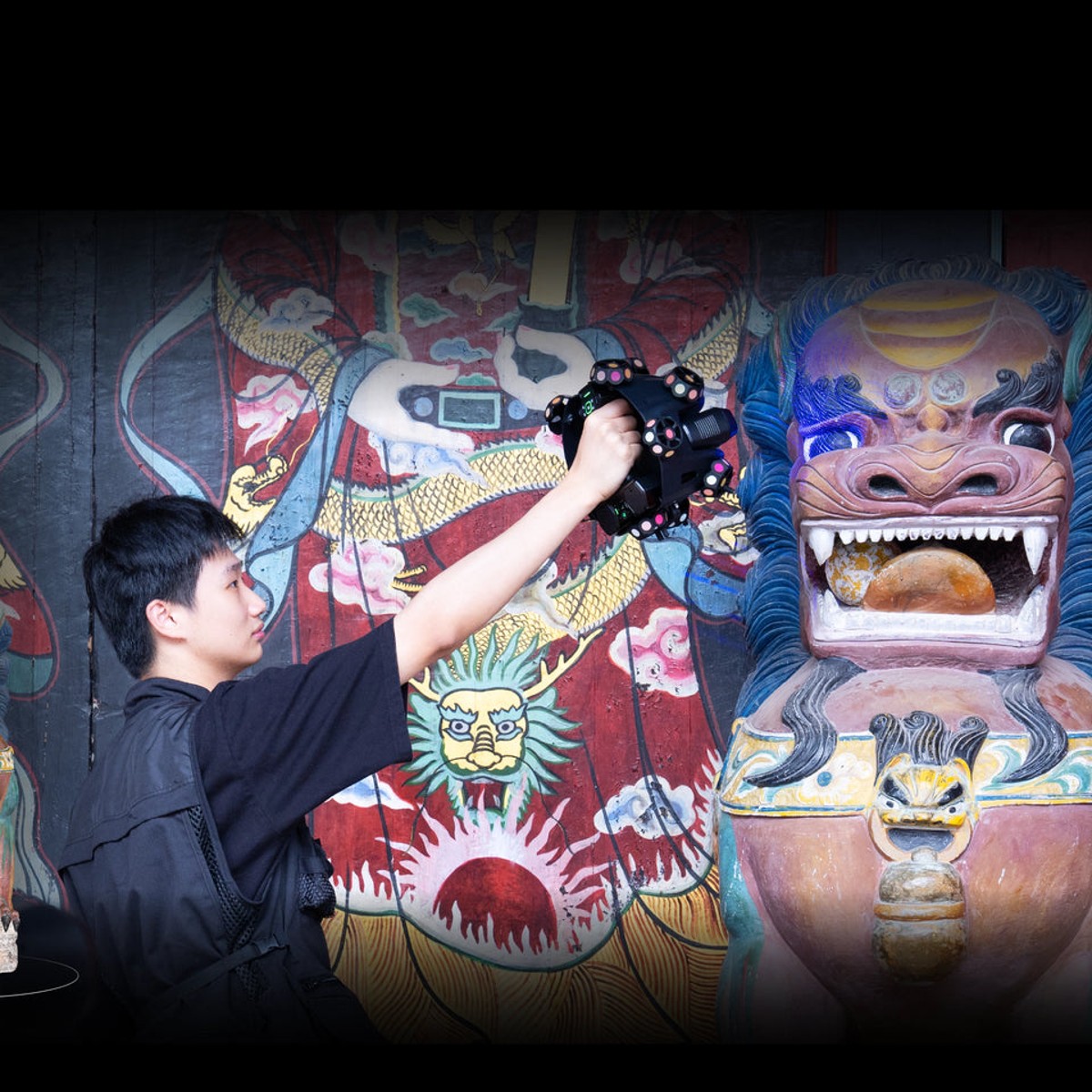

5 MP HD Texture Scanning
When color matters, the EinScan Trak's 5 MP HD texture camera accurately captures object colors and material detail alongside the geometry — essential for heritage and art digitization, product design, and any deliverable where the model needs to look like the real thing, not just measure like it. Texture also helps alignment on surfaces where geometry alone is ambiguous.
One Wireless System, From Vehicles to Fine Detail
Because the EinScan Trak covers both tracking and handheld capture, marker-free, indoors or out, it fits a wide span of professional work. Pair it with reverse-engineering software for scan-to-CAD, or with dimensional-comparison tools for inspection.
Where the EinScan Trak Fits
The Trak's advantage is combining marker-free optical tracking with a detachable handheld scanner in one wireless kit — capabilities usually split across two separate tools.
| Capability | EinScan Trak | Marker-based handheld scanner | Optical-tracking metrology system |
|---|---|---|---|
| Marker-free on the object | Yes — markers built into the scanner module | Often needs markers on the part | Typically needs markers / reflectors |
| Tracking + handheld in one kit | Yes — dual mode, detachable scanner | Handheld only | Tracking only |
| Large-object reach | Up to 4 m tracking distance | Limited by handheld range | Large, but rig-bound |
| Laser modes | 19+19 crossed · 7 parallel · single line | Usually one line pattern | Varies |
| Black & reflective surfaces | Captured without data loss | Often requires spray | Often requires spray |
| Outdoor / bright light | Up to 110,000 lux | Frequently indoor-biased | Environment-sensitive |
| Full-color texture | 5 MP HD texture camera | Sometimes optional | Rarely |
| Wireless & portable | Fully wireless, hot-swap battery, carbon-fiber body | Often tethered | Cart / tripod bound |
Comparison is qualitative and describes general product categories, not a specific competing model. Full EinScan Trak accuracy figures are published at launch — contact Rev1 for the current specification.
EinScan Trak Technical Data
Published pre-launch specifications. Full accuracy, weight, and dimensional figures are released at launch — contact Rev1 for the current datasheet.
