Extra $30 off code: WINTER Meet the EINSTAR Rockit — “Rock-it in Your Pocket”

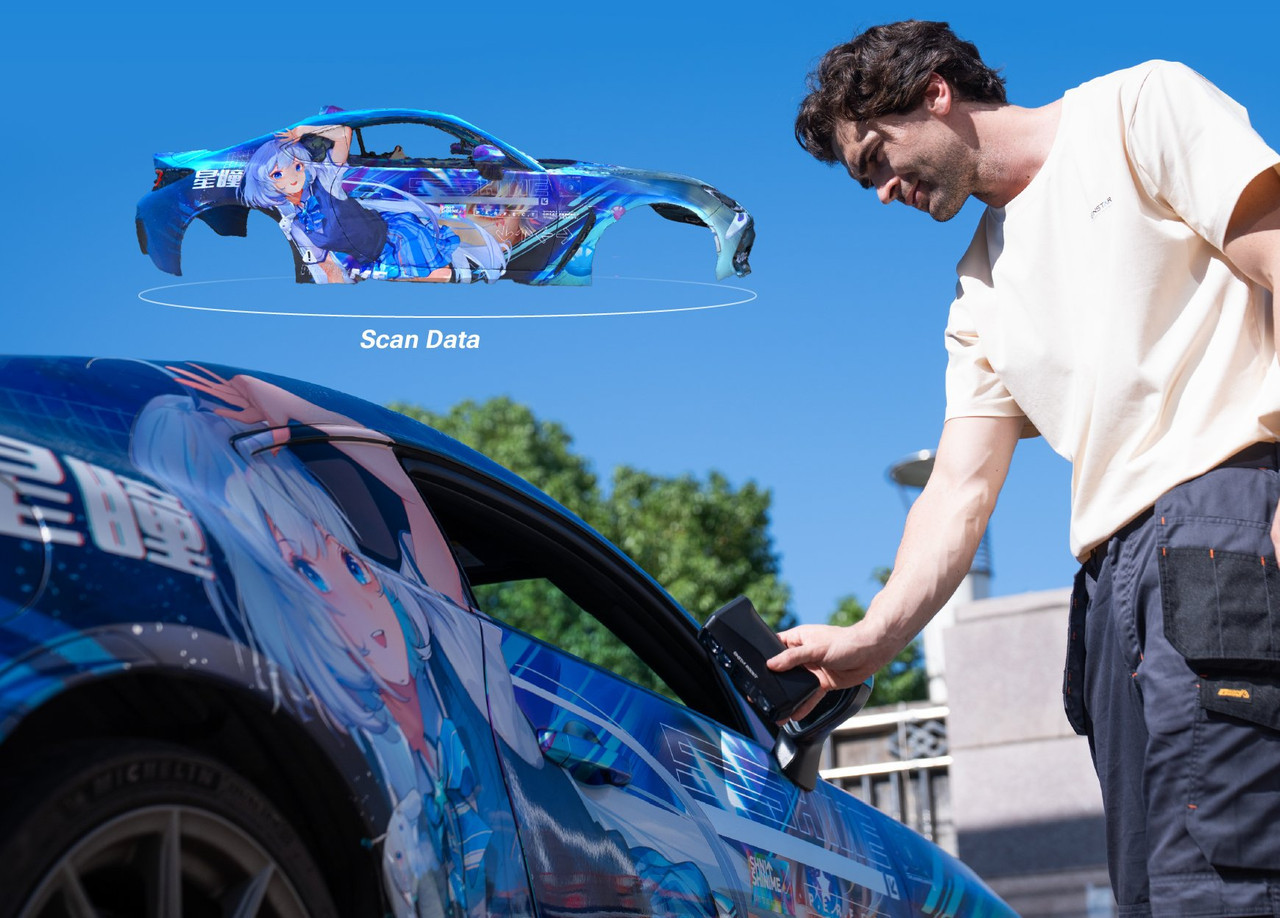

Imagine having a super smart scanner that fits in your hand, yet can capture real 3D shapes of things all around you — statues, car parts, toys, or even big objects outside. That’s exactly what EINSTAR Rockit is designed to do. Its tagline is “Rock-it in Your Pocket,” which means it’s compact, portable, and made to travel with you when you want to scan. Let’s break down what it is, how it works, who it is for, and why it’s cool — in simple words.
Share:
Product Detail

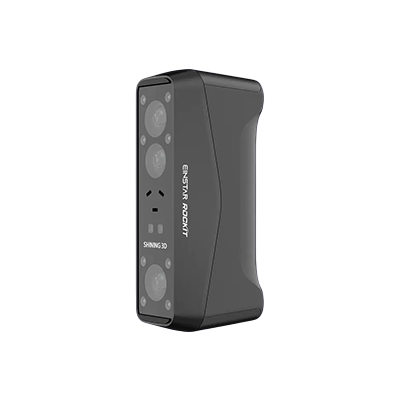

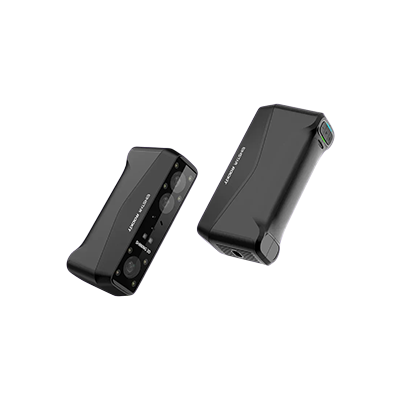

What is EINSTAR Rockit?

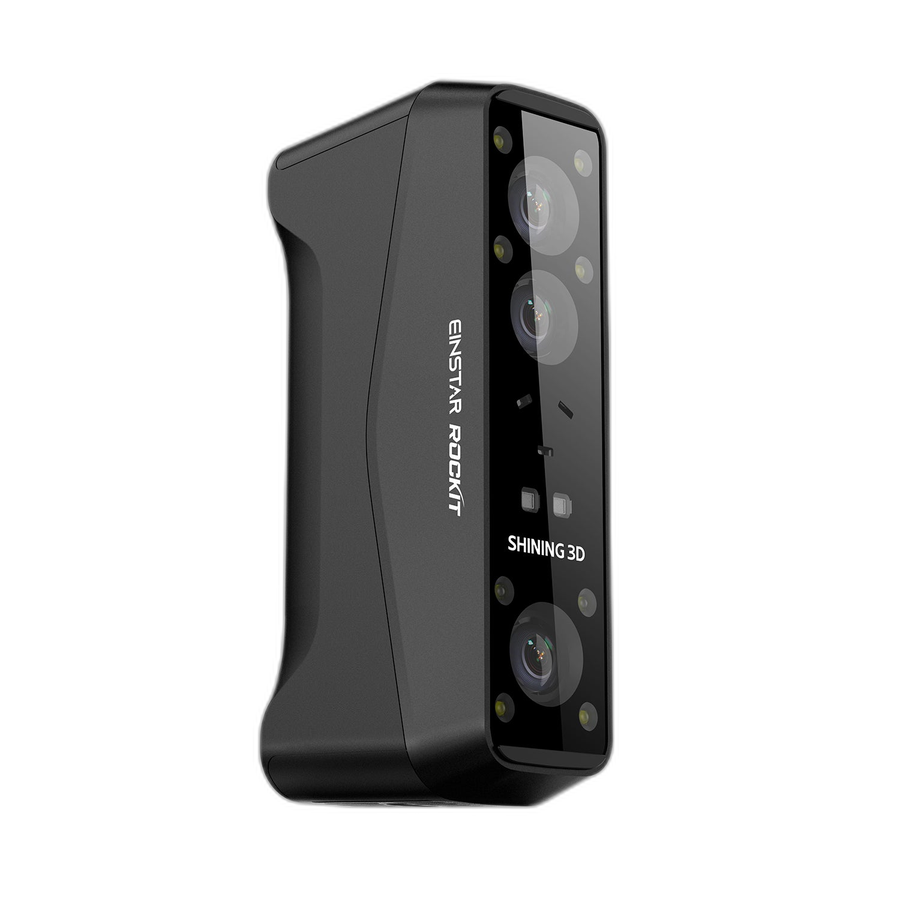

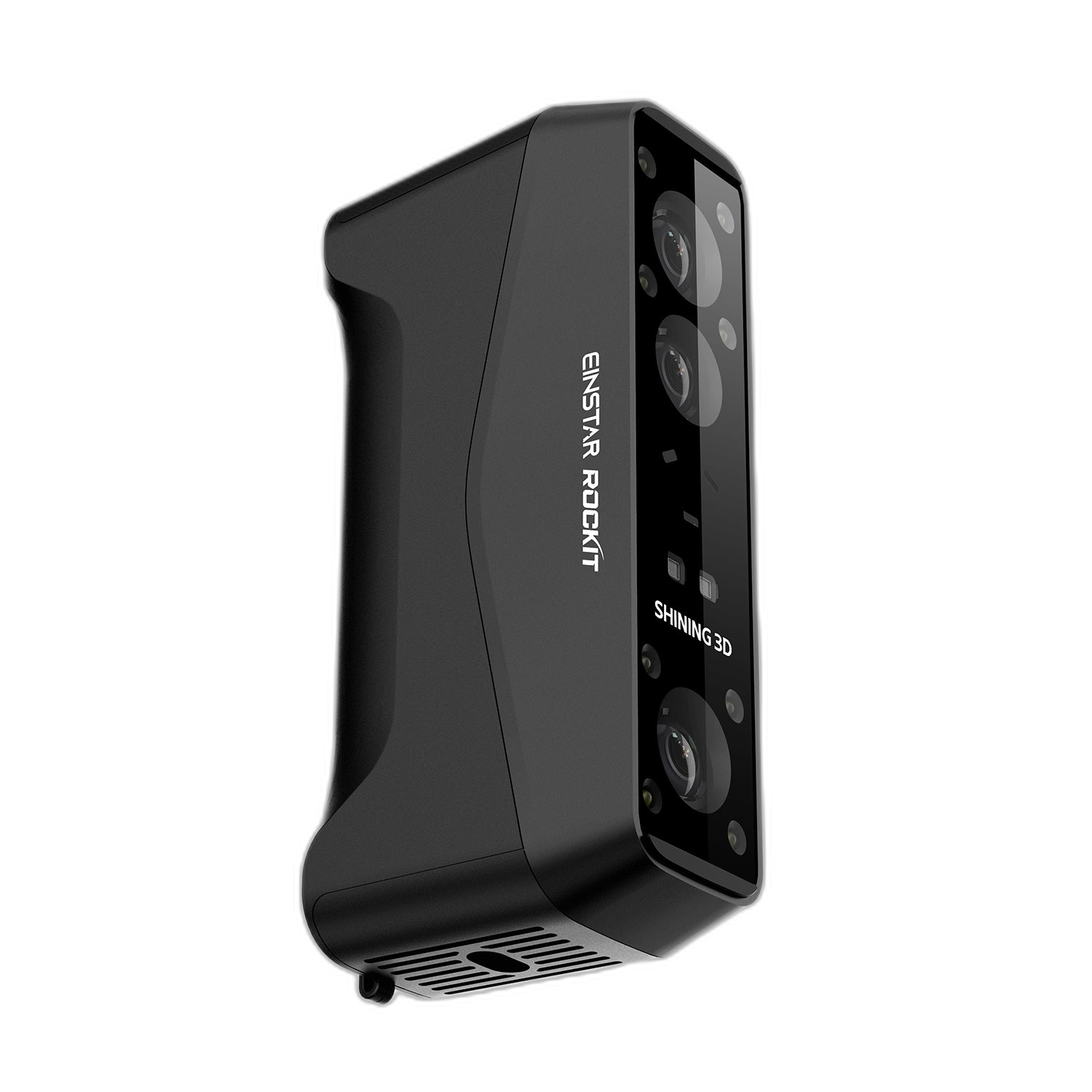

EINSTAR Rockit is a 3D scanner, a device that captures the shape, curves, and surface of a real object and turns that into a digital 3D model (imagine the object being “copied” in 3D on your computer).
It’s from EINSTAR (powered by SHINING 3D) and is marketed globally.
The Rockit is built to be portable (carry it, move around, scan many types of things) and efficient (fast scanning, multiple modes) for professionals, creators, engineers, and artists.
Key Features (What It Can Do)
Here are the main abilities and specs of the device, but explained simply:

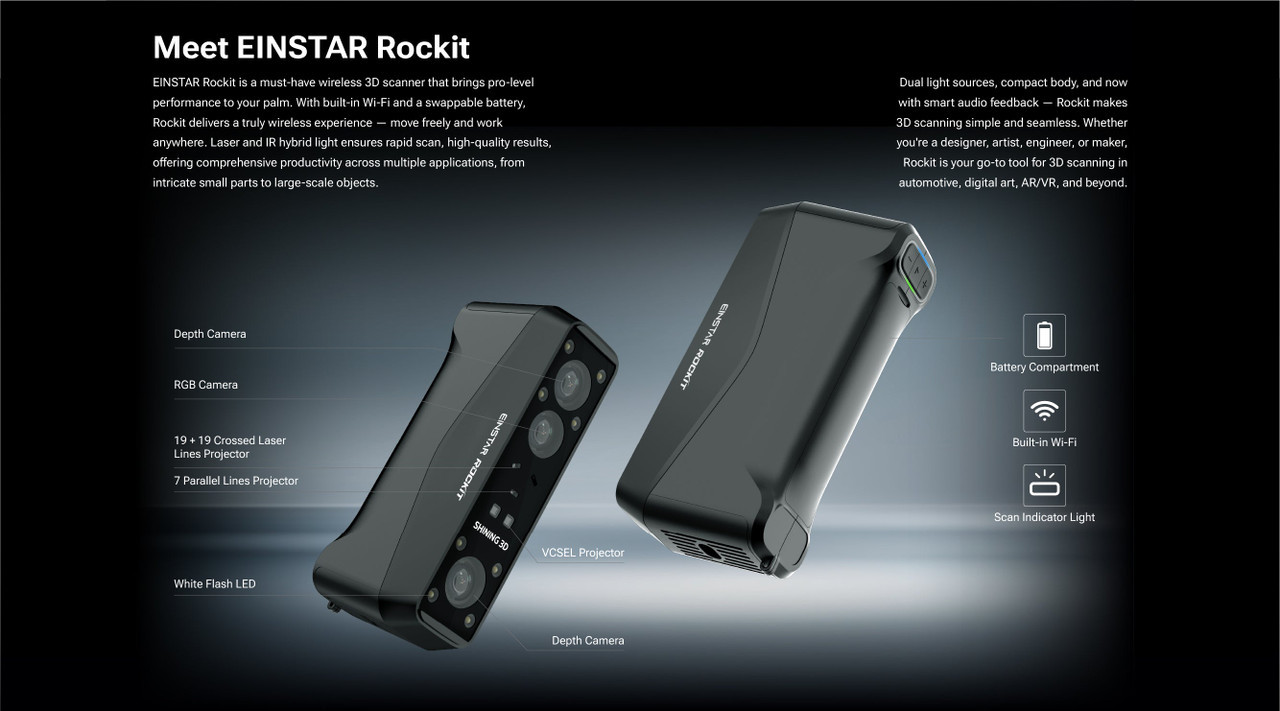

Scan Modes / Light Sources
Rockit supports two main scanning modes:

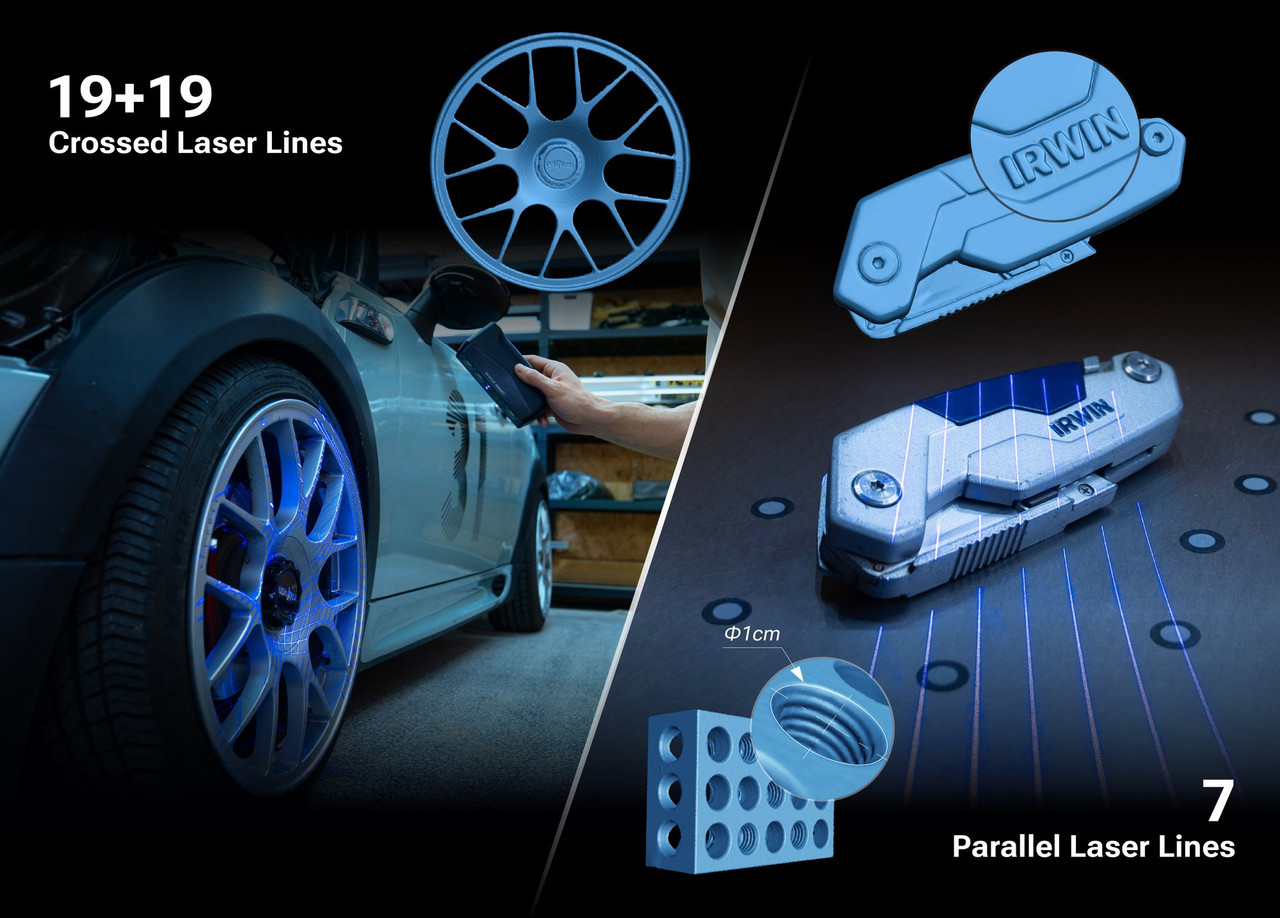

Laser HD mode

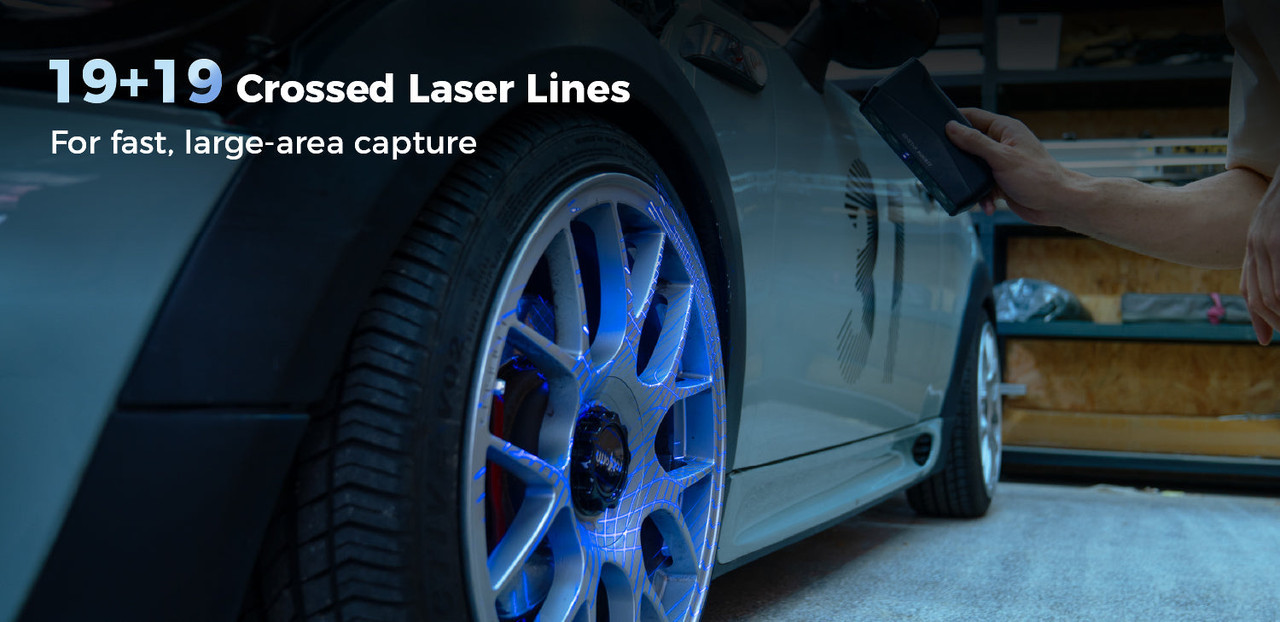

It uses a lot of laser lines (38 lines in total: 19 + 19 crossed lines) and also 7 parallel “blue laser” lines.
This helps it capture fine details and sharper shapes.
IR Rapid mode
It uses an IR (infrared) VCSEL light for faster scanning over larger surfaces.
Good when you need to scan bigger, less detailed areas more quickly.
Working Distance & Field of View (FOV)
These tell you how far from the object you need to hold the scanner and how large an area it can “see” in one go.
In Laser HD mode (crossed lines), the working distance is about 100 to 600 mm from the object

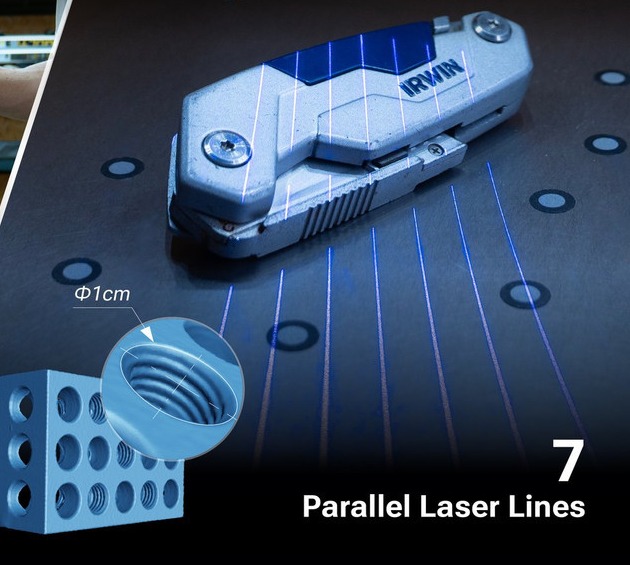

For the 7 parallel blue laser lines, the working distance is 100 to 400 mm
In IR Rapid mode, the working distance expands: 160 to 1,400 mm (so it can scan things further away)
Field of view (how wide an area it can capture):
Crossed laser: 545 × 620 mm
Parallel laser: 355 × 425 mm
IR Rapid: 1170 × 1385 mm
Alignment / How It Knows Which Part Goes Where
When a scanner captures different views of an object (turning around, scanning from different angles), it has to “stitch” them together. Rockit offers:

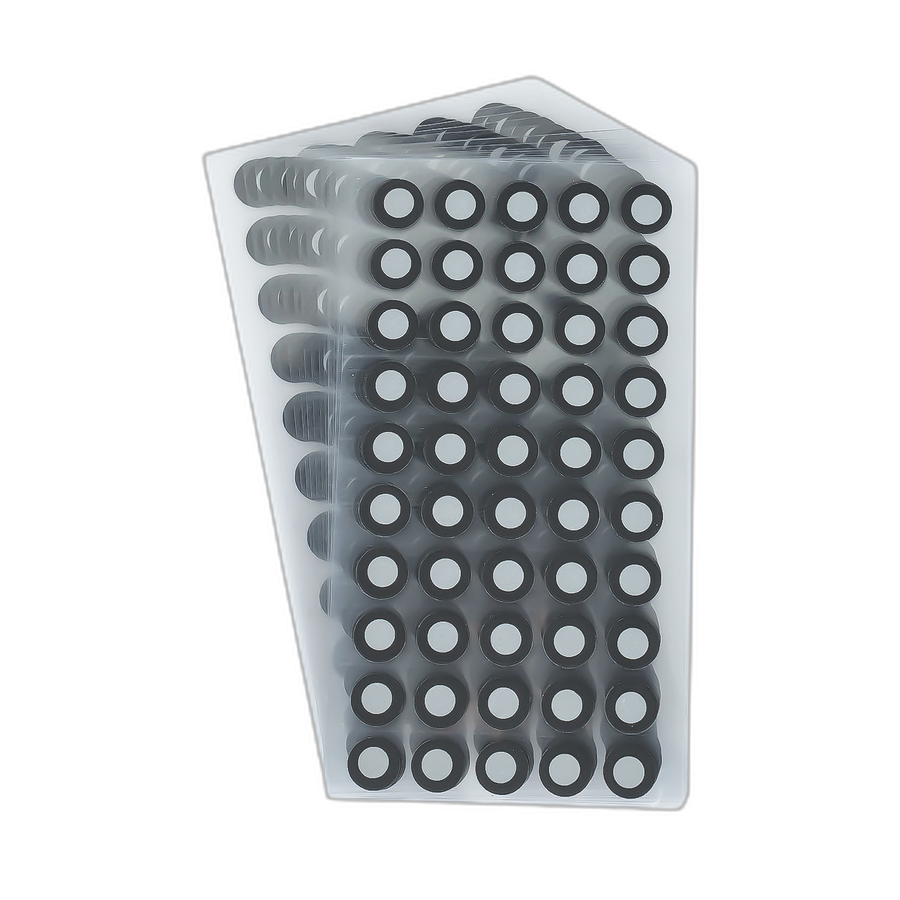

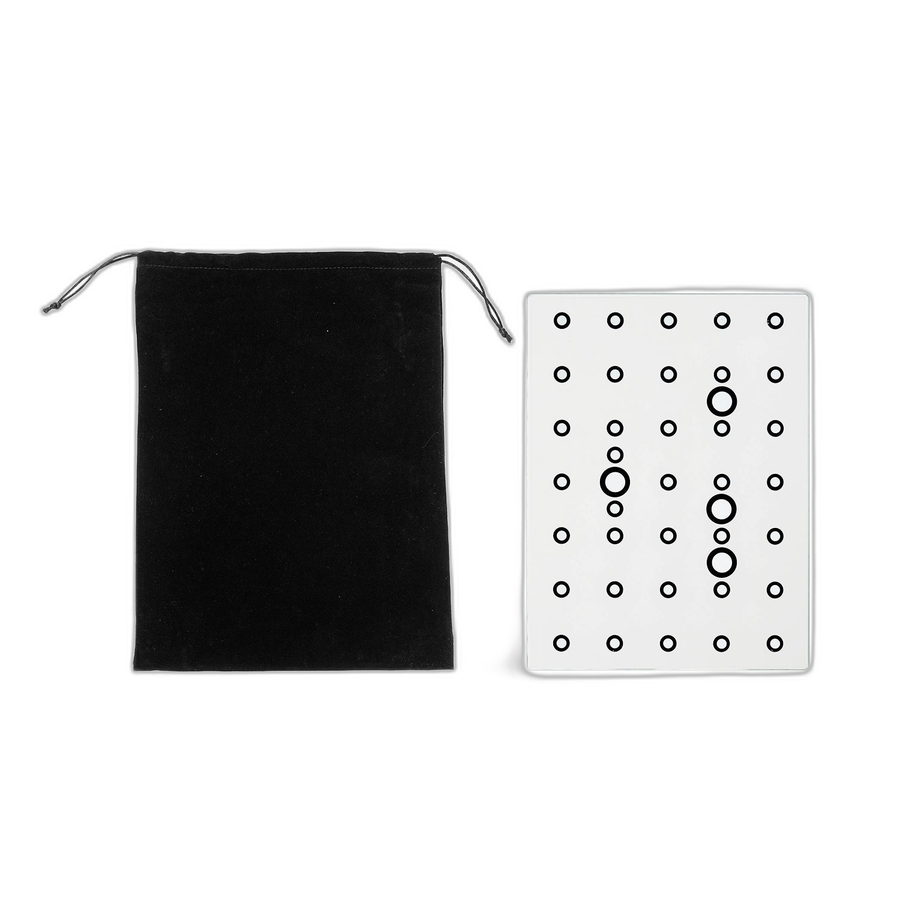

Marker-based alignment (you place small markers on the object so the scanner can follow them)
Marker-free laser scanning, which uses features or texture of the object to align scans (no markers needed)
In IR mode, it also supports hybrid alignment: combining feature, texture, and marker tracking depending on what the object is like
Camera / Texture

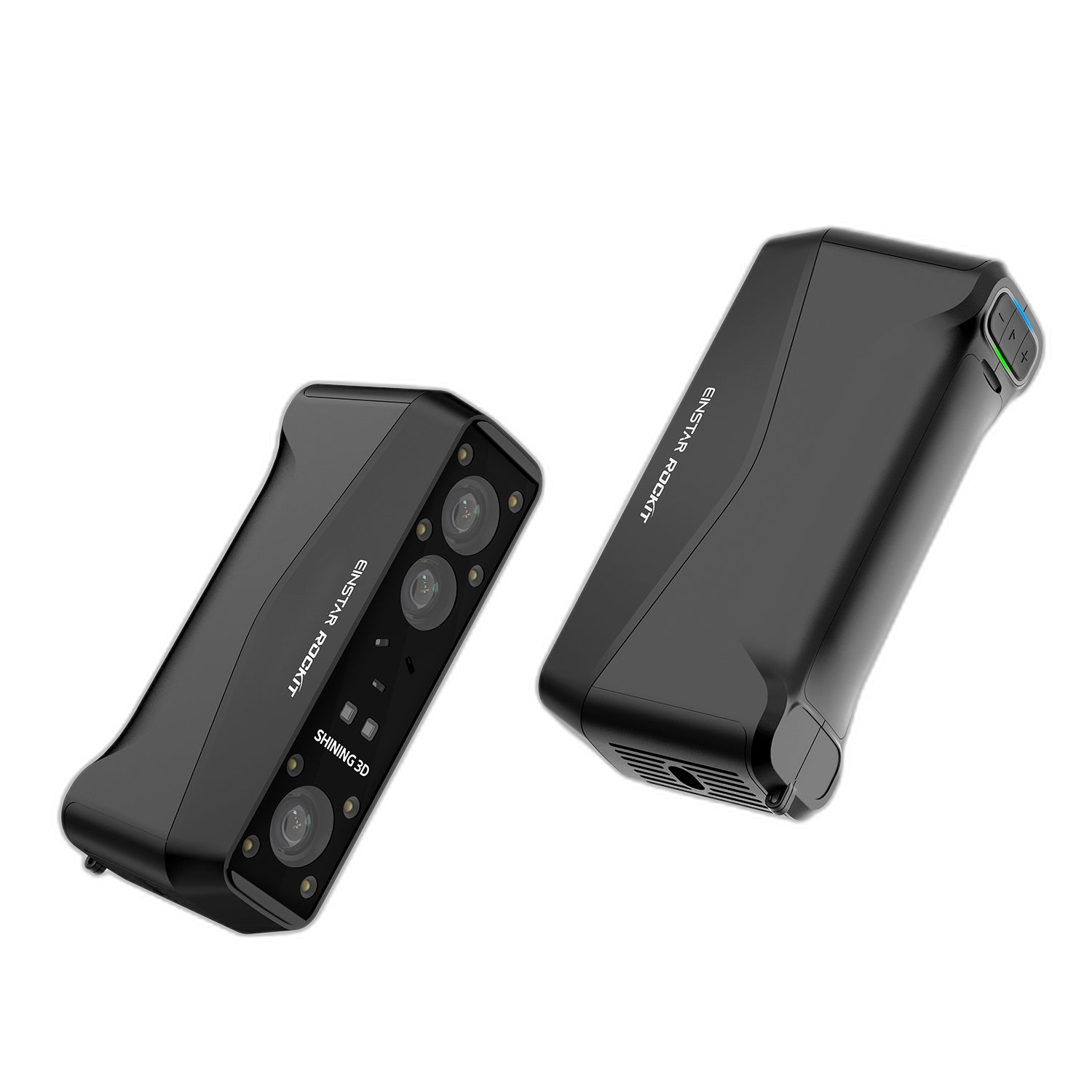

It uses dual 2 MP cameras for capturing 3D geometry.
For colors and texture, it has a 5 MP camera.
Device and Physical Specs
Laser class
Class 2 (safer lasers)
Operating temperature
from –10 °C to 40 °C (it works in cold or warm places)
Interface / Power

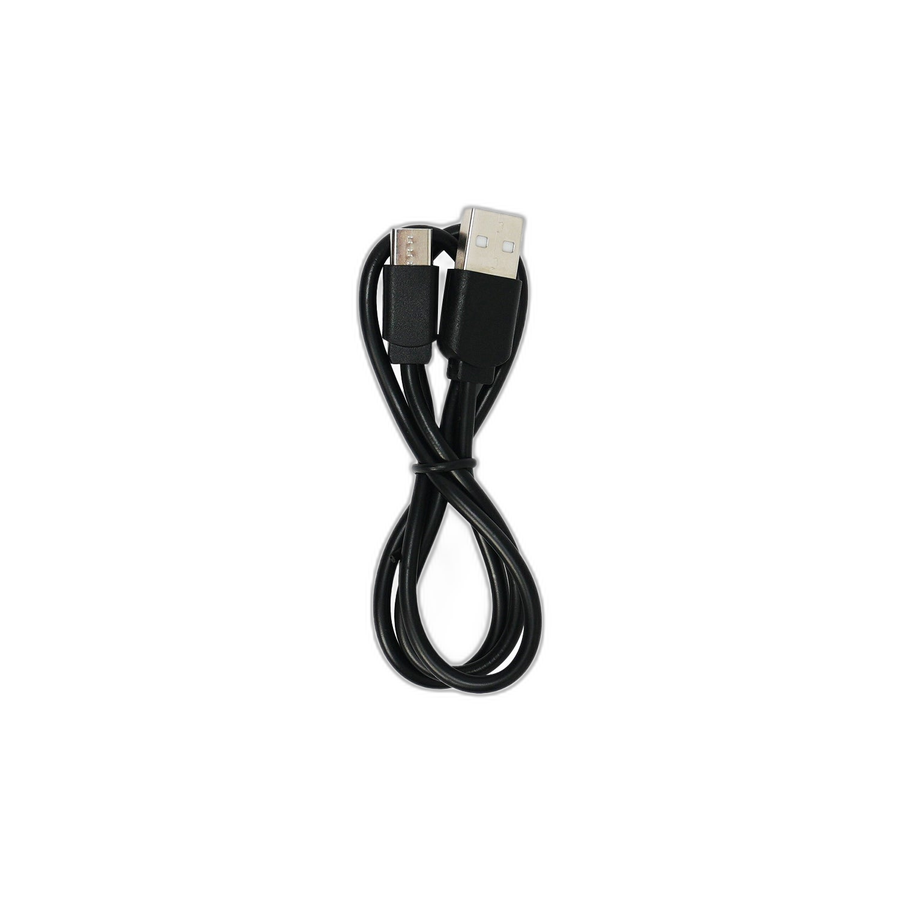

USB-C, and it supports 60 W Power Delivery (PD 3.0)

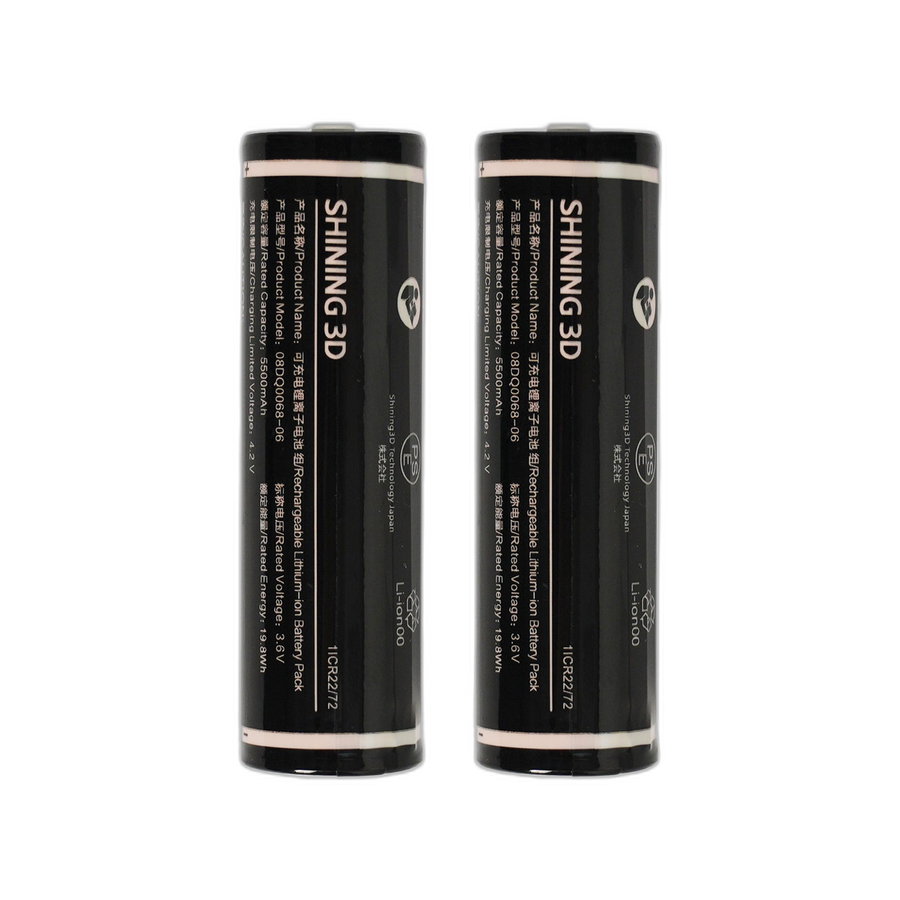

It has a battery, which gives up to 3 hours of runtime
Dimensions
130 × 37 × 61 mm (about 5.12 × 1.46 × 2.40 in)
EINSTAR Rockit Specifications
| Category | Specification |
|---|---|
| Scan Mode | Laser HD / IR Rapid |
| Light Source |
Laser HD: 38 Laser Lines (19 + 19 Crossed Laser Lines), 7 Blue Laser Parallel Lines IR Rapid: IR VCSEL |
| Resolution |
Laser HD: 0.05 ~ 10 mm IR Rapid: 0.2 ~ 10 mm |
| Scan Speed |

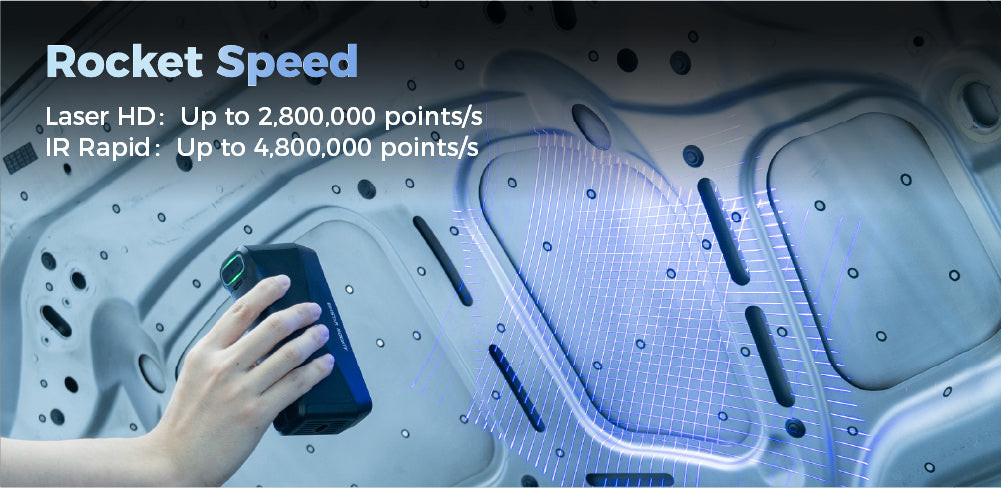

Laser HD: 2,800,000 points/s IR Rapid: 1,440,000 points/s |
| Working Distance |
19 + 19 Crossed Laser Lines: 100 ~ 600 mm 7 Blue Laser Parallel Lines: 100 ~ 400 mm IR Rapid: 160 ~ 1400 mm |
| Max. FOV |
19 + 19 Crossed Laser Lines: 545 × 620 mm 7 Blue Laser Parallel Lines: 355 × 425 mm IR Rapid: 1170 × 1385 mm |
| Alignment Mode |
Laser HD: Global Marker / Markers IR Rapid: Global Marker / Markers / Features / Texture / Hybrid |
| Minimum Scan Volume |
Laser HD: 5 × 5 × 5 mm IR Rapid: 50 × 50 × 50 mm |
| Camera Resolution | 3D: 2MP × 2 Texture: 5MP |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Laser Class | Class 2 |

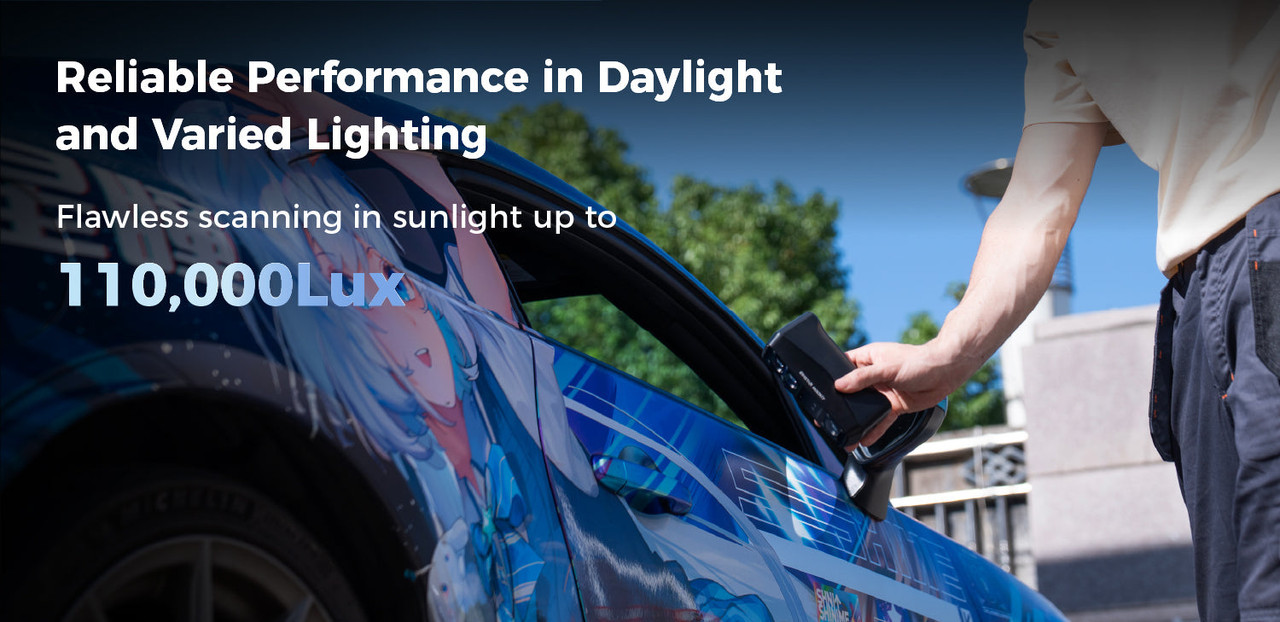

| Outdoor Scanning Environment |
Laser HD: Below 110,000 Lux IR Rapid: Below 70,000 Lux |
| Operation Conditions | -10℃ ~ 40℃ |
| Interface & Power Source |
USB Type-C Battery: 5500mA × 1 Support 60W-PD 3.0 Charger |
| Dimension (H × D × W) | 130 × 37 × 61 mm / 5.12 × 1.46 × 2.40 in |
| Net Weight | 420g / 0.92 lbs (Battery Included) 348g / 0.77 lbs (Battery Excluded) |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 |
| Recommended Configuration |
OS: Windows 11 Pro 22H2 (64-bit) GPU: NVIDIA GeForce RTX 3060 Laptop GPU or above (VRAM ≥ 6 GB) RAM (Minimum): 32 GB DDR5 dual-channel RAM (Recommended): 64 GB DDR5 dual-channel Interface: USB 3.0 Processor: 13th Gen Intel® Core™ i7-13700H or above |
