HeyGears UltraPrint Modeling Series
HeyGearsPAT10 Transparent Resin88.5% Transmittance - Skin-Safe - Anti-Yellowing
88.5% Light Transmittance — 8-Year Anti-Yellowing — Skin-Safe Certified
Acrylic-like optical clarity with 88.5% light transmittance and only 5.4% haze. Biocompatible for direct skin contact — earrings, wristbands, medical device housings. 13200 J/m² work of fracture for toughness rarely found in transparent resins. Pre-tuned Blueprint Studio profiles for every Reflex printer.
88.5%
Transmittance
13200
J/m² WoF
31 J/m
Impact Str.
8 Yr
Anti-Yellow
Format
$89.00
/ 1,000 g · Free shipping over $399
Authorized HeyGears Partner · Rev1 Technologies · Auburn Hills, MI · (248) 707-2950
HeyGears UltraPrint Modeling
Why PAT10 Outperforms Standard Clear Resins
88.5% Light Transmittance
PAT10 achieves acrylic-like optical clarity — 88.5% light transmittance with only 5.4% haze. Parts look like cast acrylic straight off the printer, with no clouding, no internal scatter, and no visible layer structure.
13200 J/m² Work of Fracture
Most transparent resins are brittle and fragile. PAT10's 13200 J/m² work of fracture — one of the highest in its class — means clear parts that survive handling, drops, and repeated use without shattering at thin walls.
8-Year Anti-Yellowing Stability
PAT10 is engineered with strong UV resistance to prevent yellowing across 8 years of indoor use. Clear parts stay water-white long-term — critical for display models, consumer products, and end-use housings.
Skin-Safe — Biocompatible Grade
PAT10 is certified safe for skin contact — enabling direct-wear applications including earrings, wristbands, eyewear components, and medical device housings without additional sealants or coatings.
Multiple Finishing Processes
PAT10 supports crystal-clear, matte, tinted clear, tinted matte, and internal crystallization finishing techniques. Pair with HeyGears ClearG115 Gloss Glaze for enhanced UV resistance and optical performance.
Excellent Dimensional Stability
Low curing shrinkage with ±16 μm forming accuracy. PAT10 maintains its geometry through post-processing and long-term use — transparent parts hold their shape and optical performance without warping or distortion.

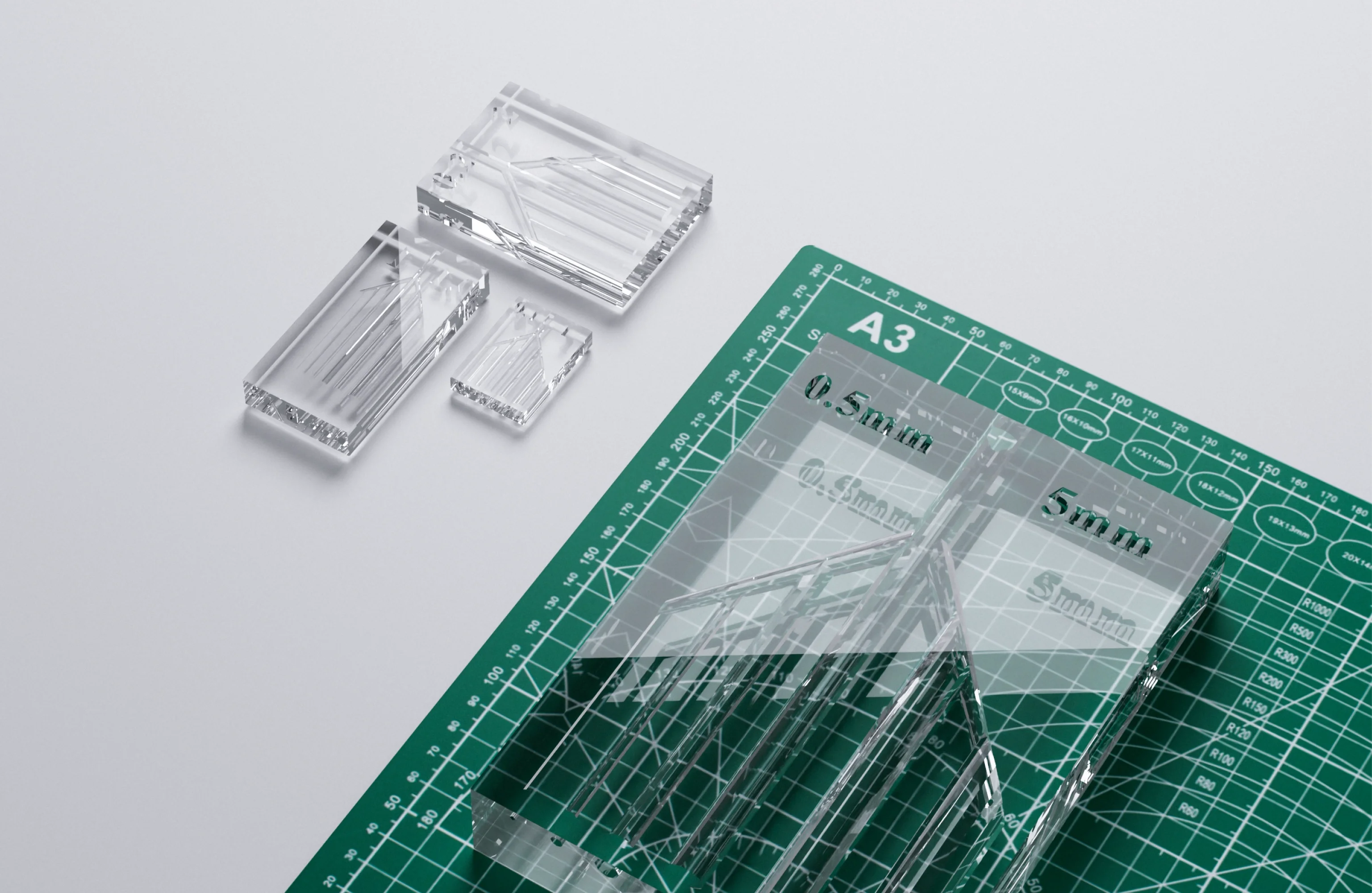

Optical Performance
Acrylic-Like Clarity — 88.5% Transmittance and 5.4% Haze
88.5%
Light Transmittance
Acrylic-like optical clarity — measured transmittance
5.4%
Haze
Low scatter — near-zero visual distortion
13200
J/m² Work of Fracture
ISO 20795.1 — Tough transparent resin

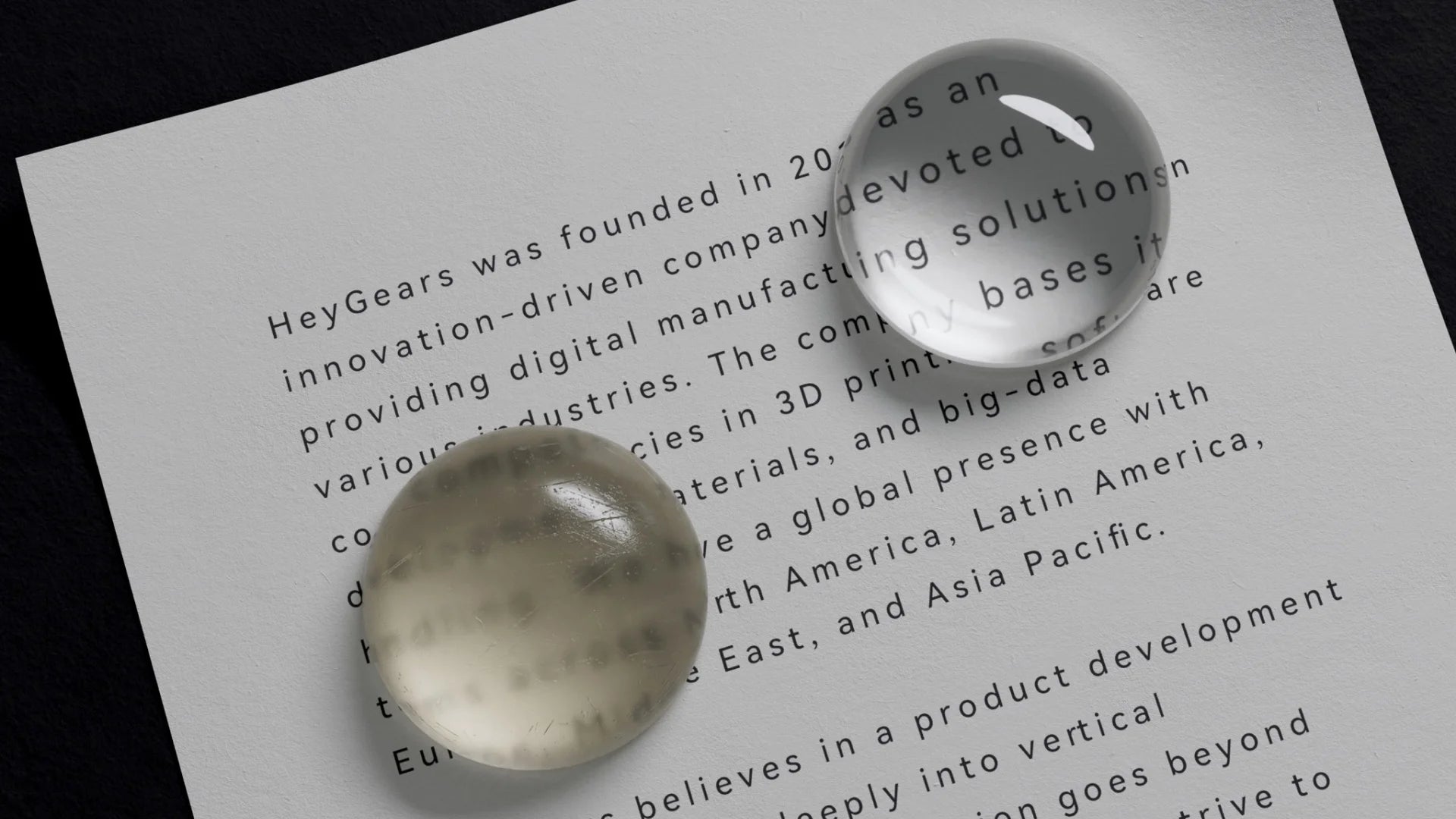

Crystal-Clear Optical Performance
Glass-Like Clarity Straight Off the Printer
PAT10 achieves 88.5% light transmittance with only 5.4% haze — results that rival cast acrylic at a fraction of the tooling cost. Internal structure is invisible. Edges are crisp. Parts look premium without polishing, though ClearG115 gloss coat takes clarity even further for consumer-facing applications.
88.5% Transmittance
5.4% Haze
Acrylic-Like Clarity
Gloss-Coat Ready
Optical & Mechanical Properties
Light Transmittance88.5%
Haze5.4%
Work of Fracture13200 J/m² (ISO 20795.1)
Impact Strength31 J/m notched (ASTM D256)
Elongation at Break25% (ASTM D638)
Forming Accuracy±16 μm
Long-Term Stability
8-Year Anti-Yellowing — Clarity That Lasts Indoors
UV Resistance & Color Stability
Most Clear Resins Yellow Within 12–18 Months. PAT10 Is Engineered Differently.
Standard photopolymer resins degrade under UV exposure — developing a yellow tint that degrades optical performance and part appearance. PAT10 is formulated with UV stabilizers that maintain color stability across 8 years of indoor use. For display models, consumer electronics housings, and end-use transparent components where long-term appearance matters, PAT10 is the engineered choice.
8-Year Anti-Yellowing
UV Stabilized
Indoor Stability Tested
Long-Term Display Ready
Consumer Product Grade
8 Yr
Anti-Yellowing Stability
Indoor UV exposure — color retention tested
31 J/m
Impact Strength
ASTM D256 — tough clear resin, not brittle
25%
Elongation at Break
ASTM D638 — flexible enough to avoid snap fracture
Biocompatibility
Skin-Safe Certified — Wearables, Jewelry, and Consumer Products
Sub-50-Micron Accuracy
Dimensional Accuracy That Holds Up Under Thermal and Mechanical Load
With ±0.04 mm printed part tolerance and a 60°C / 140°F heat deflection temperature, PAT10 maintains its clarity and geometry through normal manufacturing environments. Assembly fixtures, component locators, and QC inspection jigs printed in PAT10 hold their critical dimensions across the production lifecycle — a level of accuracy previously achievable only with machined tooling.
Dimensional Tolerance±0.04 mm (sub-50-micron)
Heat Deflection Temp60°C / 140°F (ASTM D648)
Elongation at Break23% (ductile, not brittle failure)
Flexural Modulus2300 MPa (geometry retention under load)
What ±0.04 mm Means in Practice
Assembly Jigs
Part locators and fixture references hold their critical dimensions across hundreds of use cycles — no recalibration required.
Inspection Fixtures
Dimensional gauging fixtures printed in PAT10 maintain reference accuracy without the machining cost of aluminum alternatives.
Component Locators
Snap-fit and press-fit locators printed in PAT10 maintain their interference dimensions under thermal cycling in normal manufacturing environments.

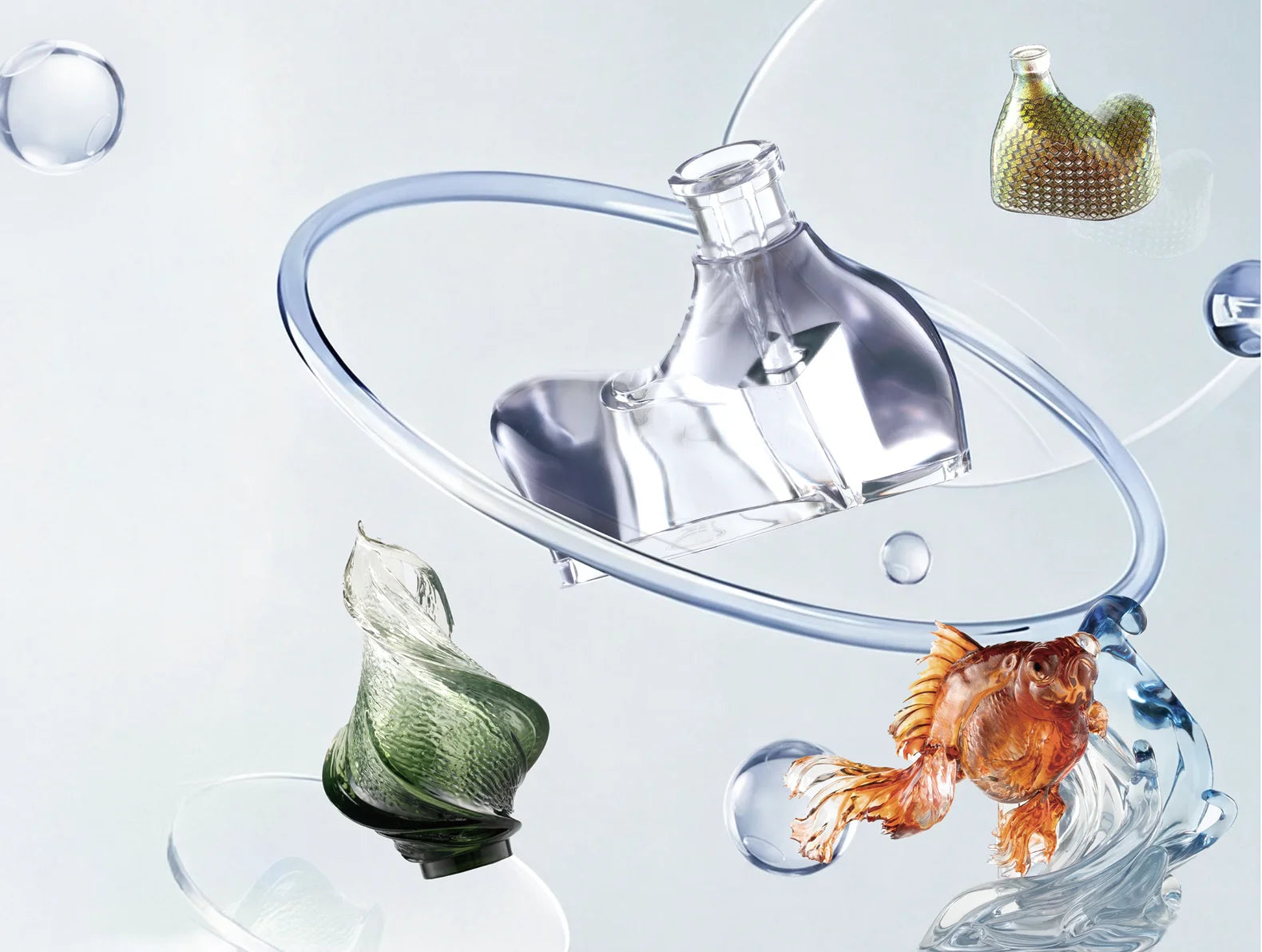

Applications
Where PAT10 Delivers — Consumer Products, Electronics, and End-Use Clear Parts
Industrial Fixtures and Jigs
From Prototyping to End-Use — PAU20 Stays in Service
PAU20 fills the gap between rapid prototyping resins (too brittle for production) and machined tooling (too expensive and slow for iteration). With 88.5% light transmittance, skin-safe certification, and 8-year anti-yellowing stability, it produces clear end-use parts that go directly to the production floor and stay there — industrial fixtures, assembly jigs for long-term use, end-use structural brackets, camera mounts, protective casings, and shell parts resisting deformation.
Assembly Jigs
Industrial Fixtures
Camera Mounts
Protective Casings
Structural Brackets
End-Use Components
Compatible With Every HeyGears Reflex Printer
PAT10 Works With Your Reflex 2, Reflex 2 Pro, and the Full Reflex Lineup — Order Now.

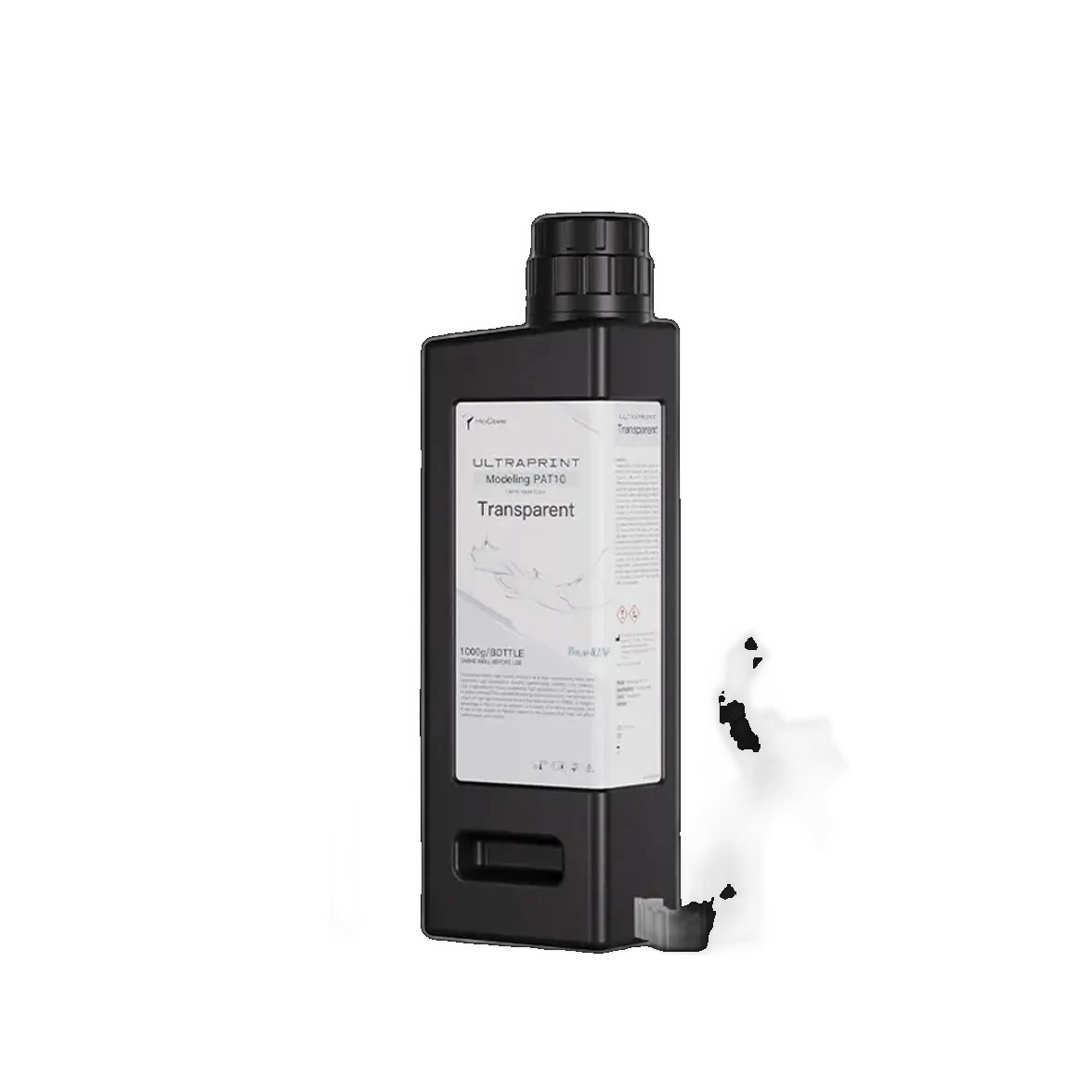

Product Details
PAT10 — Transparent Resin
PAT10 — TRANSPARENT / 1,000 g
Transparent
High-Clarity Modeling Resin
High-Clarity Modeling Resin
High-transparency photopolymer resin with 88.5% light transmittance, acrylic-like clarity, and 8-year anti-yellowing stability for indoor use. Skin-safe certified for wearable and direct-contact applications. 13200 J/m² work of fracture provides toughness rarely found in transparent resins. Compatible with Reflex 3D, Reflex Turbo, Reflex 2, and Reflex 2 Pro. Pairs with ClearG115 Gloss Glaze for enhanced optical performance.
88.5% Transmittance
Skin-Safe
8-Yr Anti-Yellow
13200 J/m² WoF
±16μm Accuracy
Gloss-Coat Ready
Technical Specifications
PAT10 Complete Material Data
Material Type
Photopolymer Resin (UV Cure)
Material Behavior
Polycarbonate-like tooling resin
Color
Black
Pack Size
1,000 g / bottle
Flexural Modulus
2300 MPa (ASTM D790)
Flexural Strength
109 MPa (ASTM D790)
Work of Fracture
5400 J/m² (ISO 20795.1)
Elongation at Break
23% (ASTM D638)
Impact Strength (Notched)
35 J/m (ASTM D256)
Heat Deflection Temp
60°C / 140°F (ASTM D648)
Dimensional Tolerance
±0.04 mm
Surface Finish
Smooth, print-ready
Compatible Printers
Reflex 3D, Reflex Turbo, Reflex 2, Reflex 2 Pro
Required Module
UltraCraft Reflex Pulsing Release Module Kit
Compatible Software
HeyGears Blueprint Studio
Price
$89.00 / 1,000 g bottle
Primary Applications
Structural tooling, fixtures, jigs, end-use components
Package Contents
What's Included
PAT10 Resin Bottle (1,000 g)
One 1,000 g bottle of UltraPrint-Modeling PAT10 Transparent. Sealed for safe transport and storage. Store in a cool, dark environment away from UV — critical for transparent resins to maintain shelf clarity.
Material Safety Sheet
Full material safety data sheet (SDS) for safe handling, storage, and disposal. UV-curing photopolymer resin — protective gloves and ventilation required during printing and post-processing.
Blueprint Studio Profile + Transparent Guidelines
Print parameters for PAT10 are pre-configured in HeyGears Blueprint Studio. HeyGears also provides dedicated transparent part design guidelines — wall thickness, hole sizing, and pillar recommendations — for optimal optical results.
Industries Served
PAT10 Across Consumer, Medical, and Industrial Applications
Consumer Electronics
Transparent Housings and Device Casings
Smart device covers, IoT sensor housings, and consumer electronics components requiring optical transparency, dimensional accuracy, and long-term color stability in a production-ready resin.
Medical Devices
Biocompatible Transparent Prototypes
Medical device housings, diagnostic instrument components, and wearable health monitor enclosures where skin-safe certification and optical transparency are simultaneously required for design validation.
Consumer Products
Jewelry, Wearables, and Display Products
Skin-safe earrings, wristbands, eyewear frames, and display-grade figurines printed in PAT10 — worn or displayed directly without secondary finishing, with 8-year anti-yellowing stability.
Applications in the Field
PAT10 Transparent Resin in Production Environments
88.5%
Light Transmittance
Consumer Electronics
Transparent IoT Housing Produced in PAT10 — From Design to End-Use
A consumer electronics startup validated and produced transparent sensor enclosures in PAT10. 88.5% transmittance allowed internal LED indicators to remain visible through the housing — eliminating the need for machined acrylic at low production volumes.
Read Case Study →
8 Yr
Anti-Yellowing
Medical Devices
Wearable Health Monitor Prototype — Transparent and Skin-Safe
A medical device firm printed wearable health monitor housings in PAT10. Skin-safe certification eliminated the need for secondary biocompatibility coating, reducing time-to-prototype by 3 weeks and allowing optical sensor performance testing through the transparent housing.
Read Case Study →
24h
STL to Wearable
Consumer Products
Skin-Safe Earrings — From STL to Wearable in 24 Hours
A jewelry designer produced crystal-clear earrings in PAT10 at Rev1's Auburn Hills facility. Skin-safe certification meant no secondary sealant was required — finished pieces were worn directly from the cure station. ClearG115 gloss coat elevated clarity to polished-acrylic level for the final production run.
Read Case Study →
Material Comparison
PAT10 vs Standard Clear Resins
| Property | PAT10 (HeyGears) | Standard Clear Resin | Generic Transparent Resin | Unit |
|---|---|---|---|---|
| Light Transmittance | 88.5% | 75–80% | 70–78% | % |
| Haze | 5.4% | 8–12% | 10–18% | % |
| Work of Fracture | 13200 | 3000–5000 | 1500–3000 | J/m² |
| Impact Strength | 31 | 15–20 | 10–18 | J/m |
| Elongation at Break | 25 | 8–12 | 5–10 | % |
| Anti-Yellowing Stability | 8 years indoor | 12–18 months | 6–12 months | — |
| Skin-Safe Certification | Yes | No | No | — |
| Forming Accuracy | ±16 μm | ±50–100 μm | ±100+ μm | — |
* Data from HeyGears Lab and published material datasheets. Competitor values are representative of standard commercial resins. Results may vary. ±10% deviation applies.
Why Buy From Rev1
Authorized HeyGears Partner — Engineering Support Included
Sold & Supported By
Authorized Partner
Authorized HeyGears Reseller
Rev1 is a certified HeyGears partner. Every PAT10 bottle is genuine HeyGears material with full manufacturer support and warranty. No gray-market product, no third-party repackaging.
Application Engineering Team
Rev1's engineering team operates HeyGears printers daily. We qualify materials in-house, run sample prints, and provide application guidance specific to your tooling or structural component requirements.
In-Person Demo Available
See PAT10 print live at Rev1's Auburn Hills facility. Bring your part files — we'll run them and walk through results with you. Or schedule a demo at your facility anywhere in the U.S.
US Warehouse — Fast Shipping
PAT10 ships from US warehouse stock. Same-day or next-day ship on in-stock quantities. Free shipping on orders over $399 anywhere in the U.S.
Free Sample Print Program
Not sure if PAT10 clarity meets your application requirements? Send your STL to (248) 707-2950. We'll print it in PAT10 on a Reflex 2 and ship it to you — at no charge.
Full HeyGears Ecosystem
Rev1 supplies PAT10 alongside the complete HeyGears stack — printers, wash/cure stations, ClearG115 Gloss Glaze, and the full resin lineup. One source for your entire transparent printing workflow.
Complete Your Setup
Related Products
Common Questions
PAT10 Frequently Asked Questions
Which HeyGears printers is PAT10 compatible with?
PAT10 is compatible with the Reflex 3D Printer, Reflex Turbo, Reflex 2, and Reflex 2 Pro. All print parameters are pre-configured in HeyGears Blueprint Studio — no manual calibration required. HeyGears also provides dedicated transparent part design guidelines for wall thickness, pillar sizing, and support strategy to optimize optical results.
How clear is PAT10 straight off the printer?
PAT10 achieves 88.5% light transmittance and 5.4% haze straight from the printer — comparable to cast acrylic. For applications requiring maximum clarity, applying HeyGears ClearG115 Gloss Glaze further improves optical performance and adds UV protection. Light sanding followed by gloss coat can bring PAT10 to near-optical-glass clarity.
Is PAT10 really safe for skin contact?
Yes — PAT10 is certified safe for direct skin contact after proper post-curing. This enables direct-wear wearable applications including earrings, wristbands, and eyewear components without secondary sealants or biocompatibility coatings. Always ensure complete UV curing per HeyGears guidelines before skin contact use.
How long does PAT10 stay clear before yellowing?
PAT10 is engineered for 8-year anti-yellowing stability under normal indoor lighting conditions. This is a major differentiator from standard clear resins, which typically begin yellowing within 12–18 months of UV exposure. For outdoor or high-UV-exposure applications, additional UV-protective coating is recommended.
Can Rev1 print a sample part in PAT10 before I purchase?
Yes. Rev1 operates HeyGears Reflex 2 and Reflex 2 Pro printers in-house in Auburn Hills. Send your STL to (248) 707-2950 and we'll print it in PAT10 and ship it to you — at no charge. Transparent resin printing has nuances around support strategy and orientation — our team will optimize your print for maximum clarity before running it.
Does PAT10 work with the ClearG115 Gloss Glaze?
Yes — HeyGears ClearG115 Gloss Glaze is designed to pair with PAT10. It improves toughness, adds UV resistance, and enhances optical clarity to near-glass levels. Rev1 stocks ClearG115 and can include it with your PAT10 order. Apply one thin coat after post-cure for best results.
What is the shelf life and storage requirement for PAT10?
Store PAT10 in a cool, dark location away from all UV sources — critical for transparent resins as UV exposure degrades clarity in the bottle before printing. Keep the bottle sealed when not in use. Avoid temperatures above 30°C. Under proper storage conditions, shelf life is typically 12 months from manufacture date. Gently agitate before pouring to ensure consistent distribution.
Crystal-Clear.
Built to Last.
Built to Last.
PAT10 is the transparency resin for end-use parts and consumer products that require acrylic-like clarity and 8-year color stability. Order direct from Rev1 Technologies — authorized HeyGears partner, Auburn Hills.
