HeyGears UltraPrint Modeling Series

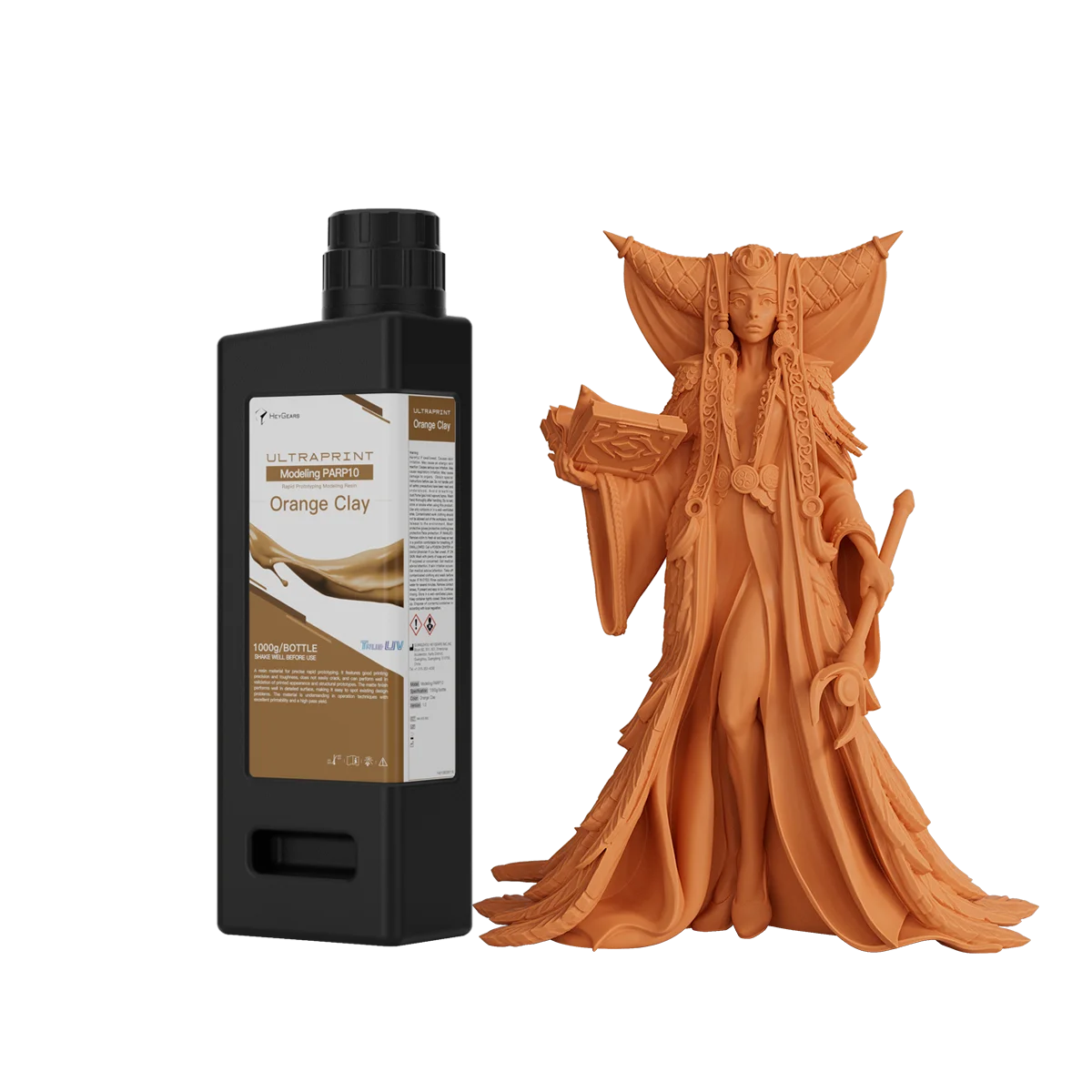

HeyGearsPARP10 Orange Clay
Rapid Prototyping Resin0.1mm Detail - Matte Surface - High Toughness
0.1mm Smallest Detail — Matte Surface Finish — 3350 J/m² Work of Fracture
Orange Clay matte resin purpose-built for jewelry prototyping, figurines, and finely detailed rapid prototyping. 0.1mm smallest printable feature, ±0.05mm tolerance, and matte surface finish with no visible layer lines. 3350 J/m² work of fracture for handling robustness. Pre-tuned Blueprint Studio profiles for every Reflex printer.
0.1mm
Min Detail
3350
J/m² WoF
Matte
Finish
±0.05
mm Tolerance
Pack
$109.00
/ 1,000 g · Free shipping over $399
Authorized HeyGears Partner · Rev1 Technologies · Auburn Hills, MI · (248) 707-2950
HeyGears UltraPrint Modeling
Why PARP10 Outperforms Standard Rapid Prototyping Resins
0.1mm Smallest Printable Detail
2H surface hardness — equivalent to the surface hardness of automotive paint. PARP10 surfaces resist scratching, scuffing, and wear from regular handling, contact loads, and articulated movement cycles where standard resins would degrade.
2370 J/m² Work of Fracture
PARP10 is specifically designed for articulated joints, ball-and-socket connections, and movable parts that undergo repeated mechanical cycling. The combination of surface hardness and toughness means moving parts stay functional through thousands of articulation cycles.
±0.05 mm Dimensional Tolerance
PARP10 is engineered with anti-yellowing properties to maintain color stability through long-term display and use. Orange Clay tones stay consistent over time — critical for jewelry and mold prototyping where color consistency across print sessions matters.
High Dimensional Accuracy
PARP10 is engineered for long-term dimensional stability — ±0.05 mm accuracy maintained over 3 years of indoor storage. No creep, no geometry drift. Models and production parts maintain their dimensions through storage, handling, and repeated use.
Matte Surface — Hides Layer Lines, Ready for Inspection
PARP10 prints with a surface finish equivalent to 600 to 1000 grit sanding — smooth enough for direct finishing without manual sanding steps. This saves significant post-processing time on large production runs of jewelry prototypes, mold patterns, and figurines.
Full Reflex Lineup — Including Reflex 2 and 2 Pro
PARP10 Orange Clay (this page) gives a warm tone and matte surface ideal for jewelry, molds, and display models. PARP10 Black is also available if you need sharper edges and maximum texture definition — both materials run on RS Turbo, RS, Reflex 3D, and Reflex Turbo.
Mechanical Performance
0.1mm Finest Detail — Matte Surface, High Damage Resistance
0.1mm
Smallest Detail
Finest printable feature size
2370
J/m² Work of Fracture
ISO 20795.1 — Tough detail resin
600–1000
Grit Surface Smoothness
As-printed — no sanding required
High Load-Bearing Capacity
Built for End-Use Structural Components, Fixtures, and Tooling
PARP10 delivers polycarbonate-like mechanical performance in a photopolymer resin — 2300 MPa flexural modulus, 109 MPa flexural strength, and 23% elongation at break. It handles the structural demands of industrial jigs, camera mounts, protective casings, and brackets that must survive long-term use in production environments without creep, fracture, or dimensional drift.
Polycarbonate-like
High Load-Bearing
End-Use Structural
Surface & Hardness Properties
Surface Hardness2H (pencil hardness — car paint equivalent)
Surface Smoothness600–1000 grit equivalent as-printed
Anti-YellowingYes — long-term color stability
ColorsOrange Clay (this SKU)
Compatible PrintersFull Reflex lineup (all models)
Pulsing Module RequiredNo
Durability
3350 J/m² Work of Fracture — Tough Rapid Prototyping Resin
Smooth Surface Performance
600–1000 Grit Surface Smoothness — Straight Off the Printer, No Sanding
PARP10 prints with a surface finish equivalent to 600–1000 grit sanding. For jewelry designers and prototype makers who would otherwise spend significant time sanding surfaces before finishing, PARP10 eliminates that step entirely on most geometries. The smooth molding surface is print-ready for priming, painting, and direct display — reducing production time per unit and making high-volume figure runs economically viable on desktop resin printers.
600–1000 Grit
No Sanding Required
Paint-Ready Surface
Smooth Molding
Production Efficient
2H
Surface Hardness
Pencil hardness — car paint equivalent
3350
J/m² Work of Fracture
ISO — good damage resistance
±0.05
mm Tolerance
High dimensional accuracy
Precision
Orange Clay — Warm Tone Ideal for Jewelry and Mold Prototyping
Sub-50-Micron Accuracy
Dimensional Accuracy That Holds Up Under Thermal and Mechanical Load
With ±0.04 mm printed part tolerance and a 60°C / 140°F heat deflection temperature, PARP10 maintains its geometry through normal manufacturing environments. Assembly fixtures, component locators, and QC inspection jigs printed in PARP10 hold their critical dimensions across the production lifecycle — a level of accuracy previously achievable only with machined tooling.
Dimensional Tolerance±0.04 mm (sub-50-micron)
Heat Deflection Temp60°C / 140°F (ASTM D648)
Elongation at Break23% (ductile, not brittle failure)
Flexural Modulus2300 MPa (geometry retention under load)
Orange Clay
Assembly Jigs
Part locators and fixture references hold their critical dimensions across hundreds of use cycles — no recalibration required.
Inspection Fixtures
Dimensional gauging fixtures printed in PARP10 maintain reference accuracy without the machining cost of aluminum alternatives.
Component Locators
Snap-fit and press-fit locators printed in PARP10 maintain their interference dimensions under thermal cycling in normal manufacturing environments.
Applications
Where PARP10 Delivers — Jewelry Prototypes, Mold Patterns, and Finely Detailed Models
Rapid Prototyping Applications
From Jewelry Prototypes to Figurines — Any Model That Needs Fine Detail and Matte Surface
PARP10 is built for products that get touched, moved, and used. 2H surface hardness, 600–1000 grit smoothness, anti-yellowing stability — the complete package for production-quality figures and end-use parts.
Application 01
Jewelry Prototypes
Orange Clay tones provide skin-tone neutral bases. 600–1000 grit surface smoothness as-printed eliminates manual sanding. Anti-yellowing ensures consistent color across production batches.
Application 02
Mold Patterns
High-accuracy mold patterns for silicone and urethane casting workflows. 0.1mm detail and ±0.05mm tolerance ensure cavity definition transfers accurately to cast parts. Matte surface reduces reflections that complicate mold inspection.
Application 03
Figurines & Collectibles
Character figurines, statue models, and collectible production where 0.1mm detail captures scale facial features, costume textures, and fine surface detail. Matte finish looks display-quality straight from post-cure.
Application 04
Tabletop Chess & Game Pieces
Figure statues, chess pieces, and game tokens requiring smooth surfaces and wear resistance from repeated handling. PARP10's surface quality holds up through years of tabletop use.
Application 05
Scale Replicas
Anti-yellowing formulation and 2H wear resistance suit outdoor equipment components exposed to UV and physical contact — longer service life than standard photopolymers in field environments.
Application 06
Rapid Prototyping
General-purpose rapid prototyping where high detail and matte surface quality matter. PARP10's 3350 J/m² toughness means prototypes survive the iteration cycle — support removal, handling, and design review — without breakage.
Compatible With Every HeyGears Reflex Printer
PARP10 Works With Your Reflex 2, Reflex 2 Pro, and the Full Reflex Lineup — Order Now.
Product Details
PARP10 — Rapid Prototyping Modeling Resin
PARP10 — CREAM YELLOW / 1,000 g · 3,000 g · 5,000 g
Orange Clay
Rapid Prototyping Modeling Resin
Rapid Prototyping Modeling Resin
Warm cream-yellow skin-tone neutral with 2H surface hardness and 600–1000 grit smoothness as-printed. Anti-yellowing stability for consistent batch-to-batch color matching. Ideal for jewelry prototypes, mold patterns, figurines, and rapid prototyping workflows. Compatible with the full Reflex lineup including Reflex 2 and Reflex 2 Pro.
Orange Clay
2H Hardness
Anti-Yellowing
Full Reflex Lineup
Jewelry / Prototyping
PARP10 — CREAMY / 1,000 g · 3,000 g · 5,000 g
Orange Clay
Rapid Prototyping Modeling Resin
Rapid Prototyping Modeling Resin
Cool, lighter neutral tone. Same 2H hardness, 600–1000 grit surface smoothness, and anti-yellowing properties as Orange Clay — with a slightly cooler, lighter base for applications where a near-white neutral is preferred. Compatible with the full Reflex lineup including Reflex 2 and Reflex 2 Pro.
Orange Clay White
2H Hardness
Anti-Yellowing
Full Reflex Lineup
Consumer Products
Technical Specifications
PARP10 Complete Material Data
Material Type
Photopolymer Resin (UV Cure)
Material Behavior
Wear-resistant production resin
Colors
Orange Clay, Orange Clay
Pack Sizes
1 kg, 3 kg, 5 kg
Surface Hardness
2H (pencil hardness — car paint equivalent)
Surface Smoothness
600–1000 grit equivalent as-printed
Anti-Yellowing
Yes — long-term color stability
Wear Resistance
High — suitable for contact and movable parts
Primary Applications
Jewelry prototypes, mold patterns, figurines, rapid prototyping, outdoor equipment
Compatible Printers
RS Turbo, RS, Reflex 3D, Reflex Turbo, Reflex 2, Reflex 2 Pro
Pulsing Module Required
No
Compatible Software
HeyGears Blueprint Studio
Price (1 kg)
$49.99 (clearance from $59.00)
Price (4 kg)
$199.96
Shelf Life Notice
Outside US/Japan: <6 months remaining — performance unaffected when stored correctly
Storage
Cool, dark, UV-free — sealed when not in use
Package Contents
What's Included

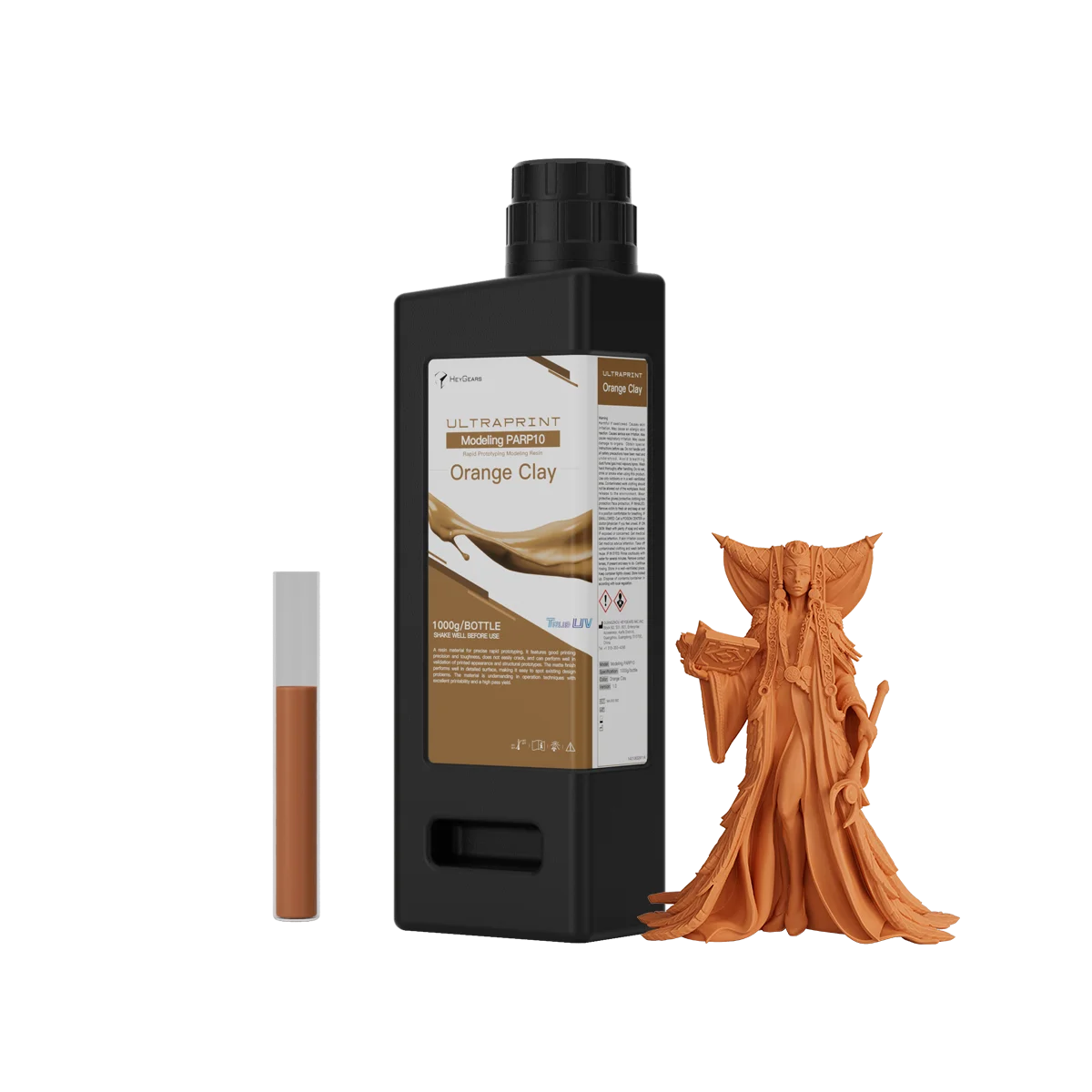

PARP10 Resin Bottle(s)
One or more 1,000 g bottles of UltraPrint Modeling PARP10 in Orange Clay (pack size selected above). Sealed for safe transport and storage. Store in a cool, dark environment away from UV sources.
Material Safety Sheet
Full material safety data sheet (SDS) for safe handling, storage, and disposal. UV-curing photopolymer resin — protective gloves and ventilation required during printing and post-processing.
Blueprint Studio Profile
Print parameters for PARP10 are pre-configured in HeyGears Blueprint Studio. Load PARP10 as your material and print — no manual calibration required for compatible Reflex Series printers.
Industries Served
PARP10 Across Jewelry, Prototyping, and Creative Production
Figure & Doll Production
Jewelry Prototypes and Mold Patterns
Jewelry designers and prototyping studios use PARP10 for its smooth molding surface, skin-tone neutral colors, and anti-yellowing stability. Orange Clay provides consistent batch-to-batch color matching for multi-part assemblies.
Consumer Electronics
Casings and Enclosures
Consumer electronics housings, device enclosures, and shell parts where 2H surface hardness and smooth molding surface match injection-molded production quality. Ideal for rapid prototyping and short-run production.
Automotive & Industrial
Consumer Product Concepts and Scale Replicas
Automotive interior trim prototypes and outdoor equipment components where car paint grade surface hardness and UV/wear resistance are required for functional validation in real-use conditions.
Applications in the Field
PARP10 Rapid Prototyping Resin in Production Environments
70%
Cost Reduction
Automotive
Assembly Fixture Lead Time Cut from 3 Weeks to 48 Hours
A Tier-1 automotive supplier replaced machined nylon fixtures with PARP10 printed parts. The switch reduced fixture lead time from 3 weeks to 48 hours and cut tooling cost by 70% — with no loss in dimensional accuracy across a 6-month production run.
Read Case Study →
500+
Production Cycles
Industrial Manufacturing
PCB Inspection Jigs in PARP10 Survive 500+ Cycles Without Replacement
A contract electronics manufacturer printed PCB testing jigs in PARP10. Where previous resin jigs failed at 50–100 cycles due to surface wear and dimensional drift, PARP10 jigs maintained ±0.04 mm accuracy beyond 500 production cycles — eliminating monthly retooling.
Read Case Study →
24h
To Production Floor
Defense / Aerospace
Field-Deployable Sensor Mounts Printed in PARP10
A defense contractor qualified PARP10 for non-structural sensor mounting brackets and cable management components. Polycarbonate-like stiffness and impact resistance met MIL-spec handling requirements — and parts were on the production floor within 24 hours of design finalization.
Read Case Study →
Material Comparison
PARP10 vs Other Rapid Prototyping Resins
| Property | PARP10 (HeyGears) | Standard Tough Resin | ABS-like Resin | Unit |
|---|---|---|---|---|
| Flexural Modulus | 2300 | 1800 | 2100 | MPa |
| Flexural Strength | 109 | 65 | 80 | MPa |
| Work of Fracture | 5400 | 2000 | 1500 | J/m² |
| Elongation at Break | 23 | 15 | 8 | % |
| Impact Strength | 35 | 30 | 25 | J/m |
| Heat Deflection Temp | 60 | 55 | 50 | °C |
| Dimensional Tolerance | ±0.04 mm | ±0.1 mm | ±0.1 mm | — |
| Wear Resistance | Excellent | Moderate | Low | — |
| Surface Finish | Smooth | Moderate | Moderate | — |
* Data from HeyGears Lab and published material datasheets. Competitor values are representative of standard commercial resins. Results may vary. ±10% deviation applies.
Why Buy From Rev1
Authorized HeyGears Partner — Engineering Support Included
Sold & Supported By
Authorized Partner
Authorized HeyGears Reseller
Rev1 is a certified HeyGears partner. Every PARP10 bottle is genuine HeyGears material with full manufacturer support and warranty. No gray-market product, no third-party repackaging.
Application Engineering Team
Rev1's engineering team operates HeyGears printers daily. We qualify materials in-house, run sample prints, and provide application guidance specific to your tooling or structural component requirements.
In-Person Demo Available
See PARP10 print live at Rev1's Auburn Hills facility. Bring your part files — we'll run them and walk through results with you. Or schedule a demo at your facility anywhere in the U.S.
US Warehouse — Fast Shipping
PARP10 ships from US warehouse stock. Same-day or next-day ship on in-stock quantities. Free shipping on orders over $399 anywhere in the U.S.
Free Sample Print Program
Not sure if PARP10 is the right material for your application? Send your STL to (248) 707-2950. We'll print it on a Reflex 2 and ship you the result — at no charge.
Full HeyGears Ecosystem
Rev1 supplies the complete HeyGears stack — printers, the required Pulsing Release Module Kit, wash/cure stations, and the full resin lineup. One source for your entire HeyGears investment.
Complete Your Setup
Related Products
Common Questions
PARP10 Frequently Asked Questions
What is the difference between PARP10 Orange Clay and PARP10 Black?
Both grades have identical mechanical properties and ±0.05mm dimensional accuracy. The difference is detail resolution and printer compatibility. PARP10 Black achieves 2H hardness vs HB for Orange Clay — sharper edges and finer mesh structures. PARP10 Black is compatible with RS Turbo, RS, Reflex 3D, and Reflex Turbo only. PARP10 Orange Clay adds compatibility with Reflex 2 and Reflex 2 Pro. Orange Clay is also preferred for painting and finishing workflows — the neutral grey base is ideal for priming and detail painting.
Which HeyGears printers is PARP10 compatible with?
PARP10 Orange Clay: compatible with RS Turbo, RS, Reflex, Reflex Turbo, Reflex 2, and Reflex 2 Pro — the full Reflex lineup. PARP10 Black: compatible with RS Turbo, RS, Reflex 3D, and Reflex Turbo only. It is not compatible with Reflex 2 or Reflex 2 Pro. Check compatibility before ordering if you are using a Reflex 2 series printer.
Does PARP10 require the Pulsing Release Module Kit?
No — PARP10 does not require the Pulsing Release Module Kit. It prints on standard Reflex printers with the standard resin tank. This is a significant difference from some other HeyGears engineering resins. All print parameters are pre-configured in HeyGears Blueprint Studio — no manual calibration required.
How does PARP10's 3-year dimensional stability work?
PARP10 is formulated to maintain ±0.05mm dimensional accuracy over 3 years of indoor placement. This means printed parts will not creep, warp, or shrink during storage or display. This is verified by HeyGears Lab testing. For outdoor or high-UV-exposure applications, dimensional stability may be reduced — PARP10 is designed for indoor use.
Can Rev1 print a sample in PARP10 before I purchase?
Yes. Rev1 operates HeyGears Reflex 2 and Reflex 2 Pro printers in-house in Auburn Hills. Send your STL to (248) 707-2950 and we'll print it in PARP10 Orange Clay and ship it to you — at no charge. This is the best way to evaluate detail resolution and surface quality for your specific model before committing to a material order.
What pack size should I order?
1 kg is ideal for evaluation, prototyping, or low-volume hobby use. 3 kg provides better per-bottle economics for regular production — the 3-year shelf stability means you won't waste resin if production cycles are slow. 5 kg is designed for commercial miniature production studios and high-volume users. All three pack sizes are available in both Orange Clay and Black.
What is the shelf life and storage requirement for PARP10?
Store PARP10 in a cool, dark location away from UV sources. Keep the bottle sealed when not in use. Avoid temperatures above 30°C. Under proper conditions, shelf life is typically 12 months from manufacture date. The 3-year dimensional stability spec applies to printed and cured parts — not to uncured resin in the bottle.
