SHINING 3D BlueStar Mapping Photogrammetry · AI Mainbody Detection · Texture Fusion · True-Color 3D
Intelligent texture-mapping software that maps multi-angle photos from a phone or DSLR onto your 3D scan data — producing true-color models with high precision and exceptional clarity in about 30 minutes.
BlueStar Mapping combines photogrammetry, AI mainbody detection, texture fusion, and a real-time seam editor to deliver higher accuracy and faster texturing. Import an STL or OBJ mesh from any SHINING 3D scanner, add multi-angle photos from a smartphone or DSLR, and the intelligent workflow bakes flawless-edge textures with mapping error at or below 0.1 mm — exportable at 4K, 8K, or multiple 16K resolutions. Full specifications →
Rev1 confirms scanner pairing, camera workflow, and output-resolution fit before you license — authorized SHINING 3D software reseller and US support partner. Questions? Call (248) 707-2950.
Authorized SHINING 3D Software Reseller in the USA.
BlueStar Mapping is built by SHINING 3D — 20 years in 3D scanning with 400+ authorized patents — and pairs photogrammetry with AI-driven texture fusion for true-color results. Rev1 Technologies is your authorized SHINING 3D reseller and US application-support partner, Auburn Hills, Michigan.
Photos In, True-Color 3D Out. One Intelligent Workflow.
BlueStar Mapping is intelligent texture-mapping software purpose-built for 3D scanning. It precisely maps multi-angle photos captured on a smartphone or DSLR onto your scanned mesh, generating high-precision, exceptionally clear, true-color 3D models. Combining photogrammetry, AI mainbody detection, texture fusion, and a real-time seam editor, an engineer can complete texturing and refinement in roughly 30 minutes through an automatic, guided workflow.

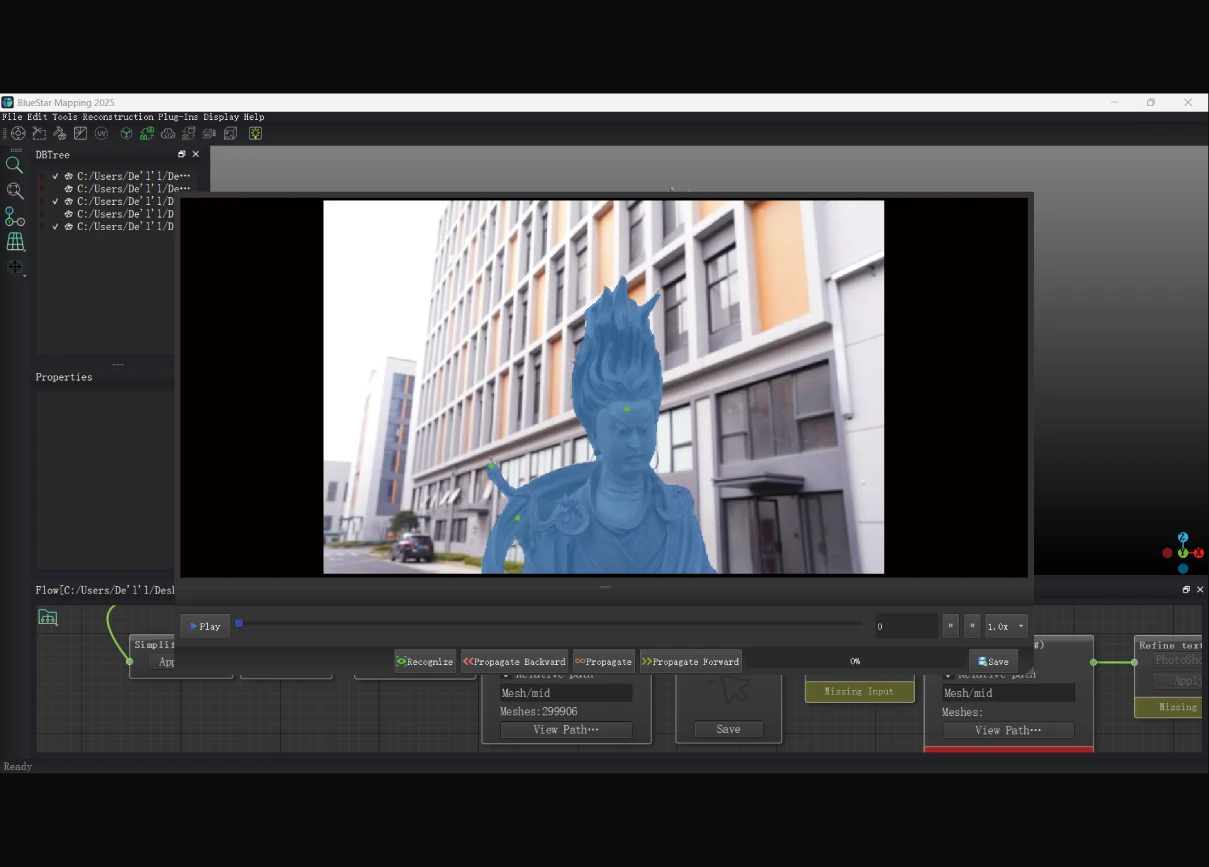

Isolate the Object Automatically. Learn Once, Apply to All.
Interactive Semantic Segmentation
BlueStar Mapping uses interactive semantic segmentation to automatically extract the object body from each photo, cleanly separating your subject from a busy background. Mark the mainbody once and the software applies that understanding across the whole photo set — no frame-by-frame masking. The result is a clean, distraction-free texture source that keeps the true color of the object and nothing else.

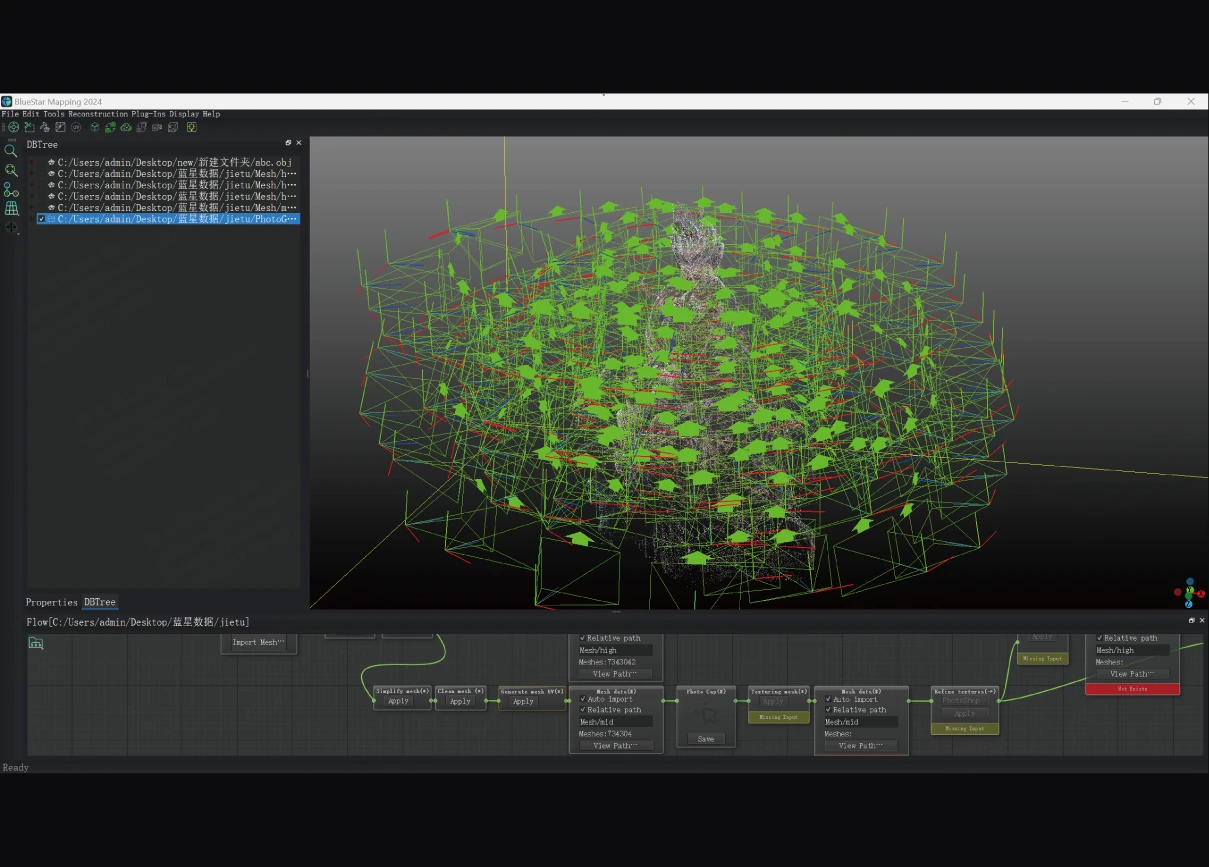

Relative Orientation Solves Every Camera Position.
Photogrammetric Alignment, Fully Automatic
Following photogrammetric principles, the relative-orientation engine calculates the position of every photo and generates a sparse point cloud that ties the images to your mesh. It handles mixed photo parameters from diverse cameras, so a set shot on different phones and DSLRs still aligns correctly. Accurate camera solving is what makes the downstream texture fusion land with sub-0.1 mm mapping precision.

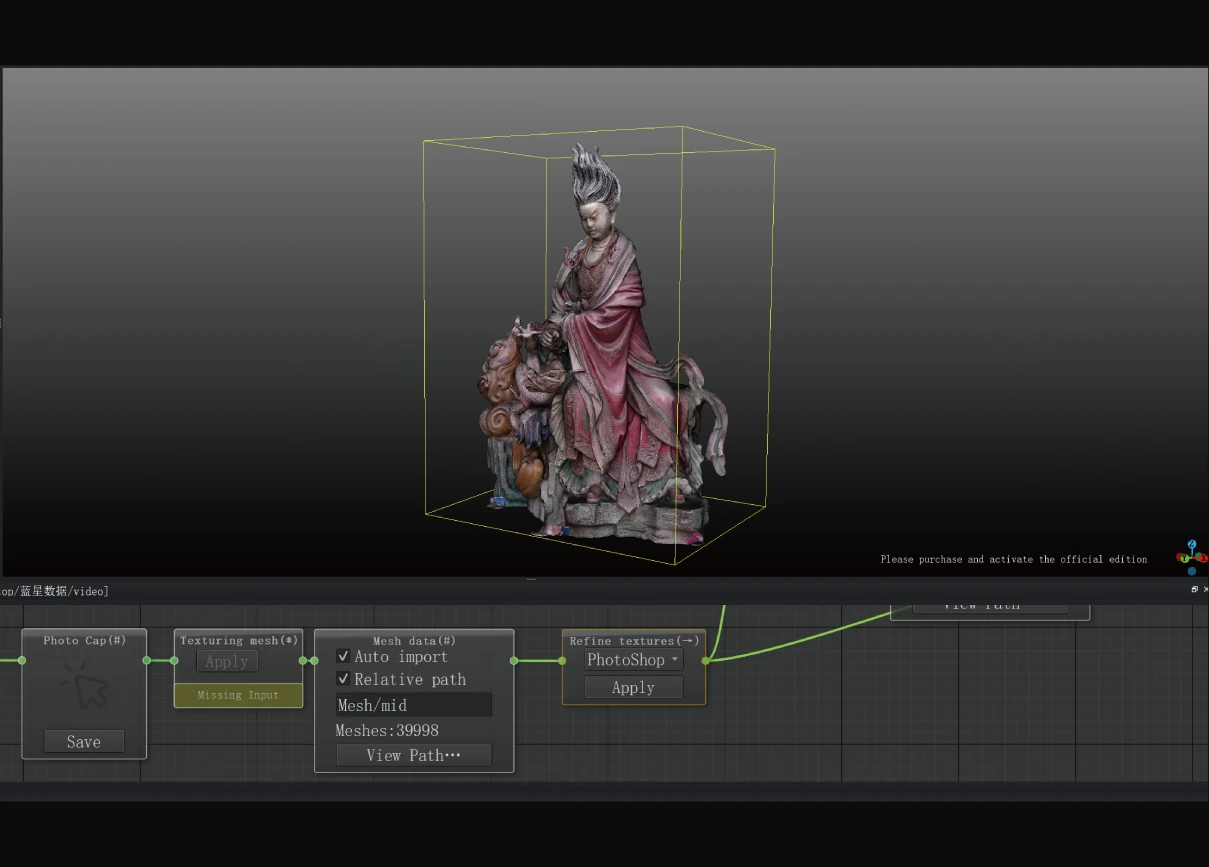

Scan Data In. Refine in Photoshop. Update Automatically.
From Single-Click Import to Refined Final Texture
Import: single-click data transfer from SHINING 3D scanning software brings your mesh straight in. Texture: the guided node graph runs segmentation, orientation, baking, and fusion in sequence. Refine: the seam editor, global uniform, and a live Adobe Photoshop round-trip let you polish textures — edits made in Photoshop update automatically back in the main application. One continuous pipeline, no manual hand-offs.

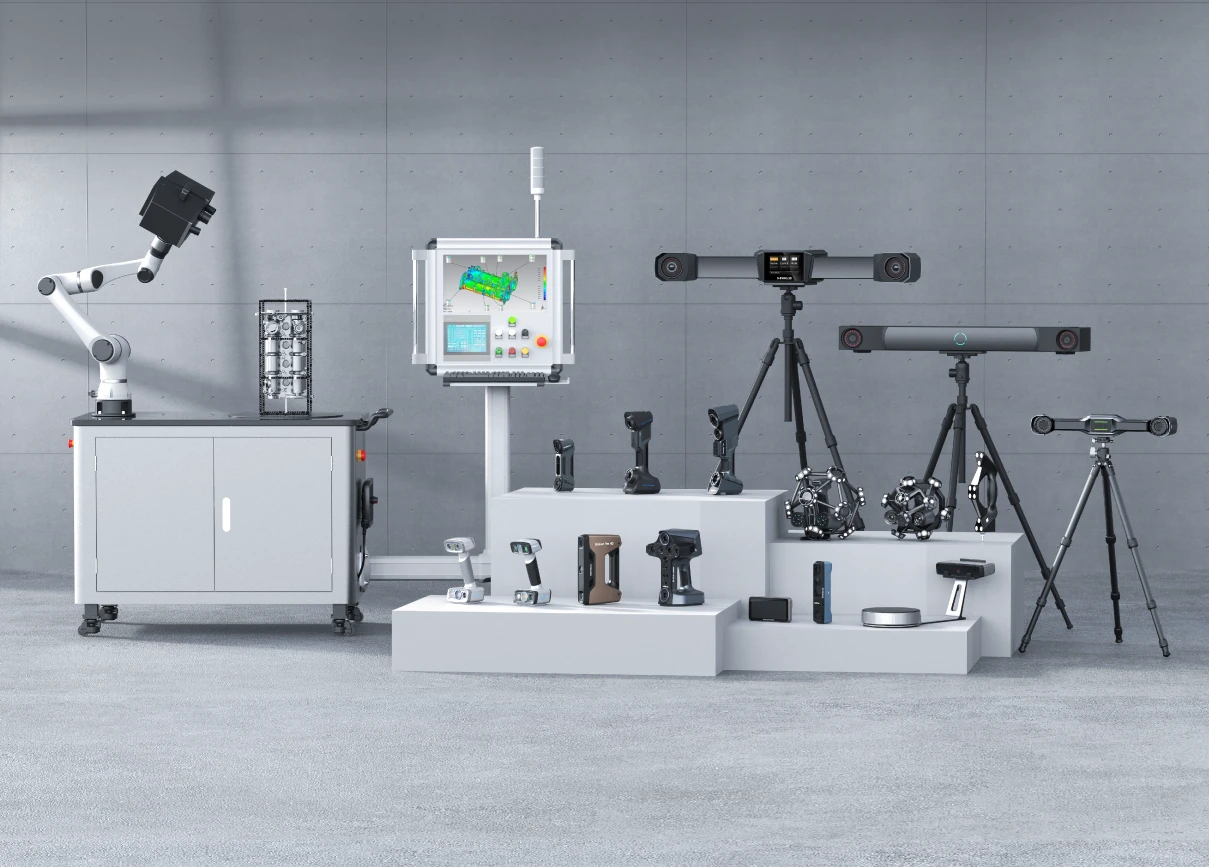

Works With Every SHINING 3D Scanner. Any Camera.
Open Import, Broad Output
BlueStar Mapping works with all SHINING 3D scanners and imports standard .STL and .OBJ mesh files, so it slots into a pipeline you already run. It accepts photos from smartphones and DSLR cameras — even mixed parameters across a single set — and exports to OBJ, PLY, FBX, STL, OFF, and other universal 3D formats. Texture output reaches multiple 16K resolution at 102 dpi, 24-bit JPG.
True-Color 3D for Visualization, Heritage, and Games.
Wherever a photorealistic, true-color 3D model matters. Pair BlueStar Mapping with the right SHINING 3D scanner and book a live texturing demo on your own parts and photo sets.

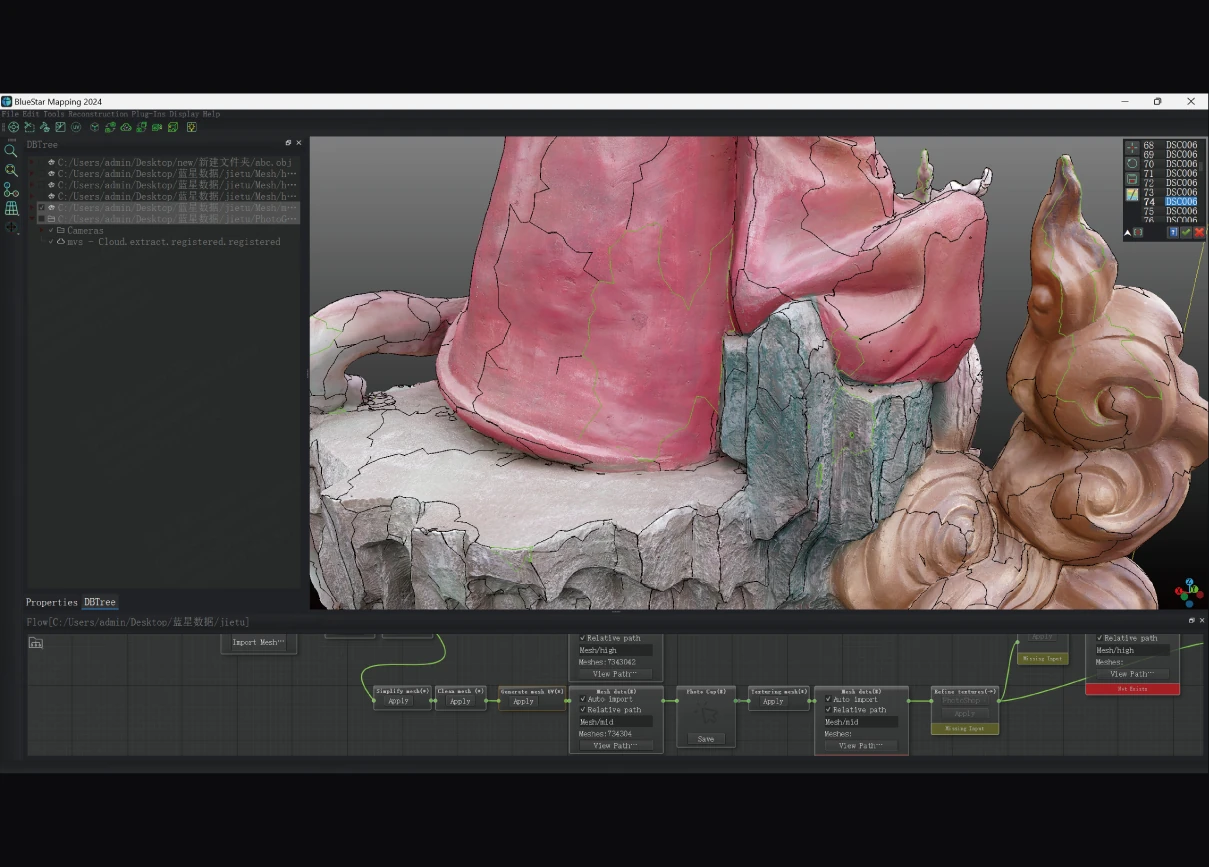

Flawless-Edge Fusion, Balanced Across the Whole Model
The seam editor creates real-time, editable seams with selection weights that filter distortion textures out of the final result, while Global Uniform balances brightness and contrast across every texture seam. Together they deliver flawless edge fusion below 0.1 mm and a consistent, believable surface — the finish that VR e-commerce, heritage archives, and game pipelines demand.
BlueStar Mapping — Premium License, Maintenance, and Training.
The Premium perpetual license is $4,980 and unlocks output up to multiple 16K textures. A free tier is available for 4K output. Add a maintenance plan and operator training as needed — Rev1 provisions and supports every seat from the US.
BlueStar Mapping vs. RealityCapture vs. Agisoft Metashape
How BlueStar Mapping compares on the capabilities that decide a texture-mapping software purchase — scan integration, AI automation, refinement, and output resolution.
| Capability | BlueStar Mapping | RealityCapture | Agisoft Metashape |
|---|---|---|---|
| Purpose | Texture-mapping onto scan meshes | Full photogrammetry reconstruction | Full photogrammetry reconstruction |
| Scanner mesh import | Single-click from SHINING 3D + STL/OBJ | Manual mesh import | Manual mesh import |
| AI mainbody detection | Semantic segmentation, learn-once | Manual masking | Manual / assisted masking |
| Seam & uniform editing | Real-time seam editor + global uniform | Limited | Limited |
| Photoshop round-trip | Live auto-update | Export / re-import | Export / re-import |
| Max texture resolution | Multiple 16K | 16K+ | 16K+ |
Competitor figures are approximate, from publicly available manufacturer information, and vary by configuration and version; provided by Rev1 Technologies for general orientation. BlueStar Mapping is purpose-built to texture existing scan meshes with an AI-guided, one-stop workflow — RealityCapture and Metashape are full photogrammetry reconstruction suites. Rev1 can scope all three against your scan-to-texture pipeline.
SHINING 3D BlueStar Mapping Technical Data & System Requirements
RESOURCES
Downloads & Technical Support
Everything you need to evaluate, license, and deploy SHINING 3D BlueStar Mapping.
WHY REV1 TECH
Authorized SHINING 3D Reseller. Industrial 3D Specialists.
Rev1 Technologies is an authorized SHINING 3D partner headquartered in Auburn Hills, MI, with direct expertise in 3D scanning, texturing, and digitization workflows.
Rev1 serves manufacturers, studios, and digitization teams across the USA. We do not just sell licenses — we scope the application, configure the camera-to-texture workflow, train operators, and pair the software with the right scanner so it delivers from day one.
SHINING 3D BlueStar Mapping — questions buyers ask before licensing.
