HeyGears Reflex 2 Heating ScraperSmart Scraper-Assisted Heating
Smart Scraper-Assisted Heating for the Reflex 2 / Reflex 2 Pro — 68% Faster Resin Warm-Up, ±1°C Precision, 24% Faster Drainage

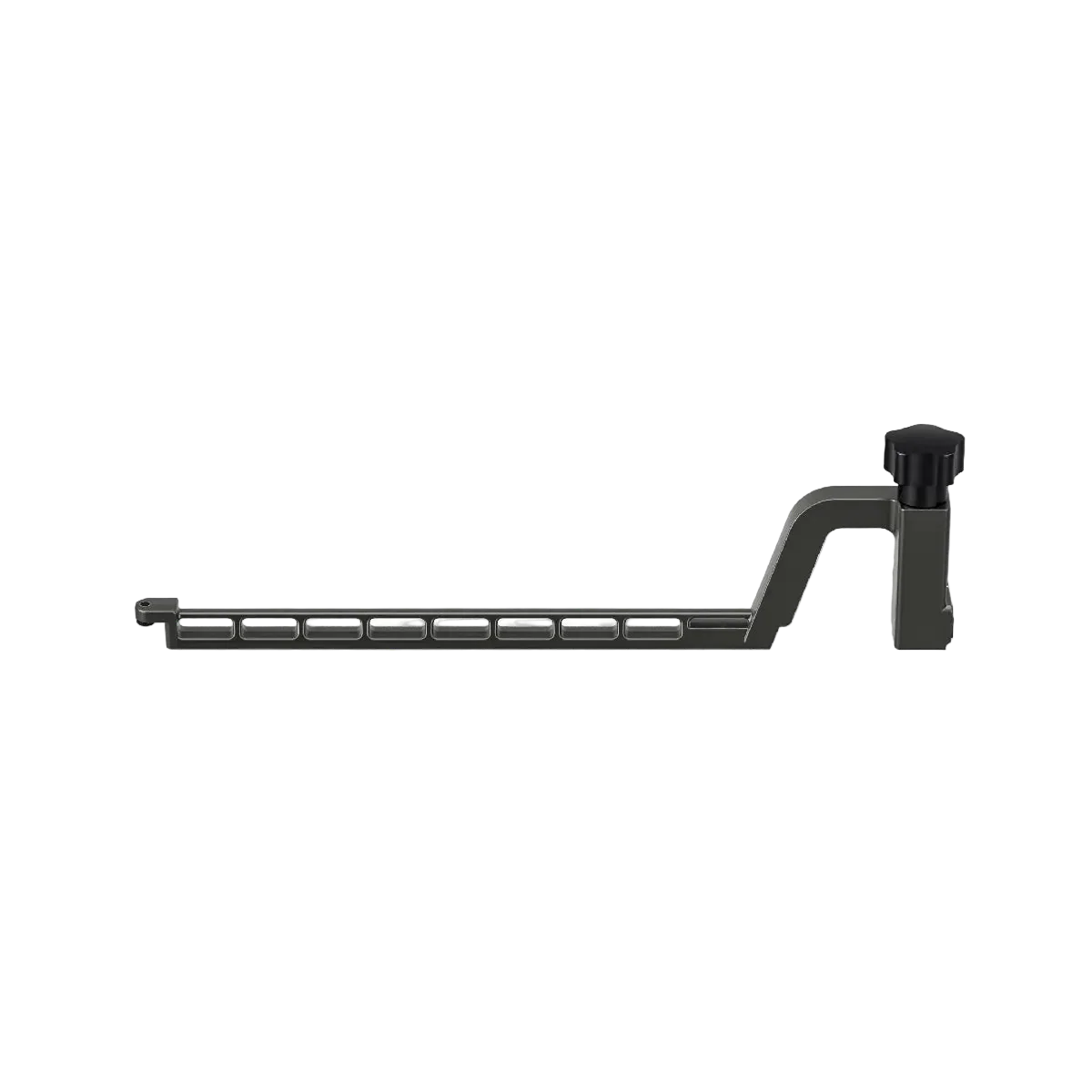

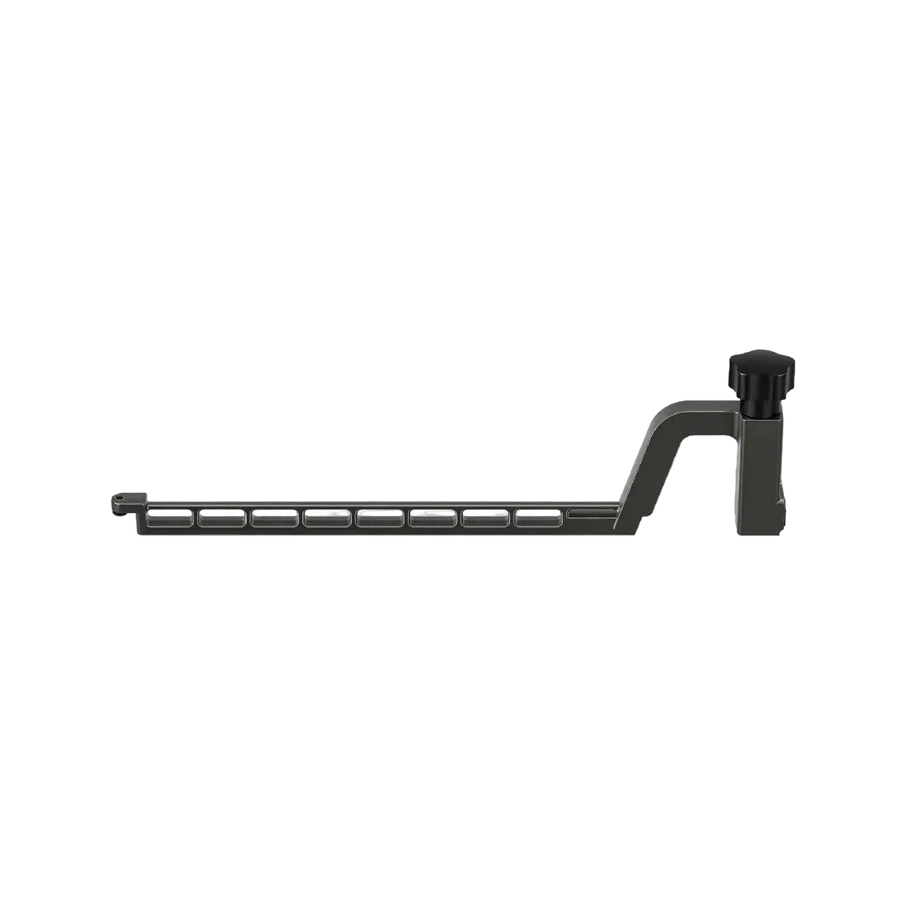

A heated, instrumented scraper that warms resin from cold and holds it at temperature throughout the print. Heats PAP10 from 10°C to 22°C in 6 minutes (68% faster than passive warm-up), maintains temperature within ±1°C during runs, and shaves 24% off drainage time on high-viscosity resins like PAU20. Full specifications →
Genuine HeyGears OEM accessory. Stocked in our US warehouse. HeyGears Material #23010300098.
Talk to a HeyGears specialist
Heat Resin Faster,
Hold It Steady, Drain Quicker
Production resins print best at a target temperature; cold resin produces flow artifacts and weak inter-layer bonding. The Heating Scraper drives PAP10 from 10°C to 22°C in 6 minutes — 68% faster than letting the printer warm passively. Translates directly to less idle time before each print and cleaner first-layer adhesion when starting a cold machine.
The scraper’s temperature sensor is closed-loop: it heats, measures, adjusts, repeats. Resin temperature stays inside a ±1°C window through the full print, eliminating the layer-quality drift you get when ambient temperature changes during a long run (overnight prints, shop temperature swings).
High-viscosity resins like PAU20 tooling resin drain slowly when cool. The scraper’s heating element warms the tank during drain (25°C → 35°C) and cuts drainage waiting time by over 24% on parts with cross-section > 40 mm. On a high-cycle production line this saves hours per shift.
Cold Shops, High-Viscosity Resins,
Production Throughput
Production lines running engineering resins. PAU20 tooling, PAH270 high-temp, PAC10 wax casting — all viscous, all temperature-sensitive. The ±1°C hold removes the most common cause of inter-batch quality variation in resin tooling shops.
Cold-environment setups. Shops that don’t climate-control the print room (garage workshops, unheated industrial spaces in winter) cold-soak the resin overnight. The scraper’s 6-minute warm-up replaces a 30-minute idle wait every morning.
High-throughput rigs running multiple resin chemistries. Faster drainage between resin swaps means more switches per shift — the throughput case for shops running PAS10 prototyping in the morning and PAH270 production in the afternoon.
Reflex 2 Series Only
The Heating Scraper’s mounting and heating-element geometry are sized for the Reflex 2 / Reflex 2 Pro chamber. It will not fit the original Reflex or the Reflex RS series — those chambers have different dimensions and currently have no equivalent heated-scraper accessory.
| HeyGears Printer | Compatibility | Notes |
|---|---|---|
| UltraCraft Reflex 2 | ✓ Compatible | Direct mount — no firmware update required |
| UltraCraft Reflex 2 Pro | ✓ Compatible | Direct mount — no firmware update required |
| UltraCraft Reflex (original) | ✗ Not compatible | Different chamber geometry — no heated-scraper accessory currently offered for this generation |
| UltraCraft Reflex RS / RS Turbo | ✗ Not compatible | Different chamber geometry — no heated-scraper accessory currently offered for this generation |
Reflex 2 Heating Scraper —
Full Spec Sheet
| Vendor SKU | 23010300098 (HeyGears Material Number) |
| Brand | HeyGears |
| Product Family | UltraCraft Reflex 2 Series |
| Component Type | Smart heated scraper / resin temperature controller |
| Compatible Printers | UltraCraft Reflex 2, UltraCraft Reflex 2 Pro |
| Warm-Up Speed | ~68% faster than passive warm-up (PAP10 reference: 10°C → 22°C in 6 min) |
| Temperature Precision | ±1°C closed-loop control during printing |
| Drainage Acceleration | ~24% faster on high-viscosity resins (PAU20 reference, parts > 40 mm cross-section) |
| Resin Compatibility | All HeyGears UltraPrint resins (greatest benefit on engineering / high-viscosity formulations: PAP10, PAU20, PAH270, PAC10) |
| Installation | Drop-in — recognized automatically by Reflex 2 firmware, no separate driver |
| Country of Origin | China (HeyGears, Guangdong) |
| Warranty | 12 months parts (HeyGears OEM) |
| Rev1 Price | $95 USD |
Authorized HeyGears Reseller
with Engineering Support
Sold and supported by Rev1 Technologies. Manufactured by HeyGears.
Rev1 is an authorized HeyGears reseller based in Auburn Hills, Michigan. We carry the full Reflex 2 / Reflex 2 Pro accessory lineup, stock it locally, and answer real questions about which parts are required for your resin chemistry, your print volume, and your production environment. We run HeyGears printers in our own additive lab.
Verified factory-fresh stock from HeyGears, with the full Reflex 2 / 2 Pro / RS accessory tree available through one channel.
We know which UltraPrint resins benefit most from heated-scraper workflows. We use HeyGears in our own lab, so the advice comes from real production runs — not a spec sheet.
Stocked in Auburn Hills, Michigan. No vendor-direct lead times, no customs surprises — the part you order ships from our floor.
Pay over time with 4 interest-free Klarna payments at checkout, or roll the scraper into a Reflex 2 / 2 Pro financing worksheet for longer terms.
High-Viscosity Resins &
Compatible Reflex 2 Modules
Frequently Asked —
Reflex 2 Heating Scraper
Is this a manual scraper or a heated tool?
Both. It scrapes resin off the build platform like a manual scraper, AND has a built-in heating element that warms the tank during pre-heat and during drain. The closed-loop temperature sensor holds the resin within a ±1°C window so layer quality stays consistent across long prints.
Will it fit my original Reflex or Reflex RS?
No. The Heating Scraper is dimensioned for the Reflex 2 generation chamber. The original Reflex and Reflex RS / RS Turbo currently have no equivalent heated-scraper accessory in HeyGears’ lineup — this is a Reflex 2 series exclusive.
Does it require a firmware update?
No. The Reflex 2 firmware recognizes the Heating Scraper automatically once it’s mounted — no over-the-air update or PC connection needed. Plug it in, the printer detects it, you can run heated workflows from the touchscreen.
Which resins benefit most from heated workflows?
High-viscosity engineering resins see the biggest gains: PAU20 tooling, PAH270 high-temp, PAC10 wax casting, PAP10 production-grade. Standard modeling resins (PAS10, PARP10) print fine without heating but get more consistent layer quality if your shop has temperature swings.
Are the 68% / 24% benchmarks reproducible in my shop?
Roughly. HeyGears benchmarked 68% on PAP10 going from 10°C to 22°C, and 24% drainage on PAU20 with parts > 40 mm cross-section. Your results depend on starting resin temperature, ambient temperature, the specific resin chemistry, and part geometry — expect the same direction (faster) but the magnitude shifts.
Is Klarna EasyPay available for this purchase?
Yes — the Heating Scraper at $95 qualifies for Klarna Pay-in-4: four interest-free payments of $23.75 every 2 weeks, no fees, no credit impact. Available at checkout. If you’re bundling with a Reflex 2 / Reflex 2 Pro printer purchase we can roll it into a longer-term Klarna financing worksheet — contact us at (248) 707-2950 or (248) 707-2950.
