HeyGearsPAF10 Flexible Resin
(PVC-like)46% Elongation - PVC-Like Flexibility
PVC-Like Flexibility — Invisible Layer Lines — All Reflex Series Compatible
46% elongation at break versus 5–10% for standard resins. Choose Volcanic Gray for matte display-quality miniatures, or PAF10 Clear for 82% light transmittance with ClearG115 coat. Pre-tuned Blueprint Studio profiles — zero setup on any Reflex printer.
Free shipping orders over $399 • Ships Auburn Hills, MI • (248) 707-2950
Why PAF10 Wins
Where Other Resins Break

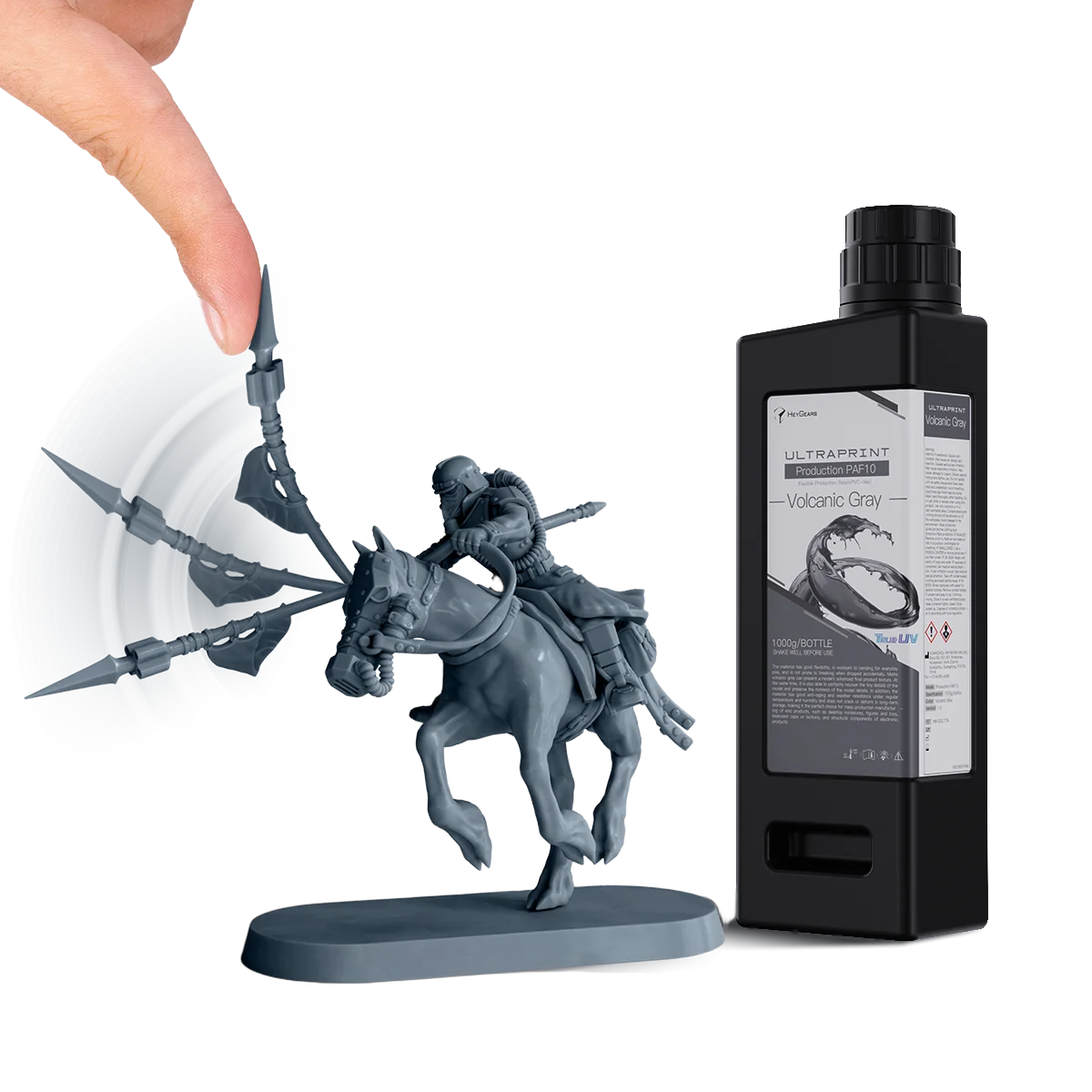

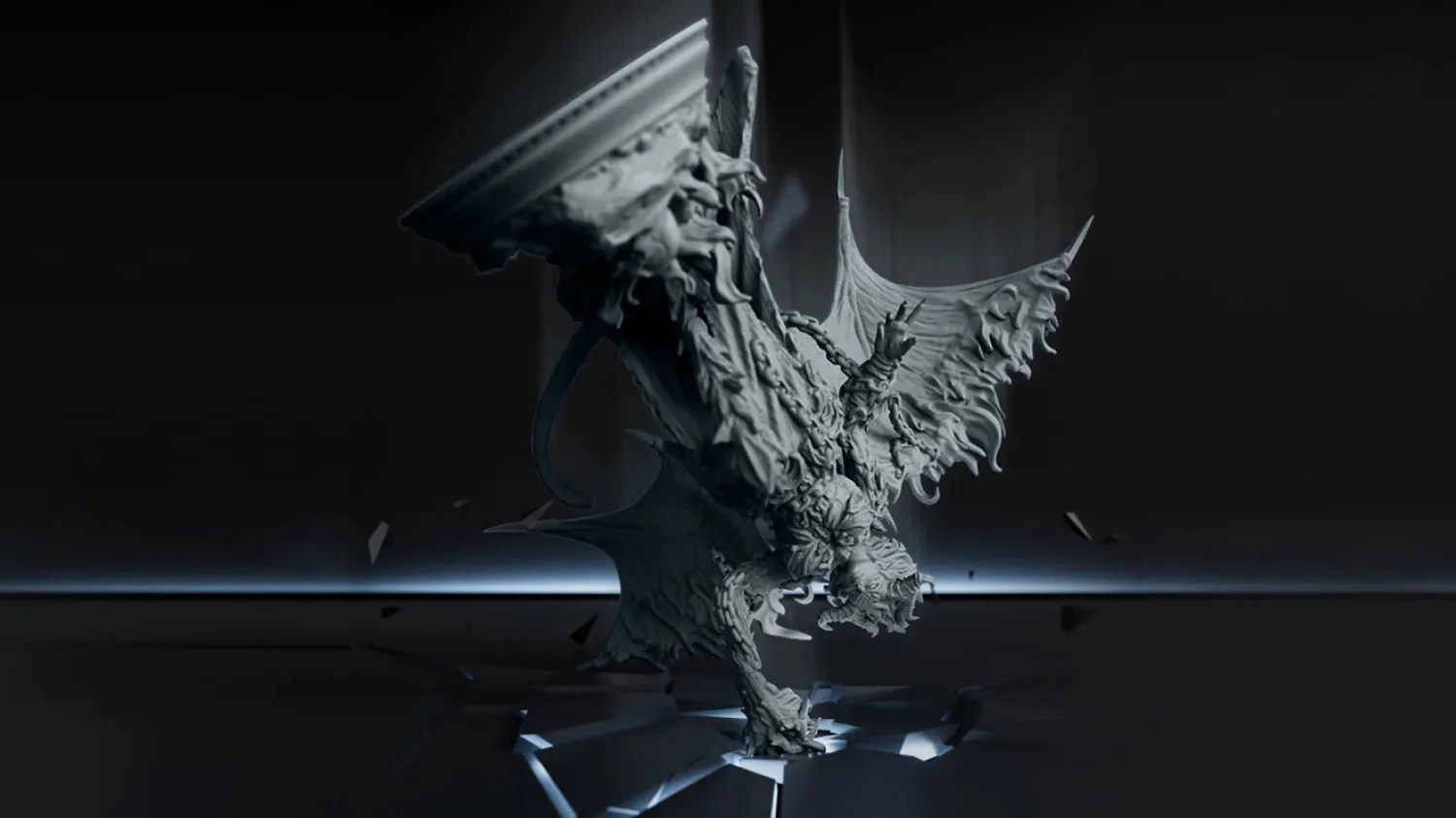

46% elongation at break versus 5–10% for standard modeling resins. Thin swords, wing tips, and fine armor details flex under stress instead of fracturing. PAF10 is engineered specifically for the structural demands of miniatures that see real handling.
Volcanic Gray delivers a matte, production-ready surface with invisible layer lines. PAF10 Clear adds 82% light transmittance for transparent functional parts and consumer electronics prototypes. Both run the same Blueprint Studio profiles — zero re-tuning between colors.

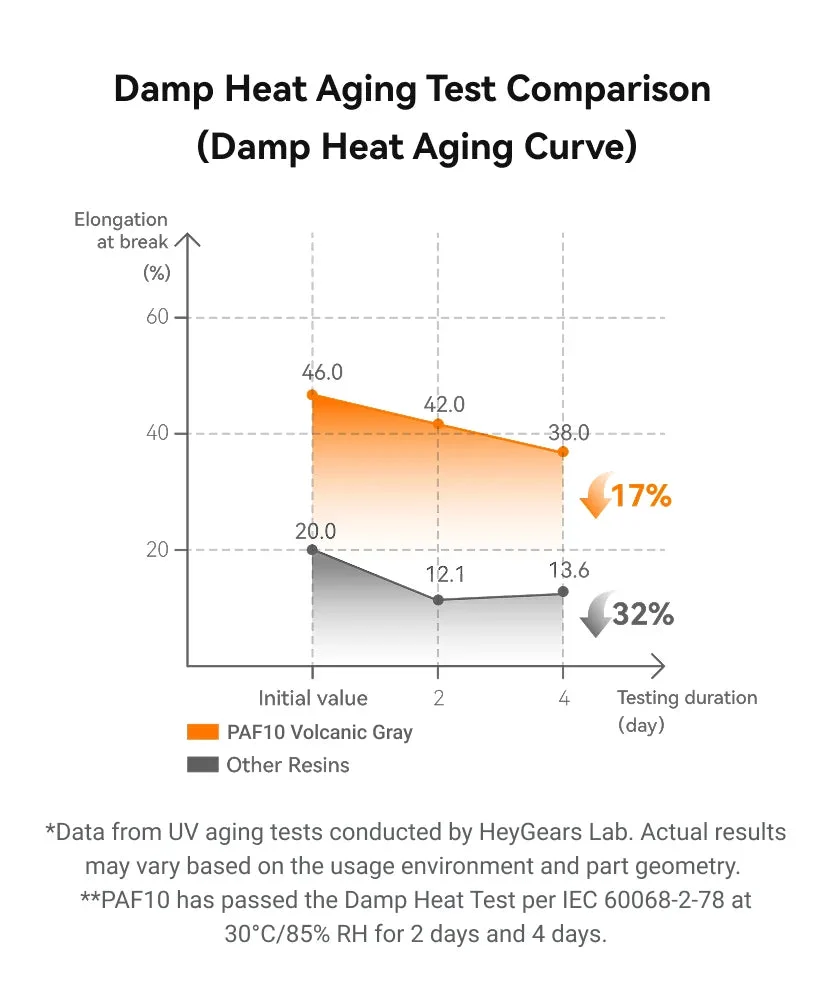

1% water sorption and proven damp-heat aging resistance (IEC 60068-2-78) mean PAF10 parts hold their properties over months, not weeks. After 4 days of damp heat testing, PAF10 retains 83% of elongation — competing resins drop to 68%.

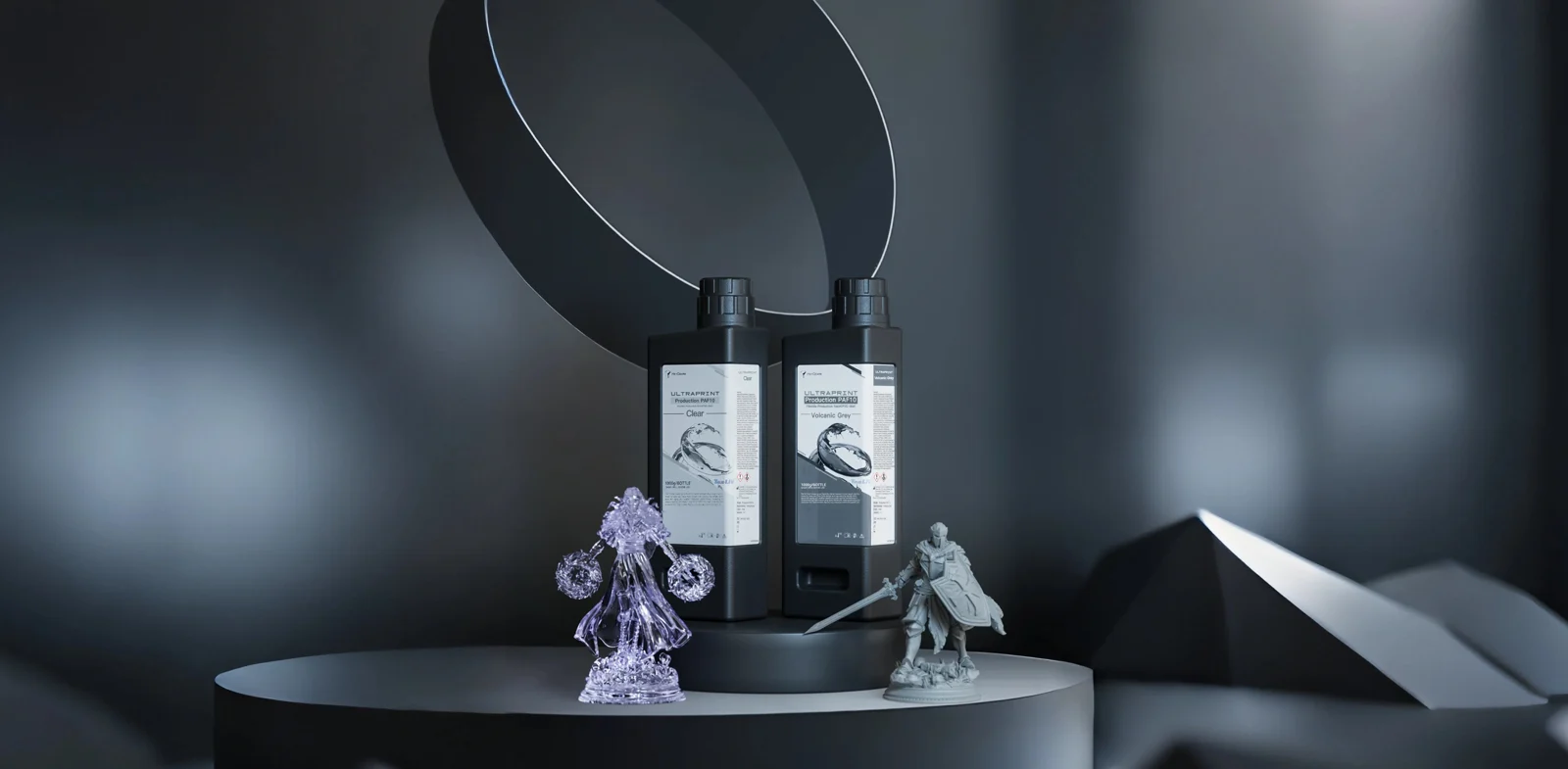

Choose What Fits
Your Application

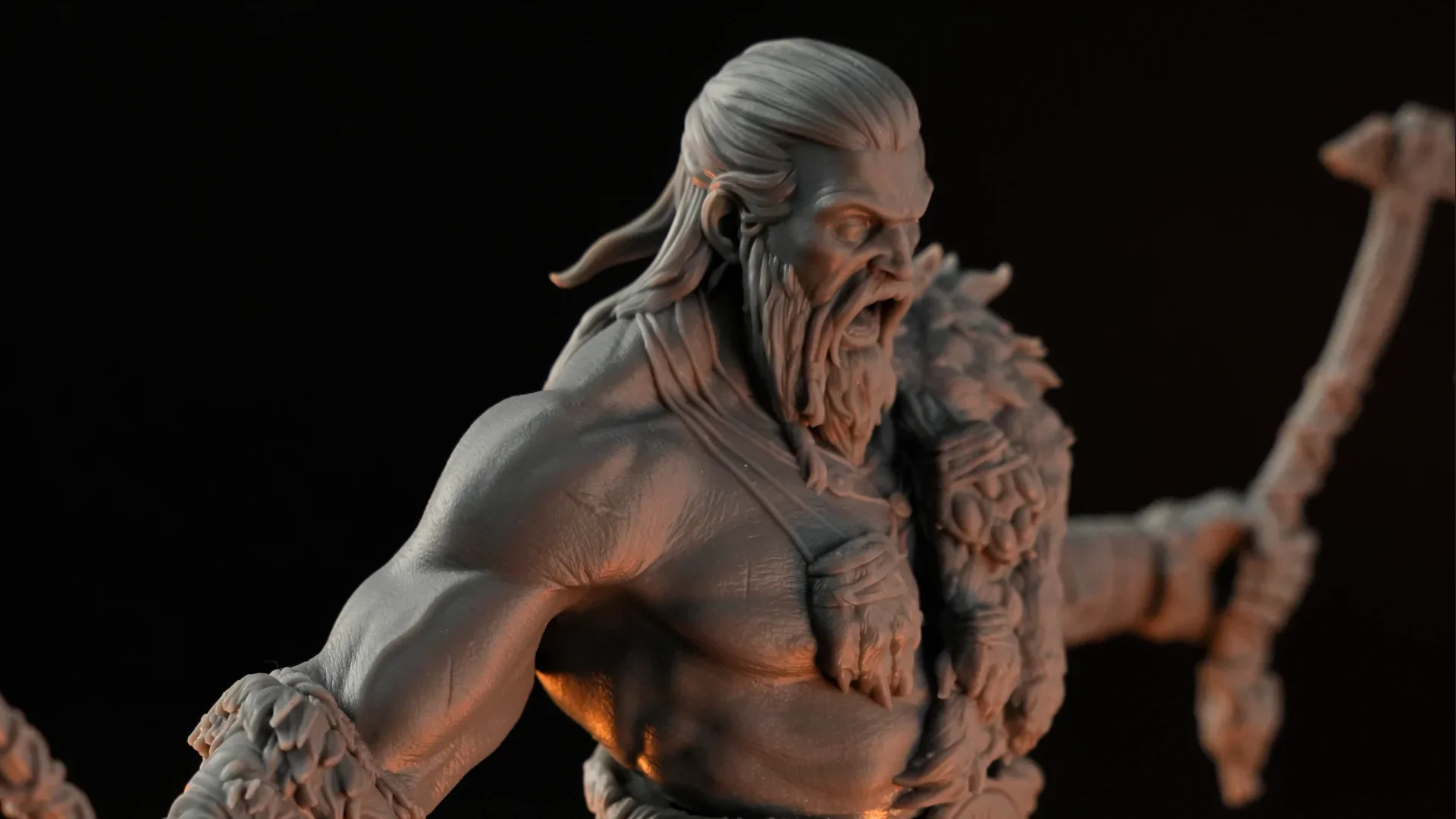

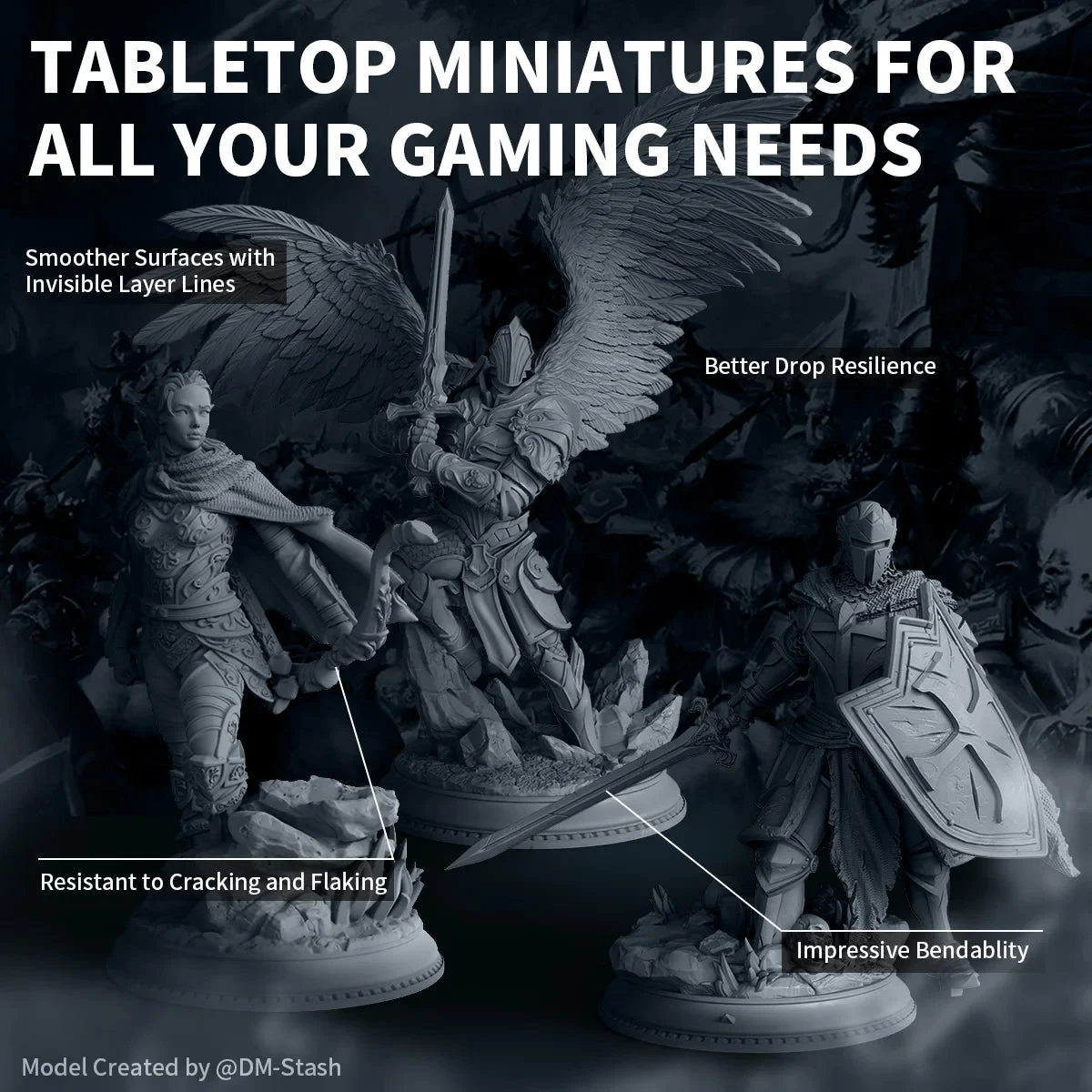

PAF10 Volcanic Gray delivers a smooth matte surface with invisible layer lines straight off the build plate. 46% elongation at break makes it the go-to for tabletop miniatures, scale replicas, and flexible functional prototypes that see real-world handling. No sanding required for display-quality results.

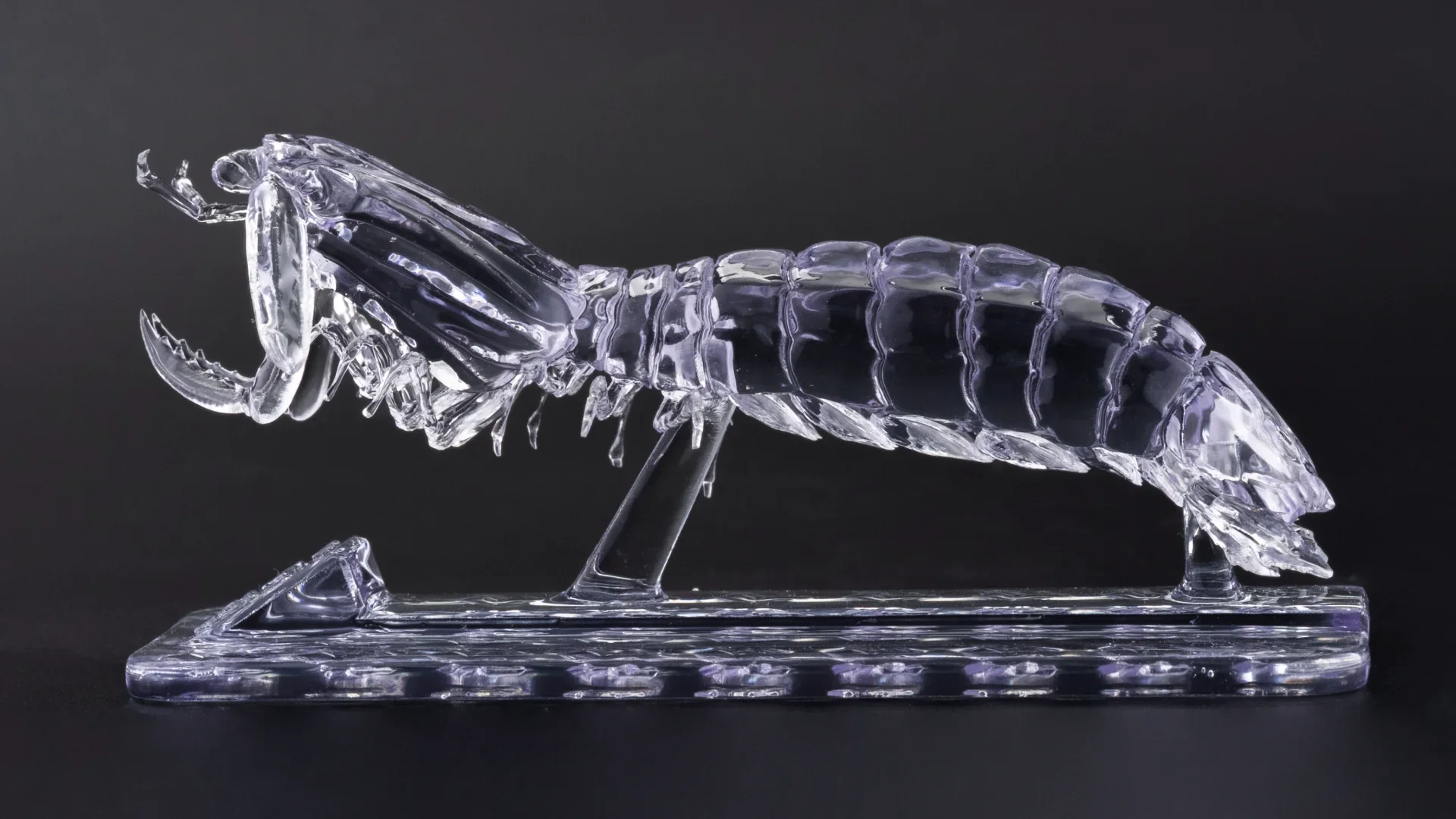

82% Light Transmittance —
Crystal-Like Clarity

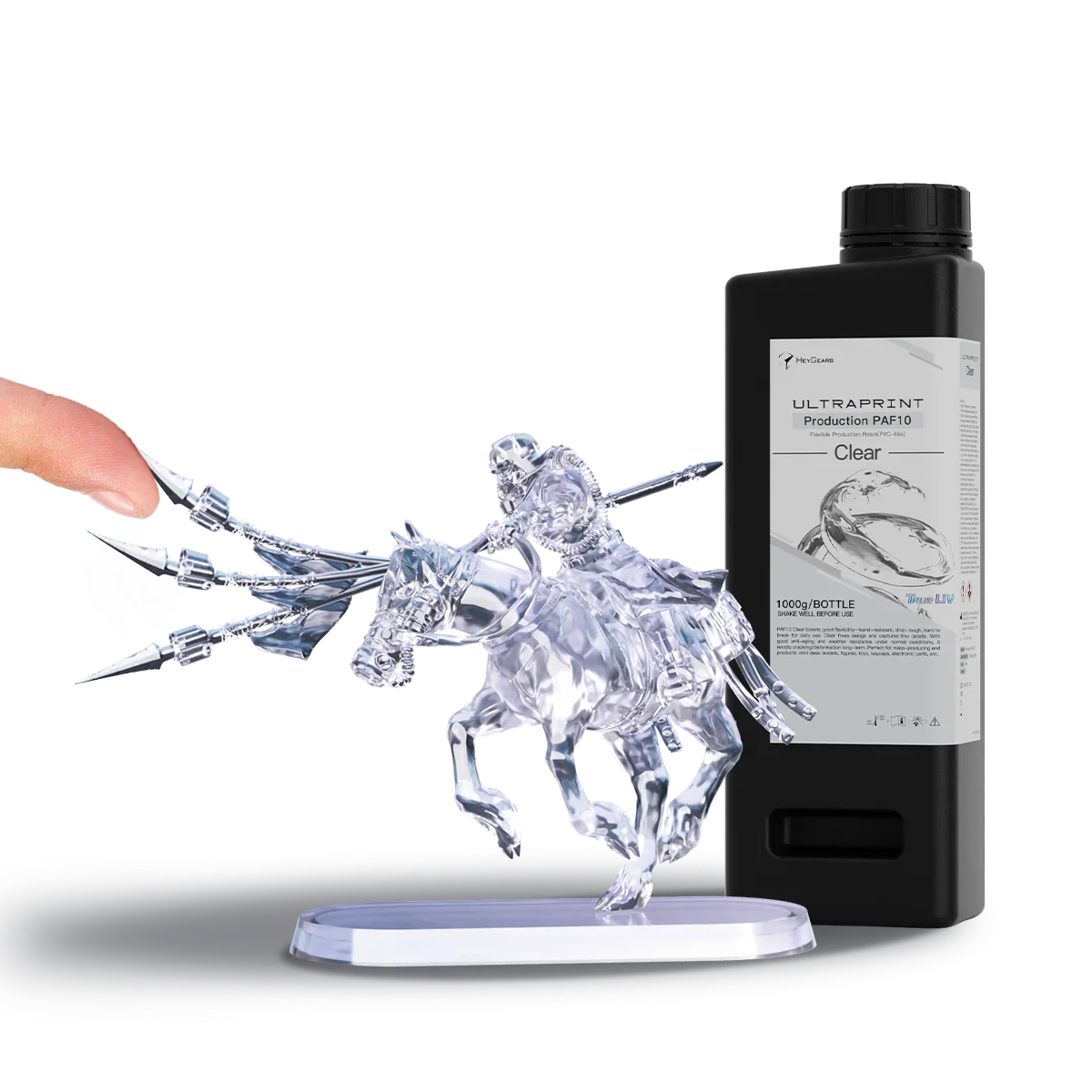

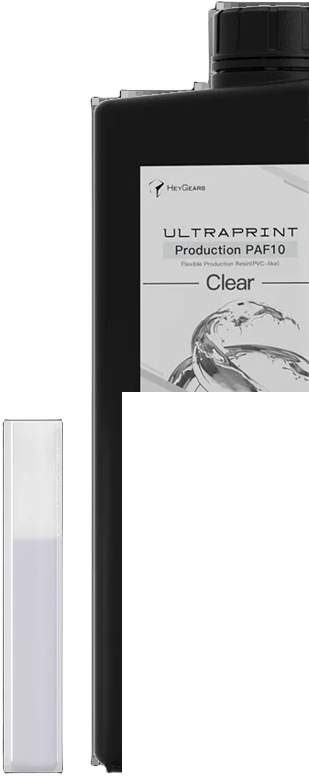

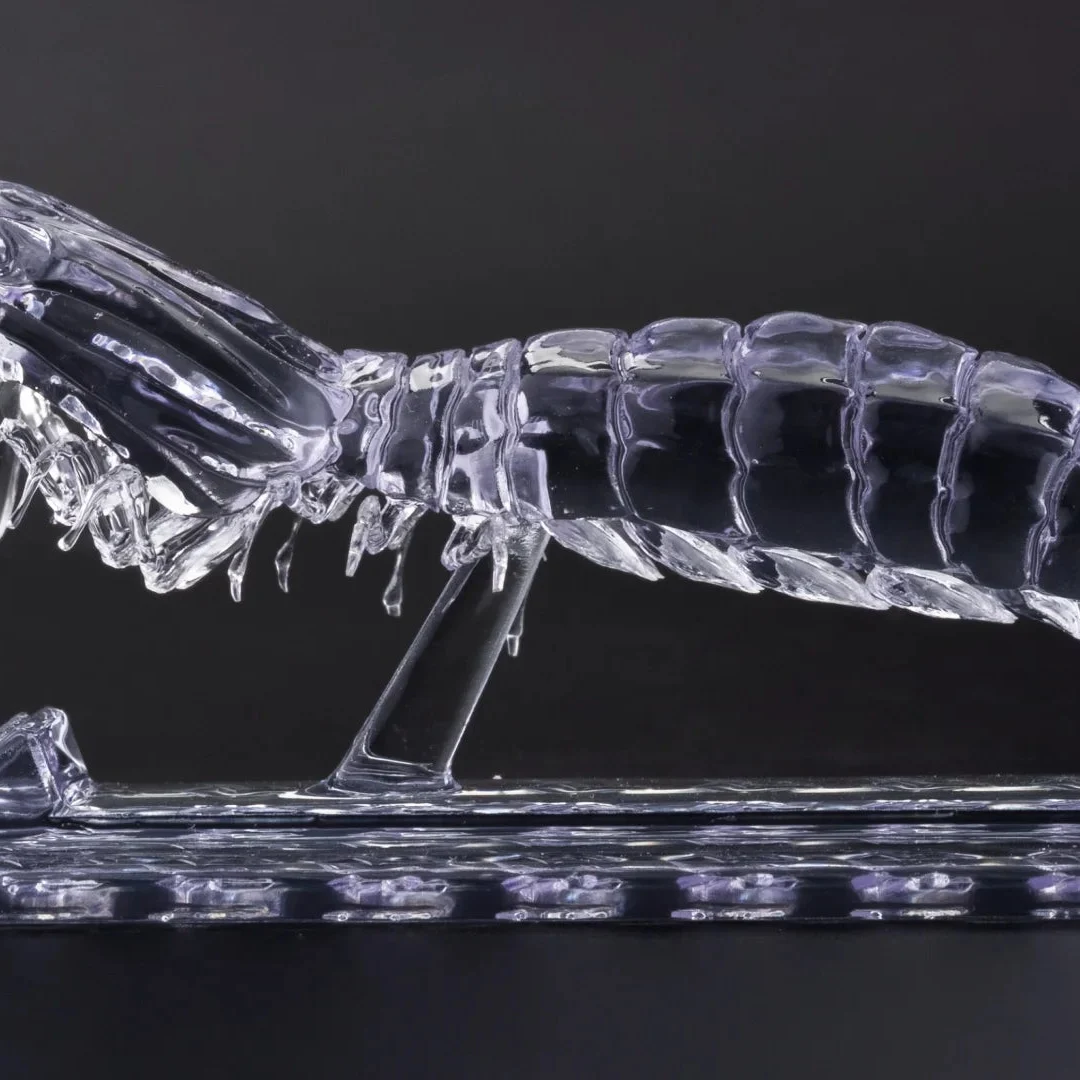

PAF10 Clear starts with a subtle bluish transparency and becomes fully crystal-clear when finished with ClearG115 Gloss Coat — achieving 82% light transmittance. Resolves details down to 0.08mm, delivering clean edges and well-defined features in transparent prints. Designed to maintain clarity over time, minimizing yellowing during long-term display.

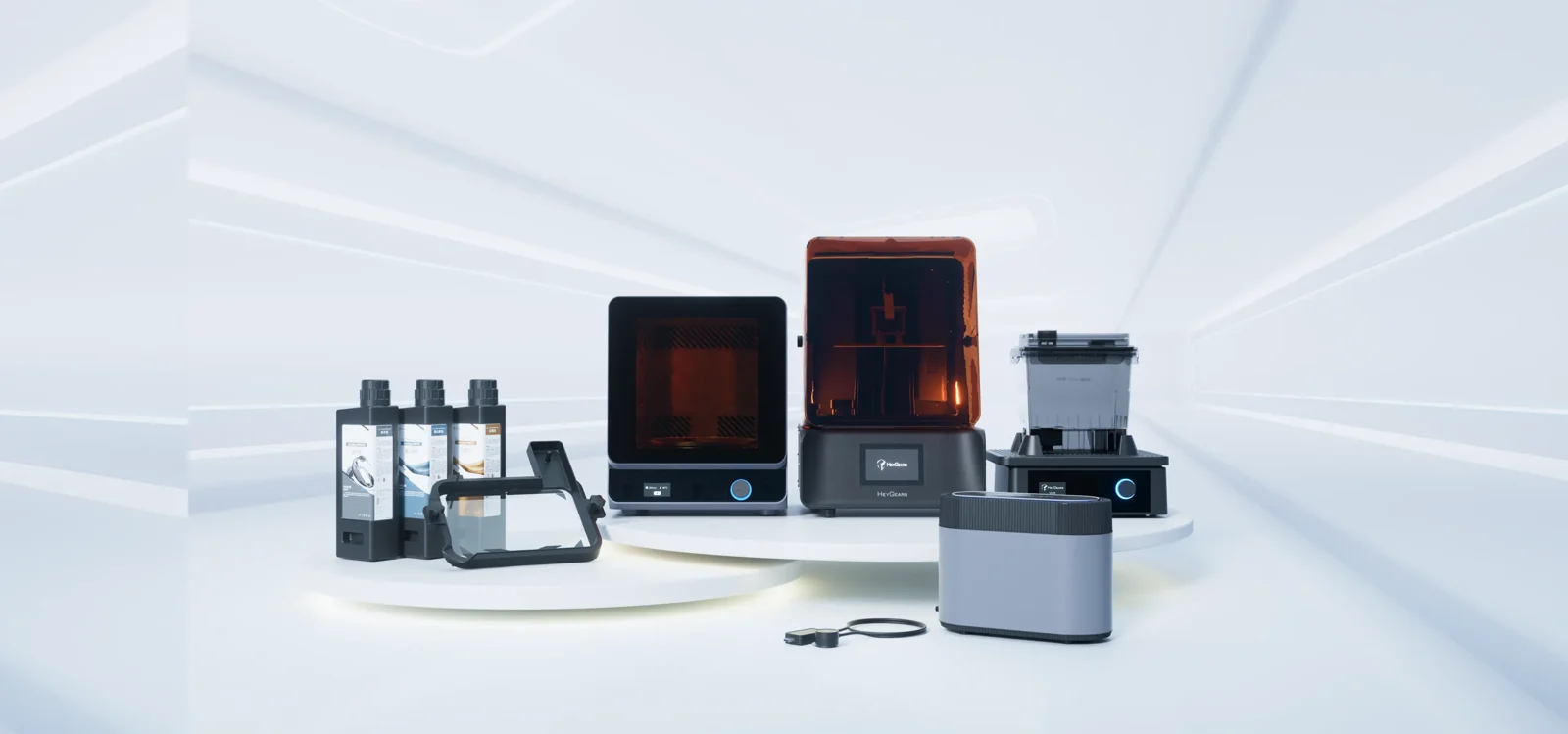

Works With Every
HeyGears Reflex Printer
PAF10 Works With Every
HeyGears Reflex Printer
| Printer | PAF10 Volcanic Gray | PAF10 Clear | Pulsing Release Module Required | Notes |
|---|---|---|---|---|
| Reflex 2 Pro | ✓ | ✓ | No | Full compatibility — all pack sizes |
| Reflex 2 | ✓ | ✓ | No | Full compatibility — all pack sizes |
| Reflex RS Turbo | ✓ | ✓ | No | PAF10 Clear optimized for RS Turbo |
| Reflex RS | ✓ | ✓ | No | PAF10 Clear optimized for RS |
| Reflex Turbo | ✓ | ✓ | No | Standard Blueprint Studio profiles |
| Reflex (original) | ✓ | ✓ | No | Standard Blueprint Studio profiles |
HeyGears PAF10 —
Complete Spec Sheet
| Resin Type | UV-Curable PVC-Like Photopolymer |
| Colors | Volcanic Gray (matte), Clear (transparent) |
| Pack Sizes | 1kg / 3×1kg / 5×1kg per color |
| Elongation at Break | 46% |
| Notched Impact Strength | 52 J/m |
| Water Sorption | 1% |
| Light Transmittance (Clear + Coat) | 82% |
| Smallest Detail Resolution | 0.08mm |
| Surface Finish (Gray) | Matte, invisible layer lines |
| Heat Deflection (Clear) | 40°C max — do not dry above 40°C |
| UV Wavelength | 385+ nm |
| Shelf Life | 12 months (unopened, 15–28°C, away from light) |
| Compatible Printers | Reflex, Reflex Turbo, Reflex RS, RS Turbo, Reflex 2, Reflex 2 Pro |
| Slicing Software | HeyGears Blueprint Studio (free, parameters-free profiles) |
| Clear Coat Add-On | ClearG115 Gloss 250g (+$89) — Clear variant only |
*Specs from HeyGears product documentation. Contact Rev1 for current pricing and stock.
Who Uses PAF10

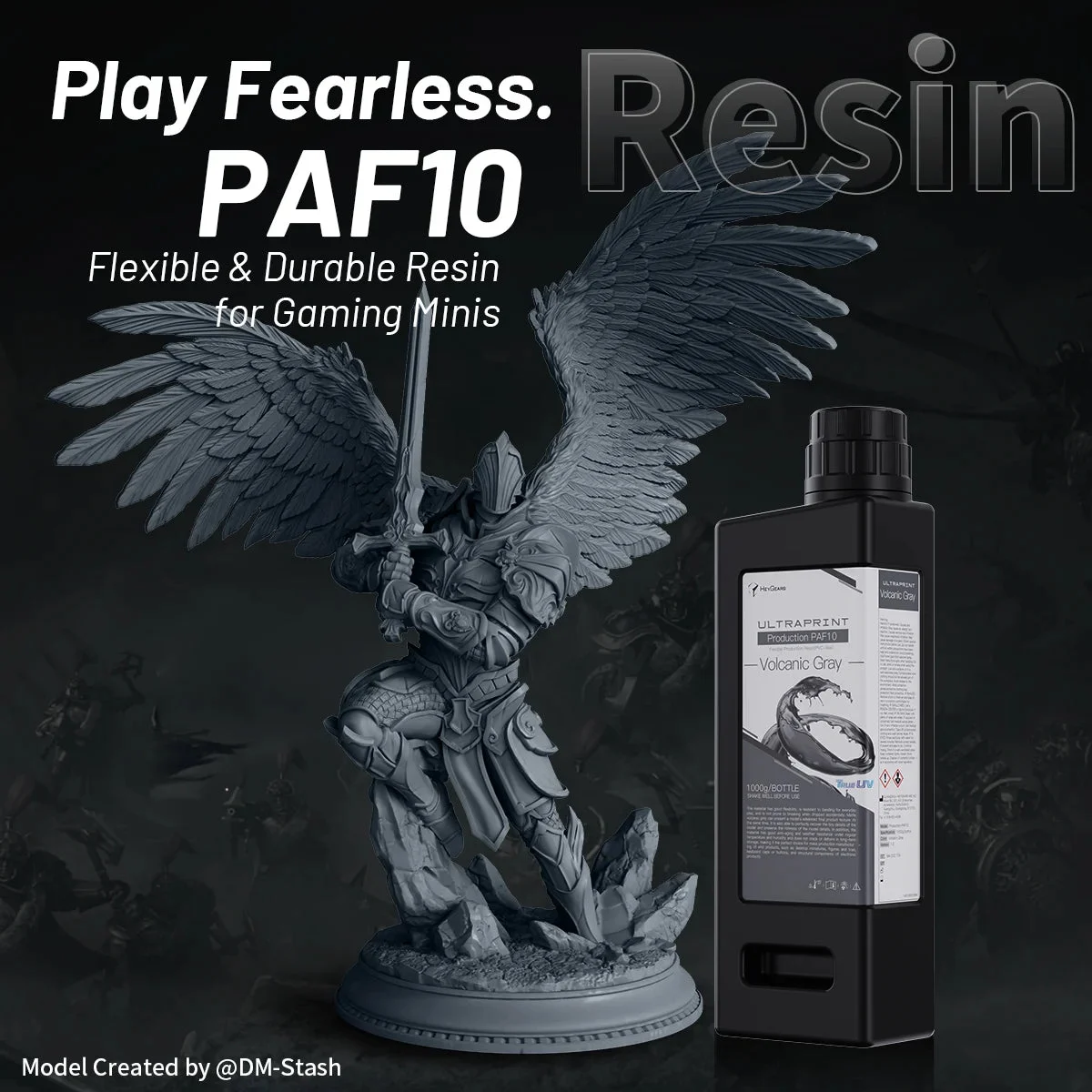

Miniatures and accessories that survive repeated handling. PAF10 flex means thin weapons and fine armor don’t snap during painting or gameplay.
Keycaps, buttons, grips, and squeeze bottles — PVC-like flex behavior for fit-and-function validation before tooling commitment.
Interior clips, trim pieces, and flexible brackets for fit checks. PAF10 replicates PVC behavior for snap-fit and interference design validation.
PAF10 vs. Standard
Flexible Resins
| Property | HeyGears PAF10 | Standard Modeling Resin | Generic Flexible Resin |
|---|---|---|---|
| Elongation at Break | 46% | 5–10% | 30–40% |
| Impact Strength | 52 J/m | 15–25 J/m | 35–45 J/m |
| Water Sorption | 1% | 2–4% | 3–5% |
| Damp Heat Aging Loss | 17% (4-day test) | N/A (rigid) | 32% |
| Transparent Variant | Yes — 82% transmittance | No | Varies |
| Print Profiles | Pre-tuned — zero setup | Manual tuning | Manual tuning |
| Price (1kg) | From $37.99 | $30–50 | $40–70 |
You're Not Just Buying Resin.
You're Getting a Production Partner.
Complete Your
Resin Workflow
Frequently Asked —
HeyGears PAF10
Volcanic Gray is a matte gray with excellent detail reproduction — ideal for miniatures, figurines, and flexible functional prototypes. Clear has a subtle bluish transparency that becomes crystal-clear when coated with ClearG115 glaze, reaching 82% light transmittance. Important: PAF10 Clear has a 40°C heat deflection temperature — never dry above 40°C or it may deform.

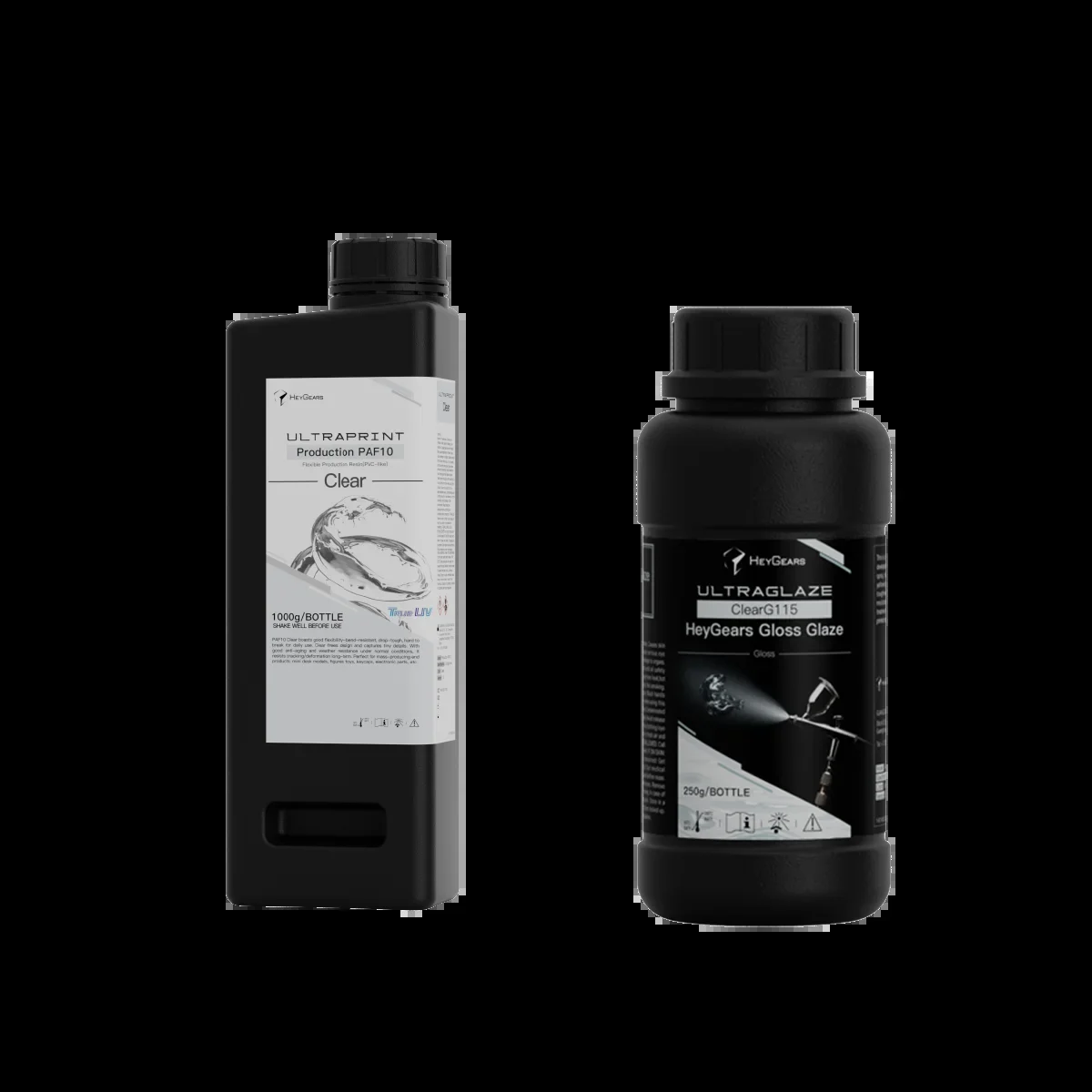

ClearG115 Gloss Coat (250g, $89) is a separate add-on — select it in the configurator when ordering Clear variant. It is not needed for Volcanic Gray and will not appear as an option when Gray is selected. ClearG115 is also available as a standalone product.
PAF10 is compatible with all HeyGears Reflex series: Reflex, Reflex Turbo, Reflex RS, Reflex RS Turbo, Reflex 2, and Reflex 2 Pro. Pre-tuned profiles are available in Blueprint Studio for each printer — no manual parameter adjustment needed.
Standard modeling resins have 5–10% elongation at break — thin parts snap easily. PAF10 delivers 46% elongation, meaning thin swords, wing tips, and fine armor flex rather than fracture. For miniatures that see regular handling, painting, and gameplay, PAF10 is a significant upgrade.
Yes. PAF10 is engineered for flexible functional prototypes — keycaps, buttons, squeeze bottles, cable strain relief, automotive interior clips. The 52 J/m impact strength and 1% water sorption make it suitable for parts that see real handling stress, not just display.
Yes. Rev1 is an authorized HeyGears dealer stocking PAF10 in Auburn Hills, Michigan. Contact us at (248) 707-2950 or (248) 707-2950 for current stock, volume pricing, and same-week shipping availability.
