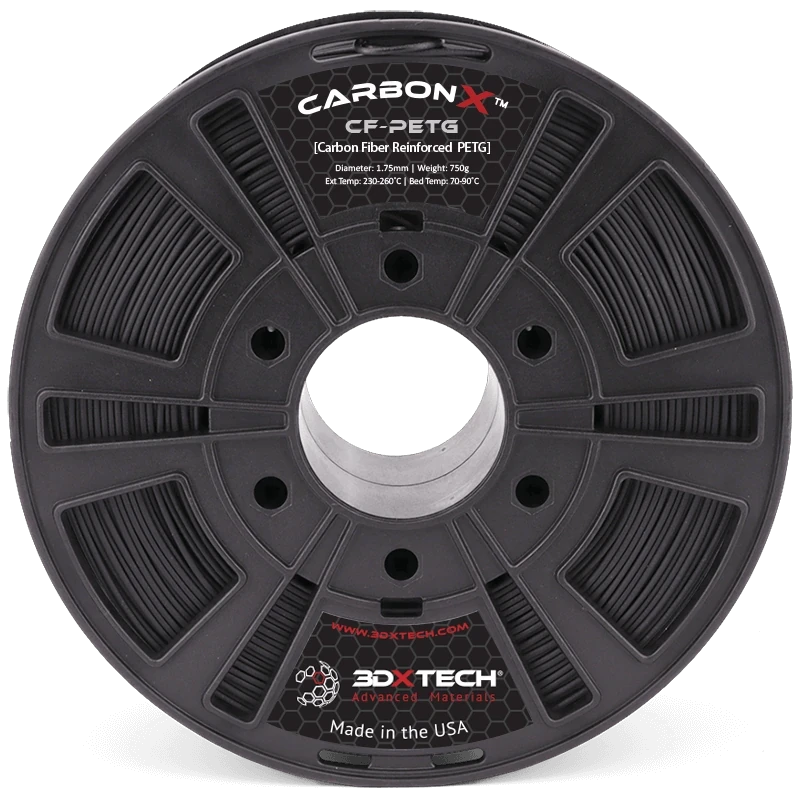

3DXTech CarbonX PETG+CF Carbon-Fiber Reinforced PETG — Stiff, Low-Warp, USA-Made
Carbon-Fiber Reinforced PETG — Stiff, Low-Warp, USA-Made
A USA-made PETG reinforced with engineering-grade chopped carbon fiber — up to 2.5× the stiffness and 20% more strength than standard PETG, with excellent surface quality, low near-isotropic warp, and dimensional stability. Prints on any hardened-nozzle machine; no heated chamber required. Full specifications →
In stock in the USA — 750 g ships from Rev1. 2 kg reels are special order (MOQ 10). Need a specific diameter or bulk case pricing? Call (248) 707-2950.
USA-made carbon-fiber PETG, with a real datasheet behind it.
3DXTech compounds CarbonX PETG+CF in Grand Rapids, Michigan with a published technical data sheet — no mystery filament. Rev1 Technologies is your authorized 3DXTech reseller and US support partner, Auburn Hills, Michigan.
Structural stiffness — without the headaches of engineering polymers.
PETG is the practical workhorse of desktop 3D printing — easy to run, low odor, dimensionally stable. CarbonX PETG+CF takes that forgiving base and reinforces it with engineering-grade chopped carbon fiber to deliver up to 2.5× the stiffness and roughly 20% higher strength than standard PETG. 3DXTech compounds it in the USA into a consistent, matte-black filament so you can produce stiff, lightweight jigs, fixtures, drone parts, and end-use structural components on the printer you already own.
The rigidity of carbon fiber — in an easy-printing PETG.
High modulus lets you make lighter parts without sacrificing stiffness.
Carbon fiber raises CarbonX PETG+CF to a 5230 MPa tensile modulus and a 5740 MPa flexural modulus — the rigidity designers need to remove material and save weight while parts stay stiff. The amorphous PETG base gives low, near-isotropic warp and a premium matte surface quality, so functional brackets, drone frames, and end-use parts print clean on a standard heated-bed machine with a hardened nozzle — no heated chamber, no exotic hot end.
Rigidity, dimensional stability, and a premium finish.
CarbonX PETG+CF is built for structural, engineering-grade applications — and unlike nylon-CF grades, it doesn't demand a dry box or a heated chamber. All figures below are from the 3DXTech CarbonX CF PETG technical data sheet (Rev 3.0).
High-modulus stiffness (ISO 527) from carbon-fiber reinforcement — up to 2.5× unfilled PETG.
Break strength at ISO 527 — roughly 20% higher than standard PETG.
Strong in bending (ISO 178) with a 5740 MPa flexural modulus — rigid, not floppy.
Heat deflection at 0.45 MPa (ISO 75), with an 80°C glass transition — stable in service.
Consistent carbon-filled density (ISO 1183) for stiff, dimensionally stable structural parts.
Runs on practically any heated-bed printer, open-air — no enclosed high-temp machine required.
Easy to run — with one important nozzle rule.
These are 3DXTech's recommended starting conditions (from the spool label and TDS). It behaves like standard PETG — but carbon fiber is abrasive, so a hardened nozzle is a must.
Wide processing window (up to 270°C works) — no high-temp hardware needed.
A PEI or textured build surface gives reliable first-layer grip with low warp.
Prints open-air like standard PETG — no enclosure needed for dimensional stability.
Use a hardened-steel or abrasion-resistant nozzle — carbon fiber wears out brass fast.
Run 0.25 mm or thicker layers for the best strength and consistent flow with the filled filament.
Absorbs ~3× less moisture than ABS — a quick, infrequent dry keeps prints clean.
Built for lightweight, load-bearing structures.

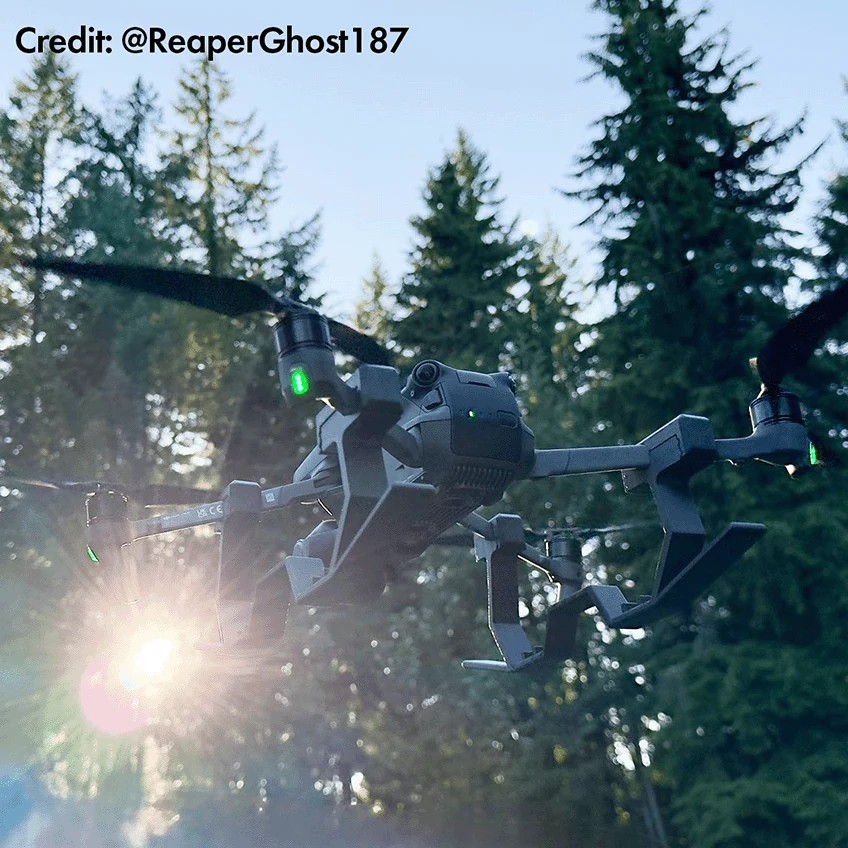

Vibration-resistant drone & UAV parts.
Landing skids, arms, and mounts that stay light while surviving hard landings.
Where standard PETG flexes, CarbonX PETG+CF holds its line. Landing skids, arms, and camera mounts keep drones light while resisting the vibration and hard landings that crack unfilled plastic. The carbon reinforcement damps resonance and adds rigidity exactly where airframes need it — a genuine stiffness-to-weight upgrade over plain PETG.

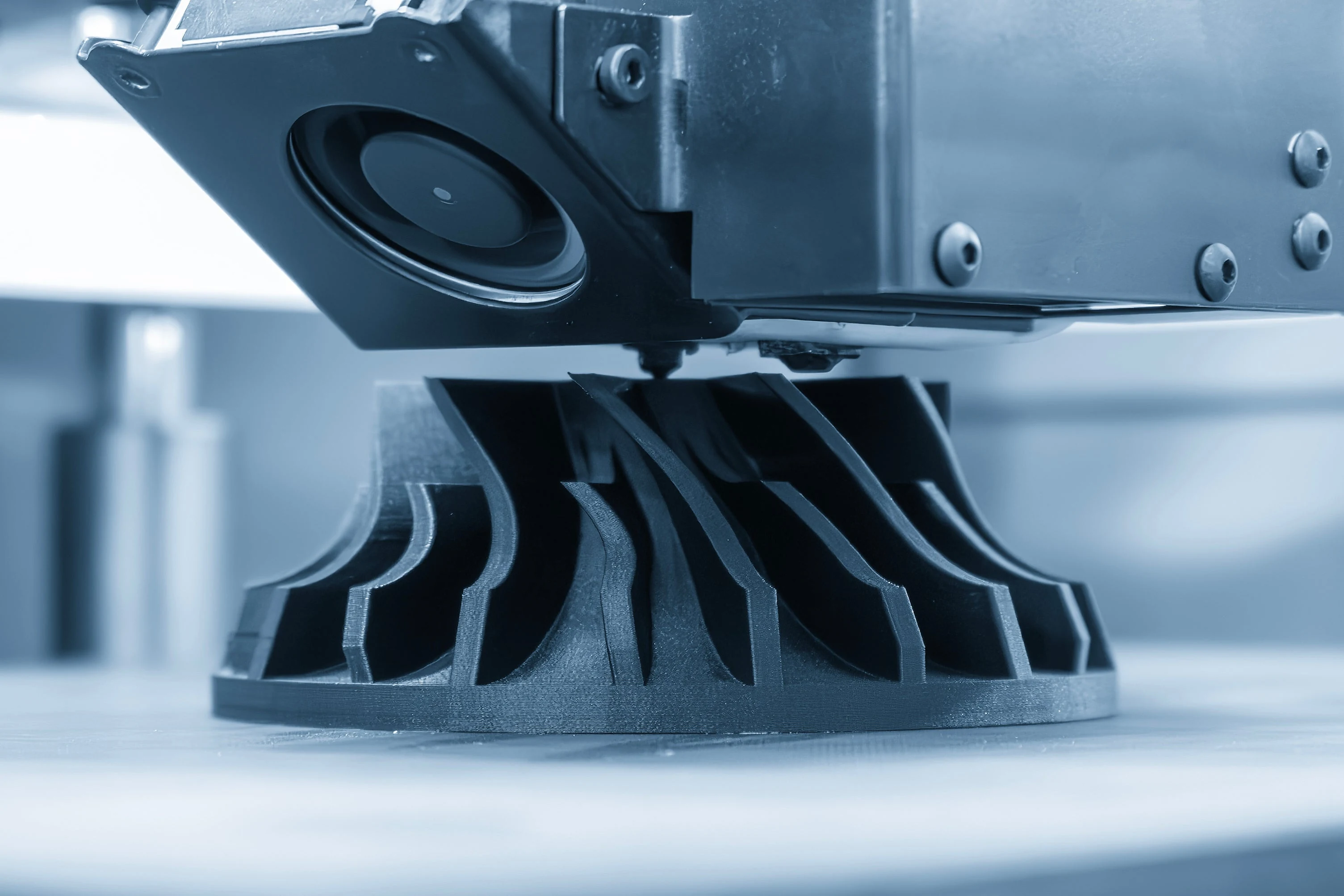

Prints clean, complex geometry — like this bladed impeller.
Sharp bridging and overhangs in a stiff, dimensionally stable print.
The stiff carbon matrix and low warp of CarbonX PETG+CF hold fine detail on demanding geometry — thin vanes, ducts, and internal ribbing — on an open FFF machine with a hardened nozzle. The matte carbon-fiber surface hides layer lines and reads as a finished engineering part straight off the plate, with no heated chamber and no post-machining.
Two diameters, two reel sizes.
CarbonX PETG+CF ships in black on standard 3DXTech reels. Choose your diameter and reel size in the buy-box — pricing updates as you pick.
The most common desktop diameter — available on 750 g and 2 kg reels.
For 2.85/3.0 mm machines — same material, larger diameter, on 750 g and 2 kg reels.
Sized for Bambu AMS, Creality CFS, and Anycubic ACE-Pro systems — our most popular size.
Best per-kilo value for production runs — special order, MOQ 10; contact Rev1.
Premium matte-black carbon-fiber finish — carbon fiber is inherently black.
750 g reels start at $50 — a genuinely stiff CF filament at PETG-class pricing.
Check the reel fits your printer.
Standard spool dimensions — confirm it fits your AMS or dry box.
3DXTech ships CarbonX on consistent, standard reels.
Before you buy, check the outer diameter, width, and center bore against your printer's spool holder, automated material system, or drybox. The 750 g reel is sized for AMS, CFS, and ACE-Pro systems. Open the full 3DXTech reel infographic for the exact dimensions of the 750 g and 2 kg spools.
View reel dimensions →Carbon-fiber PETG vs. nylon-CF vs. unfilled PETG.
Approximate positioning among common carbon-fiber and everyday filaments — confirm exact figures against each technical data sheet.

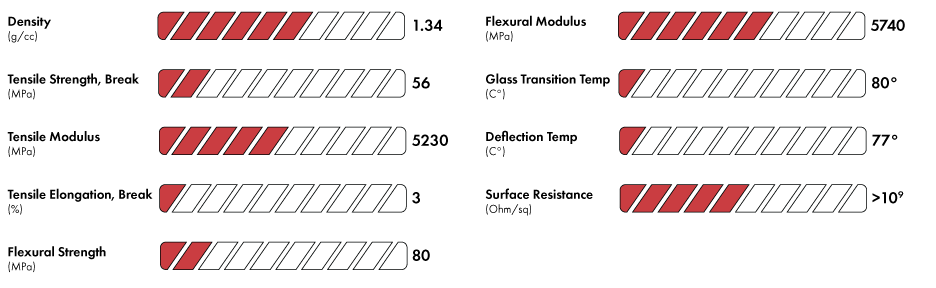

3DXTech's published property chart.
The quick-reference numbers, straight from the manufacturer.
3DXTech publishes a property chart for CarbonX PETG+CF so you can size it up fast — density 1.34 g/cc, 56 MPa tensile, 5230 MPa tensile modulus, 80 MPa flexural, an 80°C glass transition, and a 77°C deflection temperature. For the complete mechanical, thermal, and print data with test methods, request the full technical data sheet below.
| CarbonX PETG+CF | Nylon+CF (PAHT-CF) | Unfilled PETG | |
|---|---|---|---|
| Base polymer | PETG + carbon fiber | Nylon (PAHT) + carbon fiber | PETG |
| Stiffness (modulus) | Very high (5230 MPa) | High (~4000 MPa) | Moderate (~2100 MPa) |
| Heated chamber | Not required | Recommended | Not required |
| Moisture sensitivity | Low (3× below ABS) | High (nylon) | Low |
| Printer needs | Heated bed + hardened nozzle | Heated bed + hardened nozzle + drying | Heated bed |
| Finish / colors | Premium matte black | Matte black | Many colors |
| Best for | Stiff, light parts on open printers | Toughest CF parts, high heat | Easy general-purpose parts |
Qualitative comparison among carbon-fiber and standard grades; confirm exact properties against each TDS. Prices vary by diameter, reel size, and date.
3DXTech CarbonX PETG+CF Technical Data
RESOURCES
Datasheet & Print Support
Everything you need to qualify and print CarbonX PETG+CF.
WHY REV1 TECH
Authorized 3DXTech Reseller. Engineering-Materials Specialists.
Rev1 Technologies is an authorized 3DXTech reseller in Auburn Hills, MI, supplying genuine USA-made engineering filament with real print support.
We help you pick the right engineering polymer, dial in the profile, and keep production running.
FAQ
3DXTech CarbonX PETG+CF — Common Questions
Do I need a special printer?
No heated chamber is required. You need a printer with a heated bed (70–90°C), a hotend that reaches roughly 230–260°C, and a hardened-steel nozzle. It prints open-air like standard PETG, so most desktop printers can run it once a hardened nozzle is fitted.
Why do I need a hardened nozzle?
The carbon fiber that gives this filament its stiffness is abrasive and will quickly wear out a standard brass nozzle. Use a hardened-steel or other abrasion-resistant nozzle, 0.4 mm minimum.
Do I have to dry it?
PETG+CF absorbs roughly 3× less moisture than ABS, so drying is quick and infrequent. If a spool has been open a while, dry it at 65°C for about 4 hours before printing for the best surface finish and layer adhesion.
How is it different from a nylon-CF filament?
Both are carbon-fiber reinforced. PETG+CF is stiffer at the modulus level, much less moisture-sensitive, and prints open-air with no heated chamber — easier and cheaper to run. Nylon-CF is tougher and handles higher heat but wants drying and often a chamber. We'll help you choose based on your part.
What diameters and reel sizes are available?
Black only, in 1.75 mm and 2.85 mm, on 750 g and 2 kg reels. The 750 g reel is sized for Bambu AMS, Creality CFS, and Anycubic ACE-Pro systems and ships from stock; the 2 kg reel is a special-order production size (MOQ 10) — contact Rev1 to confirm availability.
Is it made in the USA?
Yes — 3DXTech manufactures CarbonX PETG+CF in its 68,000 ft² facility in Grand Rapids, Michigan, with a published data sheet and lot traceability.
