3DXTech ThermaX PPE+PS Flame-Retardant Polyphenylene-Ether Alloy — UL94 V-0, USA-Made
Flame-Retardant Polyphenylene-Ether Alloy — UL94 V-0, USA-Made
A USA-made polyphenylene-ether / polystyrene (PPE+PS) alloy built from a UL94 V-0 rated flame-retardant base resin. It pairs high heat resistance with excellent chemical and hydrolytic stability and genuinely stable dielectric properties — an engineering filament for electrical, industrial, and outdoor parts that has to resist flame, moisture, and heat without warping. It prints on a standard hardened-free 0.4 mm nozzle. Full specifications →
Made in the USA — ships from Rev1. Need larger reels, natural color, or bulk pricing? Call (248) 707-2950.
USA-made flame-retardant PPE, with a real datasheet behind it.
3DXTech compounds ThermaX PPE+PS in Grand Rapids, Michigan at its 68,000 sq ft facility, with a published technical data sheet — no mystery filament. Rev1 Technologies is your authorized 3DXTech reseller and US support partner, Auburn Hills, Michigan.
Flame, heat, and chemistry — handled, without reinforcement.
ThermaX PPE+PS is a polyphenylene-ether alloy (a Noryl-type PPE/PS blend) that exhibits exceptional thermal, mechanical, and chemical resistance. Because its performance comes from the base polymer rather than a carbon- or glass-fiber filler, it is unreinforced — tough and dimensionally stable, with low isotropic shrinkage, and printable on a standard 0.4 mm nozzle with no hardened steel required. Its UL94 V-0 rated flame-retardant resin, stable dielectric properties, and hydrolytic stability make it a go-to for electrical enclosures, industrial parts, and components that live near heat, steam, or the weather. 3DXTech compounds it in the USA into consistent, printable filament with a published datasheet.
Flame retardance, heat, and electrical stability.
ThermaX PPE+PS is built for demanding, engineering-grade applications where flame rating, heat, and dielectric stability matter more than raw stiffness. Numbers below are from the published TDS (Rev 1.0, ISO-tested).

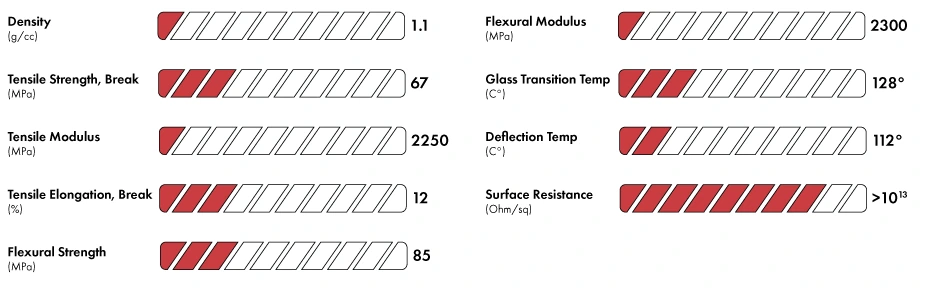

3DXTech's published property chart.
The quick-reference numbers, straight from the manufacturer.
3DXTech publishes a property chart for ThermaX PPE+PS summarizing its thermal, mechanical, and electrical behavior. Tap the chart to enlarge it, or see the full mechanical and thermal data with test methods in the specifications table below and the technical data sheet in the resources.
Made from a UL94 V-0 rated flame-retardant base resin — self-extinguishing behavior for electrical and enclosure parts.
Deflection temperature per ISO 75 (~120°C at 0.45 MPa) — holds shape in hot environments.
Measured by DSC — a high-Tg amorphous polymer with predictable behavior up to its softening range.
Per ASTM D257 — a genuine insulator with stable dielectric properties for electrical parts.
Strong at break (ISO 527) with 12% elongation — tough and ductile, not brittle.
Low, even shrinkage plus hydrolytic stability — dimensionally stable parts that resist warp and moisture.
A high-temp hotend — but no hardened nozzle needed.
These are 3DXTech's recommended print settings. Because PPE+PS is unreinforced, there is no abrasive filler — a standard 0.4 mm nozzle is fine. Dry it before printing and give it a warm bed and, ideally, a heated chamber.
Requires a genuine high-temp hotend; 3DXTech printed its test specimens at 310°C.
A high-temperature heated bed with a suitable adhesive for reliable first-layer grip.
Recommended — a warm, enclosed chamber improves layer bonding and reduces warp on larger parts.
No hardened nozzle required — PPE+PS is unfilled and non-abrasive, so a standard brass nozzle works.
Runs down to fine 0.10 mm layers for detail, or thicker for speed and strength.
Dry the filament and keep it dry for the cleanest surface and most consistent flow.
Built for electrical, industrial, and outdoor end-use parts.
Because it is flame retardant, dimensionally stable, chemically and hydrolytically resistant, and a stable dielectric, ThermaX PPE+PS lands in parts that go into service — not just prototypes. It has long been used across aerospace, automotive, industrial, electronics, and telecommunications, and its UV resistance (rated F1 per UL 746C) makes it suitable for outdoor applications.
Black, on a standard 750 g reel.
ThermaX PPE+PS ships in black on 1.75 mm filament, wound on a standard 750 g reel that fits popular automated material systems — the 750 g spool clears the size requirements of the Bambu AMS, Creality CFS, and Anycubic ACE Pro. Need natural color, a different diameter, larger reels, or a bulk run? Ask us — we can source and quote directly from 3DXTech.
Flame-retardant PPE vs. polycarbonate vs. PPSU.
Approximate positioning among amorphous, high-temp engineering filaments — confirm exact figures against each technical data sheet.
| ThermaX PPE+PS | Polycarbonate (PC) | PPSU / PSU | |
|---|---|---|---|
| Flame rating | UL94 V-0 (base resin) | Typically UL94 HB (V-0 grades exist) | UL94 V-0 |
| Heat (Tg / HDT) | Tg 128°C / HDT 112°C | Tg ~147°C / HDT ~110°C | Very high (Tg 220°C+) |
| Chemical / hydrolytic | Excellent, hydrolytically stable | Moderate (attacked by some solvents) | Excellent |
| Dielectric stability | Excellent, stable | Good | Good |
| Warp / dimensional | Low, isotropic shrinkage | Prone to warp without a chamber | High-temp, needs hot chamber |
| Printer needs | High-temp hotend, standard nozzle, chamber recommended | High-temp hotend, chamber | Very-high-temp hotend + hot chamber |
| Approx. price | ~$100/kg | ~$60–90/kg | ~$200/kg+ |
| Best for | Flame-rated, electrical, hydrolytically-stable parts | Tough, clear-ish structural parts | Extreme heat & steam, autoclavable parts |
Qualitative comparison among amorphous engineering polymers; confirm exact properties against each TDS. Street prices are approximate and vary by reel size and date.
3DXTech ThermaX PPE+PS Technical Data
Check the reel fits your printer.
Standard spool dimensions — confirm it fits your AMS or dry box.
3DXTech ships ThermaX PPE+PS on a consistent, standard 750 g reel.
Before you buy, check the outer diameter, width, and center bore against your printer's spool holder, automated material system, or drybox. The 750 g reel clears the size requirements of the Bambu AMS, Creality CFS, and Anycubic ACE Pro. Open the full 3DXTech reel infographic for exact spool dimensions.
View reel dimensions →RESOURCES
Datasheet & Print Support
Everything you need to qualify and print ThermaX PPE+PS.
WHY REV1 TECH
Authorized 3DXTech Reseller. Engineering-Materials Specialists.
Rev1 Technologies is an authorized 3DXTech reseller in Auburn Hills, MI, supplying genuine USA-made engineering filament with real print support.
We help you pick the right engineering polymer, dial in the profile, and keep production running.
FAQ
3DXTech ThermaX PPE+PS — Common Questions
Do I need a special printer?
Yes — ThermaX PPE+PS prints around 290–320°C, so you need a genuine high-temp hotend and a high-temp heated bed (90–120°C). A heated chamber (50–80°C) is recommended for the best layer bonding and lowest warp, but you do not need a hardened nozzle.
Do I need a hardened nozzle?
No. Unlike carbon- or glass-fiber filaments, PPE+PS is unreinforced and non-abrasive, so a standard brass 0.4 mm nozzle is fine — one of the reasons it is easier to run than a filled engineering grade.
What makes PPE+PS worth it over ABS or PC?
Its UL94 V-0 flame-retardant base resin, stable dielectric properties, hydrolytic stability, and low isotropic shrinkage. If your part has to resist flame, moisture, or heat and stay dimensionally stable — especially electrical and outdoor parts — PPE+PS outperforms standard ABS and adds flame rating and chemical resistance PC does not match.
Is it flame retardant?
Yes — it is made from a UL94 V-0 rated flame-retardant base resin. Note that a UL rating applies to a tested specimen and geometry; printed parts should be validated for your specific application.
Do I have to dry it?
Yes. Like most engineering polymers it prints best dry — dry the filament at 80°C for about 4 hours before printing and store it in a dry box for the cleanest surface and most consistent flow.
What colors and sizes are available?
3DXTech currently ships ThermaX PPE+PS in black, 1.75 mm, on a 750 g reel. If you need natural color, another diameter, or larger reels for a production run, contact us — we can source and quote directly from 3DXTech.
Will the reel fit my AMS?
The 750 g reel is sized to clear popular automated material systems including the Bambu AMS, Creality CFS, and Anycubic ACE Pro. Check the reel infographic in the spool-specs section against your printer's spool holder or dry box before you buy.
Is PPE+PS the same as Noryl?
PPE/PS alloys are the 3D-printing counterpart to the Noryl family — a polyphenylene ether blended with polystyrene. ThermaX PPE+PS brings that proven engineering-resin chemistry — flame retardance, stable dielectric behavior, and hydrolytic resistance — to FDM/FFF filament.
Is it made in the USA?
Yes — 3DXTech manufactures ThermaX PPE+PS at its 68,000 sq ft facility in Grand Rapids, Michigan, with a published data sheet and lot traceability.
