3DXLABSEMI-ABSElectrically Conductive ABS — EMI Shielding for FDM Parts
Print EMI-shielding enclosures directly in conductive ABS.
EMI-ABS is a cutting-edge, electrically conductive ABS blend engineered to provide EMI shielding performance in FDM 3D printing. It prints with excellent layer adhesion and surface quality on a Bambu X1C with no heated chamber required (a heated chamber is recommended to maximize mechanical strength and finish). A 3DXLABS R&D material for experienced users. Made in the USA. Full specifications →
Genuine 3DXTech material, ships from Rev1. Need another color, diameter, or volume pricing? Call (248) 707-2950.
USA-made EMI-ABS filament, engineered for real applications.
3DXTech manufactures 3DXLABS™ EMI-ABS in Grand Rapids, Michigan. Rev1 Technologies is your authorized 3DXTech reseller and US support partner in Auburn Hills, Michigan — ask us for the current data sheet.

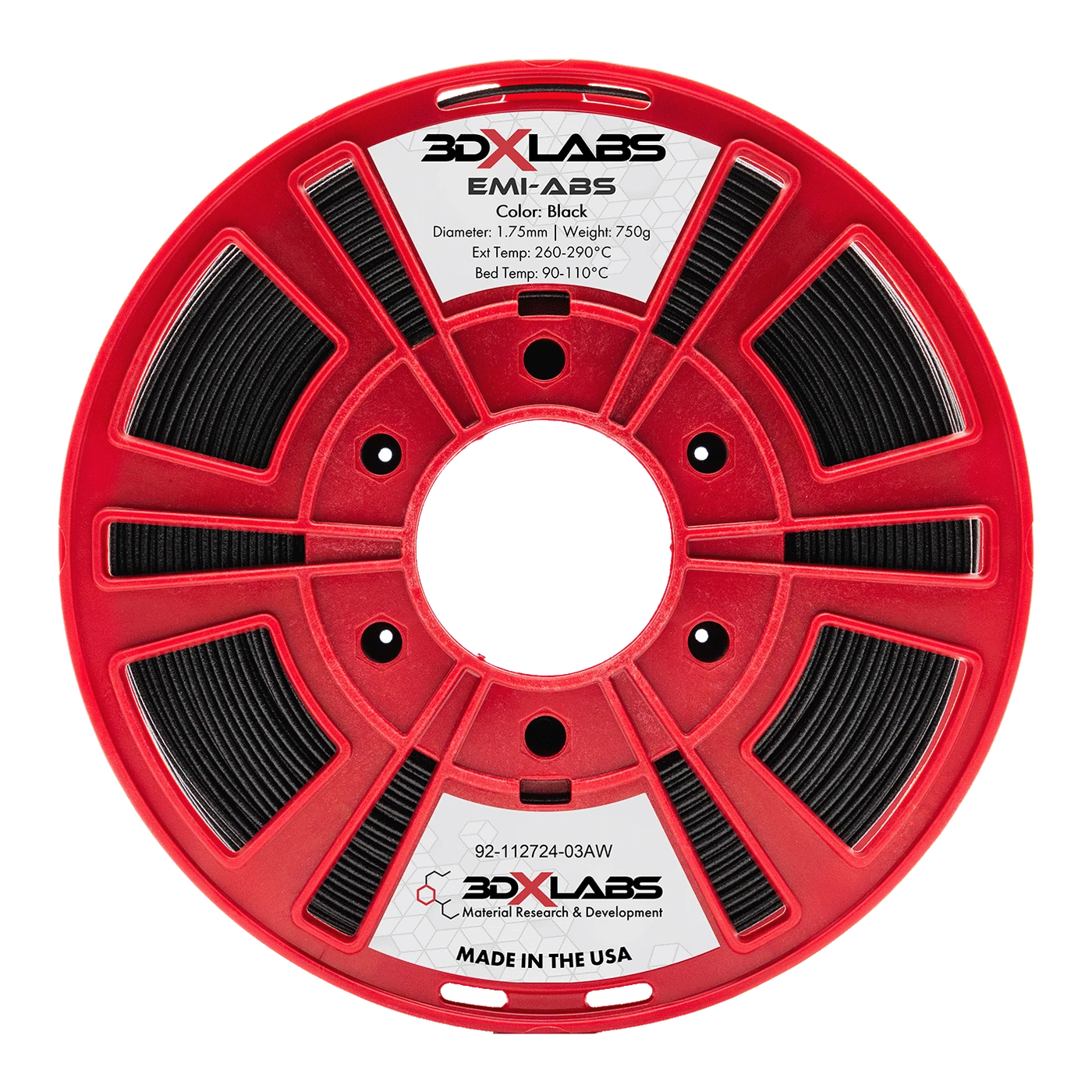

Genuine 3DXLABS™ EMI-ABS — on a Rev1-supported spool.
EMI-ABS is a cutting-edge, electrically conductive ABS blend engineered to provide EMI shielding performance in FDM 3D printing. It prints with excellent layer adhesion and surface quality on a Bambu X1C with no heated chamber required (a heated chamber is recommended to maximize mechanical strength and finish). A 3DXLABS R&D material for experienced users.
USA-made, traceable, and supported by Rev1.
The real material — not grey-market filament of unknown origin.
Every spool is authentic 3DXTech material, manufactured in their 68,000 sq-ft Grand Rapids, Michigan facility. Rev1 Technologies is an authorized 3DXTech reseller and US support partner — we help you choose the right grade, dial in your printer, and keep production running. Choose your color, diameter, and reel size below.
Print EMI-shielding enclosures directly in conductive ABS.
Full mechanical data for 3DXLABS™ EMI-ABS is available from Rev1 on request.
Between 4 dB and 16 dB shielding effectiveness from 1–9 GHz, depending on infill pattern and density.
Near 0 dB below 500 MHz; begins increasing at 600 MHz with strong performance above 700 MHz.
A conductive ABS blend engineered for EMI shielding.
Excellent layer adhesion and surface quality on a Bambu X1C — no heated chamber required.
Built on a familiar, tough ABS base.
Manufactured in Grand Rapids, Michigan.
Dial it in — and print with confidence.
Guidance for printing EMI-ABS. Request the technical data sheet from Rev1 for exact temperatures and settings.
Prints well on an X1C with no heated chamber required.
A heated chamber is recommended to maximize mechanical strength and finish.
Shielding effectiveness depends on infill pattern and density — denser infill improves shielding.
EMI-ABS in the real world.
Typical applications for EMI-ABS (Electrically Conductive EMI-Shielding ABS).

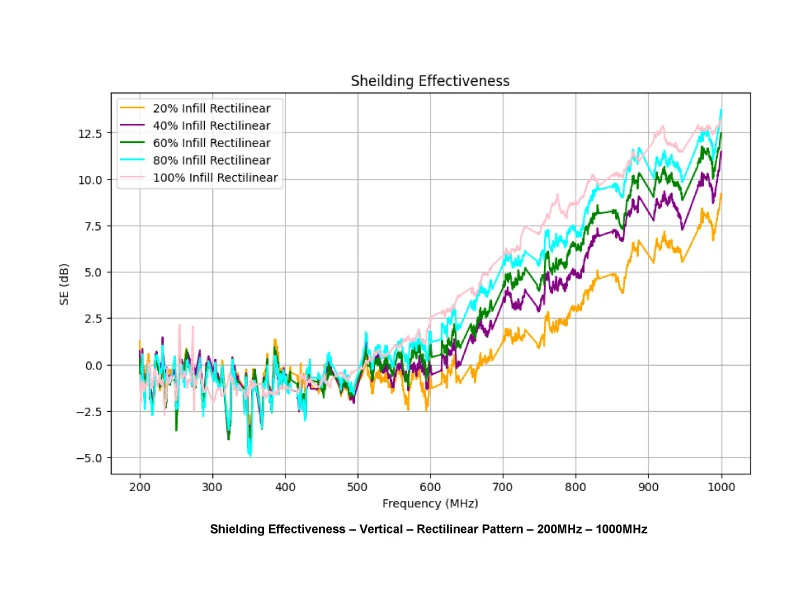

Real EMI shielding effectiveness — measured across frequency.
Strong shielding where it matters — the GHz range.
3DXTech's measurements show near 0 dB shielding effectiveness below 500 MHz, rising from 600 MHz, with strong performance above 700 MHz. From 1 GHz to 9 GHz, EMI-ABS delivers between 4 dB and 16 dB of shielding effectiveness, depending on infill pattern and density.
Why choose EMI-ABS?
How 3DXLABS™ EMI-ABS compares to Standard ABS. Request the full data sheet for exact figures.
| EMI-ABS | Standard ABS | |
|---|---|---|
| EMI shielding | 4–16 dB (1–9 GHz) | None |
| Conductivity | Conductive | Insulative |
| Base toughness | ABS | ABS |
| Heated chamber | Not required (X1C) | Not required |
Comparative summary for guidance; request the 3DXLABS™ EMI-ABS data sheet for exact properties. Prices vary by color, diameter, and date.
3DXTech 3DXLABS™ EMI-ABS — Product Data
Product data below. Full mechanical and thermal data is available —
RESOURCES
Data Sheet & Printing Support
Everything you need to run 3DXLABS™ EMI-ABS.
WHY REV1 TECH
Authorized 3DXTech Reseller. Engineering-Materials Specialists.
Rev1 Technologies is an authorized 3DXTech reseller in Auburn Hills, MI, supplying genuine USA-made material with real support.
We help you pick the right grade, dial in your printer, and keep production running.
FAQ
3DXTech EMI-ABS — Common Questions
What is EMI-ABS?
EMI-ABS is a cutting-edge, electrically conductive ABS blend engineered to provide EMI shielding performance in FDM 3D printing. It prints with excellent layer adhesion and surface quality on a Bambu X1C with no heated chamber required (a heated chamber is recommended to maximize mechanical strength and finish). A 3DXLABS R&D material for experienced users.
How much EMI shielding does it provide?
Near 0 dB below 500 MHz, rising from 600 MHz, with 4–16 dB from 1–9 GHz depending on infill pattern and density. Denser infill improves shielding.
What colors, diameters, and sizes are available?
Colors: Black. Diameters: 1.75mm. Reel size: 750g. Ask us about other options and volume pricing.
Where can I get the mechanical data?
The full 3DXLABS™ EMI-ABS technical data sheet is available from Rev1 on request — use any “Request the TDS” button on this page.
Is this a production material?
EMI-ABS is a 3DXLABS R&D product — an experimental formulation offered in limited batches for experienced users. Contact Rev1 to confirm current availability.
Is it genuine 3DXTech material?
Yes — Rev1 Technologies is an authorized 3DXTech reseller. Every spool is authentic, USA-made 3DXTech material with real support.
