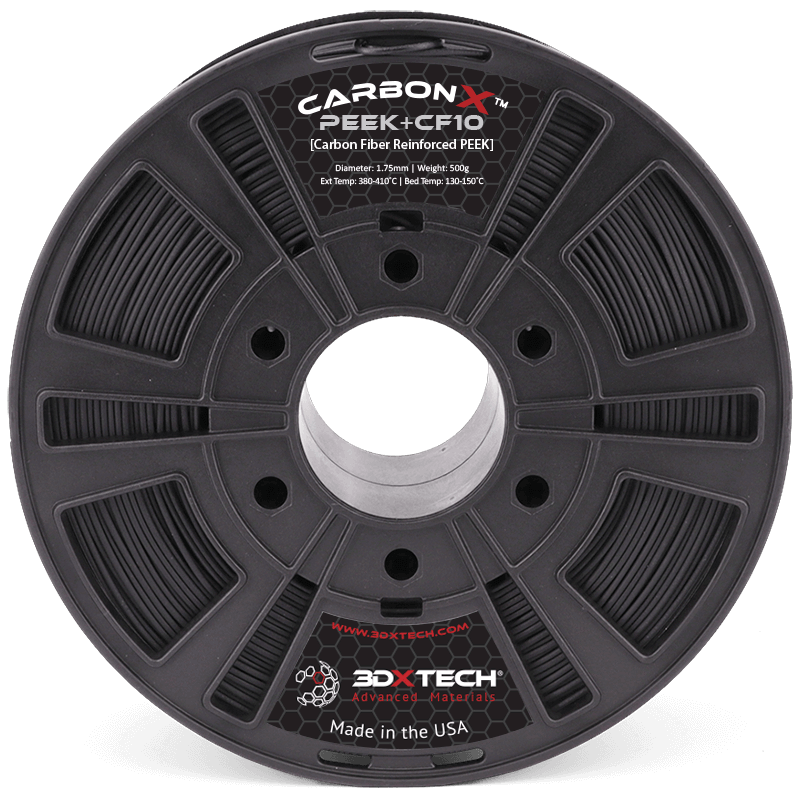

3DXTech CarbonX™ PEEK+CF10 10% Carbon Fiber PEEK — 8,100 MPa Modulus · 265°C HDT · Hardened Nozzle Required
10% Carbon Fiber PEEK — 8,100 MPa Modulus · 265°C HDT · Hardened Nozzle Required
3DXTech’s CarbonX PEEK+CF10 delivers extraordinary stiffness with 10% chopped high-modulus carbon fiber reinforcement — raising tensile modulus to 8,100 MPa and heat deflection to 265°C. Near-zero moisture absorption, low CTE, and exceptional chemical resistance. For demanding aerospace, automotive, and semiconductor applications where unfilled PEEK isn’t enough. Made in Grand Rapids, Michigan.
Lead time varies. Contact Rev1 to confirm availability.
WHY CARBONX PEEK+CF10
8,100 MPa Modulus. 265°C HDT. Hardened Nozzle Required.
CarbonX™ PEEK+CF10 is 3DXTech’s carbon fiber reinforced PEEK — 10% high-modulus chopped carbon fiber delivers 2× the stiffness of unfilled PEEK with a 265°C heat deflection temperature. For aerospace, automotive, defense, and semiconductor applications where maximum performance is mandatory.
2× Stiffer Than Unfilled PEEK
10% high-modulus CF raises tensile modulus from ~3,600 MPa to 8,100 MPa. Dramatically reduced creep and deflection under sustained load at elevated temperatures.
265°C HDT
Heat deflection temperature at 0.45 MPa. One of the highest HDT values achievable in any FFF filament. Parts maintain structural integrity at temperatures that would deform most engineering thermoplastics.
Near-Zero Moisture Absorption
PEEK+CF10 absorbs virtually no moisture — dimensional stability is maintained in humid or wet environments without conditioning. Critical for precision instrumentation and semiconductor tooling.
Made in USA
Extruded and wound in-house at 3DXTech’s Grand Rapids, MI facility under ISO 9001:2015 certification. Full lot traceability throughout filament fabrication.
PRINTING WITH CARBONX PEEK+CF10
PEEK+CF10 — Carbon Fiber Reinforced for Extreme Performance
CarbonX PEEK+CF10 requires a hardened steel nozzle — standard brass will wear rapidly against the carbon fiber. Beyond nozzle requirement, process is similar to unfilled PEEK: industrial hardware, 400°C-capable hot end, and heated chamber deliver reliable results.
- Extruder Temp 380–410°C — all-metal hot end required
- Bed Temp 140–165°C — PEI or garolite build surface
- Chamber Temp ≥70°C recommended — heated enclosure strongly recommended
- Nozzle Hardened steel ≥0.4mm — MANDATORY. Standard brass nozzle will wear rapidly against CF.
- Drying 120°C / 4 hr minimum before every print session
- ⚠ Nozzle Warning Hardened nozzle is non-negotiable. Carbon fiber reinforcement is highly abrasive — a standard brass nozzle will show measurable wear within a single 500g spool. Use hardened steel, ruby, or sapphire nozzle. 0.4mm minimum diameter — small nozzles are more prone to CF bridging.
THERMAL DATA
265°C HDT — Highest Heat Deflection in the Filament Catalog
Four thermal milestones defining CarbonX™ PEEK+CF10’s operating envelope — verified against 3DXTech CarbonX CF PEEK TDS v3.
HDT at 0.45 MPa. The highest heat deflection temperature achievable in the 3DXTech filament catalog. Carbon fiber reinforcement raises HDT from ~140°C for unfilled PEEK to 265°C — approaching PEEK’s own melting point of 343°C.
Tg of the PEEK matrix. Semi-crystalline structure means significant stiffness is retained well above this point due to the crystalline phase and CF reinforcement — the 265°C HDT demonstrates this directly.
Estimated continuous-use temperature based on HDT performance and PEEK crystallinity. Carbon fiber reinforcement significantly extends practical use temperature above unfilled PEEK’s ~150°C.
Required before every session. Despite near-zero moisture absorption, consistent drying ensures print quality at 380–410°C extrusion temperatures. Pre-drying is best practice for all PEEK-family filaments.
CHEMICAL RESISTANCE
Exceptional Chemical Resistance Retained With CF Reinforcement
CarbonX™ PEEK+CF10’s PEEK matrix delivers the same broad chemical resistance as unfilled PEEK — with added resistance to dimensional creep under chemical exposure due to the CF reinforcement. Resistant to virtually all organic solvents, fuels, hydraulic fluids, and industrial process chemicals.
Consult 3DXTech CarbonX CF PEEK TDS v3 for complete chemical compatibility data before use in fluid-contact applications.

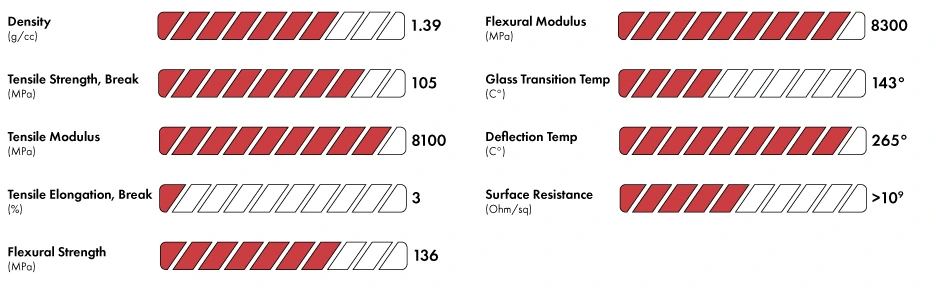

SPECIFICATIONS
CarbonX™ PEEK+CF10 — Full Technical Data
Source: 3DXTech CarbonX CF PEEK TDS v3. ISO-standard test specimens. 1.75mm black filament.
Material Properties
| Polymer | PEEK + 10% Carbon Fiber (CF10) |
| Diameter | 1.75mm |
| Color | Black (only) |
| Glass Transition (Tg) | 143°C |
| HDT (0.45 MPa, ISO 75) | 265°C |
| Continuous Use Temp | ~250°C |
| Flame Rating | Low smoke (inherent PEEK) |
| Moisture Absorption | Near-zero |
| Tensile Strength | 105 MPa (ISO 527) |
| Flexural Strength | 136 MPa (ISO 178) |
| Tensile Elongation | 3% |
| Density | 1.39 g/cm³ (ISO 1183) |
Print Parameters
| Extruder Temp | 380–410°C |
| Bed Temp | 140–165°C |
| Chamber Temp | ≥70°C recommended |
| Drying Protocol | 120°C / 4 hr minimum |
| Nozzle | Hardened steel ≥0.4mm (MANDATORY) |
| Hot End Requirement | All-metal, rated ≥410°C |
Availability
| Spool Sizes | 250g, 500g, 1kg, 2kg |
| 250g Price | $195 |
| 500g Price | $400 |
| 1kg Price | $715 |
| 2kg Pricing | Special order — MOQ 10 units |
| Lead Time | Varies — contact Rev1 to confirm |
| Quality Standard | ISO 9001:2015 Certified |
| Origin | Grand Rapids, MI, USA |

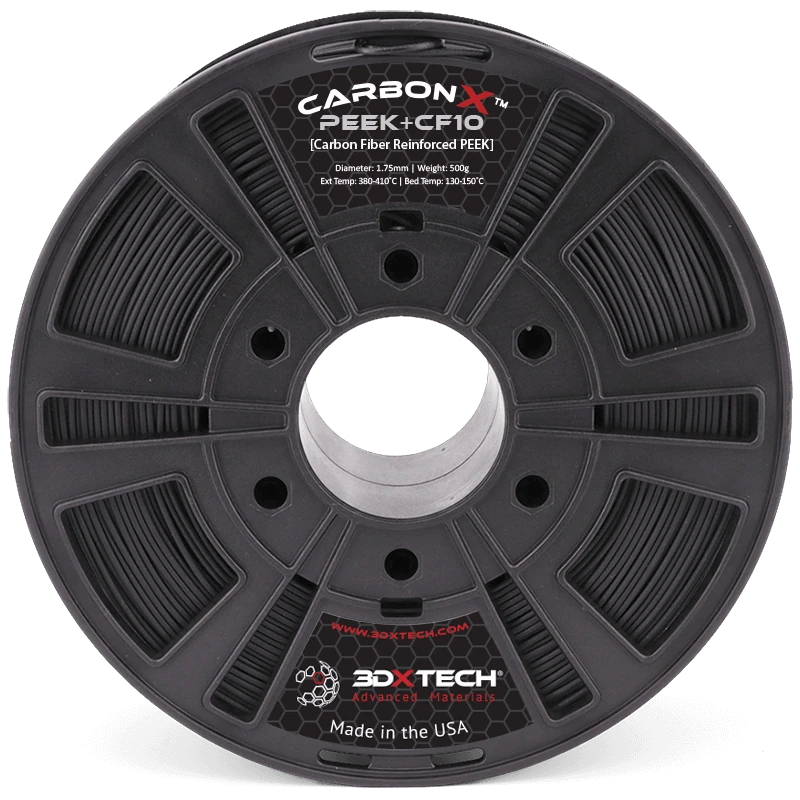

SPOOL SELECTION
250g · 500g · 1kg in Stock. 2kg Special Order.
CarbonX™ PEEK+CF10 is available in Black (1.75mm) in four spool sizes. 2kg requires MOQ-10 special order.
- Reel #1 — 152mm dia., 41mm wide
- 120g empty weight
- Entry / Qualification
- Reel #2–#7 — 198mm dia.
- Standard Production
- Recommended for production use
- Reel #4 — 198mm dia., 72mm wide
- 295g empty weight
- Volume Production
- Reel #8 — 300mm dia., 100mm wide
- 945g empty weight
- High-volume industrial runs

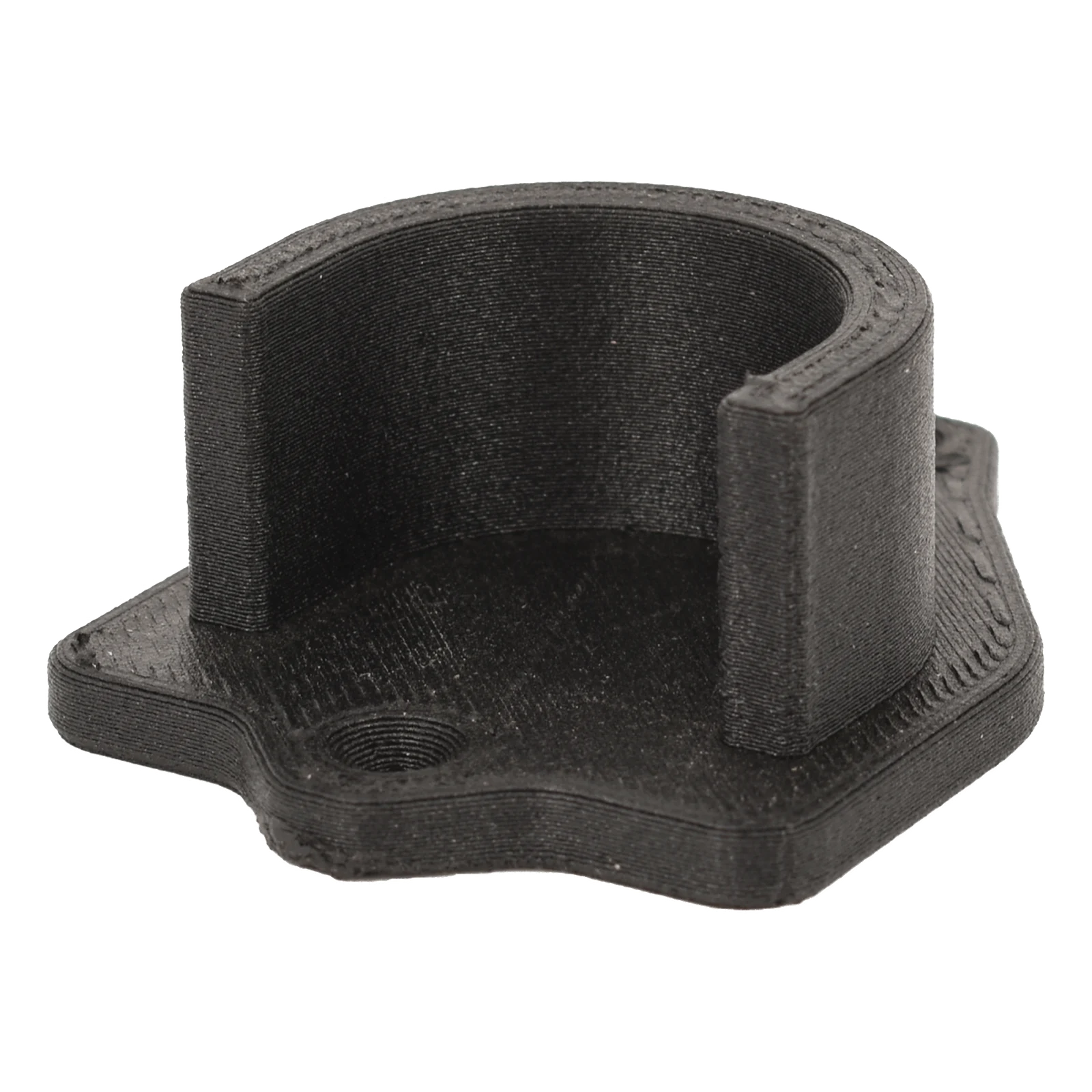

PRINT QUALITY
Production-Grade Output on the Right Equipment
CarbonX™ PEEK+CF10 produces parts with fine surface detail and strong interlayer adhesion when printed on a properly configured industrial platform.
COMPATIBLE PLATFORMS
Requires an Industrial-Grade 3D Printer
CarbonX PEEK+CF10 demands an all-metal hot end rated to 410°C+, a heated enclosure, AND a hardened steel nozzle. Any open-platform printer meeting these requirements can run PEEK+CF10.
CreatBot F160-PEEK
Purpose-built PEEK platform with dual all-metal hot ends and integrated chamber heating. PEEK+CF10 compatible. Rev1’s top recommendation for first-time PEEK adopters.
Rev1 RecommendedCreatBot PEEK-300
300mm build volume, 420°C hot end rating, 200°C heated chamber. PEEK+CF10 compatible. Production-oriented platform for larger part geometries.
Rev1 RecommendedCreatBot F430
Quad-nozzle large-format industrial printer with multi-material capability. PEEK+CF10 compatible. Supports PEEK plus support materials for complex geometries.
Rev1 RecommendedAny Open-Platform Printer
Minimum: 410°C+ all-metal hot end • 140–165°C heated bed • ≥70°C enclosure • hardened steel nozzle ≥0.4mm (MANDATORY for CF).
WHERE IT WORKS
Where CF-Reinforced PEEK Outperforms Every Other Option
When unfilled PEEK isn’t stiff enough, dimensionally stable enough, or thermally capable enough — CarbonX PEEK+CF10 delivers.
Aerospace
Structural brackets, ducting, and load-bearing components requiring 2× the stiffness of unfilled PEEK at temperatures up to 250°C.
Semiconductor
Precision tooling, wafer handling equipment, and process hardware requiring dimensional stability (low CTE), chemical resistance, and near-zero moisture absorption in cleanroom environments.
Automotive
High-temperature under-hood components, structural brackets, and sensor housings where thermal expansion must be minimized.
Defense
Ballistic and structural components requiring maximum stiffness and thermal performance; low smoke / inherent flame resistance.
Oil & Gas
Downhole tools, valve components, and manifolds requiring combined chemical resistance, stiffness, and high-temperature performance.
Medical/Industrial Tooling
Sterilizable fixtures, jigs, and end-use device components requiring elevated stiffness and dimensional precision.
MATERIAL CARE
Moisture Is the Enemy. A Proper Protocol Eliminates It.
PEEK+CF10 has near-zero moisture absorption — the carbon fiber does not change this behavior. However, the PEEK matrix still requires consistent drying before printing at 380–410°C. Follow this protocol every session.
Dry Before Every Session
120°C minimum / 4 hours minimum. No exceptions — even a sealed spool that has been open for a few days benefits from a fresh drying cycle.
Print From the Dryer
For best results, print directly from a heated dry-box or dryer system. Ambient humidity will re-absorb into the filament during extended print runs.
Store Sealed With Desiccant
Return unused filament to an airtight bag or container with fresh desiccant immediately after printing. Long-term storage in original sealed packaging is acceptable.
Recognize Wet Filament Symptoms
Popping or crackling during extrusion, rough surface texture, reduced layer adhesion, and visible bubbling in the melt are signs of moisture contamination. Re-dry and restart.
HOW IT COMPARES
CarbonX™ PEEK+CF10 vs. Commonly Evaluated Alternatives
Buyers evaluating CarbonX PEEK+CF10 typically compare against unfilled ThermaX PEEK for a more ductile option, CarbonX PEKK-A+CF15 for a slightly higher CF loading in a different polymer, and Stratasys CF PEEK for a platform-locked alternative.
3DXTech / Rev1 Tech
3DXTech
3DXTech
Stratasys
3DXTECH QUALITY
Manufactured in Michigan. Certified to ISO 9001:2015.
Every spool of CarbonX™ PEEK+CF10 is produced in-house at 3DXTech’s Grand Rapids, MI facility under ISO 9001:2015 certification. 10% high-modulus chopped carbon fiber compounded with PEEK resin, with full lot traceability throughout filament fabrication.
ISO 9001:2015 Certified
Production under a certified quality management system. Lot traceability and process controls throughout filament fabrication.
Made in Grand Rapids, MI
Filament extruded and wound in-house at 3DXTech’s Michigan facility. Direct factory quality control — not overseas commodity production.
Technical Data Sheet Available
Full processing parameters, mechanical properties, and chemical resistance data published in the CarbonX™ CF PEEK TDS v3. Available for download below.
RESOURCES
Downloads & Technical Support
Everything you need to qualify and print CarbonX™ PEEK+CF10 with confidence.
WHY REV1 TECH
Authorized 3DXTech Reseller. Industrial AM Specialists.
Rev1 Technologies is an authorized 3DXTech reseller headquartered in Auburn Hills, MI, with direct technical expertise in high-performance FFF materials and the printers that run them.
Authorized Reseller
Every spool ships direct from the authorized channel. MAP pricing guaranteed. Single-channel license compliance — not a grey-market distributor.
Platform Expertise
Rev1 carries the industrial printers validated for PEEK. If you need guidance on which platform to match with this material, our team has run them.
Pre-Sales Technical Support
Questions about print settings, printer selection, or qualifying PEEK for a specific application? Contact Rev1 before you order — that conversation is free.
FREQUENTLY ASKED
CarbonX™ PEEK+CF10 — Buyer Questions Answered
What is CarbonX™ PEEK+CF10?
CarbonX™ PEEK+CF10 is 3DXTech’s 10% high-modulus chopped carbon fiber reinforced PEEK filament. It is semi-crystalline, available in Black only, and delivers 8,100 MPa tensile modulus and 265°C heat deflection temperature. A hardened steel nozzle is mandatory — the CF reinforcement is abrasive and will rapidly wear brass nozzles.
What temperatures does CarbonX™ PEEK+CF10 require?
CarbonX™ PEEK+CF10 requires an extruder temperature of 380–410°C and a bed temperature of 140–165°C. A heated enclosure at ≥70°C is strongly recommended. Dry at 120°C for 4 hours minimum before every print session. All-metal hot end rated to 410°C+ is required.
Why does CarbonX™ PEEK+CF10 need a hardened steel nozzle?
Carbon fiber is highly abrasive. A standard brass nozzle will show measurable wear within a single 500g spool of CF filament. Hardened steel, ruby-tipped, or sapphire nozzles all work. 0.4mm minimum diameter — smaller nozzles are more prone to CF bridging and clogging.
How does PEEK+CF10 compare to unfilled PEEK?
CF10 reinforcement approximately doubles tensile modulus (8,100 MPa vs. ~3,600 MPa for unfilled PEEK) and raises HDT from ~140°C to 265°C. Trade-off: elongation drops from ~35% to 3% — PEEK+CF10 is less ductile and more brittle than unfilled PEEK. Choose CF10 when stiffness and thermal performance outweigh toughness requirements.
What applications use CarbonX™ PEEK+CF10?
CarbonX™ PEEK+CF10 is used in aerospace structural brackets, semiconductor wafer handling tooling, automotive high-heat under-hood components, defense structural parts, and oil & gas downhole tools. Any application requiring maximum stiffness, 265°C thermal performance, and near-zero moisture absorption.
Is CarbonX™ PEEK+CF10 chemically resistant?
Yes. The PEEK matrix maintains full chemical resistance — the CF reinforcement does not affect the chemical compatibility profile. CarbonX™ PEEK+CF10 is resistant to virtually all organic solvents, fuels, hydraulic fluids, and industrial process chemicals. Consult the TDS v3 for specific fluid compatibility data.
How does CarbonX™ PEEK+CF10 compare to Stratasys CF PEEK?
Both use 10% CF-reinforced PEEK chemistry with similar performance targets. Stratasys CF PEEK is platform-locked to Fortus/F900 systems. CarbonX™ PEEK+CF10 runs on any open-material machine with a hardened nozzle and 400°C+ hot end — same chemistry, fraction of system cost, no platform lock-in.
Should I choose PEEK+CF10 or PEKK-A+CF15?
CarbonX™ PEKK-A+CF15 has slightly higher fiber loading and modulus, with a higher Tg (158°C) and is often considered easier to print than PEEK. Choose PEEK+CF10 when the established PEEK chemistry is required (qualification, supply chain), or when maximum HDT (265°C) is the primary driver. PEKK-A+CF15 is typically lower cost and more printable on a wider range of machines.
