3DXTech ABS (3DXMAX ABS) Premium USA-Made ABS Filament — 11 Colors, Acetone-Smoothable
Premium USA-Made ABS Filament — 11 Colors, Acetone-Smoothable
A premium ABS (Acrylonitrile Butadiene Styrene) filament formulated specifically for 3D printing and compounded in 3DXTech's 68,000 sq-ft Grand Rapids, Michigan facility. One of the most widely used FDM materials — easy to print, durable, less brittle than similar polymers, and smoothable with acetone vapor. Full specifications →
Made in the USA — ships from Rev1. Need 2.85 mm, 4 kg / 10 kg reels, a specific color, or bulk? Call (248) 707-2950.
USA-made premium ABS, with a published datasheet behind it.
3DXTech compounds 3DXMAX ABS in Grand Rapids, Michigan with published print and material data — no mystery filament. Rev1 Technologies is your authorized 3DXTech reseller and US support partner, Auburn Hills, Michigan.
One of the most widely used filaments — done right.
ABS (Acrylonitrile Butadiene Styrene) is one of the most popular materials in fused-deposition 3D printing, and 3DXMAX ABS is a premium blend formulated specifically for it. It prints durable, sturdy parts off practically every 3D printer on the market, is easier to run than most industrial-grade materials, and is less brittle than other similar polymers. 3DXTech compounds it in the USA into consistent, printable filament so you can move from prototype to functional end-use parts on the printer you already own.
Industrial durability — without the industrial difficulty.
Sturdy, less-brittle parts from a filament that just prints.
ABS earned its place as a go-to engineering plastic because it balances strength, toughness, and printability. 3DXMAX ABS keeps parts durable and less brittle than many comparable polymers, while staying easy enough to run that you don't need an exotic high-temperature machine. Standard brass nozzles are fine — there's no abrasive fiber to wear them out — so the only real recommendation is an enclosure to keep large prints from warping.
Real engineering properties, from a published TDS.
These are 3DXTech's published values (TDS v3), tested on an open-source FDM/FFF machine — 0.4 mm nozzle, 0.25 mm layer, 100% infill, ISO methods.
Strength at break (ISO 527) — strong, durable parts that hold up in service.
Stiffness under load (ISO 527) — parts stay dimensionally stable.
Strong in bending (ISO 178) with a 1985 MPa flexural modulus.
Ductility (ISO 527) — parts flex before they fail, so they're less brittle.
DSC-measured Tg — comfortably above ambient service temperatures.
Deflection temp at 0.45 MPa (ISO 75, 66 psi) — well above PLA or PETG.
Easy to run — standard nozzle, enclosure recommended.
3DXTech's recommended starting conditions. ABS is non-abrasive so no hardened nozzle is needed; an enclosure helps large parts resist warping and cracking.
Standard ABS hotend range — no exotic high-temperature hardware required.
A hot bed with a suitable adhesive gives reliable first-layer grip and reduces warp.
An enclosure helps prevent warping and cracking on large parts — unlike unfilled ABS on tiny prints.
No hardened nozzle needed — unfilled ABS is non-abrasive, so a standard 0.4 mm brass nozzle is fine.
Runs cleanly at 0.10 mm or higher — no special layer-height concerns.
ABS is mildly hygroscopic; drying at 80°C for ~4 hours gives the best surface and consistency.
From prototypes to functional end-use parts.
Off practically every 3D printer on the market.

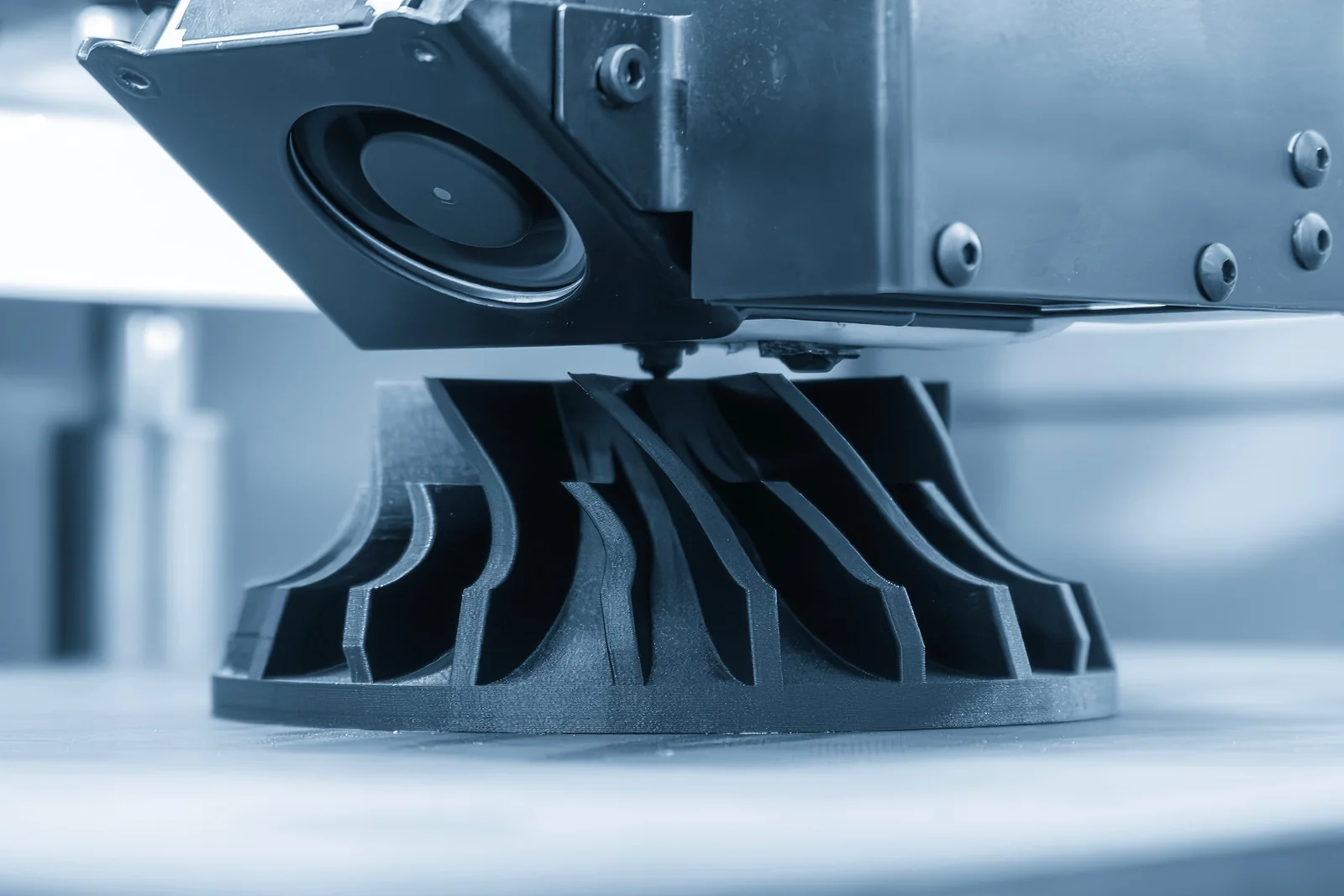

Print prototypes, tooling, enclosures, and end-use components.
Because it's durable, easy to print, and acetone-smoothable, 3DXMAX ABS is a natural fit for parts that go into service — not just prototypes. Print jigs and fixtures on the shop floor, enclosures and housings for electronics, or consumer models you can vapor-smooth to a glossy finish. Run it on the hardware you already own.

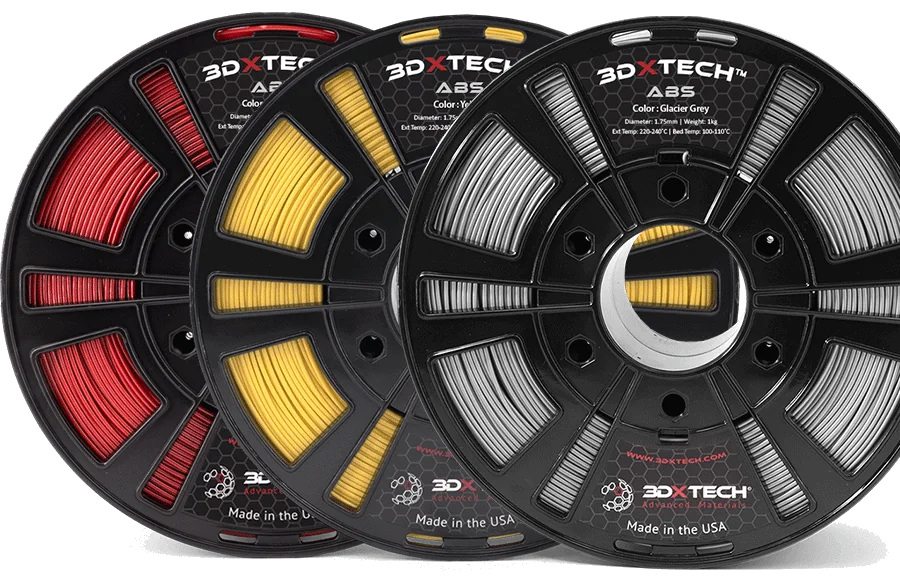

Eleven colors — the widest range in the lineup.
Black, Reflex Blue, Mid Blue, Green, Dark Grey, Natural, Orange, Red, Burgundy, White & Yellow.
Choose your color in the buy-box — the spool preview updates as you pick.
3DXMAX ABS ships in eleven colors — the broadest palette in the whole 3DXTech lineup — from stealth Black and deep Burgundy to bright Orange, Yellow, and clean Natural. Every color prints the same premium blend, so you can standardize your settings and just swap the reel. Need a specific color in bulk? Ask us about case pricing.
Check the reel fits your printer.
Standard spool dimensions — confirm it fits your AMS or dry box.
3DXTech ships ABS on consistent, standard reels.
Before you buy, check the outer diameter, width, and center bore against your printer's spool holder, automated material system, or drybox. Open the full 3DXTech reel infographic for the exact dimensions of the 1 kg, 4 kg, and 10 kg spools.
View reel dimensions →ABS vs. ASA vs. PETG — picking the right everyday polymer.
Approximate positioning among the common general-purpose engineering filaments — confirm exact figures against each technical data sheet.

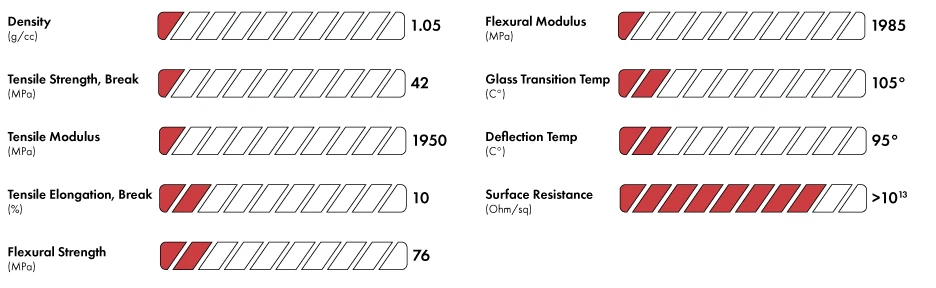

3DXTech's published property chart.
The quick-reference numbers, straight from the manufacturer — click the chart to enlarge it.
3DXTech publishes a property chart for 3DXMAX ABS so you can size it up fast. It's small on the page — click it to read the full-size version — and the same figures are in the readable specifications table below, with the complete mechanical, thermal, and print data.
| 3DXTech ABS | ASA | PETG | |
|---|---|---|---|
| Ease of printing | Easy | Moderate | Easy |
| Heat resistance | High (95°C HDT) | High | Moderate |
| UV / outdoor | Moderate | Excellent | Good |
| Printer needs | Heated bed + enclosure recommended | Heated bed + enclosure | Heated bed |
| Nozzle | Standard brass | Standard brass | Standard brass |
| Finishing | Acetone-vapor smoothable | Limited smoothing | Not vapor-smoothable |
| Best for | Durable everyday parts, glossy finishes | UV-stable outdoor parts | Tough, chemical-resistant parts |
Qualitative comparison among common general-purpose filaments; confirm exact properties against each TDS. Prices vary by reel size and date.
3DXTech ABS (3DXMAX ABS) Technical Data
RESOURCES
Datasheet & Print Support
Everything you need to qualify and print 3DXMAX ABS.
WHY REV1 TECH
Authorized 3DXTech Reseller. Engineering-Materials Specialists.
Rev1 Technologies is an authorized 3DXTech reseller in Auburn Hills, MI, supplying genuine USA-made filament with real print support.
We help you pick the right polymer, dial in the profile, and keep production running.
FAQ
3DXTech ABS — Common Questions
Do I need a special printer?
No exotic hardware. You need a printer with a heated bed (100–110°C) and a hotend that reaches 220–240°C. An enclosure is recommended to prevent warping and cracking on larger parts, but a standard brass nozzle is fine.
Do I need a hardened nozzle?
No. Unlike glass- or carbon-fiber filaments, 3DXMAX ABS is unfilled and non-abrasive, so a standard 0.4 mm brass nozzle prints it without any accelerated wear.
Should I use an enclosure?
It's recommended. ABS can warp or crack as large prints cool unevenly; an enclosed or heated chamber keeps the ambient temperature stable and dramatically improves results on big parts.
Can I smooth the parts?
Yes. One of ABS's signature advantages is acetone-vapor smoothing — a light acetone-vapor treatment melts the surface layer to a glossy, near-injection-molded finish.
What colors and sizes are available?
Eleven colors — Black, Reflex Blue, Mid Blue, Green, Dark Grey, Natural, Orange, Red, Burgundy, White, and Yellow — in 1.75 mm and 2.85 mm, on 1 kg, 4 kg, and 10 kg reels. Ask us for bulk.
Is it made in the USA?
Yes — 3DXTech manufactures and compounds 3DXMAX ABS in its 68,000 sq-ft facility in Grand Rapids, Michigan, with published data and lot traceability.
